JIS standard cast iron single chain oil Colander

JIS standard cast iron single chain oil Colander

JIS standard cast iron single chain oil Colander

Product Details:

Place of Origin: China Jiangsu Yangzhou
Brand Name: Feiteng
Certification: Inspection Report
Model Number: S,LA,LB

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: The 3 day
Payment Terms: Advance payment and delivery
Supply Ability: 1000
Contact Now
Detailed Product Description

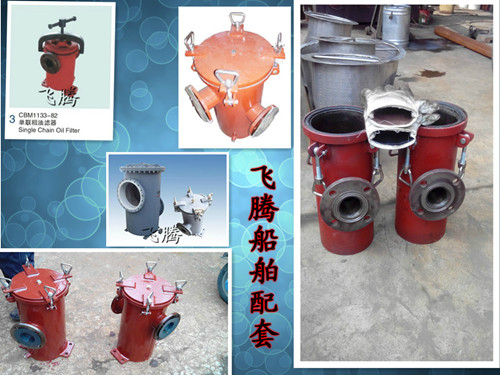

JIS standard cast iron single chain oil Colander

Jiangsu Feiteng ship matching Engineering Limited company specialized production: single oil filter CBM1133-82
JIS standard cast iron single chain oil Colander

This product is applicable to the work of marine fuel temperature ≤ 80C0 and oil pipe line.

Design and manufacturing of products is based on the industry standard CBM1133-82, combined with the requirement of modem design is improved, the formation of the company's 594NTDF1Y series product.

The oil filter cover and the filter cylinder body, the material is Q235-A, the filter material is 1Cr18Ni9Ti; oil filter strainer tube. The effective area and the nominal diameter of the ratio of cross-sectional area of not less than 5; for the oil filter oil medium with magnetic block, materials for the AINiCo5 filter; oil tightness test and strength test, the pressure of 0.75MPa, duration of not less than 5min, should be no leakage; oil cavity filter cleaning after cleaning antirust oil, the outer surface is coated with anti-corrosive primer and light grey finish every once;

Filter type

S -- flange dimensions according to the straight single oil filter CB/T46;

LA -- flange size according to the right angle CB/T46 single chain oil colander;

LB -- flange dimensions according to the left type right angle CB/T46 single chain oil colander;

SS -- flange dimensions according to the straight single oil filter GB2506;

LAS -- flange size according to the right angle GB2506 single strainer;

LBS -- flange dimensions according to the left type right angle GB2506 single oil filter;
