Marine double fuel filter CB/T425-94

Marine double fuel filter CB/T425-94

Product Details:

Place of Origin: China Jiangsu Yangzhou
Brand Name: Feiteng
Certification: Inspection Report
Model Number: A,AS

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: The 3 day
Payment Terms: Advance payment and delivery
Supply Ability: 1000
Contact Now
Detailed Product Description

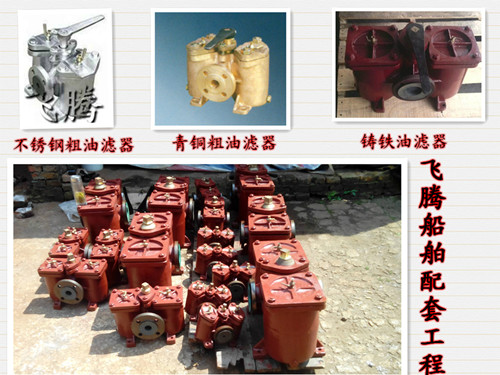

Marine double fuel filter CB/T425-94

Jiangsu Feiteng ship matching Engineering Co. Ltd. production:

Low voltage marine crude oil filter CB/T 425-94

This product is applicable to the work of marine fuel temperature ≤ 80C0 and oil pipe line.

Design and manufacturing of products is the basis of shipping industry standard CB425-94, combined with the requirement of modem design is improved, the formation of the company's 594NTDF2Y series product.

Oil filter body and cover material is HT200, plug core material for ZQAl9-2 Ⅱ, magnetic material is AINiCo5, the filter material is 1Cr18Ni9Ti or H62; oil filter filter, the effective area and the nominal diameter of the ratio of cross-sectional area of not less than 5; double oil strainer tightness test and strength test, the pressure of 0.75MPa, duration of not less than 5min, should be no leakage; double crude oil cavity filter cleaning after cleaning antirust oil, the outer surface is coated with anti-corrosive primer and light grey finish every once;

Low crude oil filter type:

A -- flange dimensions according to the straight double crude oil filter CB/T46;

Low voltage marine crude oil filter, dual crude oil filter, low crude oil filter, dual fuel filter, double oil filter etc..

Products usually have:

A4020 double low crude oil filter CB/T425-94

A4025 double low crude oil filter CB/T425-94

A4032 double low crude oil filter CB/T425-94

A4040 double low crude oil filter CB/T425-94

A4050 double low crude oil filter CB/T425-94

A4065 double low crude oil filter CB/T425-94

A4080 double low crude oil filter CB/T425-94

A40100 double low crude oil filter CB/T425-94

A40125 double low crude oil filter CB/T425-94

A40150 double low crude oil filter CB/T425-94

AS -- flange dimensions according to the straight double crude oil filter GB2506;

AS4020 double low crude oil filter CB/T425-94

AS4025 double low crude oil filter CB/T425-94

AS4032 double low crude oil filter CB/T425-94

AS4040 double low crude oil filter CB/T425-94

AS4050 double low crude oil filter CB/T425-94

AS4065 double low crude oil filter CB/T425-94

AS4080 double low crude oil filter CB/T425-94

AS40100 double low crude oil filter CB/T425-94

AS40125 double low crude oil filter CB/T425-94

AS40150 double low crude oil filter CB/T425-94
