Oil water air pipe head / breathable cap for ship CB/T3594-94

Oil water air pipe head / breathable cap for ship CB/T3594-94

Oil water air pipe head / breathable cap for ship CB/T3594-94

Product Details:

Place of Origin: China Jiangsu Yangzhou
Brand Name: Feiteng
Certification: Inspection Report
Model Number: A,B,C,D,E,FS,FKM

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: The 3 day
Payment Terms: Advance payment and delivery
Supply Ability: 1000
Contact Now
Detailed Product Description
Application: Ship Piping Shape: Flange Connection
Material: Cast Iron Dimensions: 20-600



Oil water air pipe head / breathable cap for ship CB/T3594-94

Air pipe head, marine air cap, marine air cap GB1580-80 1106-80 CB/T3594-94

Marine air cap is:

The suction and breathing air pressure tank near atmospheric pressure, so the pressure is maintained within a design pressure tank, also can prevent water, rainwater, Mars enters the tank.

A, product classification

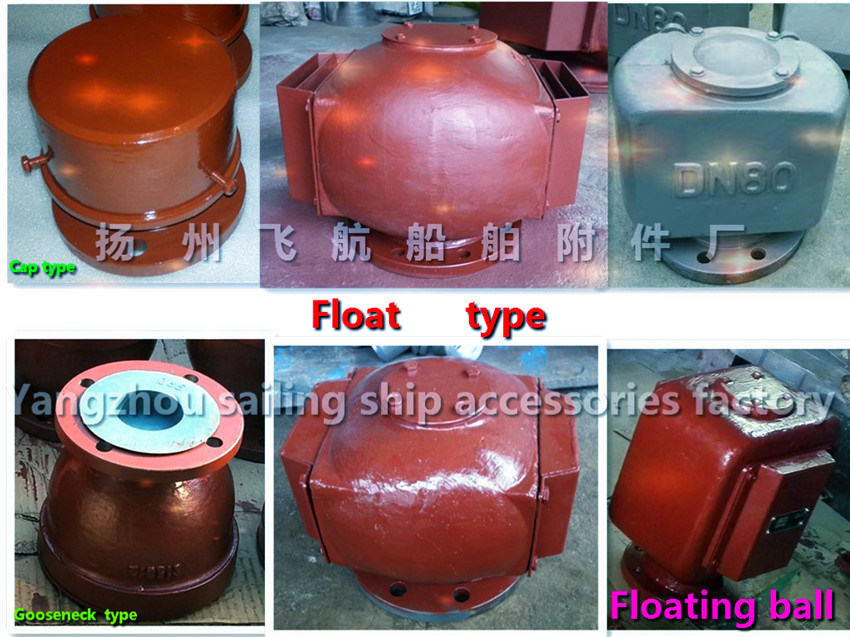

The following 1, air pipe head type:

A - flange size according to cap air pipe head GB569;

AS - flange size according to cap air pipe head GB2501;

B - Flange dimensions according to the gooseneck type air pipe head GB569;

BS - Flange dimensions according to the gooseneck type air pipe head GB2501;

C - Flange dimensions according to GB569 sounding and breathable air pipe head;

CS - Flange dimensions according to GB2501 sounding and breathable air pipe head;

D - Flange dimensions according to GB569 float type oil tank air pipe head;

DS - Flange dimensions according to GB2501 float type oil tank air pipe head;

E - flange size according to float type water tank air pipe of GB569 head;

ES - flange size according to float type water tank air pipe of GB2501 head;

FS - Flange dimensions according to the floating ball type oil GB2501, air pipe head tank;
