    Ship Standard: CB/T3198-2001 Nominal Flow: 120-700L/min
    Nominal Pressure: 25Mpa Safety Valve Pressure Range: 5-25Mpa
    Handle Operating Force: ≤40N A Slide Valve Function: M,O,Y,H,K,P

    Manual proportional flow direction block valve for ship

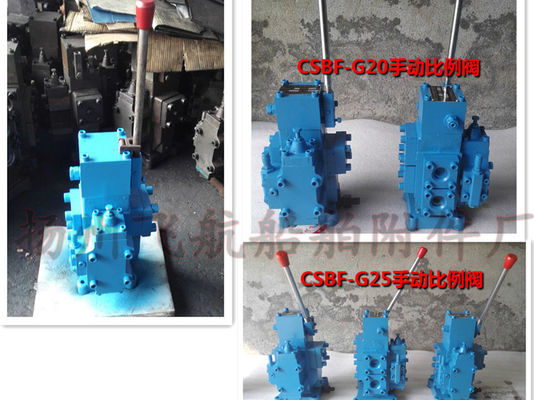

    Marine CSBF-20 manual proportional flow direction compound valve

    Brief introduction of marine manual proportional valve manual proportional flow direction compound valve manual proportion composite valve:

    The composite with CSBF type manual proportional flow direction valve is a pressure compensation, flow rate regulation and safety protection of the three position four way reversing valve, synchronous action of CSBF type manual proportional control valve operating handle and the flow adjusting mechanism can be stepless speed, reversing and has good control performance, at the same time with good reliability, convenient operation, long life and other characteristics, the hydraulic system is widely used in ship machinery and other machinery, the product won the national patent.

    Manual replacement of CSBF type proportional flow direction compound valve:
    On board the replacement of the old ship CSBF manually proportional flow direction composite valve, due to nameplate corrosion and other factors, it is difficult for customers to clearly determine the specifications of this valve. At this point, the customer can proceed from our suggestion (the following chart) to facilitate speculation:
    Marine CSBF-20 manual proportional flow direction compound valve


    model

    Nominal dia.(mm)

    Nominal flow(L/min)

    Nominal pressure(MPa)

    Scope of safety valve pressure(MPa)

    Handle control force(N)

    Mid-position pulley enginery

    CSBF-G20

    20

    120





    25





    5~25





    ≤40

    M

    O

    Y

    H

    K

    P

    CSBF-G25

    25

    200

    CSBF-G32

    32

    300

    CSBF-G40

    40

    450

    CSBF-G50

    50

    700

    CSBF-G65

    65

    1200

    CB/T3928-2001 manual proportional flow direction compound valve manual scale compound valve production process:

    Marine CSBF-20 manual proportional flow direction compound valve

    CB/T3928-2001 manual proportional flow direction compound valve manual proportioning composite valve type selection mark:

    Marine CSBF-20 manual proportional flow direction compound valve

    Marine manual proportional directional compound valve CSBF-G20 CB/T3198-2001
    Meaning: nominal pressure is G--25Mpa, nominal diameter is 20mm, spool function is M type of ship manually proportional flow direction compound valve
    Manual proportional directional compound valve CSBF-O-G25 CB/T3198-2001
    Meaning: nominal pressure is G--25Mpa, nominal diameter is 25mm, spool function is O type of ship manually proportional flow direction compound valve
    Manual proportional directional compound valve CSBF-Y-G32 CB/T3198-2001
    Meaning: nominal pressure is G--25Mpa, nominal diameter is 32mm, spool function is Y type of ship manually proportional flow direction compound valve
    Manual proportional directional compound valve CSBF-H-G40 CB/T3198-2001
    Meaning: nominal pressure is G--25Mpa, nominal diameter is 40mm, spool function is H type of ship manually proportional flow direction compound valve
    Manual proportional directional compound valve CSBF-K-G50 CB/T3198-2001
    Meaning: nominal pressure is G--25Mpa, nominal diameter is 50mm, spool function is K type of ship manually proportional flow direction compound valve
    Manual proportional directional compound valve CSBF-P-G65 CB/T3198-2001
    Meaning: nominal pressure is G--25Mpa, nominal diameter is 65mm, spool function is P type of ship manually proportional flow direction compound valve

    Marine CSBF type manual proportional flow direction compound valve - instructions for ordering:
    Marine CSBF-20 manual proportional flow direction compound valve
    Our CSBF type manual proportional flow direction compound valve is normally factory M type, middle function (normal omission), if the user needs other medium functions and special requirements, should be put forward in order to supply.
    Marine type CSBF manual proportional flow direction compound valve, Lieutenant function is M type, expressed as:
    When the handle of the manual proportional valve is in the middle position, each oil port (A, B port) is closed, and the oil which is removed from the oil pump is returned to the O port from the P port. At this time, the motor stops operation.

    Technical requirements for marine manually operated proportional flow directional compound valves:
    Marine CSBF-20 manual proportional flow direction compound valve
    1, manual proportional composite valve of the main components and materials should comply with the provisions of the following table:
    2, the body, the spool should be in line with the GB/T1184 7 tolerance, surface roughness is not greater than 0.8 m,
    3, the sealing surface between the valve body and the valve core should not be scratched, air holes, bumps and other defects,
    4, the O ring shall comply with the GB3452.1
    5, the composite valve should have good cleanliness, all parts should not burr, cutting and other casting residues
    6, the composite valve inlet and outlet, access flange, screw performance level should not be less than 9.8
