Supply ship CSBF-G25-H manual proportional flow compound valve

Supply ship CSBF-G25-H manual proportional flow compound valve

    • Supply ship CSBF-G25-H manual proportional flow compound valve
    • Supply ship CSBF-G25-H manual proportional flow compound valve
    • Supply ship CSBF-G25-H manual proportional flow compound valve
    • Supply ship CSBF-G25-H manual proportional flow compound valve
    • Supply ship CSBF-G25-H manual proportional flow compound valve
    • Supply ship CSBF-G25-H manual proportional flow compound valve
    • Supply ship CSBF-G25-H manual proportional flow compound valve
    • Supply ship CSBF-G25-H manual proportional flow compound valve
  • Supply ship CSBF-G25-H manual proportional flow compound valve

    Product Details:

    Place of Origin: China Jiangsu Yangzhou
    Brand Name: Fei Hang
    Certification: Inspection Report
    Model Number: A,AS,B,BS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Wooden box
    Delivery Time: The 3 day
    Payment Terms: Advance payment and delivery
    Supply Ability: 1000platform/day
    Contact Now
    Detailed Product Description

    MANUAL CONTROLLED VALVE) FOR HYDR. MOTOR

     Model: CSBF -H-G25



    Supply ship CSBF-G25-H manual proportional flow compound valve

    CSBF-H-G25 marine manual proportional flow direction compound valve ordering instructions:
    Supply ship CSBF-G25-H manual proportional flow compound valve

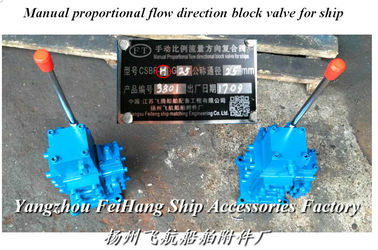

    If you need to replace this manual proportional composite valve, and because of the long time, the nameplate is not clear, please according to the following chart measurement, so that it is convenient to distinguish this ship manually proportional flow valve nominal diameter

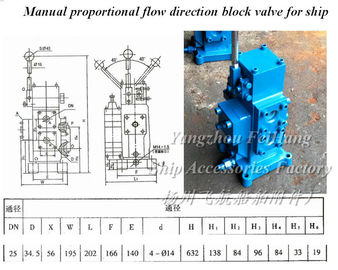

    CSBF-H-G25 manual proportional flow direction compound valve structure size:
    Supply ship CSBF-G25-H manual proportional flow compound valve
    According to the middle spool valve function, the nominal ratio DN25 is manually proportional composite valve, usually marked as:
    Supply ship CSBF-G25-H manual proportional flow compound valve
    Marine manual proportional directional compound valve CSBF-G25 CB/T3198-2001
    Meaning: nominal pressure is G--25Mpa, nominal diameter is 20mm, spool function is M type of ship manually proportional flow direction compound valve
    Marine manual proportional flow directional compound valve CSBF-G25-H CB/T3198-2001
    Meaning: nominal pressure is G--25Mpa, nominal diameter is 20mm, spool function is H type of ship manually proportional flow direction compound valve
    Marine manual proportional flow composite valve CSBF-G25-O CB/T3198-2001
    Meaning: nominal pressure is G--25Mpa, nominal diameter is 20mm, spool function is O type of ship manually proportional flow direction compound valve
    CSBF-G25-Y marine manual proportional directional compound valve CB/T3198-2001
    Meaning: nominal pressure is G--25Mpa, nominal diameter is 20mm, spool function is Y type of ship manually proportional flow direction compound valve
    Marine manual proportional directional compound valve CSBF-25-K CB/T3198-2001
    Meaning: nominal pressure is G--25Mpa, nominal diameter is 20mm, spool function is K type of ship manually proportional flow direction compound valve
    CSBF-G25-P marine manual proportioning directional return valve CB/T3198-2001
    Meaning: nominal pressure is G--25Mpa, nominal diameter is 20mm, spool function is P type of ship manually proportional flow direction compound valve
