    Manual Direction Proportional Flow Control Valve

    FeiHang 35sfre - mo50-H3 Manual Directional Proporional Flow Control Valve

    35SFRE manual proportional compound valve - manual manual reversing proportional speed regulating valve:

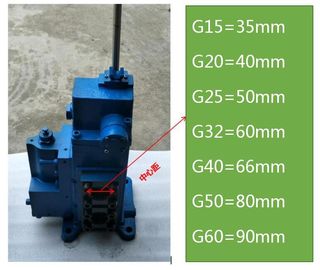

    On board the replacement of the old 35SFRE manually proportional composite valve, due to nameplate corrosion and other factors, it is difficult for customers to clearly determine the specifications of this valve. At this point, the customer can proceed from our suggestion (the following chart) to facilitate speculation:
    FeiHang 35sfre - mo50-H3 Manual Directional Proporional Flow Control Valve
    35SFRE manual proportional compound valve - Marine manual reverse proportional valve - Manual proportional windlass operating valve profile:
    35SFRE ship with manual reversing proportional control valve is three position five way valve has excellent response characteristics and pressure compensation function; pressure compensation valve suppress load impact, flow system will not because of pressure fluctuations and volatility, and provide stable power;
    The bypass compensator is used to avoid the reverse impact; in addition, the 35SFRE marine manual reversing proportional speed regulating valve has a compensator with high response characteristics, and is suitable for occasions with load impact.

    35SFRE marine manual reverse proportional speed regulating valve, shipboard manual proportioning compound valve, performance characteristics:

    n, stepless speed regulation, unloading and overload protection. The utility model has the advantages of simple structure and reliable operation
    2, this section of 35SFRE manual proportional reversing valve, manual regulation of smooth, sensitive, reversing and stepless speed regulation synchronization
    3, M type manual proportioning valve valve pump output power and motor (cylinder) load power matching, energy-saving effect is prominent, suitable for single valve or multi valve series
    4, O type manual proportional flow composite valve in place without unloading, suitable for multi valve parallel connection

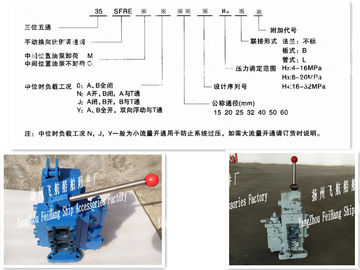

    Marine manual proportional reversing speed control valve type 35SFRE model description:
    FeiHang 35sfre - mo50-H3 Manual Directional Proporional Flow Control Valve

    35SFRE manual proportion compound valve, manual proportional reversing speed regulating valve, function indication:
    FeiHang 35sfre - mo50-H3 Manual Directional Proporional Flow Control Valve

    35SFRE manual proportion compound valve, manual proportional reversing speed regulating valve, structure principle:
    FeiHang 35sfre - mo50-H3 Manual Directional Proporional Flow Control Valve

    35SFRE manual proportion compound valve, manual proportional reversing speed valve type selection reference:


    model

    Nominal dia.(mm)

    Nominal flow(L/min)



    Nominal pressure(MPa)



    Mid-position pulley enginery









    35SFRE

    15

    60









    21Mpa









    MO,MN,MJ,MY





    OO,ON,OJ,OY

    20

    100

    25

    200

    32

    280

    40

    380

    50

    600

    60

    800


    35SFRE manual proportional compound valve, manual proportional reversing speed valve shape and installation dimensions:
    FeiHang 35sfre - mo50-H3 Manual Directional Proporional Flow Control Valve
    35SFRE manual proportion compound valve, manual proportional reversing speed regulating valve, maintenance notice:
    1, pump displacement shall comply with the proportion of the competitors, composite valve flow requirements
    2, "L" accent alone back to the oil tank
    3, in accordance with the valve seat should be fixed with screws on the basis of processing, do not allow the use of piping, the valve
    4. It is recommended to use No. 40 hydraulic oil with a working temperature of 20 DEG C -60 DEG C
    5 the installation should check whether the system is clean and ensure good sealing at the joint
    6, when the combination valve for multiple load, suitable for the series system, the series general should be less than 4, to prevent the loss of pressure is too large; if for a parallel system, please order that special specifications, in the selection of a pump without unloading valve, the pump pressure compensated variable displacement pump is recommended

    35SFRE manual proportioning compound valve, manual proportional reversing speed regulating valve, common faults and troubleshooting methods:
    FeiHang 35sfre - mo50-H3 Manual Directional Proporional Flow Control Valve

    35SFRE manual proportion compound valve, manual proportional reversing speed valve assembly diagram:
    FeiHang 35sfre - mo50-H3 Manual Directional Proporional Flow Control Valve
    35SFRE manual proportion compound valve, manual proportional reversing speed control valve type selection mark:
    FeiHang 35sfre - mo50-H3 Manual Directional Proporional Flow Control Valve
    Manual proportional compound valve, manual proportional reversing speed regulating valve 35SFRE-MO15-H3

    Meaning: nominal pressure is 21Mpa, nominal diameter is 15mm, spool function is MO type of ship manually reversing proportional speed control valve, manual proportion compound flow valve

    Manual proportional compound valve, manual proportional reversing speed regulating valve
    35SFRE-MO32-H3

    Meaning: nominal pressure is 21Mpa, nominal diameter is 32mm, spool function is MO type of ship manually reversing proportional speed control valve, manual proportion compound flow valve

    Manual proportional compound valve, manual proportional reversing speed regulating valve
    35SFRE-MO40-H3

    Meaning: nominal pressure is 21Mpa, nominal diameter is 40mm, spool function is MO type of ship manually reversing proportional speed control valve, manual proportion compound flow valve

    Manual proportional compound valve, manual proportional reversing speed regulating valve
    35SFRE-MY50-H3

    Meaning: nominal pressure is 21Mpa, nominal diameter is 15mm, spool function is MY type of ship manually reversing proportional speed control valve, manual proportion compound flow valve

    Manual proportional compound valve, manual proportional reversing speed regulating valve 35SFRE-OO25-H3

    Meaning: nominal pressure is 21Mpa, nominal diameter is 25mm, spool function is OO type of ship manually reversing proportional speed control valve, manual proportion compound flow valve

    Manual proportional compound valve, manual proportional reversing speed regulating valve 35SFRE-OY40-H3

    Meaning: nominal pressure is 21Mpa, nominal diameter is 40mm, spool function is OY type of ship manually reversing proportional speed control valve, manual proportion compound flow valve
