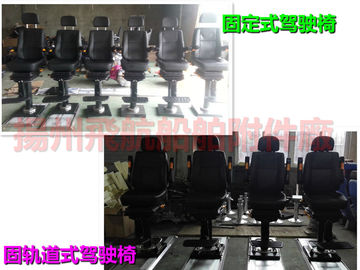

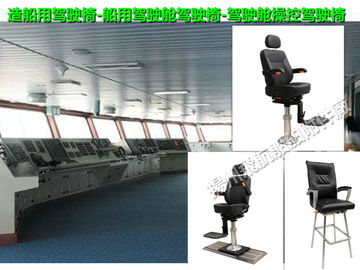

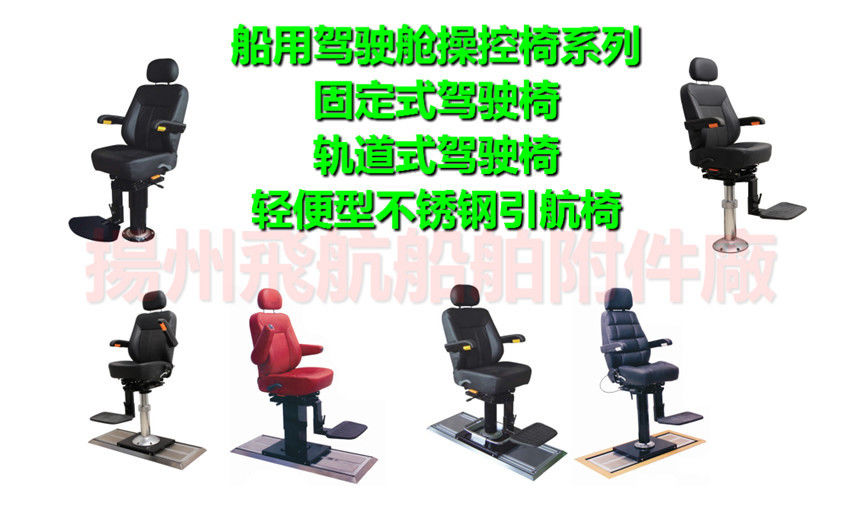

Fixed driving chairs for ships - cockpit type fixed marine driving chair function data:
1. seat upper part can be moved before and after 120mm, height adjustment 60mm
2. seat backrest adjustable angle 85 degrees -150 degrees, head pillow up and down regulation 50mm, armrest multi-point positioning adjustment;
3. seat air pressure adjustment range 0-150mm;
4. seat can be rotated 360 degrees and locked, four point positioning control;
5. seat pedal can be 90 degrees regression, upper and lower position adjustment range 0-50mm;
6. seat can withstand more than 150FT.LB torque, up to AD standard;
Fixed marine driving chairs - cockpit stationary marine driver's seat instructions:
The 1 seat material for black high quality PU leather, leather or cloth can be customized according to customer requirements;
2. chair surface modeling and color can be customized according to customer requirements;

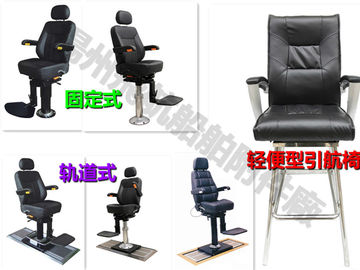

Marine track type chair aluminum alloy column track type driving chair foot type track type cockpit driving chair:
Function:
1. ergonomic design;
The 2. seat can be integrally moved on the high strength double slide rail;
3. adjustable backrest and headrest;
4. seat height can be adjusted by angle;
5. seats can move backwards and forwards;
6. folding / adjustable comfort seat armrest;
7. seat can rotate 360 degrees, multi-point positioning;
8. pedal height adjustable / foldable;
9. upright column can be vertical up and down;
Marine track type chair - aluminum alloy column, track type driving chair - foot track type cockpit, driving chair material:
1. slideway, slideway and positioning base are made of high strength aluminum alloy. The inner surface is inlaid and the outer bevel is decorated with stainless steel;
2. moving base and lifting column are made of steel products and stainless steel products;
3. seat tilt, front and back movement, backrest angle adjustment are made of steel structure;
4. seat back and seat cushion are made of steel inner core and PU cold foam disposable molding sponge. Leather or cloth is made of leather;
5. , the foot pedal adopts the steel plate inner core and the environmental protection rubber product synthesis;
6. pressure lifting core components, pressure bar imported from Germany, Stabilus;
Marine track type chair aluminum alloy column, track type driving chair foot type track type cockpit, driving chair function data:
1. seat top can be moved before and after 120mm, height adjustment 60mm, seat angle range of + 12 degrees;
2. seat backrest adjustable angle 85 degrees -150 degrees, head pillow up and down regulation 50mm, armrest multi-point positioning adjustment;
3. seat air pressure adjustment range 0-100mm; 4. seat can be 360 degrees rotation and locking, four point positioning control;
The 5. seat can be used for 0-6000mm movement on the slideway of the guide rail, the width of the guide rail is 500mm, the depth is 28mm, and the driving part is a wheeled non blocking double sliding, and the multi-point positioning control is adopted;
6. seat pedal can be 90 degrees regression, upper and lower position adjustment range 0-50mm;
7. seat can withstand more than 150FT.LB torque, up to AD standard;
Marine track type chair - aluminum alloy column, track type driving chair - foot type track type cockpit, driving chair explanation:
The 1 seat material for black high quality PU leather, can be customized according to customer requirements of leather or fabric surface shape and color; 2 chairs can be customized according to customer requirements;
3. slide type driving chair, the standard track length is 1.2 meters. If it needs to be lengthened, it can be customized as required;
