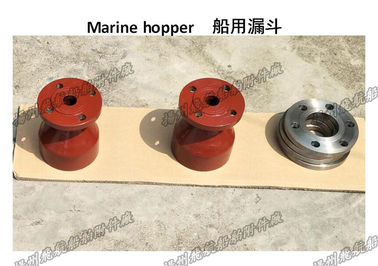

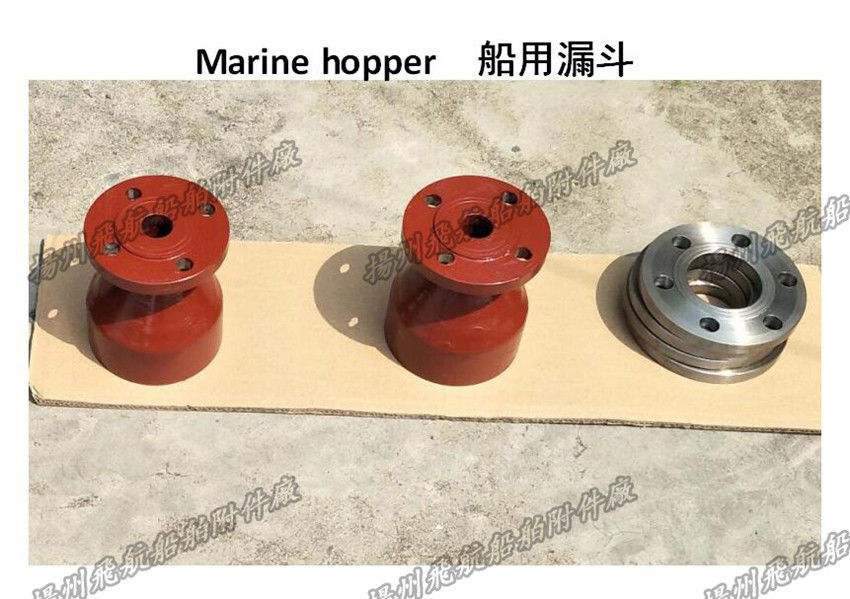

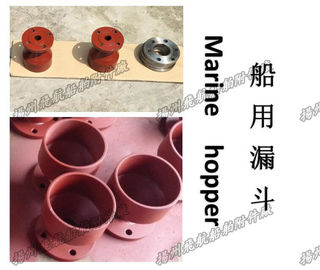

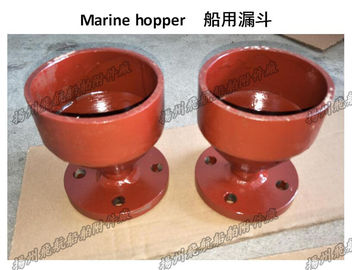

Marine hopper

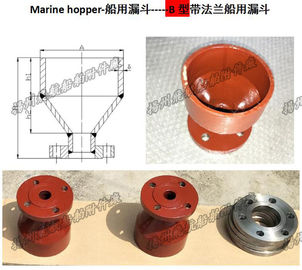

Marine funnel type -B marine flanged delivery funnel:
Ship hopper, ship deck leaking port is mainly applicable to the sampling and discharging of oil and water in ship piping system.
B type marine funnels are usually marked as "type":
Nominal diameter DN is 25mm, flange connection dimension is GB2506 - 89 marine funnel, marked as:
Marine hopper B25 Q/SWS 34-015-2003
Nominal diameter DN is 32mm, flange connection dimension is GB2506 - 89 marine funnel, marked as:
Marine funnels -- flanged, marine funnels, BS32, Q/SWS, 34-015-2003
Nominal diameter DN is 40mm, flange connection dimension is GB2506 - 89 marine funnel, marked as:
Marine funnel marine B40 Q/SWS 34-015-2003 with flange funnel
Nominal diameter DN is 50mm, flange connection dimension is GB2506 - 89 marine funnel, marked as:
Marine leaky deck ship hopper B50 Q/SWS 34-015-2003
Nominal diameter DN is 65mm, flange connection dimension is GB2506 - 89 marine funnel, marked as:
Marine funnels -- flanged, marine funnels, B65, Q/SWS, 34-015-2003
Nominal diameter DN is 80mm, flange connection dimension is GB2506 - 89 marine funnel, marked as:
Marine hopper B80 Q/SWS 34-015-2003
Nominal diameter DN is 100mm, flange connection dimension is GB2506 - 89 marine funnel, marked as:
Marine hopper B100 Q/SWS 34-015-2003
Ship hopper ship deck leakage is mainly divided into the following types:
A -- no flanged vessel, funnel B -- Marine funnel with flange
C -- Marine funnels D with lids -- flanged, marine funnels
E -- Marine funnels F with threaded connections -- Marine cap with threaded joint with cover
G -- funnel with strainer
