Marine stainless steel 316 seawater filter-stainless steel 316 suction coarse water filter

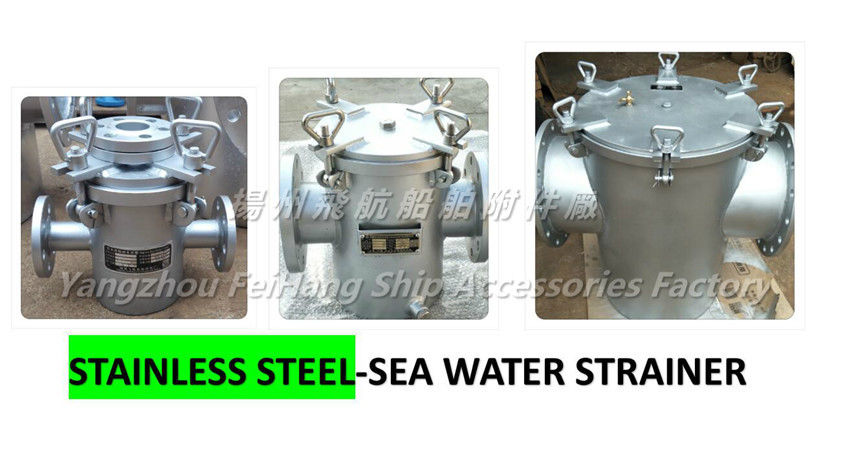

Stainless Steel Sea water filter
Pipe stainless steel 316 Basket Type Filter-pipe Basket type seawater Filter Stainless Steel Basket Type Seawater filter
Technical Requirements
"pipeline Filter dn80pn1.6mpasrt50 Mesh 316l/316lff"
elaborated Flange connection, Flange is 8-hole flange. Flange outside diameter 200mm, Flange Center hole distance 162mm, Bolt aperture 18mm, link flange between length is 350mm, bearing pressure 1.6mpa,50 Eye. Valve Material: Stainless steel, filter lid fixed by eight treasures bolts, working medium for seawater
About marine stainless steel seawater filter, stainless steel Basket Type Seawater Filter Product overview
This stainless steel 316 basket Type seawater filter, mainly by the take over, the supervisor, the filter basket, the flange, the flange cover and the fastener and so on Composes. When the liquid enters the filter basket of the seawater filter through the supervisor, the solid impurity particles are blocked in the filter basket, and the clean fluid is discharged through the filter basket and the filter outlet. When the need to clean stainless steel seawater filter, unscrew the head of the bottom of the screw plug, drain the fluid, remove the flange cover, cleaning and re-loading can Be.
therefore, the use of maintenance is extremely convenient.
About marine stainless steel seawater filter, stainless steel coarse water filter Technical parameters:
Design and manufacture inspection standard cb/t1061-1981
Body Material SUS316
Filter material SUS316
Exhaust VALVE Material Bronze
Nominal bore/nominal pressure 80mm
Connection Form Flanged connection
Flange standard GB seal face surface (RF
Exterior pickling treatment or metal special anticorrosive paint
Yangzhou Aviation Shipping Accessories factory production ship pipeline stainless steel seawater filter-stainless steel Basket type seawater filter production Process:
▲ Reel ▲ and then grinding processing ▲ Assembly ▲ Water pressure Experiment ▲ paint ▲ Packing Shipment
About 316 marine stainless steel seawater filter, stainless steel 316 coarse water filter maintenance use spare parts
:
1, the core of seawater filter is filter filter, filter core by Filter box and stainless steel wire mesh, stainless steel wire mesh is a consumable parts, need special protection; 2, when the ship with stainless steel seawater filter filter work for a period of time, the filter core precipitated a certain impurity, the pressure drop increases, the flow rate will be reduced, the need to clear the filter core impurities; 3, Cleaning impurities, pay special attention to the filter core stainless steel wire mesh can not be deformed or damaged, otherwise, put up the filter, After filtering the purity of the medium can not reach the design requirements, compressors, pumps, Instrumentation and other equipment will be destroyed;
