D80S CB/T3594-1994 Cylinder oil cabinet stainless steel breathable cap

D80S CB/T3594-1994 Cylinder oil cabinet stainless steel breathable cap

    • D80S CB/T3594-1994 Cylinder oil cabinet stainless steel breathable cap
    • D80S CB/T3594-1994 Cylinder oil cabinet stainless steel breathable cap
    • D80S CB/T3594-1994 Cylinder oil cabinet stainless steel breathable cap
    • D80S CB/T3594-1994 Cylinder oil cabinet stainless steel breathable cap
    • D80S CB/T3594-1994 Cylinder oil cabinet stainless steel breathable cap
    • D80S CB/T3594-1994 Cylinder oil cabinet stainless steel breathable cap
    • D80S CB/T3594-1994 Cylinder oil cabinet stainless steel breathable cap
    • D80S CB/T3594-1994 Cylinder oil cabinet stainless steel breathable cap
  • D80S CB/T3594-1994 Cylinder oil cabinet stainless steel breathable cap

    Product Details:

    Place of Origin: China Jiangsu Yangzhou
    Brand Name: Feiteng
    Certification: Inspection Report
    Model Number: DS-Float type

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Wooden box
    Delivery Time: The 3 day
    Payment Terms: Advance payment and delivery
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Implementation Standards: CB/T3594-94 Connection Mode: Flanged Connections
    Body Material: Cast Iron Side Cover Material: SUS304
    Interior Parts: Stainless Steel Float

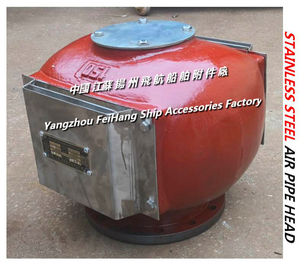

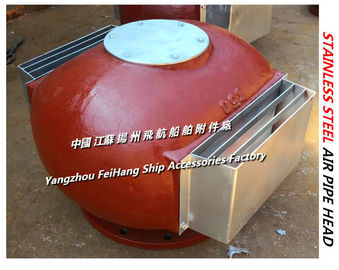

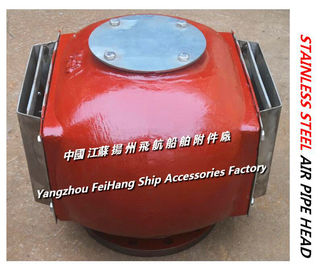

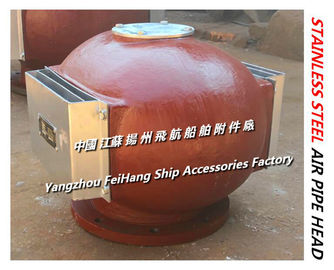

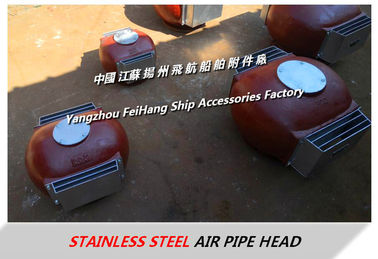

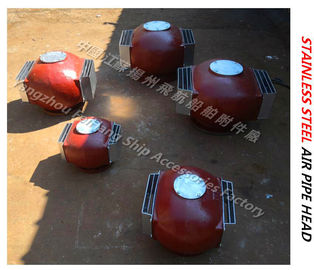

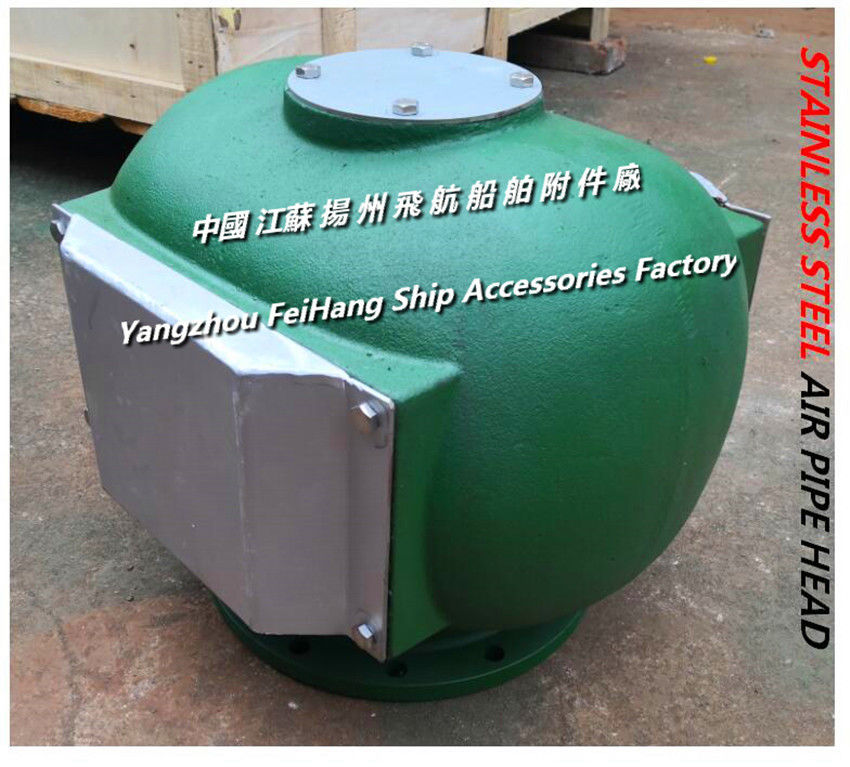

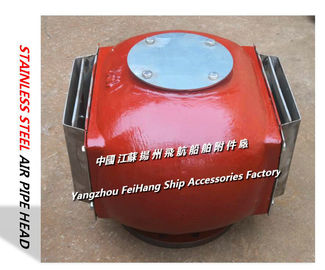

    Marine stainless steel breathable cap, marine stainless steel air pipe head CB/T3594-1944

    D80S CB/T3594-1994 Cylinder oil cabinet stainless steel breathable cap

    Marine stainless steel breathable cap, marine stainless steel air pipe head CB/T3594-1944


    Design and manufacturing testing standards CB/T3594-1995
    Body material QT400-nodular cast iron
    Internal parts SUS304 stainless steel
    Top cover, side cover SUS304 stainless steel
    Nominal diameter / nominal pressure 65A/80A/100A/150A/200A
    Connection form flange connection
    Flange standard GB2506
    Sealing surface (RF)
    Appearance, anti-corrosion paint





    Marine oil tank stainless steel air pipe head, oil tank stainless steel venting cap Application area:

    D80S CB/T3594-1994 Cylinder oil cabinet stainless steel breathable cap

    AIR VENT HEAD FOR FPT & APT WATER BALLAST D80 CB/T3594-1994
    "FPT cabin air pipe head, stainless steel breathable cap DS80 CB/T3594-94"
    Stainless steel air vent head,stainless steel air pipe head FOR bilge oil w. t.
    "Stained oil tank stainless steel breathable cap - dirty oil tank stainless steel air pipe head D100HT CB/T3594-1994"
    DS100QT CB/T3594-1994 Cylinder oil cabinet stainless steel breathable cap
    Cylinder oil tank air pipe head D100 CB/T3594-94

    D80S CB/T3594-1994 Cylinder oil cabinet stainless steel breathable cap
    Cabin oil tank stainless steel breathable cap D150HT CB/T3594-94
    Engine room oil tank air pipe head DS150 CB/T3594-94
    Fuel daily air duct head DS200QT CB/T3594-94 F.O. service tank air pipe head
    Stainless steel Air pipe head For Fore peak tank ES150 CB/T3594-94
    tip cabin stainless steel air tube head, stainless steel venting cap E150S CB/T3594-94
    Stainless steel Air Cap For Fresh water tank E200 CB/T3594-94
    Fresh water tank stainless steel breathable cap, water tank stainless steel air tube head E80S CB/T3594-94
    Stainless steel Air pipe head For Sewage tank 100A CB/T3594-94
    Sewage cabinet stainless steel air tube head ES100S CB/T3594-94
    Sewage cabinet stainless steel breathable cap E100S CB/T3594-94
    Stainless steel Air Cap For Sea water tank stainless steel breathable cap E150S CB/T3594-94

    D80S CB/T3594-1994 Cylinder oil cabinet stainless steel breathable cap
    Seawater tank stainless steel air pipe head ES150S CB/T3594-94
    Stainless steel Air Cap For Overflow tank overflow tank stainless steel breathable cap E200S CB/T3594-94
    ES200S CB/T3594-94 overflow chamber stainless steel air tube head
    Stainless steel Air pipe head For Feed water tank Boiler water tank stainless steel air pipe head / boiler water tank stainless steel breathable cap
    Stainless steel Air Cap For Topside tank top side tank stainless steel breathable cap E250S CB/T3594-94
    Top side tank stainless steel air tube head ES250S CB/T3594-94
    Stainless steel air pipe head For Cooling water tank cooling water tank stainless steel ventilation cap / cooling water tank stainless steel air tube head
    Stainless steel Air Cap For Log room taxi cabin stainless steel breathable cap / taxi cabin stainless steel air pipe head



    D80S CB/T3594-1994 Cylinder oil cabinet stainless steel breathable capStainless steel Air pipe head For Bilge oil w.t. Stained oil tank stainless steel breathable cap / dirty oil tank stainless steel air pipe head
    Stainless steel Air pipe head For After peak tank tail tip tank stainless steel breathable cap / tail tip cabin stainless steel air tube head
    Stainless steel Air Cap For Bilge well
    Stainless steel Air Cap For Cofferdam tank stainless steel air pipe head / isolation compartment stainless steel breathable cap
    Stainless steel Air Cap For Drain tank stainless steel ventilation cap / venting chamber stainless steel air tube head
    Stainless steel Air pipe head For Distilled water tank Distilled water tank stainless steel vent cap / distilled water cabin stainless steel vent head
    Stainless steel Bilge water tank bilge water tank stainless steel breathable cap / bilge water tank stainless steel air pipe head
    Bilge oil w. t. slop oil tank stainless steel air pipe head D65S CB/T3594-1994
    D80S CB/T3594-1994 cylinder oil tank stainless steel breathable cap cylinder oil tank
    D100S CB/T3594-1994 engine room oil tank stainless steel ventilation cap engine room oil tank

    D80S CB/T3594-1994 Cylinder oil cabinet stainless steel breathable cap
    D150S CB/T3594-1994 Fuel daily cabinet stainless steel air pipe head F.O. service tank
    Fuel settling cabinet air tube head, stainless steel air tube head, stainless steel venting cap D200S CB/T3594-1994 F.O. settling tank
    Fuel buffer cabinet air tube head, stainless steel air tube head, stainless steel vent cap D250S CB/T3594-1994 F.O. buffer tank
    Fuel overflow tank air pipe head, stainless steel air pipe head, stainless steel ventilation cap F.O. spill tank
    Oil head for oil precipitation cabinet, stainless steel air tube head, stainless steel vent cap D300S CB/T3594-1994 L.O. settling tank
    Oil circulation cabinet L.O. circulating tank Air tube head, stainless steel air tube head, stainless steel ventilation cap
    Oil storage cabinet air pipe head, stainless steel air pipe head, stainless steel ventilation cap L.O. storage tank
    Diesel daily cabinet air tube head, stainless steel air tube head, stainless steel ventilation D350S CB/T3594-1994 D.O. service tank

    D80S CB/T3594-1994 Cylinder oil cabinet stainless steel breathable cap

    1. The inner part of this marine oil tank air pipe head can be replaced as required: stainless steel float
    2. The top cover and side cover of this oil tank marine air pipe head can be replaced as required.
    3. The inner sealing rubber ring of this marine oil tank venting cap can be replaced according to requirements.
