Marine manual proportional valve 35SFRE-MO32B-H3
Marine manual proportional flow compound valve 35SFRE-MO32B-H3
Manual Direction Proportional Flow Control Valve 35SFRE-MO32B-H3
35SFRE-MO32B-H3Technical parameter table of manual proportional flow compound valve:
| model |
Nominal dia.(mm) |
Nominal flow(L/min) |
Nominal pressure(MPa) |
Mid-position pulley enginery |
|
35SFRE
|
32 |
280 |
21Mpa |
MO |

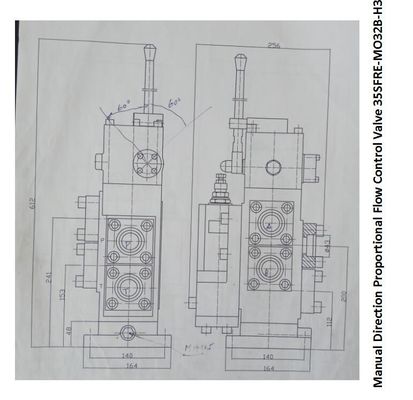

The outline drawing of 35SFRE-MO32B-H3 marine manual proportional flow compound valve is as follows:

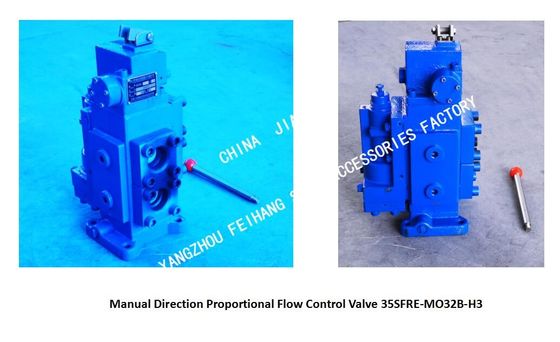

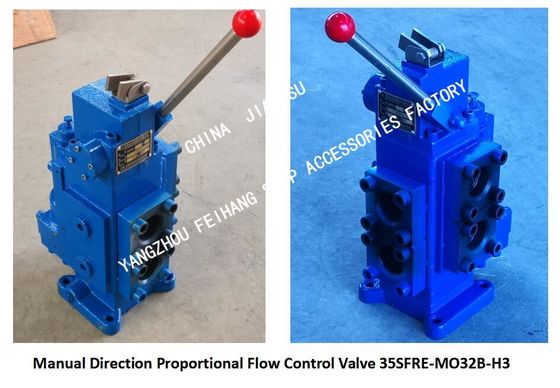

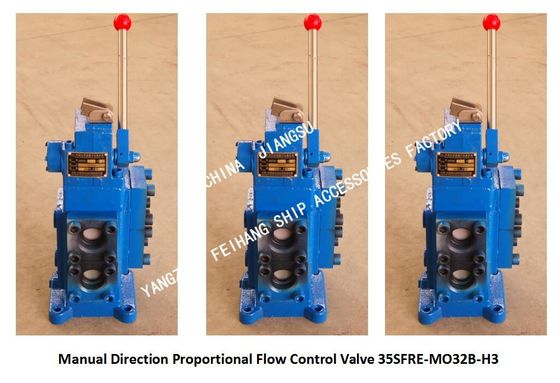

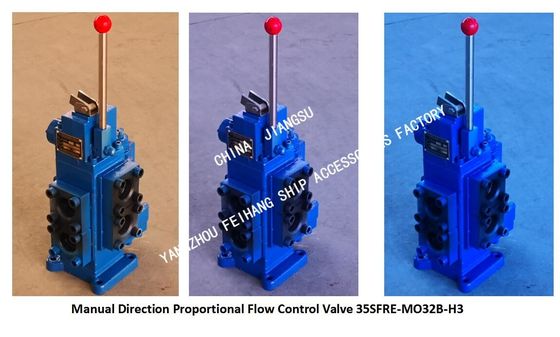

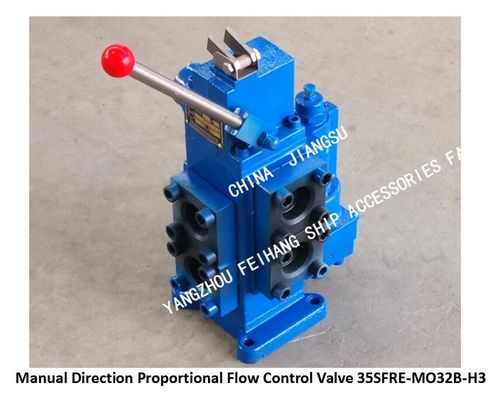

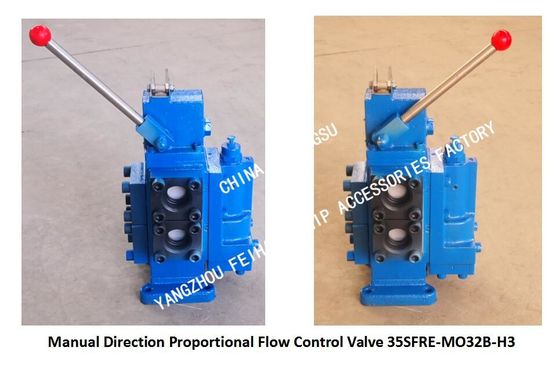

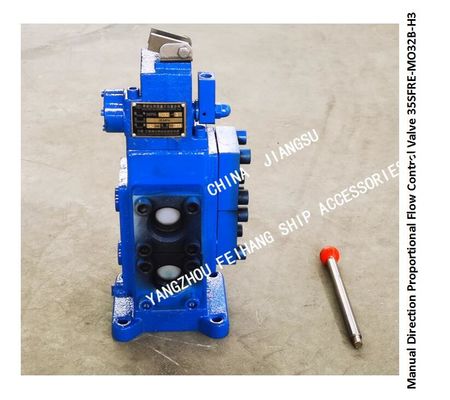

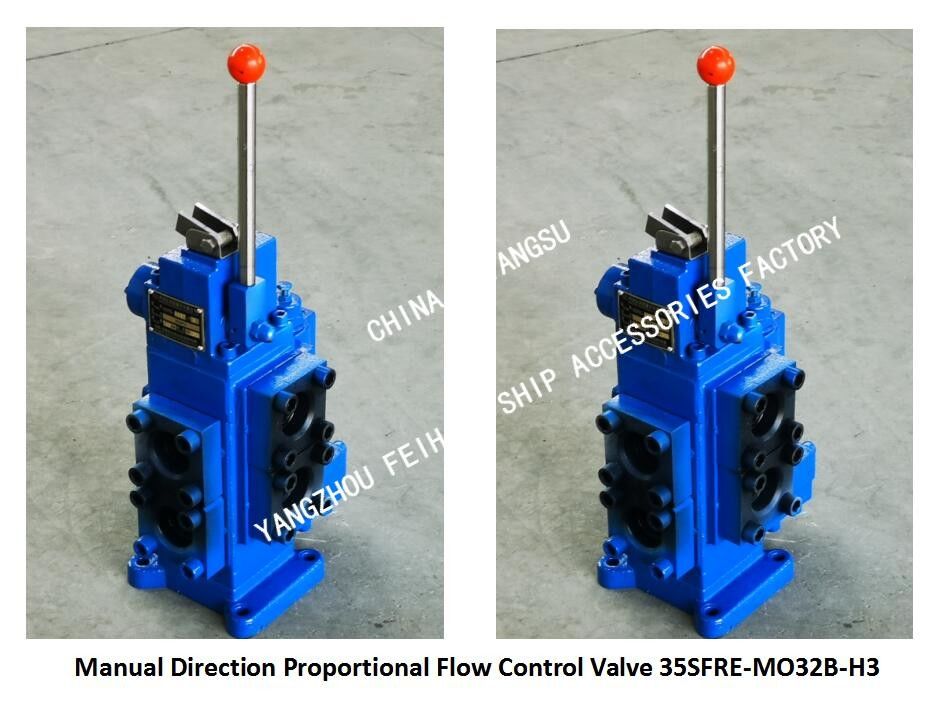

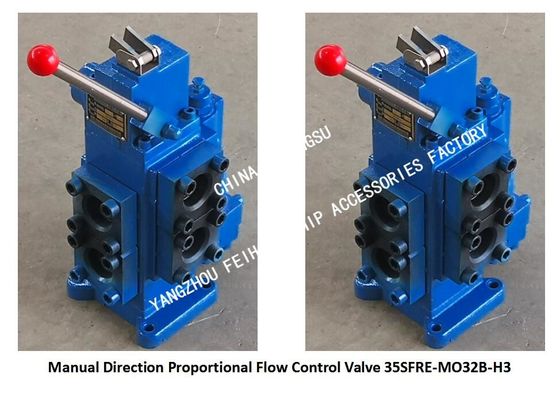

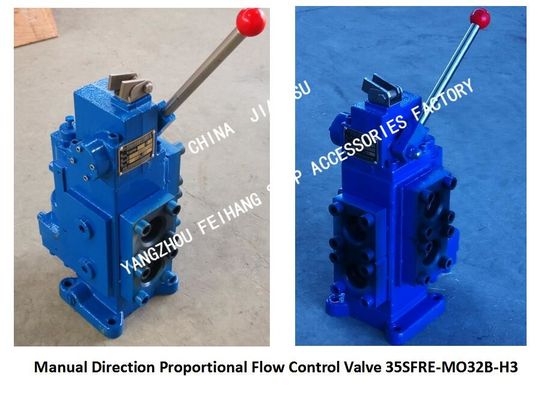

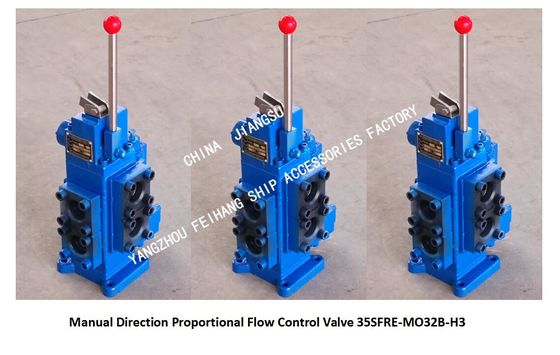

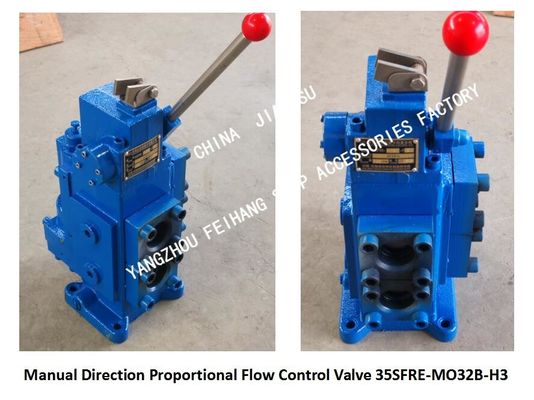

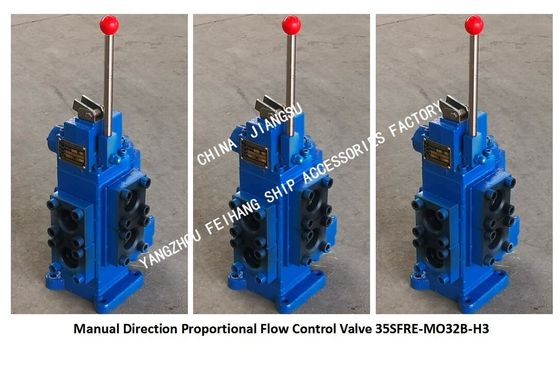

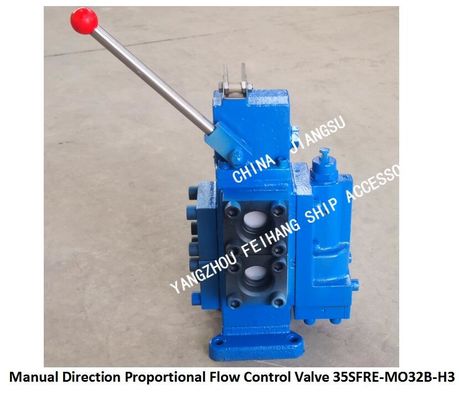

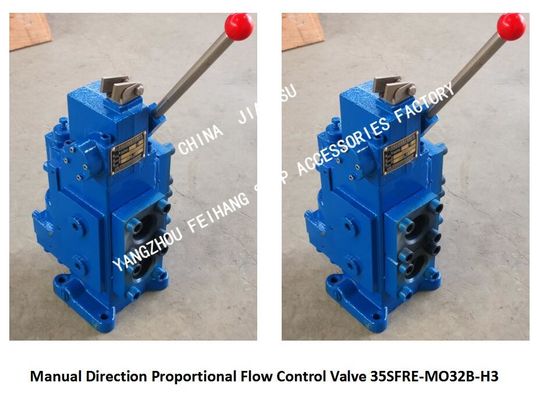

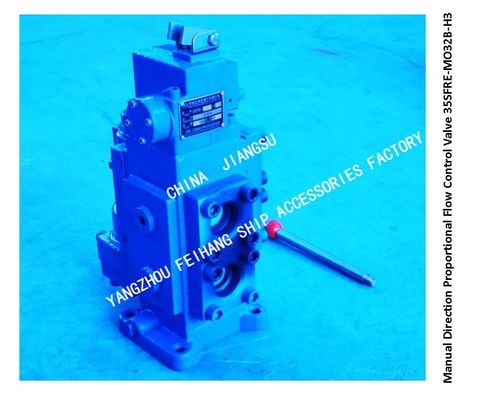

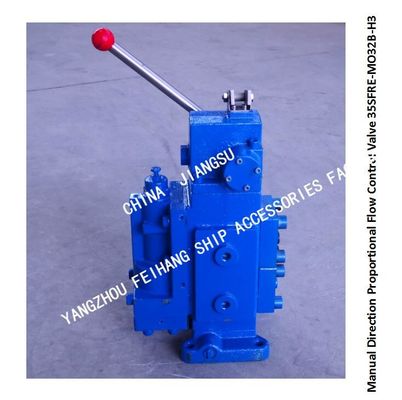

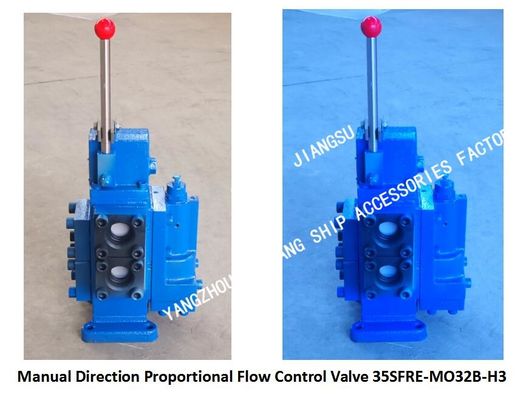

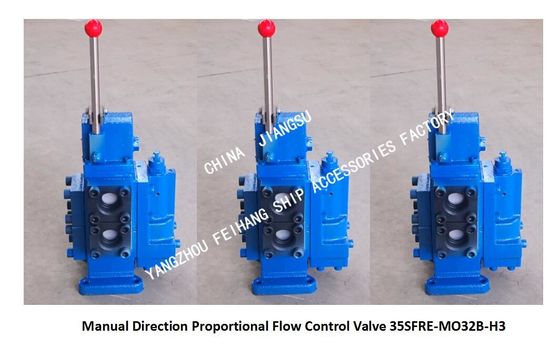

The actual shots of the manual proportional flow reversing valve 35SFRE-MO32B-H3 are as follows:
According to the function of the spool valve of this manual proportional flow compound valve, the manual proportional flow directional valve of DN32 can be marked as follows:
▲35SFRE-MO32B-H3 Marine manual proportional flow reversing valve
(Expressed as: three-position five-way, the neutral function is MO type, the nominal diameter is DN32, the connection method is a manual proportional valve with flange connection, and a manual proportional reversing speed control valve)
▲35SFRE-MY32-H3 manual proportional flow reversing speed control compound valve
(Expressed as: three-position five-way, the neutral function is MY type, the nominal diameter is DN32, the connection method is a manual proportional valve with flange connection, and a manual proportional valve reversing speed control valve)
▲35SFRE-MN32-H3 marine manual proportional flow reversing compound valve
(Expressed as: three-position five-way, the neutral function is MN type, the nominal diameter is DN32, the connection method is a manual proportional valve with flange connection, and a manual proportional valve reversing speed control valve)
▲Marine manual proportional flow reversing valve 35SFRE-MJ32-H3
(Expressed as: three-position five-way, the neutral function is MJ type, the nominal diameter is DN32, the connection method is a manual proportional valve with flange connection, and a manual proportional valve reversing speed control valve)
