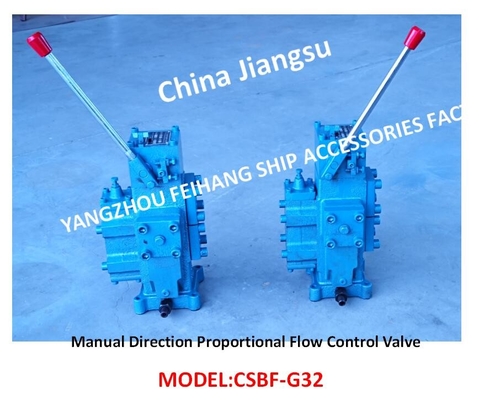

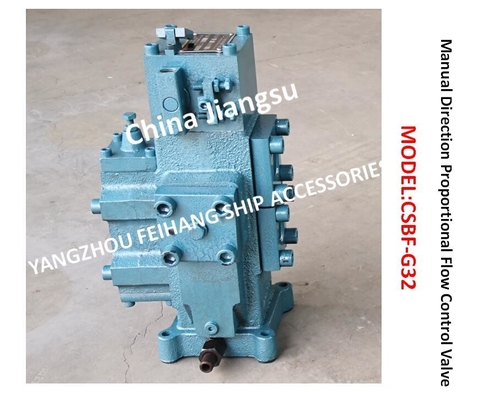

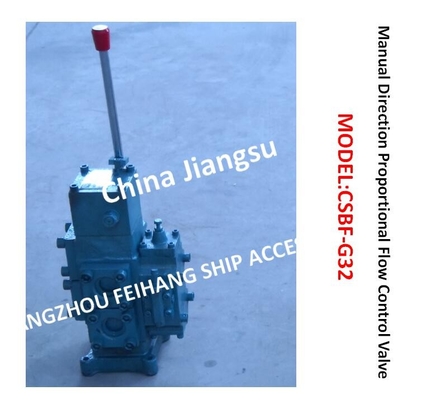

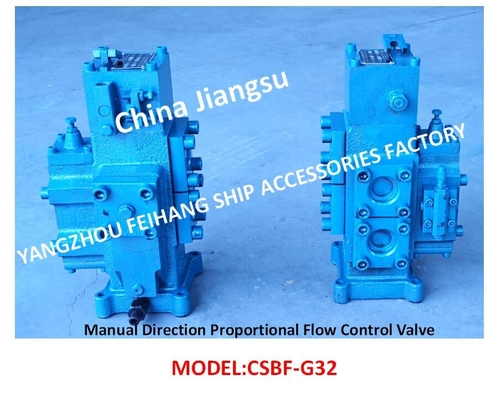

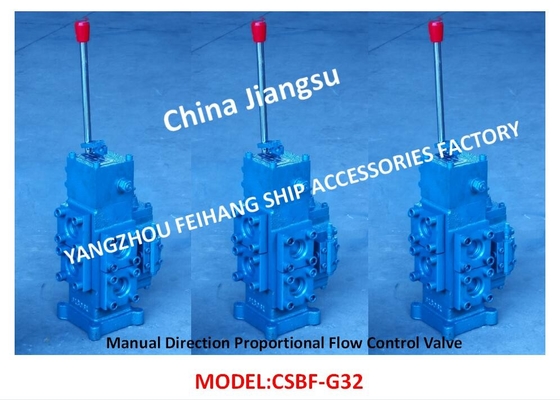

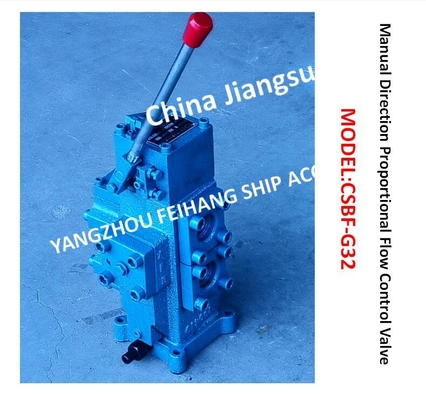

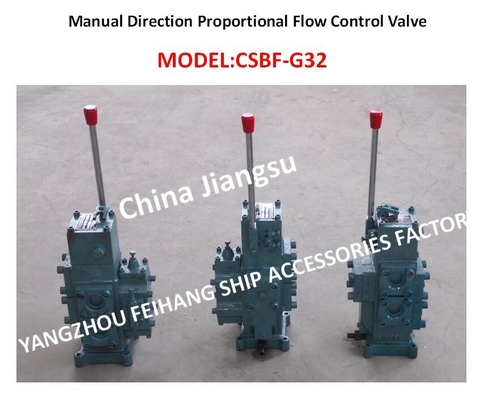

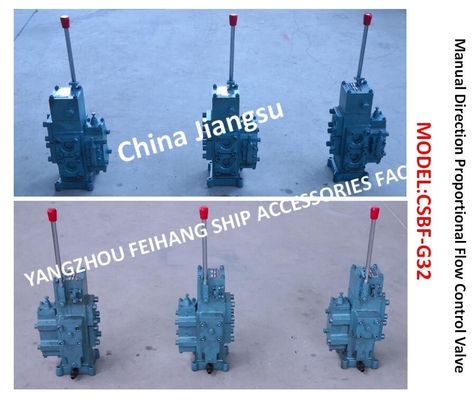

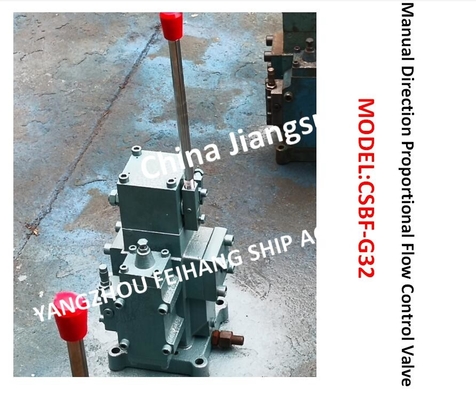

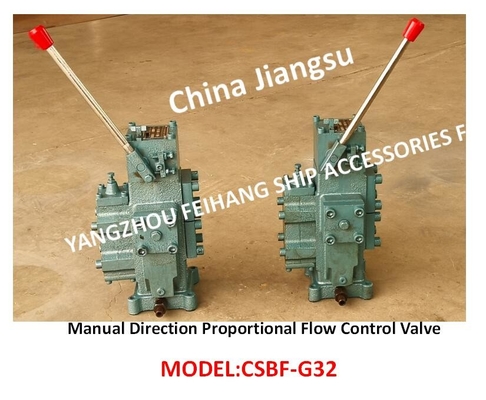

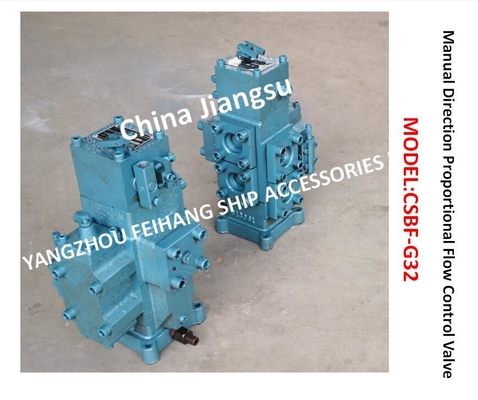

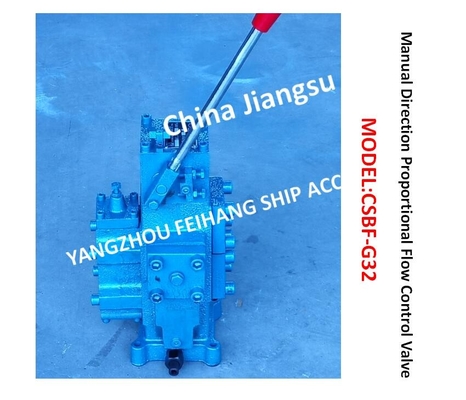

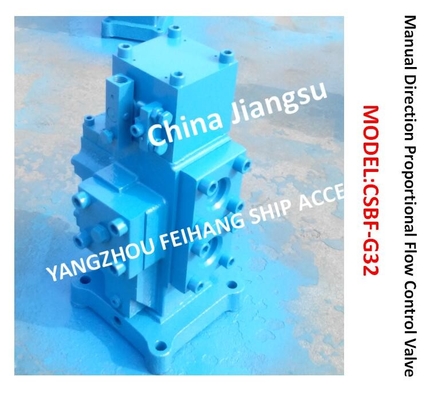

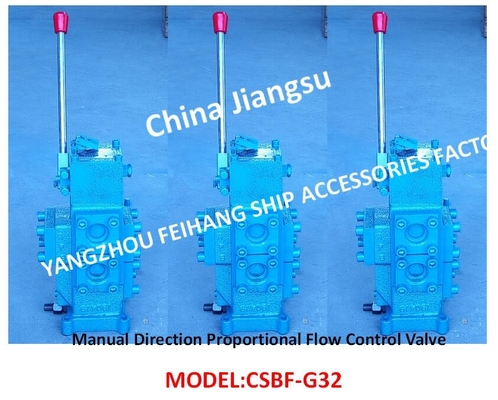

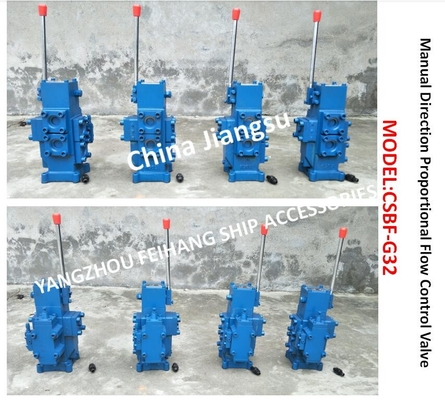

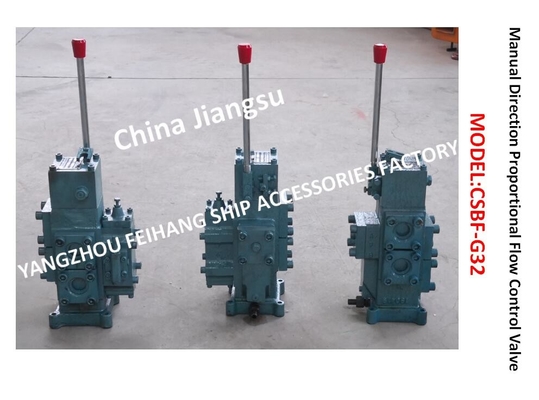

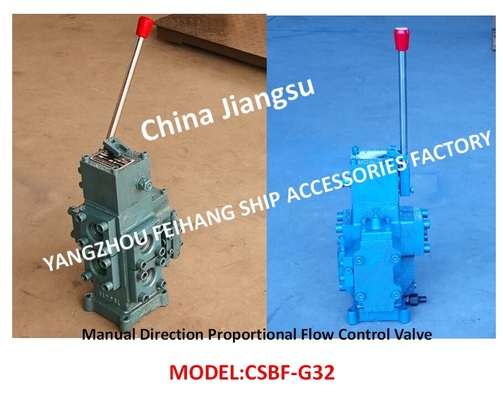

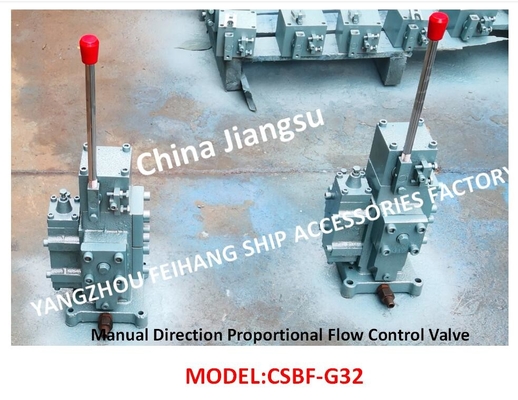

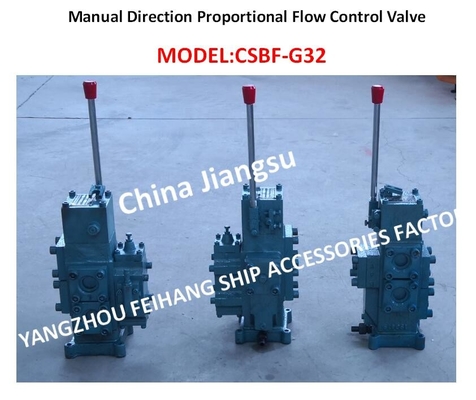

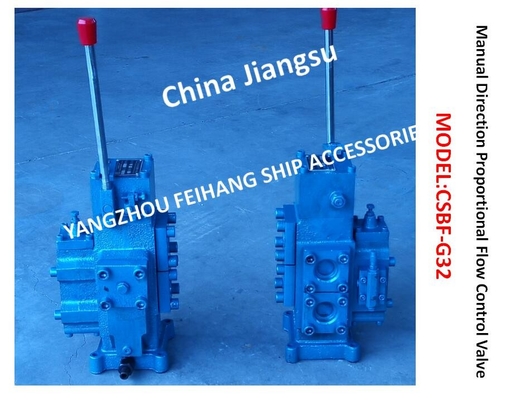

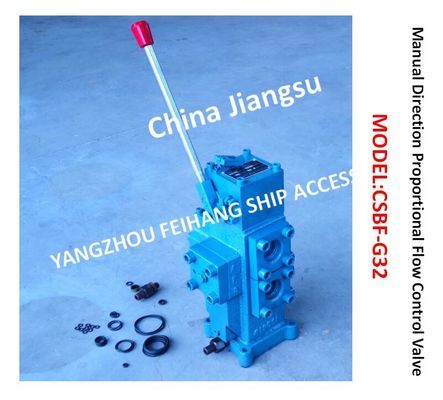

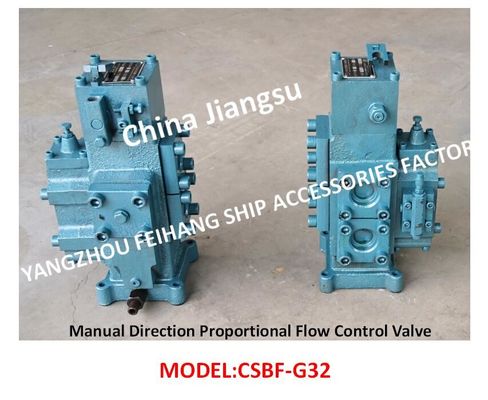

Manual Direction Proportional Flow Control Valve Type-CSBF-G32
CBSF-G32 Marine Manual Proportional Flow Compound Valve Product Overview
This CSBF-G32 marine manual proportional flow valve is mainly suitable for variable speed operation of various windlasses, steering gears, and winches to work with retractable cables.
Marine manual proportional compound valve CSBF-G32 Model meaning:
C-Marine S-Manual BF-Proportional valve M-Spool neutral function (can be omitted)
G-nominal diameter 32-DN32 (32mm) |
Marine manual proportional valve, manual proportional flow compound valve CSBF-H-G32 Technical parameters:
|
Nominal dia.(mm)
|
Nominal flow(L/min)
|
Nominal pressure(MPa)
|
Mid-position pulley enginery
|
| 32 |
200 |
5-25 |
M-TYPE |

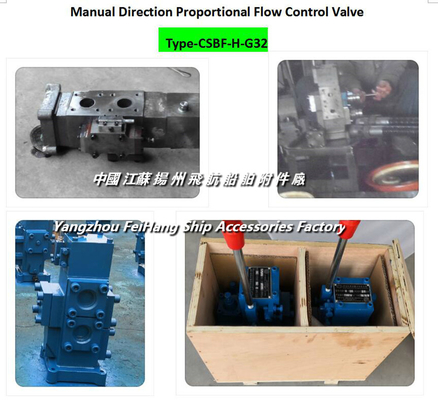

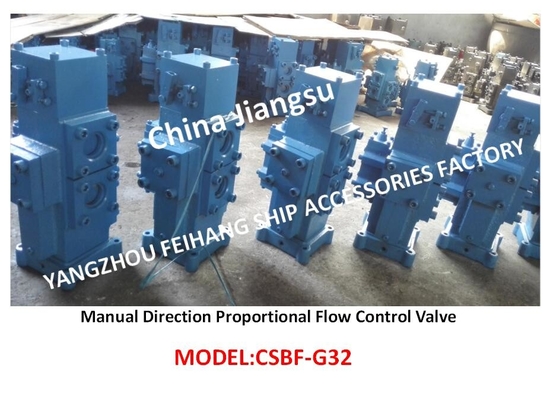

(Yangzhou Feihang Ship Accessories Factory) Production of manual proportional flow direction compound valve
▲Pour the rough part ▲Then polish it again ▲Assemble

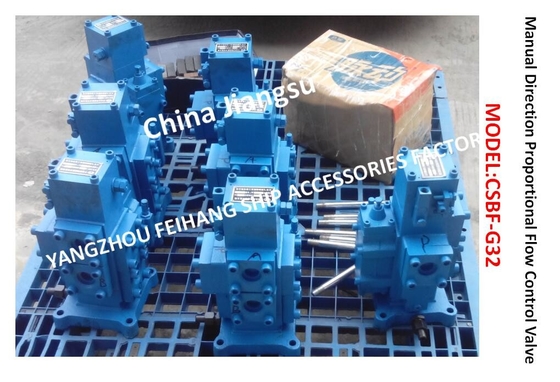

▲Hydraulic test ▲Paint ▲Packed and shipped

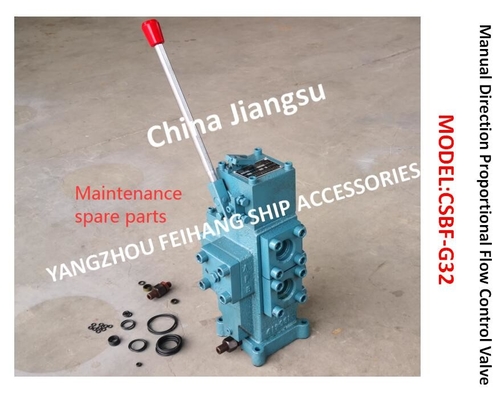

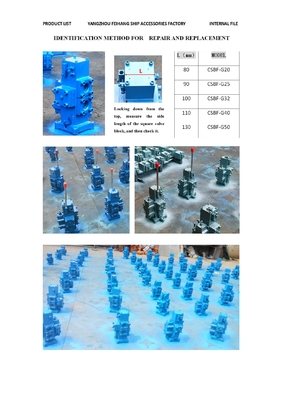

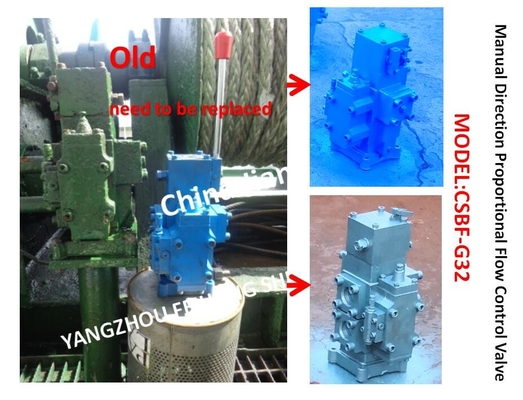

Marine CSBF-G32 manual proportional compound valve, manual proportional flow reversing valve maintenance and replacement instructions:

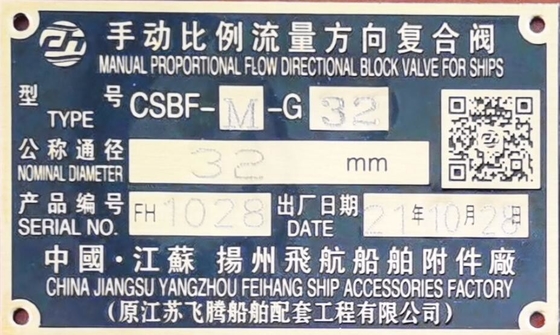

Due to time factors, the nameplate of this manual proportional valve will gradually corrode. At this time, we can accurately judge the nominal diameter of this manual proportional valve based on the above data.
CSBF-G32 manual proportional flow compound valve can be divided into:
▲CSBF-M-G32 marine manual proportional flow directional valve
(Expressed as: The median function is M type, the nominal diameter is DN32, the connection method is a manual proportional valve with flange connection, and a manual proportional flow direction compound valve)
▲ Marine manual proportional flow compound valve CSBF-H-G32
(Expressed as: the median function is H type, the nominal diameter is DN32, the connection method is a manual proportional valve with flange connection, and a manual proportional flow direction compound valve)
▲Marine CSBF-Y-G32 manual proportional flow directional valve
(Expressed as: the neutral function is Y type, the nominal diameter is DN32, the connection method is a manual proportional valve with flange connection, and a manual proportional flow direction compound valve)
▲CSBF-K-G32 marine manual proportional flow directional valve
(Expressed as: K-type median function, DN32 nominal diameter, manual proportional valve with flange connection, manual proportional flow direction compound valve)
▲Marine manual proportional flow reversing valve CSBF-P-G32
(Expressed as: the central function is P type, the nominal diameter is DN32, the connection method is a manual proportional valve with flange connection, and a manual proportional flow direction compound valve)

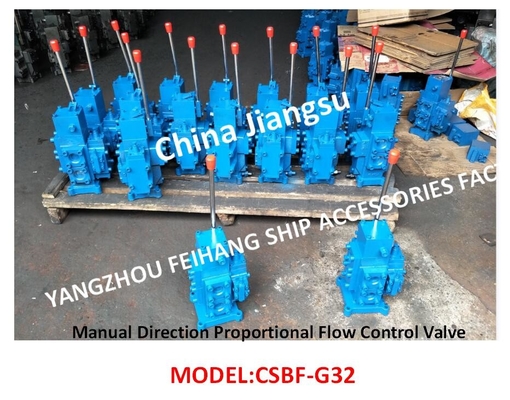

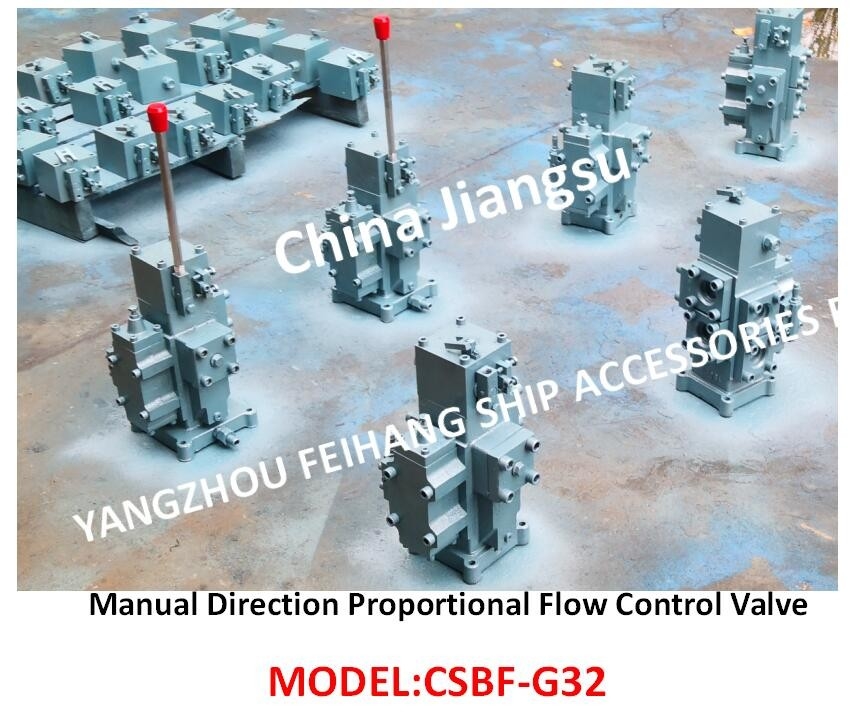

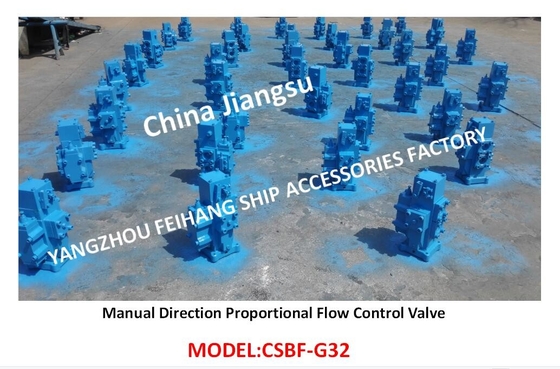

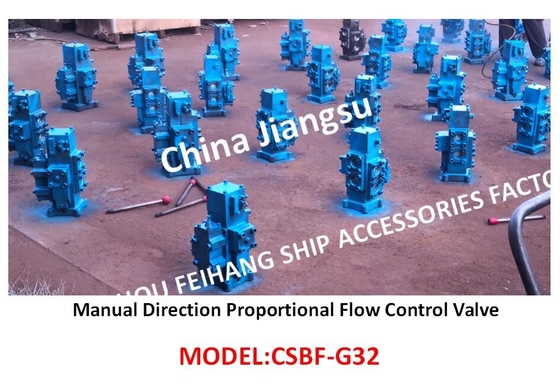

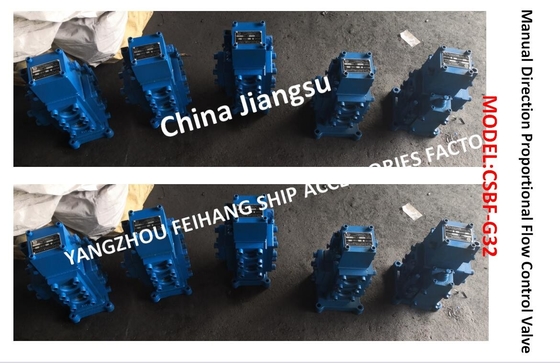

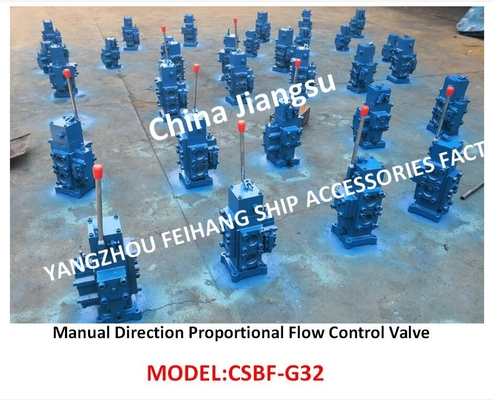

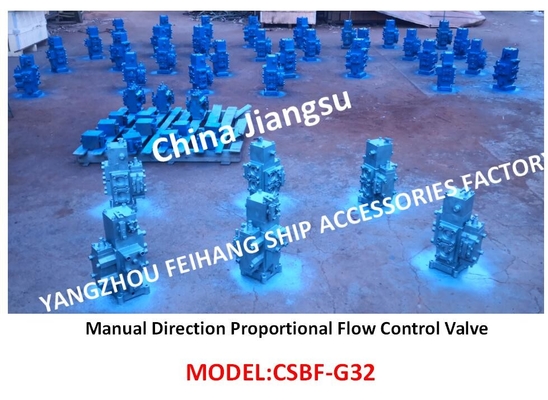

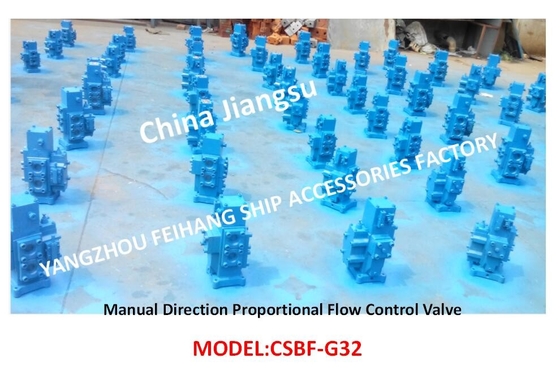

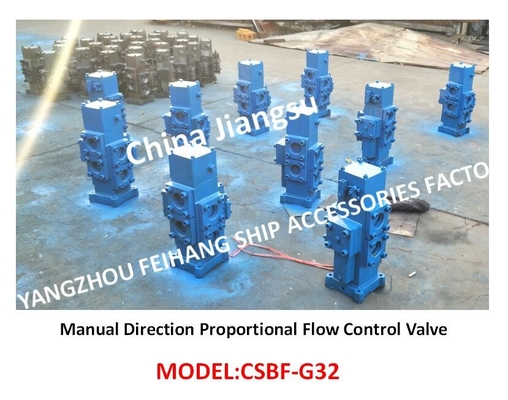

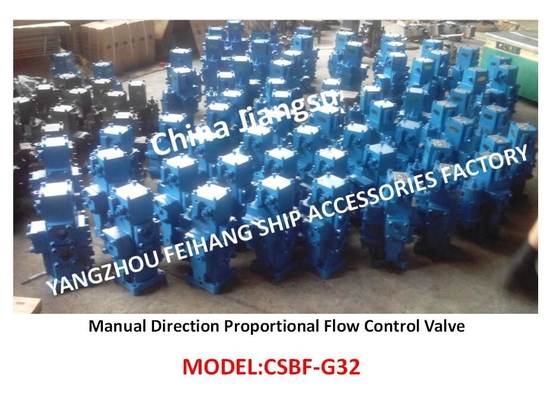

Delivery site of our factory (Yangzhou Feihang Ship Accessories Factory):

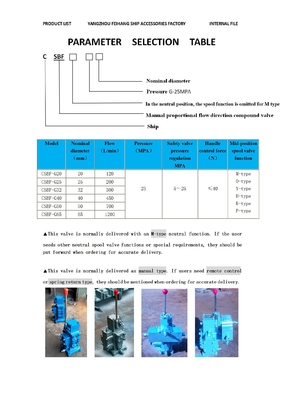

Yangzhou Feihang Ship Accessories Factory provides you with the selection manual of this CSBF type manual proportional flow compound valve;
CSBF-M-G20 manual proportional flow valve manual proportioning flow direction compound valve
CSBF-M-G20 Manual Direction Proportional Flow Control Valve
The basic product information of the CSBF-M-G20 manual proportional flow compound valve is as follows:
|
model
|
Nominal dia.(mm) |
Nominal flow(L/min) |
Nominal pressure(MPa)
|
Mid-position pulley enginery
|
| CSBF |
20 |
120 |
5-25Mpa |
M |
Brand: Flying origin: Yangzhou, Jiangsu
The basic product information of the CSBF-H-G20 manual proportional flow compound valve is as follows:
|
model
|
Nominal dia.(mm) |
Nominal flow(L/min) |
Nominal pressure(MPa)
|
Mid-position pulley enginery
|
| CSBF |
20 |
120 |
5-25Mpa |
H |
According to the function of the middle seat slide valve, the marine manual proportional flow directional composite valve can be divided into:
CSBF-G20-M type manual proportional flow direction valve
(as follows: the median function is MO, the nominal diameter is DN20, the manual proportion valve with flange connection is connected, the manual proportional flow direction compound valve).
CSBF-O-G20 type manual proportional flow direction valve
(as follows: the median function is O, the nominal diameter is DN20, the manual proportion valve with flange connection is connected, the manual proportional flow direction compound valve).
CSBF-G20-Y type manual proportional flow reversing valve for ship
(as follows: the median function is Y, the nominal diameter is DN20, the manual proportion valve with flange connection is connected, the manual proportional flow direction compound valve).
Model CSBF-H-G20-H marine manual proportional flow reversing valve
(as follows: the median function is H, the nominal diameter is DN20, the manual proportion valve with flange connection is connected, the manual proportional flow direction compound valve).
CSBF-G20-K type manual proportional flow direction valve
(as follows: the median function is K, the nominal diameter is DN20, the manual proportion valve with flange connection is connected, the manual proportional flow direction compound valve).
Manual proportional flow direction valve CSBF-G20-P
(as follows: the median function is P, the nominal diameter is DN20, the manual proportion valve with flange connection is connected, the manual proportional flow direction compound valve).
Customers at home and abroad are welcome to inquire at any time.
