    Product Details:

    Place of Origin: Yangzhou, Jiangsu, China
    Brand Name: FEI HANG
    Certification: Factory certificate
    Model Number: A,AS

    Payment & Shipping Terms:

    Minimum Order Quantity: 2PCS
    Price: USD100.00-USD300.00
    Packaging Details: export package
    Delivery Time: 3-5dys
    Payment Terms: T/T
    Supply Ability: 50PCS/dsys
    Contact Now
    Detailed Product Description
    Executive Standard: CB/T3657-94 Material: Carbon Steel, Stainless Steel
    Nominal Diameter: 32-150A Flange Standard: PN6/PN10

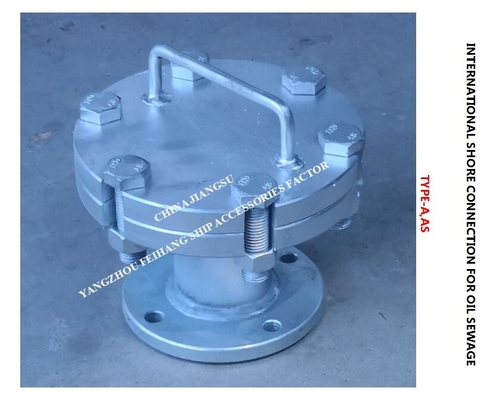

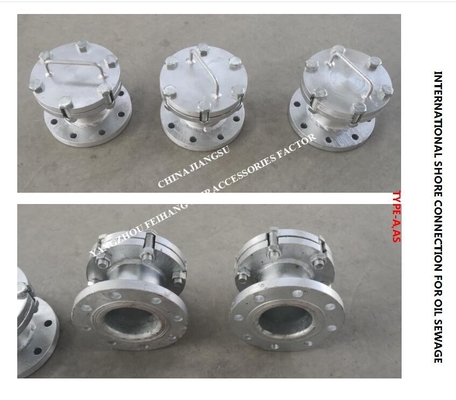

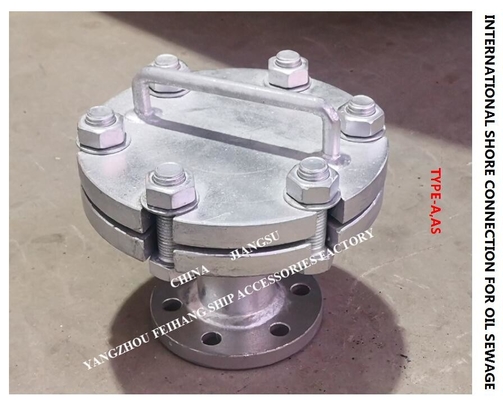

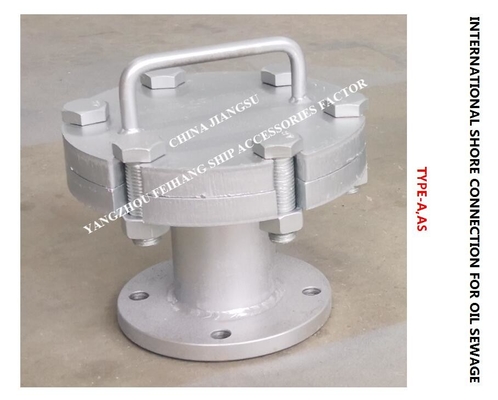

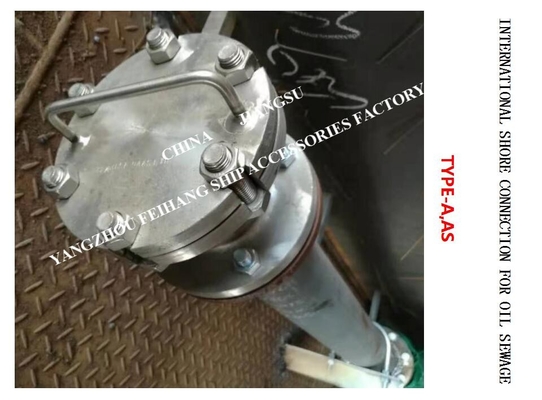

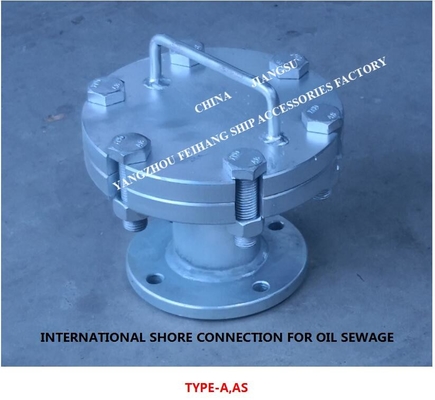

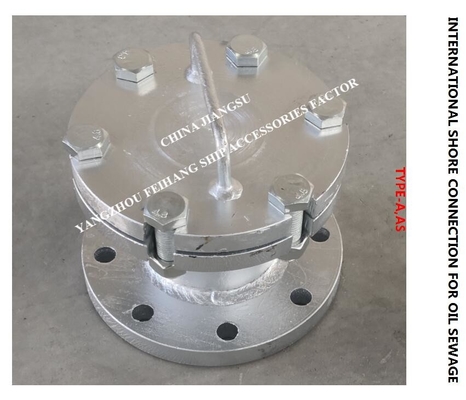

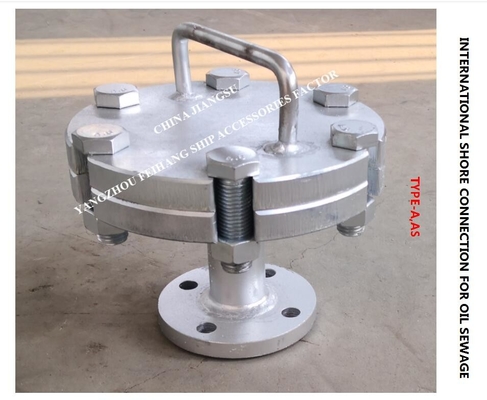

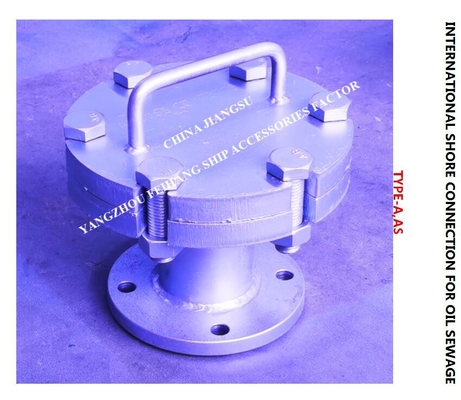

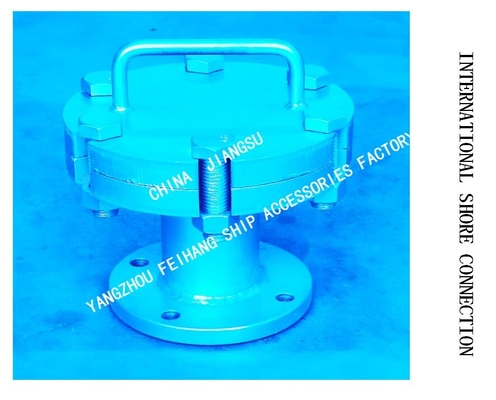

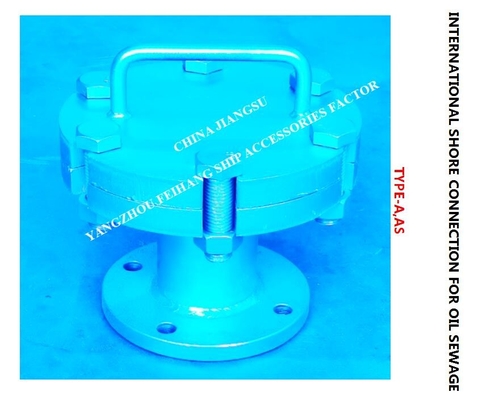

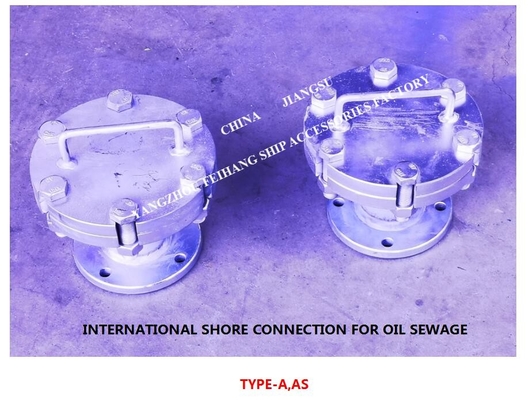

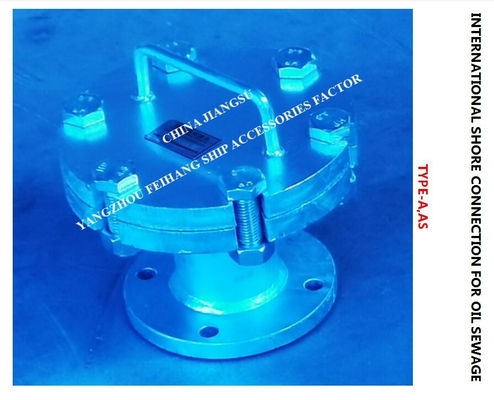

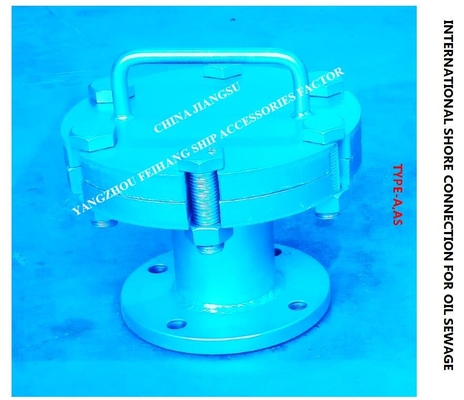

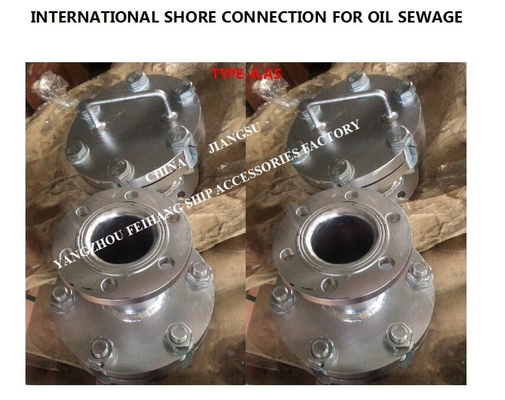

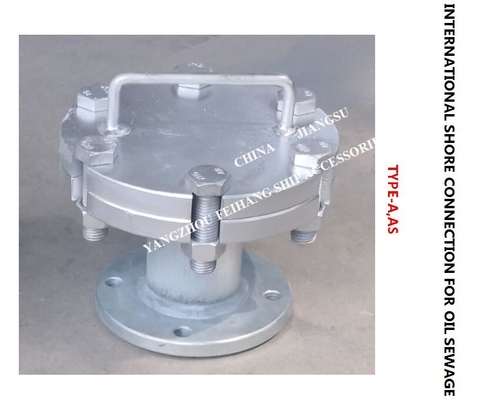

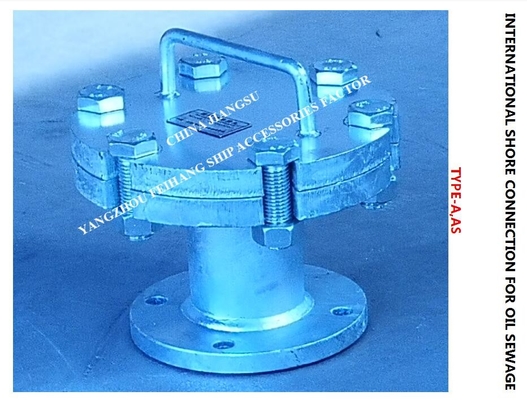

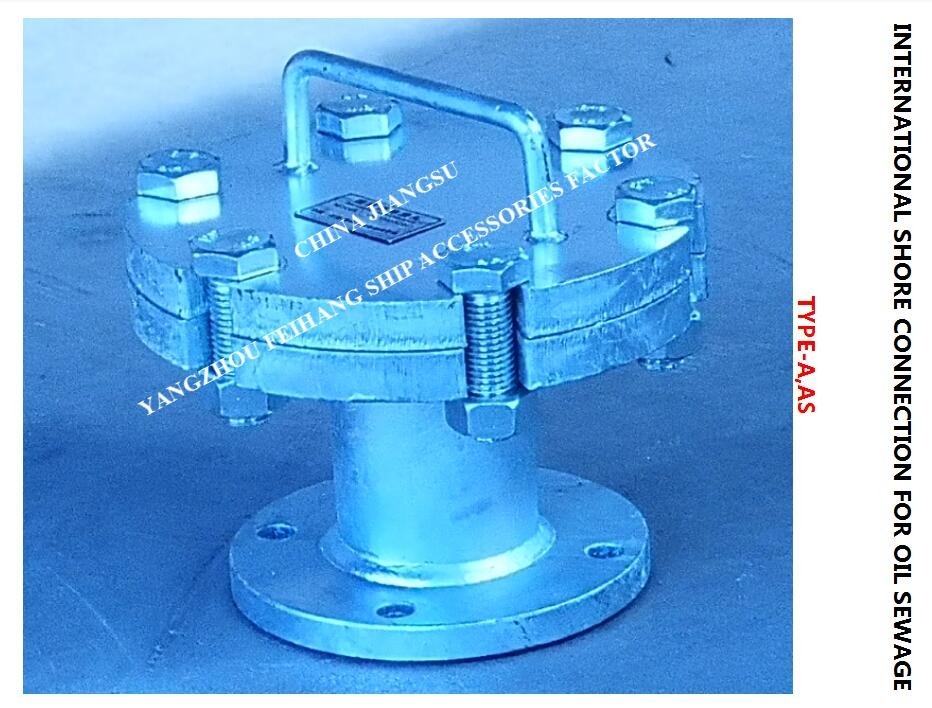

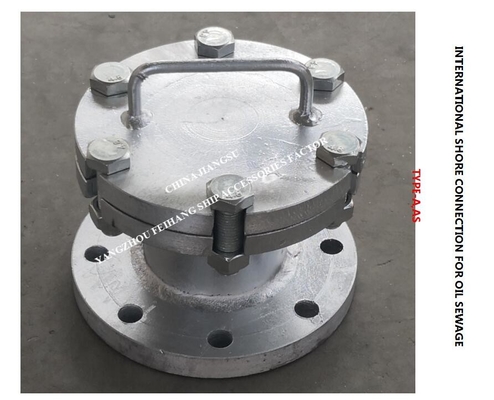

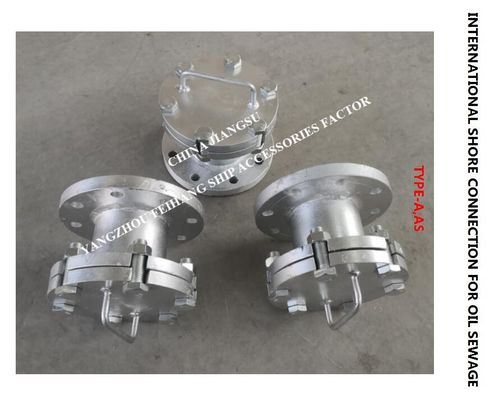

    INTERNATIONAL SHORE CONNECTION FOR OIL SEWAGE

    International shore connection-oily sewage shore connection-oily sewage discharge joint
    CB/T3657 Marine shore connection-international shore connection-oil sewage international shore connection Definition:



    This paragraph A, AS type oily sewage international shore connection is in accordance with: Article 13 of the MARPOL Annex of the International Anti-pollution Convention
    Article 13 Standard dimensions of flanges for oily wastewater discharge joints

    AS6032 CB/T3657-94, OIL SEWAGE INTERNATIONAL SHORE CONNECTION A10032 CB/T3657-94

    Standard  sizes
    Outer diameter 215mm
    Inner diameter  according to the outer diameter of the pipe on board
    Bolt pitch circle diameter 183mm
    Flange notches  6 holes with a diameter of 22mm, equally spaced on the diameter of the bolt pitch circle, slotted to the outer edge of the flange, and the width of the notch is 22mm
    Flange thickness  20mm
    Bolts and nuts 6 pieces, each with a diameter of 20mm, the length is appropriate

    The flange should be designed to accept a pipe with a maximum inner diameter of 125 mm, made of steel or other equivalent materials, with a flat surface, and a gasket of oil sealing material, which should be able to withstand a working pressure of 0.6 MPa.



    CB/T3657 Marine shore connection-international shore connection-oil sewage international shore connection Necessity of installation:

    AS6032 CB/T3657-94, OIL SEWAGE INTERNATIONAL SHORE CONNECTION A10032 CB/T3657-94
    This oil-sewage discharge joint, the oily-sewage international shore connection, is used to discharge shipboard engine room bilge water and residual oil (sludge) tank residues to shore. Except for the above-mentioned standard discharge joints, the piping system entering and leaving the residual oil (sludge) tank shall have no joints directly discharged to the overboard.



    CB/T3657 Marine shore connection-international shore connection-oil sewage international shore connection Necessity of installation and scope of application:


    All ship slop tanks refer to tanks specifically designated to collect tank effluent, tank washing water and other oily mixtures.
    Residual oil (sludge) refers to the residual waste oil products produced during the normal operation of the ship, such as the residual waste oil products produced by the fuel or lubricating oil purification of the main engine or auxiliary engines, the separated waste oil from the oil filtering equipment, the drip pan Collected waste oil, as well as waste hydraulic oil and lubricating oil.
    Residual oil (sludge) tank refers to a tank that stores residual oil (sludge). The sludge can be directly processed from the tank through standard discharge joints and any other approved treatment measures.
    Oily bilge water means water that may be contaminated with oil from leakage or maintenance work in machinery spaces. Any liquid that enters the bilge water system (including bilge water traps, bilge pipes, inner bottoms or bilge water storage tanks) is regarded as oily bilge water.
    Oily bilge water storage tank refers to a tank that collects oily bilge water before it is discharged, transferred or treated.
    Generally, residual oil (sludge) is called slop oil or sludge on ships, and the corresponding compartments are called slop tanks or sludge tanks; the sludge tank discharge pipeline and the bilge water discharge pipeline can be connected to the standard through a common discharge pipe Shore connection, but it is not allowed to transfer residual oil to the bilge water system
    Bilge tanks and sludge tanks (residual oil and sludge tanks) are generally provided on ships. For convenience, the slag tank and bilge water discharge are designed to be discharged separately, but the shore connection is the same.

    AS6032 CB/T3657-94, OIL SEWAGE INTERNATIONAL SHORE CONNECTION A10032 CB/T3657-94

    Here, Yangzhou Feihang Ship Accessories Factory will explain the CB/T3657-2011 oily sewage international shore connection drawing for you:

    AS6032 CB/T3657-94, OIL SEWAGE INTERNATIONAL SHORE CONNECTION A10032 CB/T3657-94

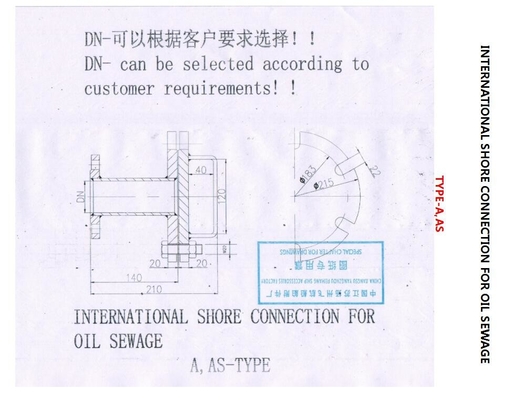

    According to the above drawings, A, AS type marine shore connection, oil sewage international shore connection CB/T3657-2011 can usually be marked as:

    AS6032 CB/T3657-94, OIL SEWAGE INTERNATIONAL SHORE CONNECTION A10032 CB/T3657-94AS6032 CB/T3657-94, OIL SEWAGE INTERNATIONAL SHORE CONNECTION A10032 CB/T3657-94

    Oily sewage international shore connection AS6032 CB/T3657-94, oily sewage international shore connection A10032 CB/T3657-94
    AS6040 oily sewage international shore connection CB/T3657-94, oily sewage international shore connection A10040 CB/T3657-94
    AS10050 oily sewage international shore connection CB/T3657-94, oily sewage international shore connection AS6050 CB/T3657-94
    AS6065 oily sewage international shore connection CB/T3657-94, oily sewage international shore connection AS10065 CB/T3657-94
    AS6080 oily sewage international shore connection CB/T3657-94, oily sewage international shore connection AS10080 CB/T3657-94
    A10100 oily sewage international shore connection CB/T3657-94, oily sewage international shore connection AS6100 CB/T3657-94
    A10100 oily sewage international shore connection CB/T3657-94, oily sewage international shore connection AS6100 CB/T3657-94



    According to different customer requirements, this paragraph A, AS type domestic sewage international shore connection can be extended to;

    AS6032 CB/T3657-94, OIL SEWAGE INTERNATIONAL SHORE CONNECTION A10032 CB/T3657-94

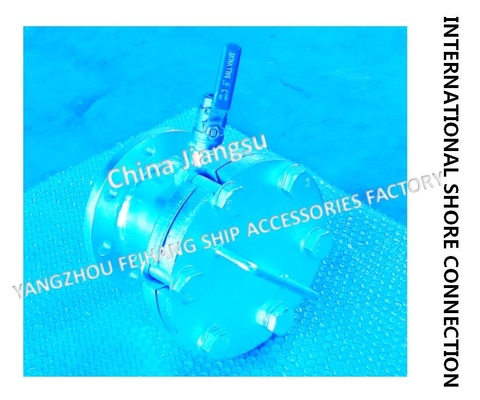

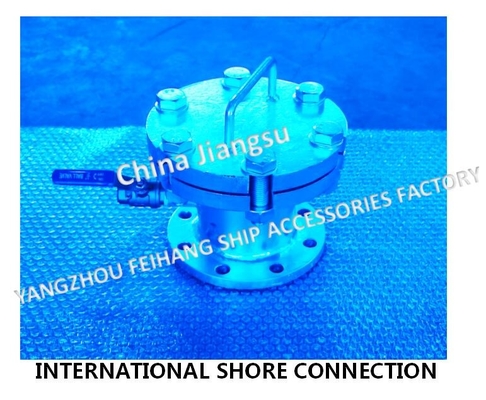

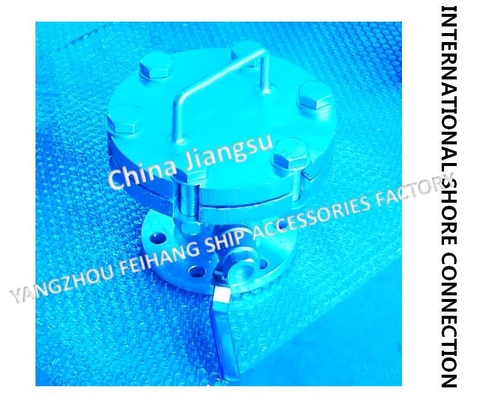

    International shore connection with ball valve, international shore connection with ball valve for domestic sewage

    AS6032 CB/T3657-94, OIL SEWAGE INTERNATIONAL SHORE CONNECTION A10032 CB/T3657-94





    Competitive advantage:


    1. Factory direct sale, competitive price.
    2. Customized Service: We can customize, to customers drawings for processing. We are flexible and capable Supplier.
    3. Genuine Product with Excellent Quality: Our Product are strictly complied with China Compulsory Certification. 100% guarantee test before delivery.
    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
    5. Delivery Time: after receiving the payment within 24-72 hours to Timely arrange raw materials, processing, production, and timely delivery.
    1.Cheap factory price with high quality Long service life
    3. Manufacturing experience of various low-pressure and high-pressure seawater filters
    5 We hope long term cooperation with our customers



    Advantages:


    1. Excellent and high quality control
    2. Fast delivery
    3. Competitive price
    4. Small order accepted
    5. Customers' drawing or samples accepted
    6.Assembly line production process, assembly line depth sounding equipment



    Delivery time is approx:


    1. We will test them strictly before shipping.
    2. We will ship it in 1-3 working days after your paying.as to the shipping time,it usually will be 6- 12 days,which will be different for different countries.
    3.You can choose DHL, UPS, TNT and other international express for delivery. At the same time, it can also be sent to the freight forwarder designated by the customer (anywhere in China)



    FAQ:


    1. How about your price?
    We specialize in customized high-quality promotional items for you and can help you meet any requirement with the most reasonable price
    2. Can you produce the product as our sample or design?
    Yes,we can.OEM&ODM are welcome. As long as you give us the detailed specific requirement,we can absolutely make the same samples and send to you for approval.

    3. Could you send me all your catalogues and price list?
    We have over thousands of products. it is really too hard for us to send you all our
    catalogue and price list for you, please let us know the items, size details which you
    are interested in, so we can offer you the price list for you reference.



    Packaging & Shipping:
    Shipping by sea or air Express by DHL, FEDEX,UPS,TNT and so on Packed in standard exporting carton or as your request



    TipsTips:
    1. Please make sure your address informations correct ,so the parts can safe delivery.
    2. When you place orders,please inform me how to make the Commercial invoice(Customs invoice).

    3. Customers please leave your contact details,such as e-mail address,mobile no.,when I take delivery,I need the above information,Thanks.

    If you have any question,pls feel free to contact us,we are always at your service.









    73/78 Anti-pollution Convention - Prevention of Domestic Sewage Pollution Regulations
    INTERNATIONAL SHORE CONNECTION FOR ONLY WASTEWATER AND SEWAGE

    International shore joints - oil sewage shore joints - domestic sewage international shore joints - sewage discharge joints
    CB/T3657-2011



    Product Overview of "Marine International Coastal Joints - Oil Sewage Discharge Joints"

    All ships must be equipped with at least one international shore connection. Its function is: When the fire pump on the ship fails, the CB/T3657-2011 international shore joint is used to introduce the fire water from the shore or other facilities into the fire department of the ship and continue to extinguish the fire.AS6032 CB/T3657-94, OIL SEWAGE INTERNATIONAL SHORE CONNECTION A10032 CB/T3657-94
    This oil-sewage international shore joint and domestic sewage international shore joint are mainly used for ship oil sewage and domestic sewage pipelines. One end is a flat flange, and the other end is a permanently attached interface with the fire hydrant and fire hose on the ship; the international shore joint interface is consistent with the ship's own fire hydrant and hose connection.



    Ship oil sewage discharge joint, A/AS/AJ type oil sewage shore joint, international shore joint


    According to Article 13 of MARPOL Annex I of the International Conference on Pollution Prevention. This international shore joint is used to discharge the ship's cabin bilge and residual oil (sludge) tank residues to shore.
    The piping system for entering and leaving the residual oil (sludge) compartment shall have no joints directly to the outboard except for the above-mentioned standard discharge joints.
    AS6032 CB/T3657-94, OIL SEWAGE INTERNATIONAL SHORE CONNECTION A10032 CB/T3657-94

    Outer diameter: 215mm;
    Inner diameter: according to the outer diameter of the pipe;
    Bolt pitch diameter: 183mm;
    Flange notch: 6 holes with a diameter of 22mm are equidistantly distributed on the diameter of the above bolt ring, slotted to the outer edge of the flange, and the slot width is 22mm;
    Flange thickness: 20mm;
    Bolts and nuts: M20*6 only, the length is appropriate.





    Ship domestic sewage discharge joints, B, BS, BJ type domestic sewage shore joints, international shore joints:


    "In accordance with Article 10 of MARPOL Annex IV of the International Pollution Prevention Convention. It is generally required that the discharge lines on both sides of the ship have such international shore joints. For ships that are specially operated, such as passenger ferries, the ship discharge lines may be optionally equipped with a discharge joint accepted by the competent authority, such as a quick connection joint.

    AS6032 CB/T3657-94, OIL SEWAGE INTERNATIONAL SHORE CONNECTION A10032 CB/T3657-94

    Outer diameter: 210mm;
    Inner diameter: according to the outer diameter of the pipe;
    Bolt pitch diameter: 170mm;
    Flange notch: 4 holes with a diameter of 18mm are equidistantly distributed on the diameter of the above bolt ring, from the slot to the outer edge of the flange, and the slot width is 18mm.
    Flange thickness: 16mm;
    Bolts and nuts: M16*4 only, the length is appropriate.



    CBM1114-1982 Marine fire international shore joint, bronze fire international shore joint
    "According to the requirements of the fire safety system rules, in consideration of corrosion resistance, copper materials are used as the interface of the fire hydrant or fire hose on the ship"

    AS6032 CB/T3657-94, OIL SEWAGE INTERNATIONAL SHORE CONNECTION A10032 CB/T3657-94
    Outer diameter: 178mm;
    Inner diameter: 64mm;
    Bolt pitch diameter: 132mm;
    Flange notch: 4 holes with a diameter of 19 mm are equidistantly distributed on the diameter of the above bolt ring, and the slot is opened to the outer edge of the flange;
    Flange thickness: at least 14.5mm;
    Bolts and nuts: M16*50mm*4 pairs.



    CB/T3657-2011 International sewage joints for oil and domestic sewage are usually marked as:

    AS6032 CB/T3657-94, OIL SEWAGE INTERNATIONAL SHORE CONNECTION A10032 CB/T3657-94
    A, AS type ship shore joint, oil sewage international shore joint CB/T3657-2011

    Oil sewage international shore joint AS6032 CB/T3657-94, oil sewage international shore joint A10032 CB/T3657-94
    AS6040 oil sewage international shore joint CB/T3657-94, oil sewage international shore joint A10040 CB/T3657-94
    AS10050 oil sewage international shore joint CB/T3657-94, oil sewage international shore joint AS6050 CB/T3657-94
    AS6065 oil sewage international shore joint CB/T3657-94, oil sewage international shore joint AS10065 CB/T3657-94
    AS6080 oil sewage international shore joint CB/T3657-94, oil sewage international shore joint AS10080 CB/T3657-94
    A10100 oil sewage international shore joint CB/T3657-94, oil sewage international shore joint AS6100 CB/T3657-94
    A10100 oil sewage international shore joint CB/T3657-94, oil sewage international shore joint AS6100 CB/T3657-94


    Marine B, BS type domestic sewage shore joint, domestic sewage international shore joint CB/T3657-2011

    AS6032 CB/T3657-94, OIL SEWAGE INTERNATIONAL SHORE CONNECTION A10032 CB/T3657-94

    Domestic sewage sewage shore connection BJ10040 CB/T3657-94, B6040 CB/T3657-94 Domestic sewage international discharge joint
    Carbon steel galvanized domestic sewage sewage shore connection BS6050 CB/T3657-94, BS10050CB/T3657-94 domestic sewage international discharge joint
    Sewage sewage stainless steel shore joint BS6065 CB/T3657-94, BS10065CB/T3657-94 domestic sewage stainless steel international discharge joint
    Domestic sewage sewage stainless steel shore joint BS6080 CB/T3657-94, BS10080CB/T3657-94 domestic sewage international discharge joint
    Domestic sewage sewage shore connection BS6100 CB/T3657-94, BS10100CB/T3657-94 Domestic sewage international discharge joint


    CBM1114-82 marine copper international shore joints are usually marked as:

    AS6032 CB/T3657-94, OIL SEWAGE INTERNATIONAL SHORE CONNECTION A10032 CB/T3657-94

    International shore connection 65g CBM1114-82, copper international shore joint CBM1114-82 Dg65
