    Product Details:

    Place of Origin: China Jiangsu Yangzhou
    Brand Name: FH
    Certification: Inspection Report
    Model Number: A,AS,B,BS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Wooden box
    Delivery Time: The 3 day
    Payment Terms: Advance payment and delivery
    Supply Ability: 1000platform/day
    Contact Now
    Detailed Product Description
    Implementation Standards: 20-80A Texture Of Material: Carbon Steel, Galvanized, Stainless Steel

    Shipbuilding-Gas water separator

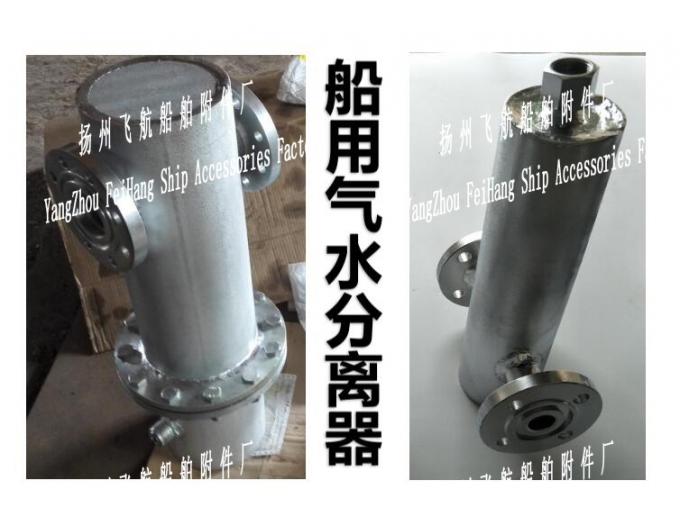

    Overview of gas water separator / marine gas water separator product:A, AS type gas water separator, /A, AS type marine gas water separator

    Overview of gas water separator / marine gas water separator product:
    This air water separator is suitable for compressed air piping system with medium as air.

    Standard for performance of gas water separator / marine gas water separator:
    People's Republic of China shipbuilding industry standard: CB/T3572-1994 gas water separator
    II. Foreign trade standard: CBM1034-81 marine gas water separator

    Gas water separator / marine gas water separator basic form:
    A, AS type gas water separator, /A, AS type marine gas water separator
    A type flange size press GB569 gas water separator / marine gas water separator
    AS type flange size press GB2501 gas water separator / marine gas water separator
    B type flange size press GB569 automatic gas water separator / marine gas water separator
    BS type flange size press GB2501 automatic gas water separator / marine gas water separator

    Marine air water separator / marine automatic drainage gas water separator structure form:

    A, AS type marine gas water separator (DN20-DN50):
    A, AS type gas water separator, /A, AS type marine gas water separator
    B, BS type marine automatic drainage gas water separator (DN20-DN80):


    CBM1034-81 marine gas water separator (daily standard flange):
    A, AS type gas water separator, /A, AS type marine gas water separator
    Air water separator / marine gas water separator, custom material selection:

    Generally speaking, if there is no special requirement, normal production is as follows:
    A, AS type gas water separator, /A, AS type marine gas water separator
    In order to enhance the corrosion resistance, the marine gas water separator can be manufactured with the following materials:

    SUS304 stainless steel gas water separator / marine stainless steel gas water separator CB/T3572-94 (DN20-DN80)
    SUS316 stainless steel gas water separator / marine stainless steel gas water separator CB/T3572-94 (DN20-DN80)
    SUS316L stainless steel gas water separator / marine stainless steel gas water separator CB/T3572-94 (DN20-DN80)

    Gas water separator / marine gas water separator technical agreement:
    A, AS type gas water separator, /A, AS type marine gas water separator
    1. the joint size of all gas water separators shall comply with the requirements of CB*56.
    2. the flange dimensions and sealing surfaces of all marine separators shall comply with the requirements of GB569/GB2501.
    3. marine gas water separator shall be marked with medium flow direction
    4. after the gas water separator body is welded, the annealing treatment shall be carried out
    5. the surface of marine gas water separator shall be galvanized, and the average thickness of zinc layer shall be no less than 30 mu m

    Test method for gas water separator / marine gas water separator:
    A, AS type gas water separator, /A, AS type marine gas water separator
    1. marine gas water separator should be carried out after the completion of the hydraulic strength test with 4.5Mpa, the ambient temperature is not lower than 5 DEG C, the pressure regulator in 5 minutes, and then reduced to working pressure to check again in the course of the experiment, no leakage and sweating phenomenon.
    2. marine gas water separator in strength test qualified, assembled, should be airtight experiment, the experimental pressure is equal to the pressure of work, the experimental method is the separator in water or in the weld joints and coated with soap and water, any leakage is not allowed in 5 minutes.
    3. marine automatic drainage separator shall be able to work stably at 16 degrees of inclination
    4. the utility experiment of the marine gas water separator, under the 5.3 specified conditions, water injection from the inlet of the gas water separator and stopping water injection when the drain valve is drained, is carried out 5 times continuously

    The gas water separator / marine gas water separator is usually marked as:

    A, AS type gas water separator, /A, AS type marine gas water separator
    A, AS type gas water separator, /A, AS type marine gas water separator
    Gas water separator A30040, CB/T3572-94/, marine gas water separator, AS30040, CB/T3572-94
    (nominal pressure is 3.0Mpa, nominal diameter is DN40)
    Marine gas water separator AS30025 CB/T3572-94/ marine gas water separator A30025
    (nominal pressure is 3.0Mpa, nominal diameter is DN40)
    Gas water separator A30032, CB/T3572-94/, marine gas water separator, AS30032, CB/T3572-94
    (nominal pressure is 3.0Mpa, nominal diameter is DN40)
    Gas water separator A30040, CB/T3572-94/, marine gas water separator, A30040, CB/T3572-94
    (nominal pressure is 3.0Mpa, nominal diameter is DN40)
    Air water separator, A30050, CB/T3572-94/, marine gas water separator, AS30050
    (nominal pressure is 3.0Mpa, nominal diameter is DN50)

    B, BS type automatic drainage gas water separator, /B, BS type marine automatic drainage gas water separator
    A, AS type gas water separator, /A, AS type marine gas water separator
    Gas water separator BS30040, CB/T3572-94/, marine gas water separator, B30040, CB/T3572-94
    (nominal pressure is 3.0Mpa, nominal diameter is DN40)
    Marine gas water separator B30065 CB/T3572-94/ marine gas water separator BS30065
    (nominal pressure is 3.0Mpa, nominal diameter is DN40)
    Gas water separator B30080, CB/T3572-94/, marine gas water separator, B30080, CB/T3572-94
    (nominal pressure is 3.0Mpa, nominal diameter is DN40)
    Dg40 Pg30 gas water separator: gas water separator 40 CBM1034-81
    Dg50 Pg30 gas water separator: gas water separator 50 CBM1034-81

    Our advantage:
    A, AS type gas water separator, /A, AS type marine gas water separator
    Quality stability: the implementation of the whole process of quality control, nuanced, all-round testing
    Reasonable price: efficient internal cost control, reduce expenses, and benefit customers
    Convenient delivery: cash production line, adequate stock, shorten the delivery time
