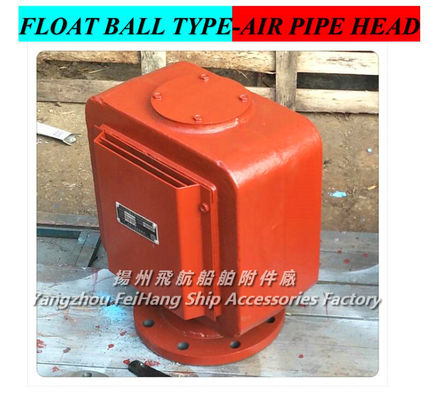

Marine air pipe head, oil tank air pipe head, water tank air pipe head CB/T3594-94

Marine air pipe head, oil tank air pipe head, water tank air pipe head CB/T3594-94

    • Marine air pipe head, oil tank air pipe head, water tank air pipe head CB/T3594-94
    • Marine air pipe head, oil tank air pipe head, water tank air pipe head CB/T3594-94
    • Marine air pipe head, oil tank air pipe head, water tank air pipe head CB/T3594-94
    • Marine air pipe head, oil tank air pipe head, water tank air pipe head CB/T3594-94
    • Marine air pipe head, oil tank air pipe head, water tank air pipe head CB/T3594-94
    • Marine air pipe head, oil tank air pipe head, water tank air pipe head CB/T3594-94
    • Marine air pipe head, oil tank air pipe head, water tank air pipe head CB/T3594-94
    • Marine air pipe head, oil tank air pipe head, water tank air pipe head CB/T3594-94
    • Marine air pipe head, oil tank air pipe head, water tank air pipe head CB/T3594-94
    • Marine air pipe head, oil tank air pipe head, water tank air pipe head CB/T3594-94
    • Marine air pipe head, oil tank air pipe head, water tank air pipe head CB/T3594-94
    • Marine air pipe head, oil tank air pipe head, water tank air pipe head CB/T3594-94
  • Marine air pipe head, oil tank air pipe head, water tank air pipe head CB/T3594-94

    Product Details:

    Place of Origin: China Jiangsu Yangzhou
    Brand Name: Feiteng
    Certification: Inspection Report
    Model Number: DS-Float type

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Wooden box
    Delivery Time: The 3 day
    Payment Terms: Advance payment and delivery
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Implementation Standards: CB/T3594-94 Connection Mode: Flanged Connections
    Body Material: Cast Iron Side Cover Material: SUS304
    Interior Parts: Stainless Steel Float

    Stainless steel marine tank air duct Head air pipe head for oil TAN

    Buoy Type stainless steel tank air pipe head floating DISC oil tank air pipe head

    Marine air pipe head, oil tank air pipe head, water tank air pipe head CB/T3594-94

    About Air PIPE Head Marine breathable cap-oil Tank vent cap (stainless steel Cover) Product Overview This marine oil tank Air pipe head/oil tank vent cap through the suction and breathing is the air pressure in the cabin to close to atmospheric pressure, so that its pressures remain within the design pressure of the cabin, in addition to prevent the Sea water, rain, Mars into the cabin cabinet while preventing the wave debris into the air duct into the cabin.



    About Marine Air Pipe Head-marine breathable cap product terminology and model Meaning:

    Marine air pipe head, oil tank air pipe head, water tank air pipe head CB/T3594-94
    Oil tank vent Cap DS200HT cb/t3594-1994:
    Type D-buoy type, flange with s, nominal diameter of 200mm, the body material for HT200 gray iron, top cover, protective side cover are stainless steel 304, internal parts for stainless steel float, the implementation of the standard cb/t3594-1994 oil tank dedicated air pipe HEAD.



    About marine oil tank ventilation cap-oil Tank Air pipe Head technical parameters:

    Marine air pipe head, oil tank air pipe head, water tank air pipe head CB/T3594-94
    Design and manufacture inspection standard cb/t3594-1995
    Body Material Ht200-gray Iron
    Interior Parts SUS304 Stainless steel
    Top cover, side cover SUS304 stainless steel
    Nominal bore/nominal pressure DN200
    Connection Form Flanged connection
    Flange standard GB2506 Sealing surface (RF) Exterior Carbon Steel: anticorrosive paint



    Yangzhou Aviation Shipping Accessories Factory Production Marine oil tank Marine Air Pipe head-marine oil tank ventilation cap production process:

    Marine air pipe head, oil tank air pipe head, water tank air pipe head CB/T3594-94
    ▲ Pouring blank parts ▲ and then grinding processing ▲ Assembly ▲ Water pressure Experiment ▲ paint ▲ Packing Shipment



    About oil tank Marine Air Pipe head-marine oil tank vent CAP Installation Essentials:

    Marine air pipe head, oil tank air pipe head, water tank air pipe head CB/T3594-94

    For oil pipe head tank Air tube head outline structure size:

    Marine air pipe head, oil tank air pipe head, water tank air pipe head CB/T3594-94
    About this DS200HT cb/t3594-94 Marine Stainless steel oil tank air pipe head-oil tank vent cap ordering Instructions:



    1, determine the ventilation cap custom-made materials.

    Marine air pipe head, oil tank air pipe head, water tank air pipe head CB/T3594-94

    2, determine the flange size of the vent cap, you can choose:

    Marine air pipe head, oil tank air pipe head, water tank air pipe head CB/T3594-94
    Flange size one: od 295mm Center distance (eye Distance) 264mm 12 hole
    Flange size two: Outside diameter 320mm Center distance (eye Distance) 280mm 8 hole
    Jis-5k: od 320mm Center pitch (eye Distance) 280mm 8 hole
    Jis-10k: od 330mm Center pitch (eye Distance) 290mm 12 hole
    Din-16k: od 340mm Center pitch (eye Distance) 295mm 8 hole
    Aisi-150lb: od 343mm Center pitch (eye Distance) 298mm 8 hole



    Marine Air Pipe head-marine oil tank air tubing Head Application field:

    Marine air pipe head, oil tank air pipe head, water tank air pipe head CB/T3594-94

    Air pipe head for bilge Oil W. T. Dirt tank vent cap-oil tank stainless steel Air pipe head d200ht cb/t3594-1994

    ds200qt cb/t3594-1994 cylinder oil tank stainless steel vent cap Cylind
    ER oil tank Air pipe head Cabin oil tank breathable cap d200ht cb/t3594-94

    engine room oils tank Air pipe head fuel daily cabinet Air tube head DS200QT cb/t3594-94 F.O. Service Tank Air PIP

    E Head



    About the maintenance of stainless steel air pipe head in marine oil tank in the later period:

    Marine air pipe head, oil tank air pipe head, water tank air pipe head CB/T3594-94
    1, according to the requirements of this section of the marine oil tank Air pipe head interior parts: stainless steel float
    2, can be changed according to the requirements of the oil tank Marine Air pipe Head cover, and side cover
    3, can be changed according to the requirements of the marine oil tank ventilation cap internal sealing ring
