Home ProductsCopper seawater filter CB682-78

A type straight copper seawater filter CB682-78

A type straight copper seawater filter CB682-78

A type straight copper seawater filter CB682-78

Product Details:

Place of Origin: China Jiangsu Yangzhou
Brand Name: Feiteng
Certification: Inspection Report
Model Number: A,AS,B,BS

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: The 3 day
Payment Terms: Advance payment and delivery
Supply Ability: 1000
Contact Now
Detailed Product Description

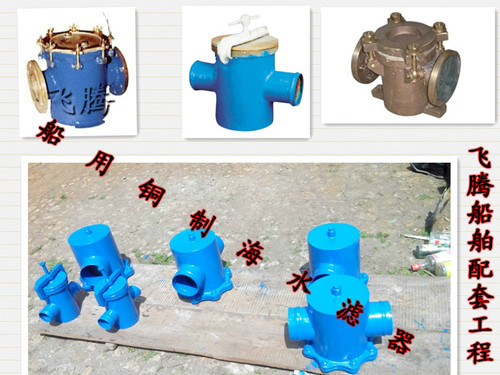

A type straight copper seawater filter CB682-78

A type straight copper seawater filter CB682-78

Form: type A (straight) B (angle)

Nominal pressure: 0.25Mpa

Nominal diameter: 65-150mm 20-150mm

Suitable medium: water

Scope of application: the product is suitable for a water pipeline of ship types.

The material of main parts of seawater filter: body material is copper, copper wire cloth filter material, valve cover material is brass, steel bar material is carbon steel, sealing gasket material for rubber.

1 copper seawater filter can meet the requirements of this standard, and according to the unified pattern.

2 screen hole area and nominal diameter section area ratio, DN20-50mm is not less than 5, not less than 3 DN65-150mm.

The 3 fastening parts galvanized.

The 4 filter body and cover with PN=4mpa hydraulic pressure strength test, assembly with PN=3.2Mpa pressure do tightness test.

Qualified 5 filter test surface coating of green paint.

The company production of marine filter varieties:

Marine suction sea water filter CB/T497-94

Marine inhalation of seawater filter CBM1061-81

CB682-78 copper water filters for ship

Low voltage marine crude oil filter CB/T425-94

Marine single chain oil colander CBM1133-82

Marine air filter CB3251-85Y

Marine outside whorl air filter, CB421-77 marine flange type air filter

Marine through single chain oil colander type DDL
