    Product Details:

    Place of Origin: China Jiangsu Yangzhou
    Brand Name: Feiteng
    Certification: Inspection Report
    Model Number: D,DS,E,ES-Float type

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Wooden box
    Delivery Time: The 3 day
    Payment Terms: Advance payment and delivery
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Implementation Standards: CB/T3594-94 Connection Mode: Flanged Connections; Threaded Connections

    Water tank breather cap water tank air pipe head pontoon type water tank air pipe head
    Arrangement of vent cap for air tank head water tank of ship water tank:
    Air Cap For Sea water tan ES100HT CB/T3594-94
    Air tanks shall be provided for tanks for storing water, isolated empty cabins, sea water valve boxes, pipe tunnels and shafts, tunnels, etc.. For large carriers, air pipes should be installed even if there is strong ventilation in the tunnel. The air pipe shall be drawn from the top of the tank and as far as possible from the injection pipe.
    Air Cap For Sea water tan ES100HT CB/T3594-94

    Air pipe head For Fore peak tank

    Air Cap For Fresh water tank

    Air pipe head For Sewage tank

    Air Cap For Sea water tank

    Air Cap For Overflow tank

    Air pipe head For Feed water tank

    Air Cap For Topside tank

    Air pipe head For Cooling water tank

    Air Cap For Log room

    Air pipe head For Bilge oil w.t.

    Air pipe head For After peak tank

    Air Cap For Bilge well

    Air Cap For Cofferdam tank

    Air Cap For Drain tank

    Air pipe head For Distilled water tank

    Bilge water tank

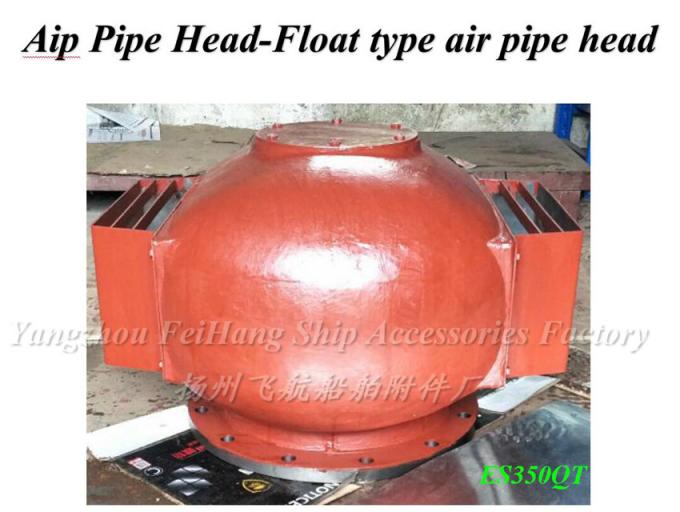

    Large caliber water tank, air pipe head, water tank, air permeable cap, ES350QT, CB/T3594-94:

    Air Cap For Sea water tan ES100HT CB/T3594-94

    Nominal diameter is 350mm, press GB2501 flange dimension and sealing surface float type water tank air pipe head

    Pontoon type water tank, air pipe head, ES50QT, CB/T3594-94, water tank, breather cap, ES50QT, CB/T3594-94

    ead, water tank breather cap E100HT, CB/T3594-94:
    Air Cap For Sea water tan ES100HT CB/T3594-94
    Nominal diameter is 100mm, press GB569 flange dimension and sealing surface float type water tank air pipe head
    Pontoon type water tank, air pipe head, ES100HT, CB/T3594-94, water tank, breather cap, ES100HT, CB/T3594-94

    Brief introduction of floating cap structure of pontoon type water tank air pipe head and pontoon type ballast tank:
    Air Cap For Sea water tan ES100HT CB/T3594-94
    The above two types of air pipe heads belong to the E buoy type air pipe head in the CB/T3594-1994 ship standard.
    When the external environment is bad, the sea water or rain water enters the air cap, and when it is too late to discharge, the float can be jacked up. After the float is raised, the water cannot enter into the air duct, thereby isolating the possibility of entering the cabin.
    This air pipe head: through its internal components - stainless steel float / stainless steel float / stainless steel float plate can be automatically closed, so also known as self closing oil tank, air pipe head / self closing water tank, air pipe head.

    DN100 water tank, air pipe head, pontoon type water tank, air pipe head, ballast tank, ventilating cap
    Air Cap For Sea water tan ES100HT CB/T3594-94
    E100HT CB/T3594-94 flanged cast iron air pipe head, flanged cast iron water tank, breathable cap
    E100QT, CB/T3594-94 ductile iron, water tank, air pipe head, ductile iron water tank, air permeable cap
    E100G CB/T3594-94 cast steel water tank, air pipe head, cast steel water tank breather cap
    E100S CB/T3594-94 stainless steel breathable cap, stainless steel air pipe head

    DN350 large caliber water tank, air pipe head, pontoon type water tank, air pipe head, ballast tank, air permeable cap
    Air Cap For Sea water tan ES100HT CB/T3594-94
    E350HT CB/T3594-94 flanged cast iron air pipe head, flanged cast iron water tank, breathable cap
    E350QT, CB/T3594-94 ductile iron, water tank, air pipe head, ductile iron water tank, air permeable cap
    E350G CB/T3594-94 cast steel water tank, air pipe head, cast steel water tank breather cap
    E350S CB/T3594-94 stainless steel breathable cap, stainless steel air pipe head


    Marine air pipe head general terminology:
    Air Cap For Sea water tan ES100HT CB/T3594-94
    Marine A type air pipe head of AS type B, BS type cap; gooseneck type air pipe head; D, DS type float type oil tank air pipe head; E, ES type float type air pipe head tank; FS type float type oil tank air pipe head called air pipe head CB/T3594-1994 ship, marine air cap, marine air cap.
