Marine filter, suction sea water filter for ship, marine basket type sea water filter called: the sea water filter!
The details are as follows:
Sea water filter Jiangsu Feiteng ship matching Engineering Co. Ltd. production: seawater cooling system applicable to all types of ships and central fresh water cooling system, fire fighting system, ballast water / water systems. To adapt to the medium of sea water or fresh water.
Design and manufacturing of products is based on the industry standard CB/T497-94, and combining the modern ship requirements, to improve the design and the formation of the company series product.
The filter body, cover material is Q235-A or 1Cr18Ni9Ti, 316L and duplex stainless steel, the filter material is 1Cr18Ni9Ti or 316L and duplex stainless steel; filter flow area and filter nominal diameter (DN) area ratio of not less than 3; filter hot dipped zinc coating, the minimum weight 610g/m2. Or the filter surface coating treatment, coating layer thickness of 0.25 - 0.3mm, exterior surface of the primer and topcoat two degrees;
▲ marine filter CBM1061-82

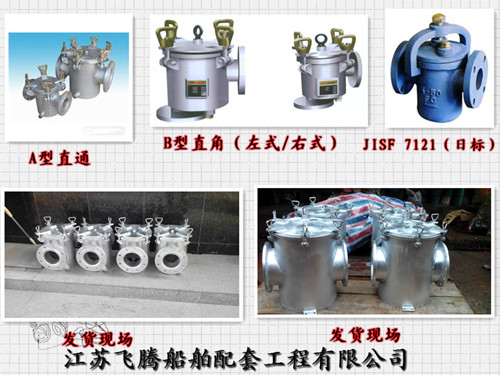

Chinese Name: sea water filter forms: A type straight through seawater filter B type rectangular seawater filter
English Name: sea water filter
Definition: filter water impurities.
▲ marine suction sea water filter CB/T497-94
Type: A type AS type B type BS type BR type BRS type
The nominal pressure; PN0.1MPA
Nominal diameter of DN40-DN500
Applicable medium; sea water, fresh water
Material: carbon steel valve body, valve cover:: carbon steel, stainless steel 304# thread;

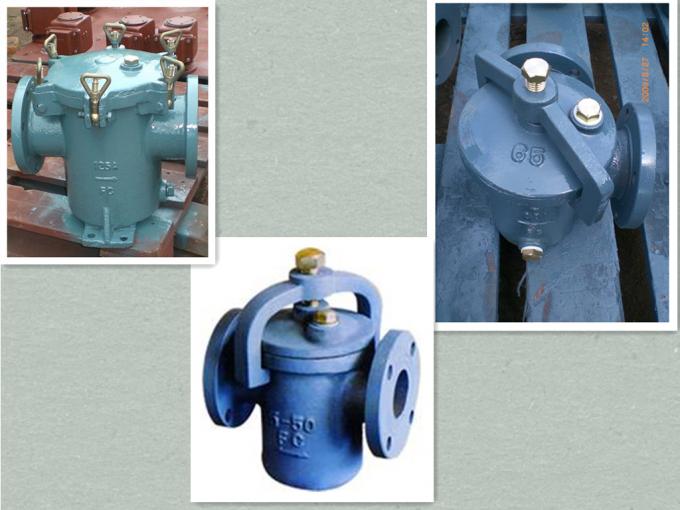

▲ marine JIS seawater filter JIS F7121 filter with barrel shaped vessel
The valve body; nodular cast iron / steel, stainless steel filter screen; 304#
Nominal diameter of DN25-DN500;
Type: A type straight through seawater filter B type rectangular seawater filter
The nominal pressure; PN 5K 10K
Applicable medium; seawater
Ordering instructions: customer in order of time, need to explain the sea water filter body material, water filters filter materials.
A -- flange size according to direct water filter CB/T46;
BR -- flange dimensions according to CB/T46 right angled seawater filter;
BL -- flange dimensions according to CB/T46 left right seawater filter;
AS -- flange size according to direct water filter GB2506;
BRS -- flange dimensions according to GB2506 right angled seawater filter;
BLS -- flange dimensions according to GB2506 left right seawater filter;
