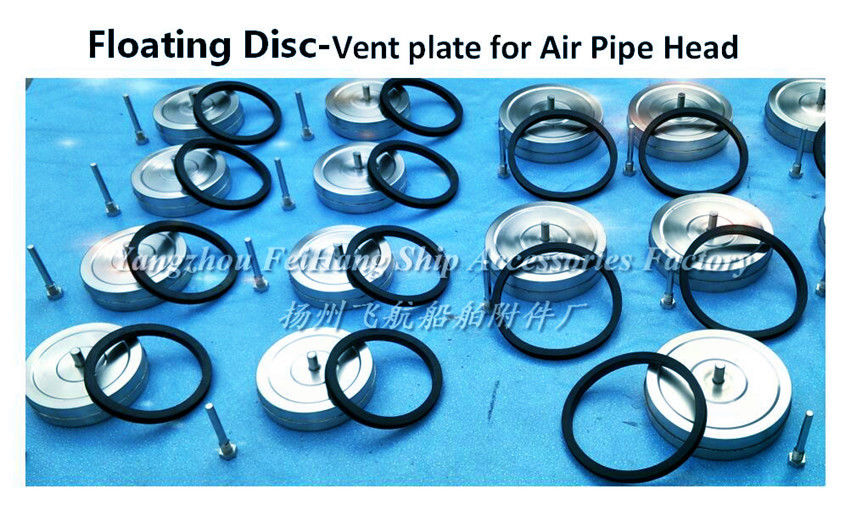

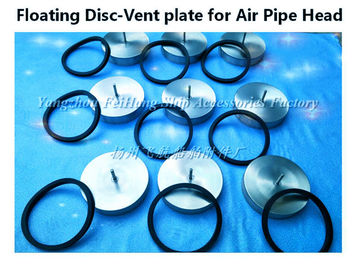

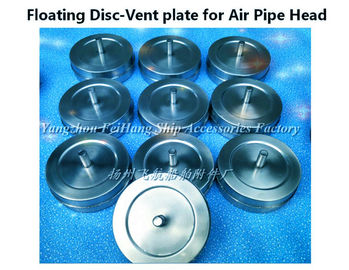

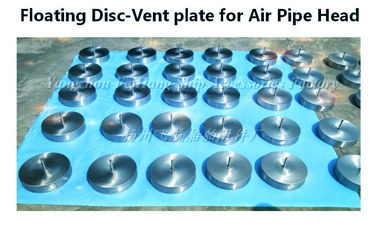

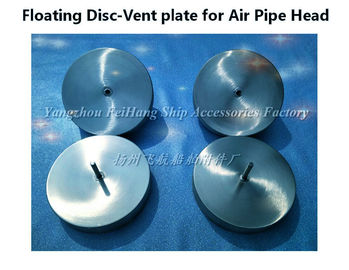

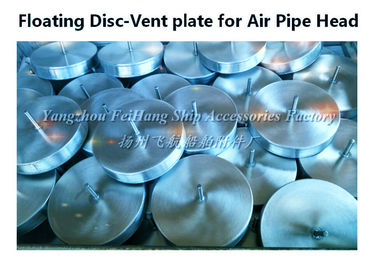

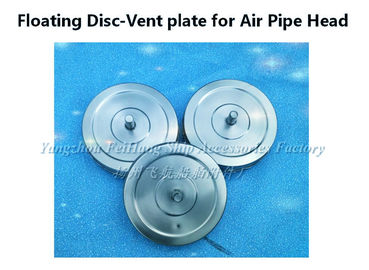

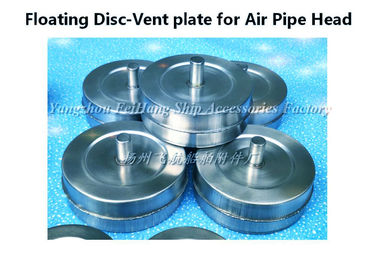

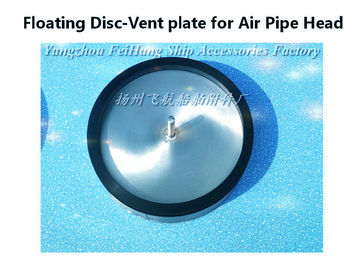

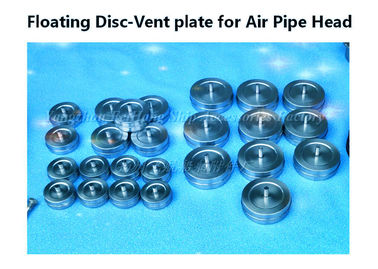

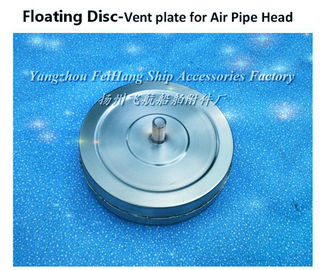

Floating Disc-Vent plate for Air Pipe Head
Floating cap float, stainless steel floating cap float, stainless steel ventilation cap, floating plate order notes:
Method 1: according to our mold size check (a few millimeters difference does not matter) type selection:
|
MODEL
|
D
|
d
|
H
|
W
|
|
50A
|
66
|
14
|
10
|
30
|
|
65A
|
85
|
14
|
18
|
35
|
|
80A
|
95
|
14
|
18
|
35
|
|
100A
|
110
|
16
|
19
|
43
|
|
125A
|
140
|
16
|
33
|
43
|
|
150A
|
160
|
16
|
49
|
46
|
|
200A
|
220
|
16
|
40
|
56
|
|
250A
|
273
|
16
|
40
|
70
|
|
300A
|
330
|
18
|
80
|
70
|
|
350A
|
373
|
18
|
100
|
60
|
|
400A
|
440
|
19
|
70
|
80/100
|
|
450A
|
480
|
19
|
120
|
80
|
|
|
If you measure the size of the old breather cap float is different from the size of our mold, we recommend that you follow the following way of accurate measurement, we can customize non-standard breathable cap float:
Detailed data contains:
The maximum outer diameter of the float cap, the thickness of the float cap, the height of the guide bar above the float cap, and the diameter of the guide bar of the float cap
Our company "Yangzhou flying ship accessories factory" welcomes customers both at home and abroad to consult at any time:
Breathable cap float, FLOATING DISC, breathable cap float, breather cap, float tray, Breathable, cap, float, cap
Ballast tank, breather cap, float plate, FLOAT, DISC, FOR, AIR, VENTS
Ballast tank, breather cap, float plate, WBT, TANK, ARIE, VENT, DISC, FLOAT
Stainless steel ballast tank, breathable cap float, STAINLESS, STEEL, FLOAT, FOR, OVERFLOW, BALLAST, HEAD, NO.533HFB
