    Product Details:

    Place of Origin: China Jiangsu Yangzhou
    Brand Name: FEIHANG
    Certification: Inspection Report
    Model Number: AS-TYPE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Wooden box
    Delivery Time: The 3 day
    Payment Terms: T/T
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Application: Ship Piping Shape: Flange Connection,PN16
    Material: Body-cast Iron, Filter Cartridge-stainless Steel Dimensions: 40mm

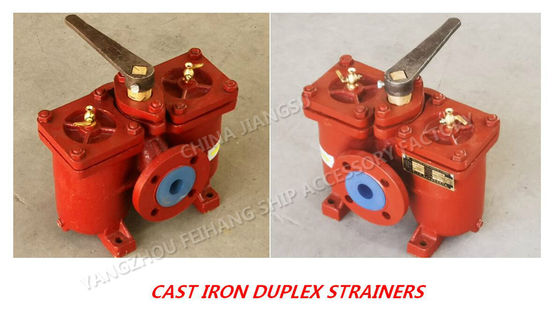

    SHIPBUDING -CAST IRON DUPLEX STRAINERS-DOUBLE OIL FILTER-DUPLEX OIL FILTER-MADE IN CHINA

    MODEL:AS16040 CB/T425-1994

    Duplex oil filter, duplex crude oil filter, duplex fuel filter A40-0.75/0.26 CB425YZFH2Y/AS-40-00

    Duplex Oil Filter-Cast Iron Duplex Coarse Oil Filter-Duplex Fuel Filter AS16040 CB/T425-1994

    Duplex oil filter, duplex crude oil filter, duplex fuel filter A40-0.75/0.26 CB425YZFH2Y/AS-40-00
    The model is AS-through type, the flange standard is GB2501 PN10/PN16, the nominal diameter is 40mm, the body material is HT200 gray cast iron, the internal filter cartridge is stainless steel 316 material, the implementation standard is the national standard CB/T425-1994 fuel pipe Road, lubricating oil pipeline double duplex crude oil filter.



    Double Oil Filter CB/T425-1994  AS16040







    Type





    Size





    Body material



    Filter cylinder form





    Filter material





    Flange Connection



    AS(Straight type)



    40



    Cast iron





    Basket



    SUS316



    GB2501

    PN10/PN16





    According to the filtration accuracy, this marine duplex crude oil filter, duplex low pressure crude oil filter can be selected as follows:

    Duplex oil filter, duplex crude oil filter, duplex fuel filter A40-0.75/0.26 CB425YZFH2Y/AS-40-00

    DN40, the filter screen specification is 0.75/0.26, and the flange connection size is marked according to the low-pressure crude oil filter of GB2506 PN16: double oil filter AS16040-0.75/0.26 CB/T425-94 at the outlet of the oil purifier

    DN40, the filter screen specification is 0.40/0.22, and the flange connection size is marked according to the low-pressure crude oil filter of GB2506 PN16 as follows: fuel oil separator outlet double crude oil filter AS16040-0.40/0.22 CB/T425-94

    DN40, the filter screen specification is 0.25/0.16, and the flange connection size is marked according to the GB2506 PN16 low-pressure crude oil filter as follows: dual low-pressure crude oil filter AS16040-0.25/0.16 CB/T425-94 at the outlet of the oil separator

    DN40, the filter screen specification is 0.16/0.09, and the flange connection size is marked according to the low-pressure crude oil filter of GB2506 PN16: diesel oil separator imported double oil filter AS16040-0.16/0.09 CB/T425-94





    CAST IRON DUPLEX STRAINER-DOUBLE OIL STRAINERS-Marine duplex oil filter AS40 Application areas:

    Duplex oil filter, duplex crude oil filter, duplex fuel filter A40-0.75/0.26 CB425YZFH2Y/AS-40-00

    Duplex oil filter, duplex crude oil filter, duplex fuel filter A40-0.75/0.26 CB425YZFH2Y/AS-40-00
    FUEL OIL PUMP SUCTION FILTER DUPLEX STRAINER diesel oil separator imported dual oil filter, dual crude oil filter MODEL: A40-0.75/0.26 CB/T425-94
    LUBE OIL PUMP SUCTION FILTER DUPLEX STRAINER lube oil separator outlet duplex oil filter, duplex crude oil filter MODEL: A40-0.75/0.26 CB/T425-94
    D.O. DELIVERY PUMP SUCTION DOUBLE OIL FILTER oil purifier outlet duplex oil filter, duplex crude oil filter MODEL: A40-0.75/0.26 CB/T425-94
    Duplex oil filter, duplex fuel filter MODEL: AS40-0.75/0.26 425YZFH2Y/AS-32-00
    Duplex low pressure oil filter A40-0.40/0.22 CB/T425-94
    Double low pressure oil filter AS40-0.40/0.22 CB/T425-94
    Fuel oil separator outlet dual oil filter A40-0.18/0.13 CB/T425-94
    Fuel oil separator outlet double oil filter AS40-0.18/0.13 CB/T425-94
    Fuel oil separator imported double crude oil filter A40-0.16/0.09 CB/T425-94
    Fuel oil separator imported double crude oil filter A40-0.16/0.09 CB/T425-94


    Marine AS16040 straight-through switchable duplex crude oil filter Instructions for use (Maintain)

    Duplex oil filter, duplex crude oil filter, duplex fuel filter A40-0.75/0.26 CB425YZFH2Y/AS-40-00
    This cast iron double crude oil filter is also called double barrel crude oil filter, also called double switchable crude oil filter. It is composed of two barrel oil filters connected in parallel or in series. The filter barrels of the two crude oil filters can be Used alternately, the filter cartridge can be replaced without stopping the machine, or the two machines can work simultaneously. However, its filtering accuracy is not high, and it is only used as the first filter for the oil tank to supply oil to the equipment, to prevent the fine filter on the equipment from prematurely clogging or reduce the premature wear of the belt oil transportation equipment. This kind of double crude oil filter can only be used as a spare for each other, not at the same time. The conversion spool has an oil supply dead zone during the conversion process. If the equipment needs to be cleaned during operation, special attention should be paid to prevent the oil cut-off and the machine from being shut down to cause serious consequences.


    This enlarged flange type double crude oil filter AS40 PN16 CB/T425-1994 is a stereotyped product of our company. The specific structural dimensions and detailed pictures are as follows:

    Duplex oil filter, duplex crude oil filter, duplex fuel filter A40-0.75/0.26 CB425YZFH2Y/AS-40-00Duplex oil filter, duplex crude oil filter, duplex fuel filter A40-0.75/0.26 CB425YZFH2Y/AS-40-00Duplex oil filter, duplex crude oil filter, duplex fuel filter A40-0.75/0.26 CB425YZFH2Y/AS-40-00
