Marine CB/T497-94 crude water filter, marine suction crude water filter

Marine CB/T497-94 crude water filter, marine suction crude water filter

    • Marine CB/T497-94 crude water filter, marine suction crude water filter
    • Marine CB/T497-94 crude water filter, marine suction crude water filter
    • Marine CB/T497-94 crude water filter, marine suction crude water filter
    • Marine CB/T497-94 crude water filter, marine suction crude water filter
  • Marine CB/T497-94 crude water filter, marine suction crude water filter

    Product Details:

    Place of Origin: China Jiangsu Yangzhou
    Brand Name: Fei Hang
    Certification: Inspection Report
    Model Number: A,AS,B,BS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Wooden box
    Delivery Time: The 3 day
    Payment Terms: Advance payment and delivery
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Reference Standard: CB/T497-94,CBM1061-81,JIS F7121 Connection Mode: Flange Connection
    Nominal Pressure: 0.1Mpa-6.4Mpa Mesh Size: 1mm-8mm

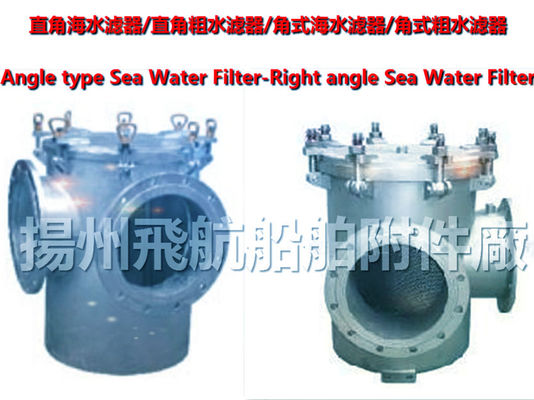

    Angle type Sea Water Filter-Right angle Sea Water Filter

    Marine CB/T497-94 crude water filter, marine suction crude water filter



    Our company (Yangzhou navigation ship Accessory Factory) produces the right angle sea water filter for ships:
    Marine CB/T497-94 crude water filter, marine suction crude water filter
    BR, BRS type right right angle sea water filter right right angle suction coarse water filter CB/T497-94
    BL, BLS type left right angle sea water filter - left right angle suction crude water filter CB/T497-94
    CB/T497-1994 suction coarse water filter - right angle suction coarse water filter - angle suction coarse water filter
    CBM1061-81 sea water filter - right angle sea water filter - angle seawater filter

    Marine right angle sea filter / marine rectangular suction coarse water filter is suitable for marine water cooling system of various types of ships, central fresh water cooling system, ballast fire fighting system, water supply / water supply system. The adapted medium is sea water or fresh water
    With the use of time, the filter strainer will corrode and the filter body will corrode accordingly. The customer will need to ship the old one
    Replace.
    Standard marine seawater filter / marine right angle suction water strainer general standard:

    Marine CB/T497-94 crude water filter, marine suction crude water filter

     Type


    Reference standarc

    (MPa)
    Nominal pressure

    (mm)
    Nominal diameter


    Available medium

    BR,BRS

     Right type right-angle filter

    CB/T497-1994

    CB/T497-2012

    CBM1061-82

    JIS F 7121

    0.1-6.4Mpa

    20 ~ 550

    seawater,freshwater

    BL,BLS

    Left type right-angle filter



    Marine right angle coarse water filters, rectangular angle suction sea water filters, usually mark examples:
    PN0.1MPa, DN50 B type right right angle suction crude water filter /BS type right right angle coarse water filter marked as right angle coarse water filter:
    Marine CB/T497-94 crude water filter, marine suction crude water filter
    Right angle coarse water filter / right angle suction crude water filter BR50 CB/T497-1994
    Right angle sea water filter / right angle sea filter BRS50 CBM1061-82
    PN0.1MPa, DN80 B type left right angle suction crude water filter, /BS type left right angle coarse water filter is marked as "left":
    Right angle coarse water filter / right angle suction crude water filter BL50 CB/T497-1994
    Right angle sea water filter / right angle sea filter BLS50 CBM1061-82
    PN0.1MPa, DN150 B type right right angle suction crude water filter /BS type right right angle coarse water filter marked as right angle coarse water filter:
    Right angle coarse water filter / right angle suction crude water filter BR150 CB/T497-1994
    Right angle sea water filter / right angle sea filter BRS150 CBM1061-82
    PN0.1MPa, DN250 B type right right angle suction crude water filter /BS type right right angle coarse water filter marked as right angle coarse water filter:
    Right angle coarse water filter / right angle suction crude water filter BR250 CB/T497-1994
    Right angle sea water filter / right angle sea filter BRS250 CBM1061-82
    PN0.1MPa, DN350 B type left right angle suction crude water filter, /BS type left right angle coarse water filter is marked as "left":
    Right angle coarse water filter / right angle suction crude water filter BL350 CB/T497-1994
    Right angle sea water filter / right angle sea filter BLS350 CBM1061-82
