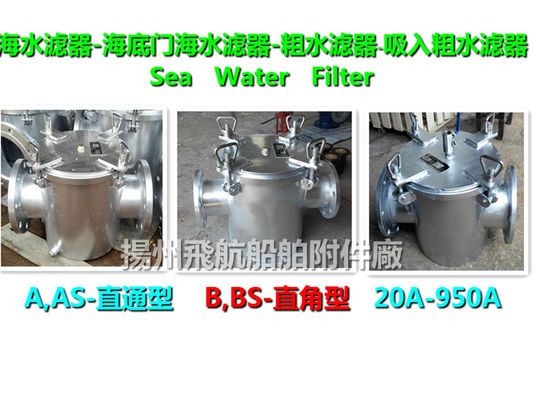

Sea Water Filter Straight Type
The main type of marine direct water filter produced by our company (Yangzhou flying ship accessories factory) has the main model:
Model A suction coarse water filter - direct suction coarse water filter
Model AS suction coarse water filter - direct suction coarse water filter
Standard marine direct water filter / marine through suction crude water filter general standard of implementation is as follows:
|
Type
|
Reference standarc
|
(MPa)
Nominal pressure
|
(mm)
Nominal diameter
|
Available medium
|
|
A,AS
|
Straight filter
|
CB/T497-94
CBM1061-81
|
0.1-6.4
|
20 ~ 500
|
Seawater,Fresh water
|
The ship through the sea water filter / marine type direct inhalation of coarse water filter in marine ship piping system, sea water filter is a common accessory system, usually made of perforated plate filter. Its role is to filter the media, blocking the medium of circulation within a certain size range of impurities, to ensure that the corresponding valve parts, meters and equipment to avoid impurities blocked, so as to ensure the safe operation of the pipeline system.
Marine direct suction coarse water filters, straight through sea water filters, outline drawings, and specific dimensions:
Marine direct through water filters, direct suction sea water filters, usually mark examples:
PN0.1MPa and DN50 type A through suction crude water filter /AS type through coarse water filter is marked as:
Through coarse water filter / through suction crude water filter A50 CB/T497-1994
Direct sea filter / through type seawater filter AS50 CBM1061-82
PN0.1MPa and DN80 type A through suction crude water filter /AS type through coarse water filter is marked as:
Through coarse water filter / through suction crude water filter A80 CB/T497-1994
Direct sea filter / through type seawater filter AS80 CBM1061-82
PN0.1MPa and DN150 type A through suction crude water filter /AS type through coarse water filter is marked as:
Through coarse water filter / through suction crude water filter A150 CB/T497-1994
Direct sea filter / through type seawater filter AS150 CBM1061-82
PN0.1MPa and DN250 type A through suction crude water filter /AS type through coarse water filter is marked as:
Through coarse water filter / through suction crude water filter A250 CB/T497-1994
Direct sea filter / through type seawater filter AS250 CBM1061-82
PN0.1MPa and DN350 type A through suction crude water filter /AS type through coarse water filter is marked as:
Through coarse water filter / through suction crude water filter A350 CB/T497-1994
Direct sea filter / through type seawater filter AS350 CBM1061-82
