Product title: air - water separator - automatic drain water separator
The Air Water Separator-Gas Water Separator
Specifications: BS30065 CB/t3572-94 national standard gas water separator
Manufacturing unit: Yangzhou FieHang Ship Accessories Factory, Yangzhou airlines shipping Accessories Factory
Basic introduction of type B gas water separator:
This gas water separator product is suitable for the compressed air piping system of the medium for air.
Technical agreement on ship gas water separator:
1. The size of the threaded joints of all ship's gas water separator should be in line with the provisions of CB* 56.
2. The flange connection size and sealing cover of all Marine separator shall conform to the provisions of GB569/ GB2501.
3. The water separator should flow to the mark
4. After the ship's gas water separator is welded, it shall be annealed
5. The surface of the ship's gas water separator shall be galvanized and the average thickness of the zinc layer shall not be less than 30 mu m
Instructions to the ship's air and water separator:

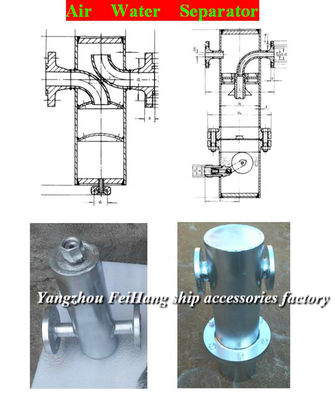

B,BS automatic drainage water separator/B, BS type Marine automatic drainage water separator
Gas water separator BS30040 CB/t3572-94 / ship gas water separator B30040 CB/t3572-94 (nominal pressure is 3.0mpa, nominal size is DN40)
Ship gas water separator B30065 CB/t3572-94 / ship gas water separator BS30065
(nominal pressure is 3.0 Mpa, nominal size is DN40)
Gas water separator B30080 CB/t3572-94 / ship gas water separator B30080 CB/t3572-94 (nominal pressure is 3.0mpa, nominal size is DN40)
Sincerely welcome customers at home and abroad to consult:
A type A - flange size is selected as GB569 gas water separator, ship gas water separator
We can choose AS - flange dimensions according to GB2501 gas water separator, ship gas water separator
Option B - Marine automatic gas water separator - flange dimension is GB569
Can choose BS type - automatic gas water separator - flange dimension is GB2501
