The main uses of the floating cap and float cap of the ballast tank are outlined.
(when the external environment is bad, when the sea or rain enters the air cap, it will not be discharged enough, then it will lift the breathable cap / float cap and floating ball. After the floating cap and float cap are lifted, the water can not enter into the air pipe, so as to isolate and enter the cabin.
When the air pipe head / ballast cap of the tank is immersed in the water under the condition of vertical and tilt 40 degrees, the stainless breathable cap float / stainless steel ventilating cap float / stainless steel ventilating cap can float in a flash and contact the sealing seat. The sealing degree can effectively prevent the water flow into the air / overflow pipe and delay the intake time of the cabinets. After the ship returned to normal state, the buoy automatically landed and restored the function of breathe / breathe.

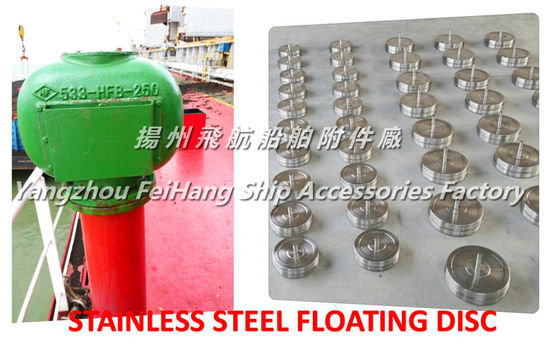

AIR VENT FLOATER OF CB/T3594-94 250A
APT WATER BALLAST TANK AIR VENT FLOATER
Float for ballast vent.head type
Floating Disc-Vent plate for Air Pipe Head NO.533HFB-200A
WBT TANK ARIE VENT DISC FLOAT NO.FKM-350A
STAINLESS STEEL FLOAT FOR OVERFLOW BALLAST HEAD NO.533HFB-300A
About ventilating cap float, stainless steel breathable cap float, stainless steel breathable cap, floating plate, order:
One method one: you can dismantle the old air cap on the ship, and then measure the relevant data, and then check it according to the data provided by our department, which can distinguish what kind of specification is:
| MODEL |
D |
d |
H |
W |
| 50A |
66 |
14 |
10 |
30 |
| 65A |
85 |
14 |
18 |
35 |
| 80A |
95 |
14 |
18 |
35 |
| 100A |
110 |
16 |
19 |
43 |
| 125A |
140 |
16 |
33 |
43 |
| 150A |
160 |
16 |
49 |
46 |
| 200A |
220 |
16 |
40 |
56 |
| 250A |
273 |
16 |
40 |
70 |
| 300A |
330 |
18 |
80 |
70 |
| 350A |
373 |
18 |
100 |
60 |
| 400A |
440 |
19 |
70 |
80/100 |
| 450A |
480 |
19 |
120 |
80 |
| |
If you measure the size of the old air cap float with the size of our mold, it is suggested that you make the accurate measurement according to the following way. We can customize the non standard air cap floating cap.
Detailed data include:
The maximum outer diameter of the stainless steel air cap float, the thickness of the stainless steel air cap float, the height of the guide rod above the stainless steel air cap float, the diameter of the guide rod of the stainless steel air cap floating disc.
About marine air pipe / marine breathable caps, maintenance and spare parts:
1. Ballast tank breathable cap float, stainless steel gas cap
floating plate, breathable cap, buoy, breathable cap, float cake.
Floating Disc-Air pipe head float-Ballast tank float cap.
②Floating Ball-Air pipe head float Ball
③Sealing rubber ring-Gasket Rubber
④STAINLESS STEEL Guide Bolt
④Air Vent Head Screen-Breather cap side cover
Choose breathable cap float, breathable cap floating plate FLOATING, breathable cap float ball FLOATING BASLL recommend professional manufacturer for you.
Yangzhou Yangzhou Feihang Ship Accessories Factory
