A new type of marine air closing device
AIR VENT HEAD PIPE FORM DISC HALFBALL FLOAT
Marine cylindrical air tube head - cylindrical vent cap
CB/T3594 marine new European standard cylindrical air pipe head, disc type ventilation cap is delivered smoothly!
About marine cylindrical air pipe heads, cylindrical venting caps, cylindrical venting joints Technical agreement:
Name Name:
AIR VENT HEAD PIPE FORM DISC HALFBALL FLOAT

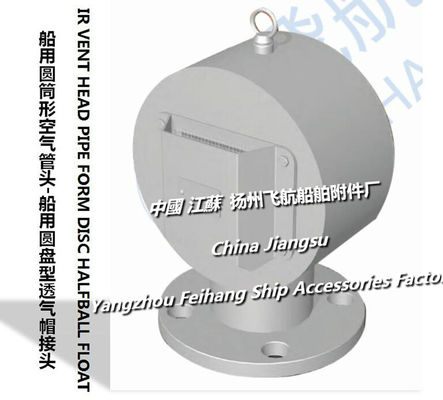

Marine cylindrical air tube head
Model Type: FLOATING DISC-TYPE
Nominal diameter Size: DN65/DN100/DN300/DN400
Design pressure Design Pressure: 0.3MPa
Main material Main Material: Carbon steel Q235
Oil paint: hot-dip galvanizing Hot galvanizing
Yangzhou Feihang Ship Accessories Factory The process of producing this type of marine cylindrical air pipe head and disc type ventilation cap is as follows:
About Marine Buoy Type Round Air Tube Head - European Standard Cylindrical Vent Cap Application Field:
Marine fuel tank air pipe head, sedimentation tank marine air pipe head and oil tank marine air pipe head
Marine tail tip venting cap, engine cabin marine air joint / engine cabin venting cap, ballast tank air joint / ballast tank venting cap, marine fresh water tank air pipe head / fresh water tank marine ventilation cap, etc.
tip compartment (left) venting cap, cylindrical venting head, European standard
disc type air tube head, P.T.(S.W)AIR PIPE HEAD, FLOATING DISC-TYPE,
NO.1 F.B.W.T.AIR PIPE HEAD ballast tank venting head, cylindrical air tube head,
W.T.(P)AIR PIPE HEAD drinking tank (left) venting cap, cylindrical air tube head, disc type venting cap,
W.T.(S)AIR VENT HEAD fresh water tank (right) breathable cap, cylindrical air tube head,
SOUNDER AIR PIPE HEAD sounding chamber vent head, cylindrical air tube head,
NO.1 T.B.W.T.(P)AIR top ballast tank (left) vent head, cylindrical air tube head
Oil isolation air tank (left) vent head, cylindrical air tube head, fuel isolation empty cabin (left) venting cap, disc type venting cap, pontoon circular venting cap
LO COFFERDAM (P) AIR VENT HEAD
This marine air pipe head AIR PIPE HEAD autonomous device function introduction:
Marine European standard cylindrical air pipe head, disc type venting cap is mainly through inhalation and breathing, the air pressure in the tank is close to atmospheric pressure, so that the pressure is kept within the design pressure of the tank, and the seawater and rainwater can be prevented. Mars enters the tank and prevents sea debris from entering the venting pipe into the cabin.
About Marine Cylindrical Air Head / Marine Disc Type Venting Cap Replacement Instructions / Ordering Information:
You can choose according to the standards provided by our company:
