Daily standard cast iron mud box for shipbuilding, straight-through mud box, right-angle mud box JIS F7203

Daily standard cast iron mud box for shipbuilding, straight-through mud box, right-angle mud box JIS F7203

    • Daily standard cast iron mud box for shipbuilding, straight-through mud box, right-angle mud box JIS F7203
    • Daily standard cast iron mud box for shipbuilding, straight-through mud box, right-angle mud box JIS F7203
    • Daily standard cast iron mud box for shipbuilding, straight-through mud box, right-angle mud box JIS F7203
    • Daily standard cast iron mud box for shipbuilding, straight-through mud box, right-angle mud box JIS F7203
    • Daily standard cast iron mud box for shipbuilding, straight-through mud box, right-angle mud box JIS F7203
    • Daily standard cast iron mud box for shipbuilding, straight-through mud box, right-angle mud box JIS F7203
    • Daily standard cast iron mud box for shipbuilding, straight-through mud box, right-angle mud box JIS F7203
    • Daily standard cast iron mud box for shipbuilding, straight-through mud box, right-angle mud box JIS F7203
  • Daily standard cast iron mud box for shipbuilding, straight-through mud box, right-angle mud box JIS F7203

    Product Details:

    Place of Origin: Jiangsu Yangzhou
    Brand Name: Feiteng
    Certification: Inspection Report
    Model Number: A,AS,B,BS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Wooden box
    Delivery Time: The 3 day
    Payment Terms: Advance payment and delivery
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Standard: JIS F7203 Material: Cast Iron, Stainless Steel
    Filter Material: Stainless Steel

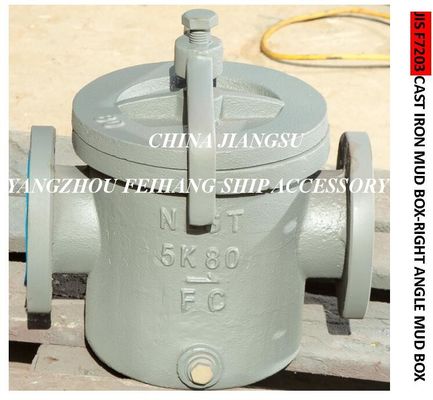

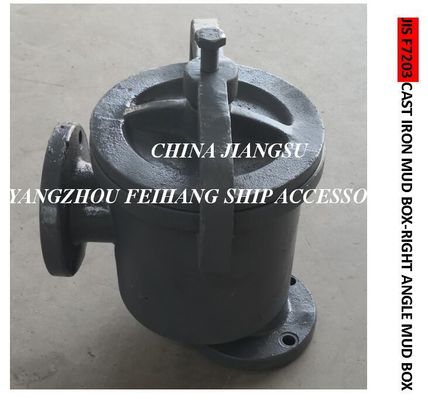

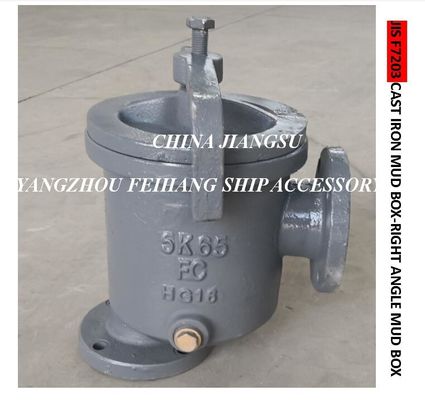

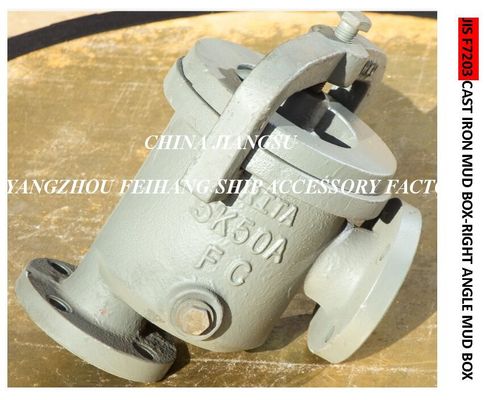

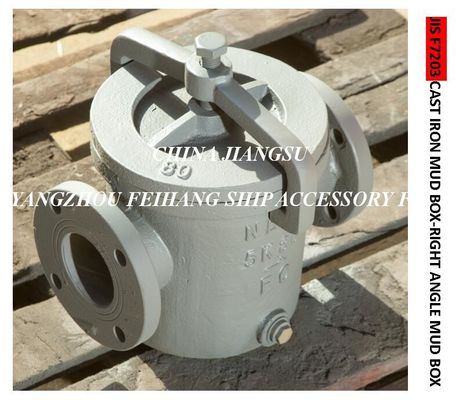

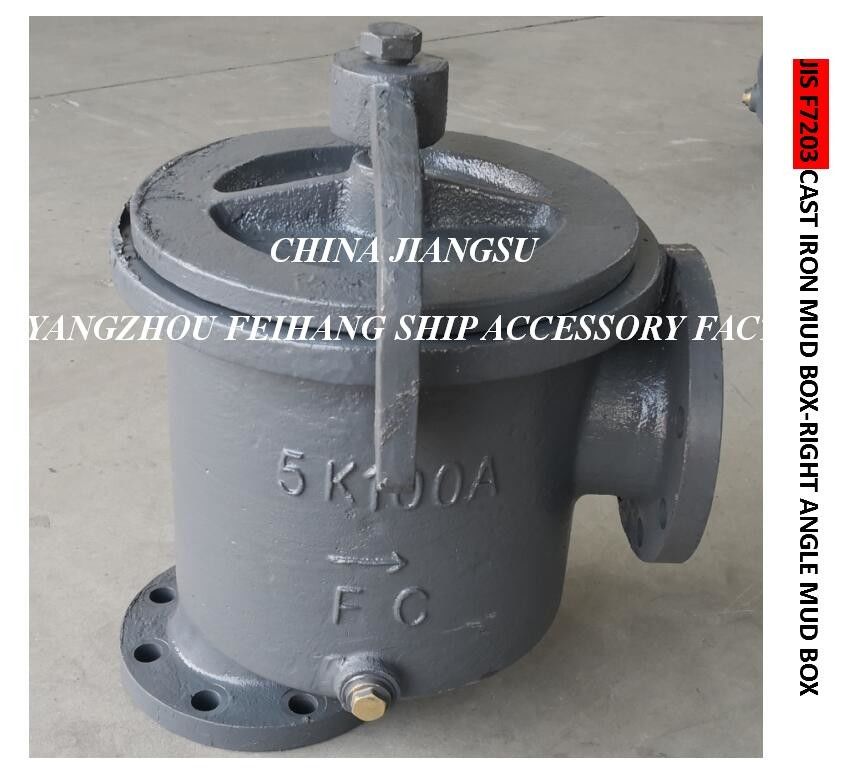

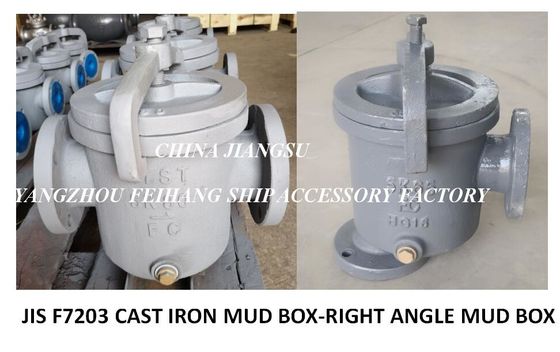

    JIS F7203 CAST IRON MUD BOX-JAPANESE STANDARD CAST IRON RIGHT ANGLE MUD BOX

    PRODUCT INTRODUCTION

    Daily standard cast iron mud box for shipbuilding, straight-through mud box, right-angle mud box JIS F7203
    MUD BOX INHALATION OF PARTS FOR SHIP MACHINERY SPACES AND SHAFT TUNNELS, BILGE WATER PIPES, APPLICABLE MEDIUM IS SEA WATER,BILGE WATER.



    1.BODY MATERIAL: CAST IRON
    2.STRAINER CYLINDER (SCREEN): SUS304,
    3.FLANGE CONNECTION: JIS 5K, IF NEED 10K ALSO CAN ACCEPT
    4.SIZE: 40A ~ 250A
    5.SPECIAL REQUIREMENT WILL BE DESIGNED AS PER CUSTOMER'S DEMAND.

    IF YOU ARE INTERESTED IN OUR PRODUCTS AND WANT TO KNOW MORE, PLEASE CONTACT WITH US. WE WILL REPLY AS SOON AS POSSIBLE.
    Daily standard cast iron mud box for shipbuilding, straight-through mud box, right-angle mud box JIS F7203Daily standard cast iron mud box for shipbuilding, straight-through mud box, right-angle mud box JIS F7203


    Overall&Structure Dimensions

    DN

    mm

    d L L1 E Flange
    D C n-h t
    40 40 90 22.5 110 120 95 4-15 16
    50 50 120 40 135 130 105 4-15 16
    65 65 150 52.5 179 155 130 4-15 18
    80 80 160 55 203 180 145 4-19 18
    100 100 190 70 233 200 165 8-19 20
    125 125 235 87.5 323 235 200 8-19 20
    150 150 280 110 398 265 230 8-19 22
    200 200 330 135 490 320 280 8-23 24
    250 250 380 155 630 385 345 12-23 26

    Daily standard cast iron mud box for shipbuilding, straight-through mud box, right-angle mud box JIS F7203Daily standard cast iron mud box for shipbuilding, straight-through mud box, right-angle mud box JIS F7203
