MARINE FUNNEL

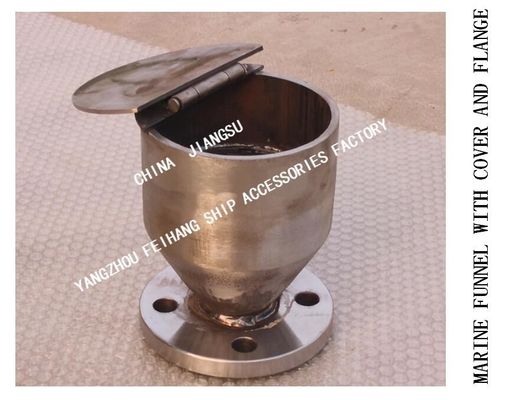

D type marine funnel with cover and flange
Marine D-type funnel with cover and flange:
It is suitable for the input of oil, water and other liquids in the ship's pipeline system, as well as for the oil and water sampling and discharge of the ship's pipeline system.
| Part Name |
Material |
| Name |
Brand |
Standard |
| Straight |
Seamless steel tube |
10 |
GB/T 5312—1999 |
| Reducing pipe |
Carbon structural steel |
Q235—A |
GB/T 700—1988 |
| France |
| Threaded joint |
| Filter plate |
Type D marine funnel with flange and cover can be marked as follows according to the nominal diameter;
The nominal diameter DN is 15mm, and the flange connection size is according to GB2506-89 marine funnel, marked as:
Marine funnel with cover and flange DS15 Q/DS 5515-2006
The nominal diameter DN is 32mm, and the flange connection size is according to GB2506-89 marine funnel, marked as:
Ship funnel with cover and flange DS32 Q/DS 5515-2006
The nominal diameter DN is 40mm, and the flange connection size is according to GB2506-89 marine funnel, marked as:
Marine Funnel-Marine Funnel with Cover and Flange DS40 Q/DS 5515-2006
The nominal diameter DN is 50mm, and the flange connection size is according to GB2506-89 marine funnel, marked as:
Marine drain-deck marine funnel with cover and flange DS50 Q/DS 5515-2006
The nominal diameter DN is 65mm, and the flange connection size is according to GB2506-89 marine funnel, marked as:
Marine funnel-flange marine funnel DS65 Q/DS 5515-2006
The nominal diameter DN is 80mm, and the flange connection size is according to GB2506-89 marine funnel, marked as:
Marine funnel DS80 Q/DS 5515-2006
The nominal diameter DN is 100mm, and the flange connection size is according to GB2506-89 marine funnel, marked as:
Marine funnel with cover and flange DS100 Q/DS 5515-2006
