    Product Details:

    Place of Origin: China Jiangsu Yangzhou
    Brand Name: Fei Hang
    Certification: Inspection Report
    Model Number: AA-Welded round ventilator

    Payment & Shipping Terms:

    Minimum Order Quantity: 2
    Price: Negotiable
    Packaging Details: Wooden box
    Delivery Time: The 3 day
    Payment Terms: Advance payment and delivery
    Supply Ability: 1000platform/day
    Contact Now
    Detailed Product Description
    Executive Standard: CBT 4220-2013 Material: Cast Steel
    Model: AA-TYPE Nominal Diameter: 100-300A

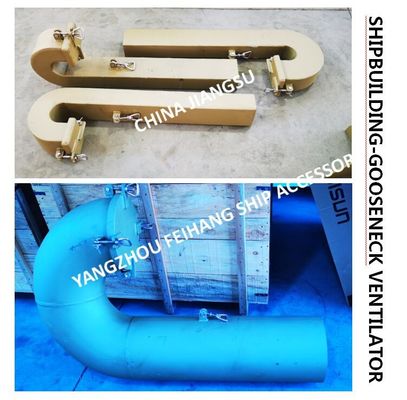

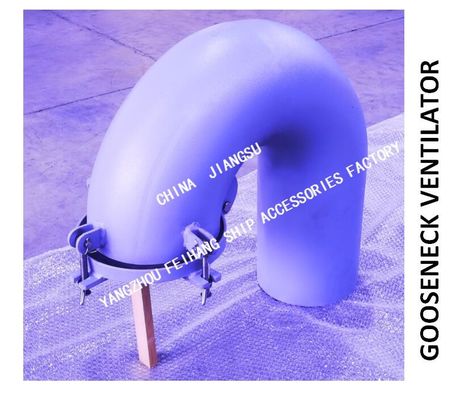

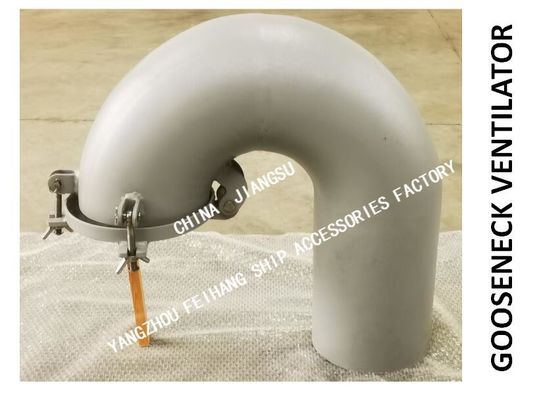

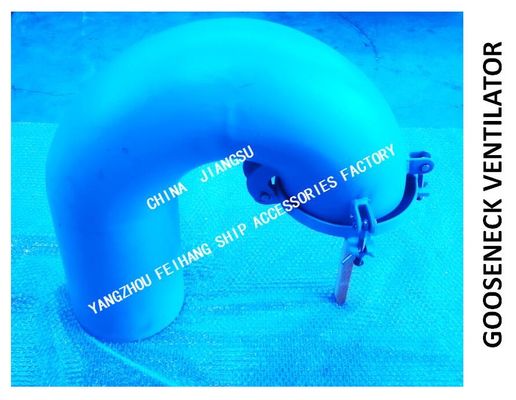

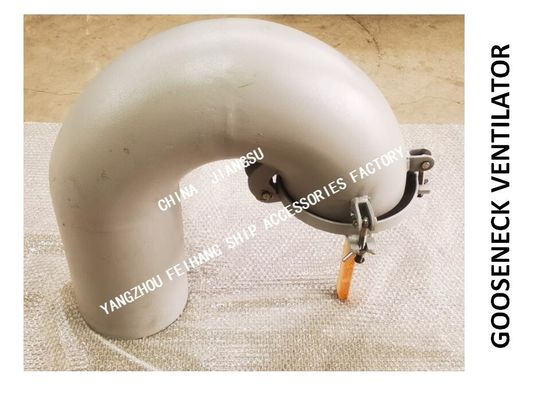

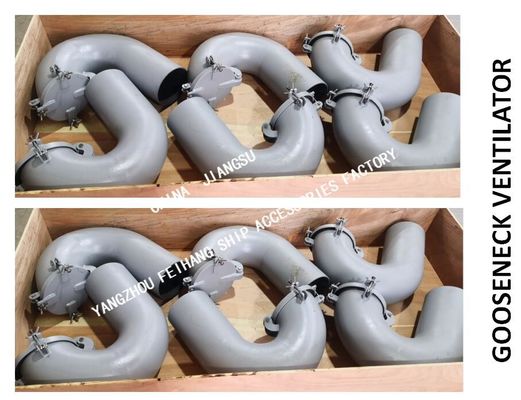

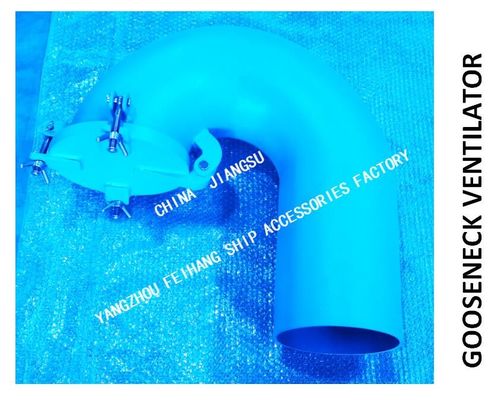

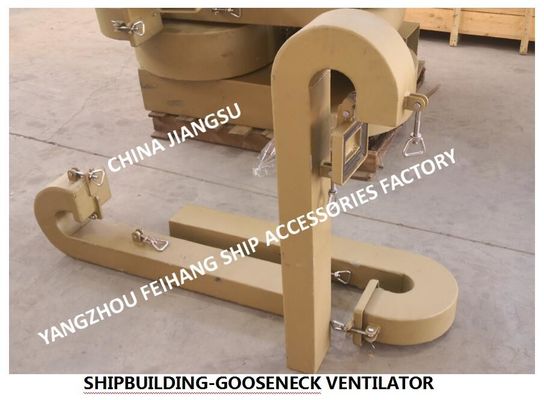

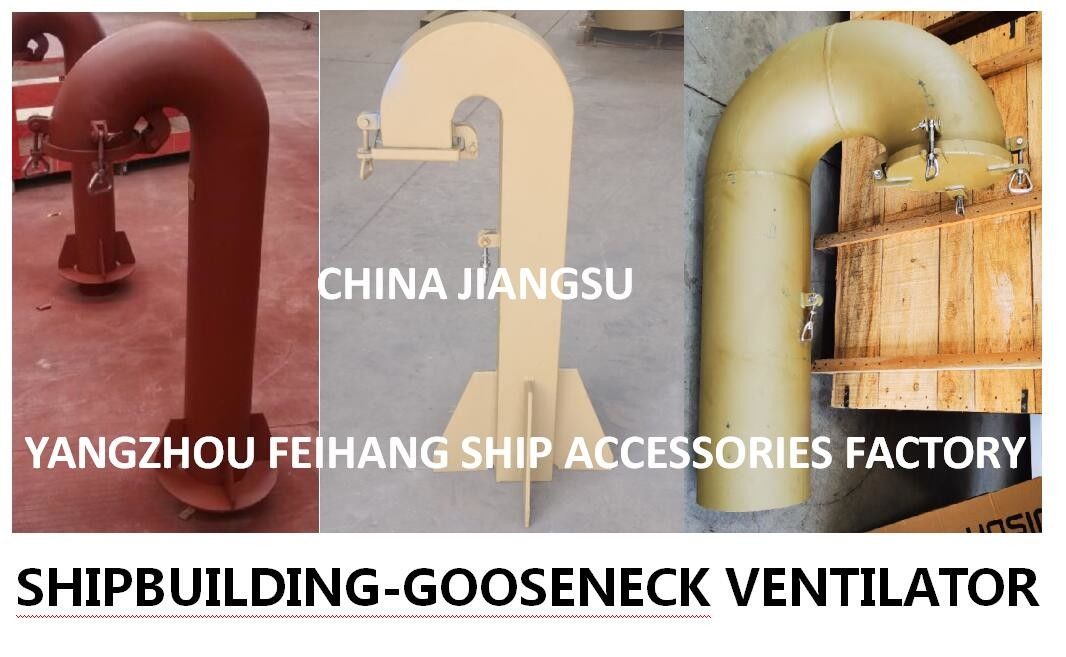

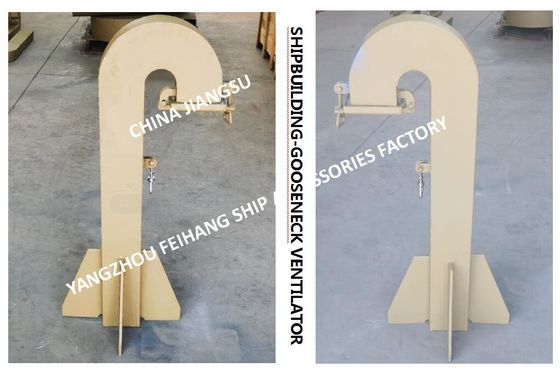

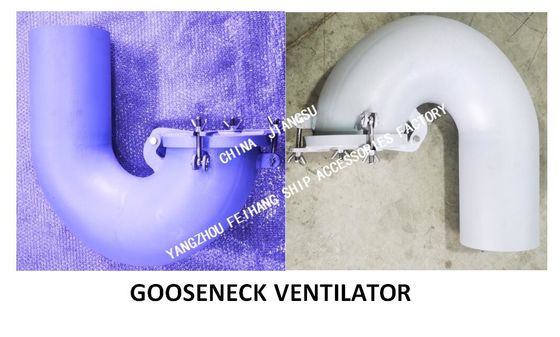

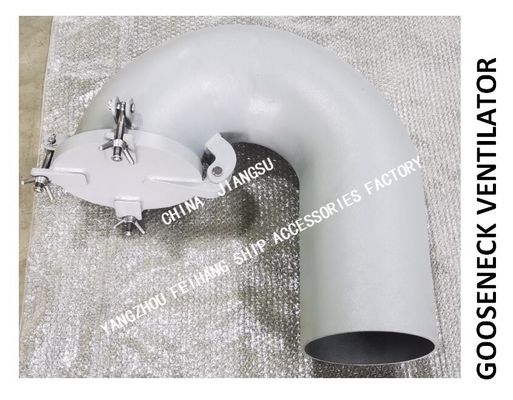

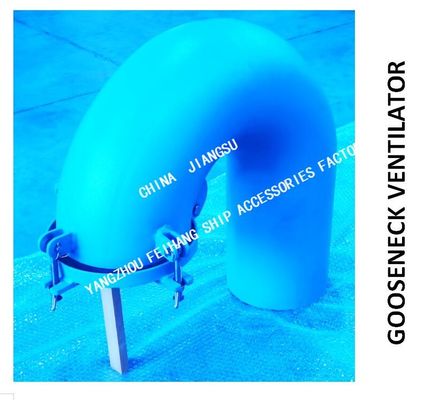

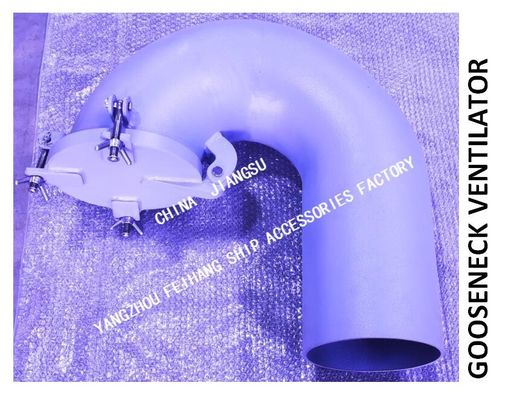

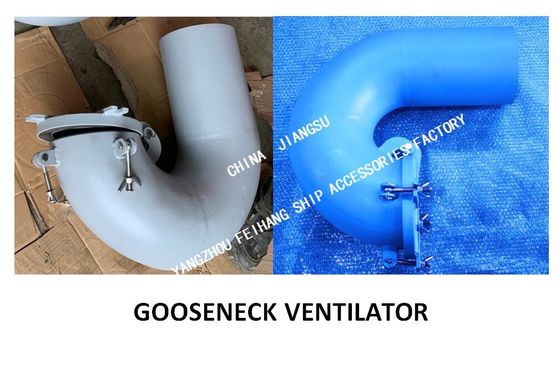

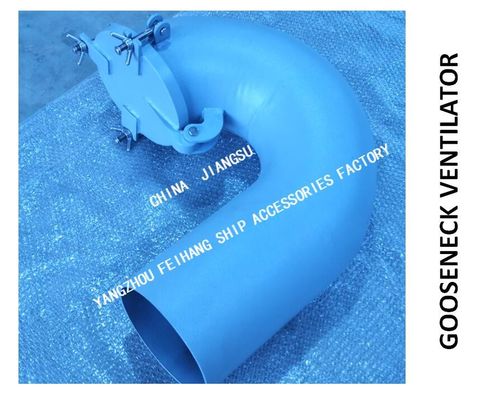

    Gooseneck ventilator for shipbuilding GOOSENECK VENTILATOR
    People's Republic of China Shipbuilding Industry Standard CBT 4220-2013



    This gooseneck ventilator is suitable for all types of ventilators installed on the open deck of ships.

    Marine Gooseneck Ventilator CBT 4220-2013 Product Category:

    Shipbuilding-Ventilator- GOOSENECK VENTILATOR CBT 4220-2013



    FORM NAME NOMINAL DIAMETER
    AA-TYPE Welded round ventilator 100-300
    AB-TYPE Straight-bent round ventilator 100-300
    BA-TYPE Welded oblate ventilator 100-300
    BB-TYPE Straight-bent oblate ventilator 100-30

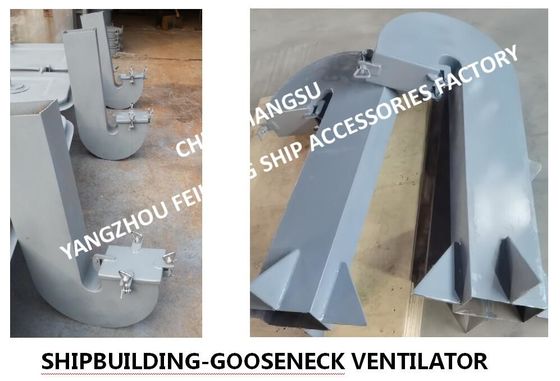

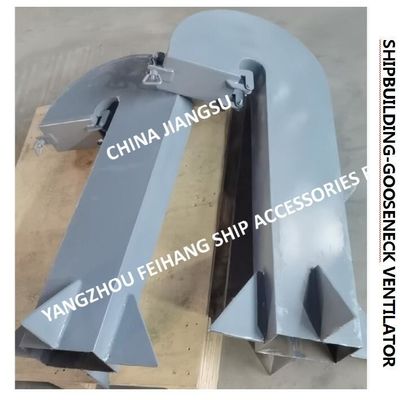

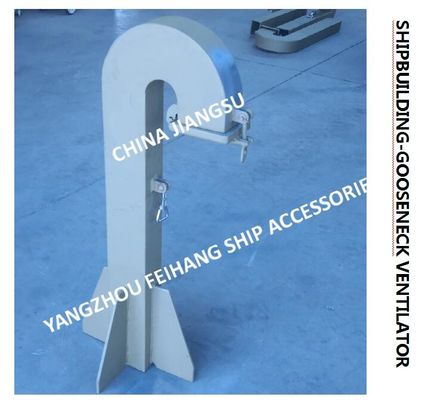

    CA-TYPE Welded rectangular ventilator 100-500
    CB-TYPE Straight-bent rectangular ventilator 100-500

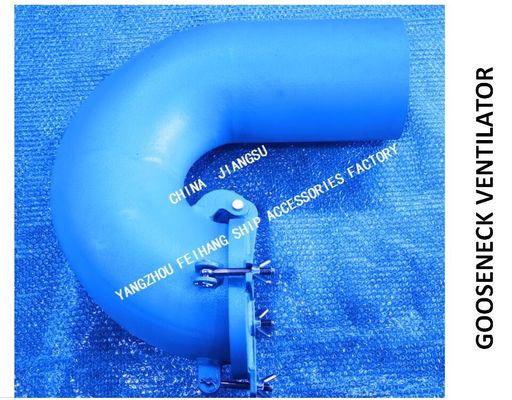

    CBT 4220-2013 marine gooseneck ventilators, marine AB type circular ventilators are usually marked as:

    Shipbuilding-Ventilator- GOOSENECK VENTILATOR CBT 4220-2013Shipbuilding-Ventilator- GOOSENECK VENTILATOR CBT 4220-2013

    Gooseneck ventilator, round gooseneck ventilator AB100-4 CBT4220-2013
    (The AB type welded circular gooseneck ventilator with nominal diameter of DN100 and air duct thickness t=6)

    Gooseneck ventilator, round gooseneck ventilator AB150-6 CBT4220-2013
    (The AB type welded circular gooseneck ventilator with nominal diameter of DN150 and air duct thickness t=6)

    Gooseneck ventilator, round gooseneck ventilator AB200-6 CBT4220-2013
    (The AB type welded circular gooseneck ventilator with nominal diameter of DN200 and air duct thickness t=6)

    Gooseneck ventilator, round gooseneck ventilator AB250-8 CBT4220-2013
    (The AB type welded circular gooseneck ventilator with nominal diameter of DN250 and air duct thickness t=8)

    Gooseneck ventilator, round gooseneck ventilator AB300-8 CBT4220-2013
    (The AB type welded circular gooseneck ventilator with nominal diameter of DN100 and air duct thickness t=8)

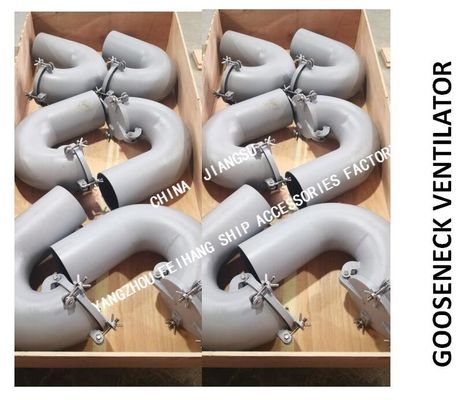

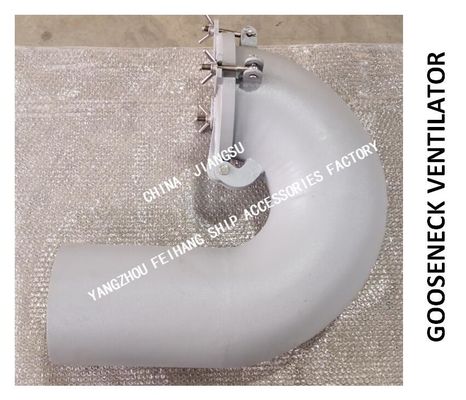

    CBT 4220-2013 Marine round gooseneck ventilator Material of main parts:

    Shipbuilding-Ventilator- GOOSENECK VENTILATOR CBT 4220-2013Shipbuilding-Ventilator- GOOSENECK VENTILATOR CBT 4220-2013Shipbuilding-Ventilator- GOOSENECK VENTILATOR CBT 4220-2013

    Part Name Material
    Name Grade Standard
    Hair dryer AA,AB Seamless steel tube 10 or A grade

    GB8126-87

    GB722-88

    BA,BB

    CA,CB

    Carbon steel for ships Class A GB722-88
    Cover plate, ventilation cover hinge Carbon steel Q235-A GB700-88
    Stop plate Carbon steel/brass

    Q235-A

    H62

    GB700-88
    Anti-rodent net and fasteners Stainless steel 1Cr18Ni9Ti GB1220-992
    filler Neoprene —— ——

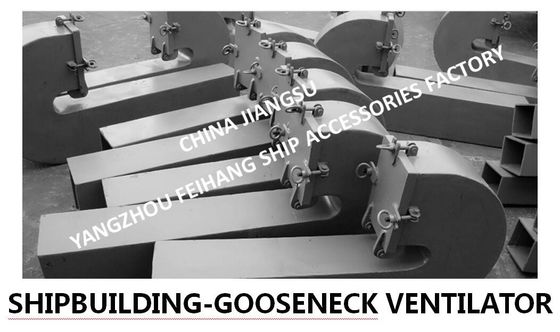

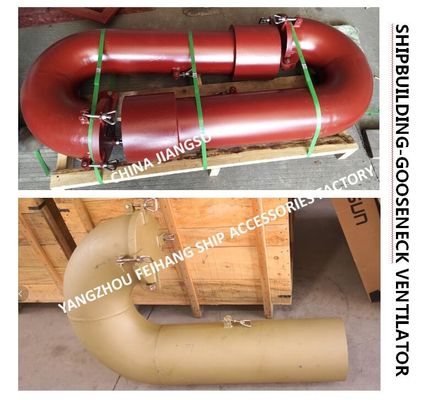

    CBT 4220-2013 Marine round gooseneck ventilator Technical agreement:

    Shipbuilding-Ventilator- GOOSENECK VENTILATOR CBT 4220-2013Shipbuilding-Ventilator- GOOSENECK VENTILATOR CBT 4220-2013Shipbuilding-Ventilator- GOOSENECK VENTILATOR CBT 4220-2013



    1. The surface of all parts of the marine gooseneck ventilator should be smooth, free of burrs and cracks, the surface of the weld should be cleaned, the attachment switch should be flexible, and the movable parts should be coated with lubricating grease;
    2. When the cover of the marine gooseneck ventilating tube is closed, the edge of the air tube should be evenly pressed into the filler, and there should be continuous contact imprinting, and the imprinting width b≥t/2. The tightness test requires the root installation position and the classification of the ship. Social norms and regulations.
    3. The parts of the gooseneck ventilator should be derusted (shot blasting, spraying or manual), and after cleaning, they should meet the requirements of Sa2 or St2 in GB8923.
    4. After the marine gooseneck ventilator is manufactured, it should be coated with anti-rust primer twice.
    5. After the marine gooseneck ventilator is manufactured, the inspection department will issue a certificate of conformity after the test is completed.

    Shipbuilding-Ventilator- GOOSENECK VENTILATOR CBT 4220-2013Shipbuilding-Ventilator- GOOSENECK VENTILATOR CBT 4220-2013
