INTERNATIONAL SHORE CONNECTION FOR ONLY WASTEWATER AND SEWAGE
International shore connection-oily sewage shore connection-domestic sewage international shore connection-sewage discharge connection
CB/T3657-2011
Information(Shipbuilding- Duplex Oil Filter JIS F7208)
MAIRN PARTS MATERIAL FOR Shipbuilding- Duplex Oil Filter JIS F7208
|
Oil sewage international shore connection AS6065 CB/T3657-2011
Oily sewage discharge joint AS6065 CB/T3657-2011
Domestic sewage discharge joint BS6100 CB/T3657-2011
Domestic sewage international shore connection BS6100 CB/T3657-2011 |

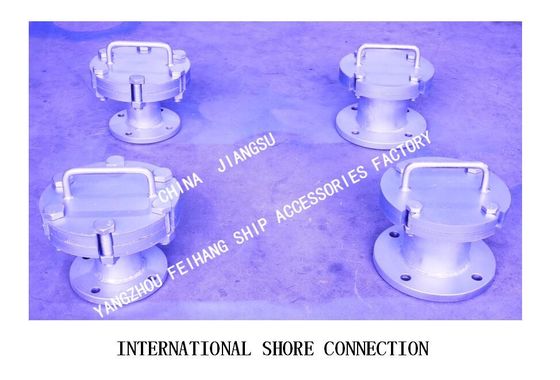

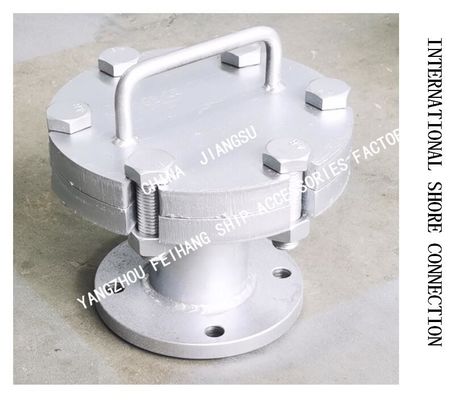

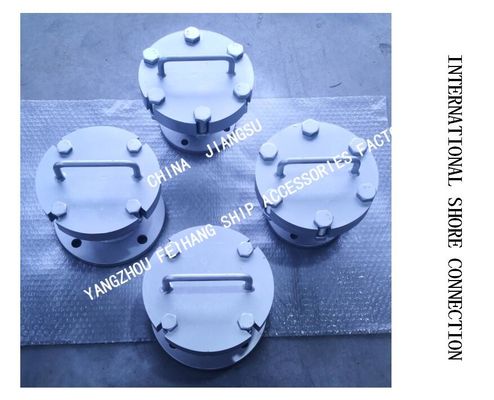

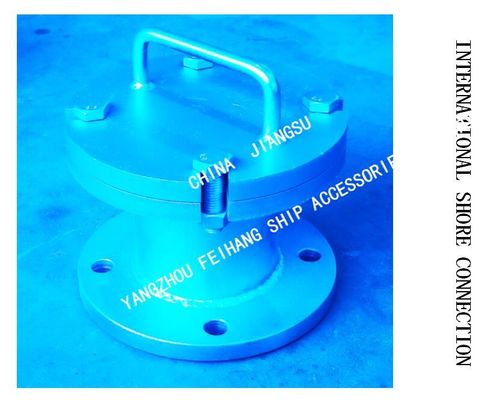

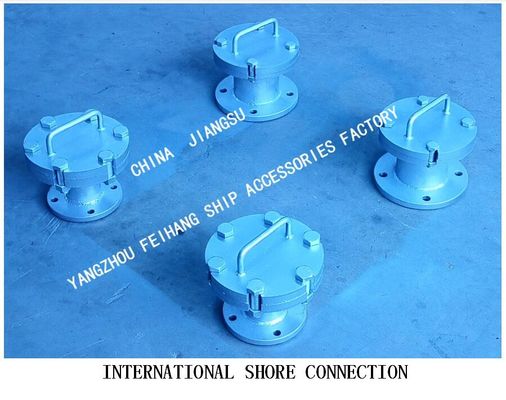

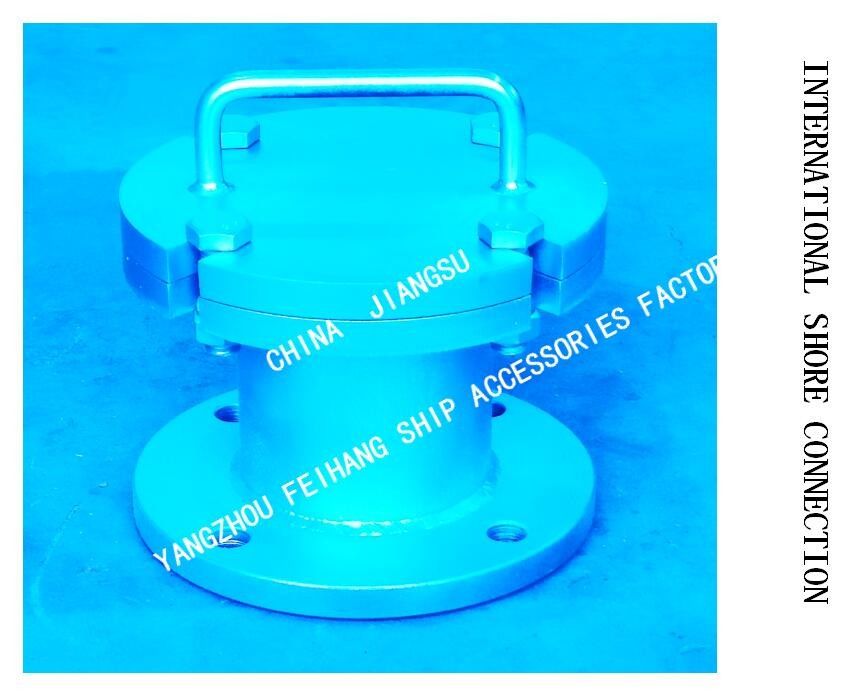

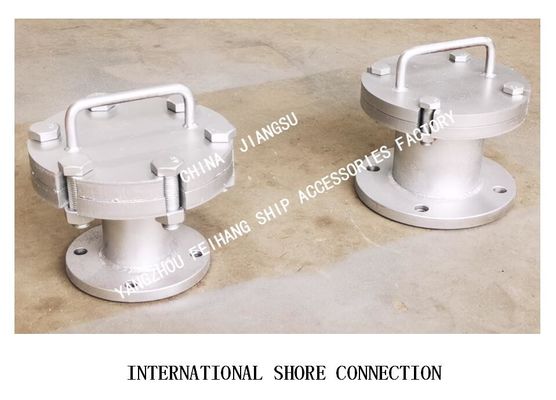

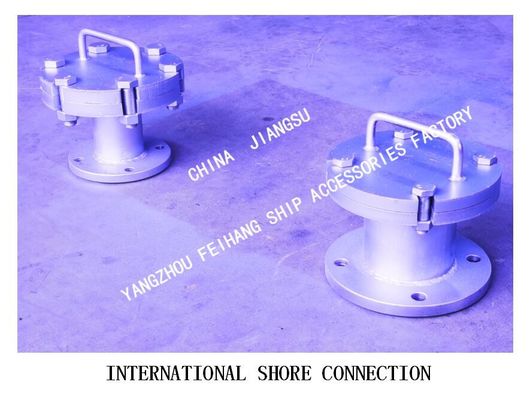

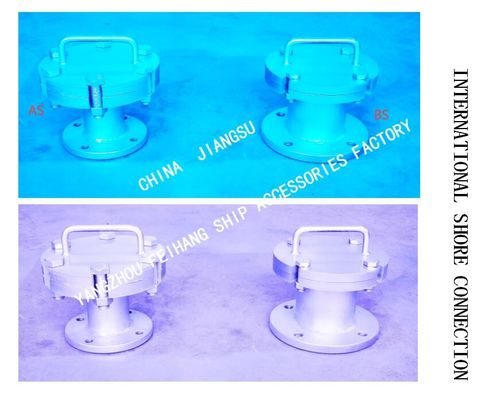

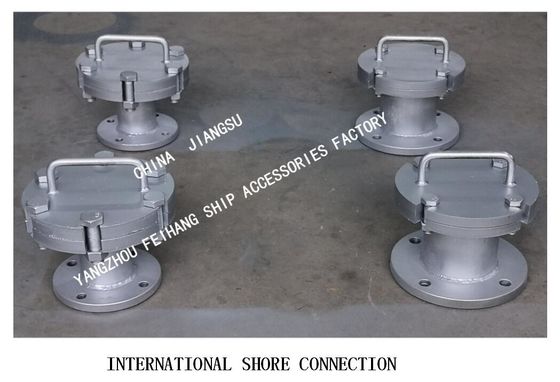

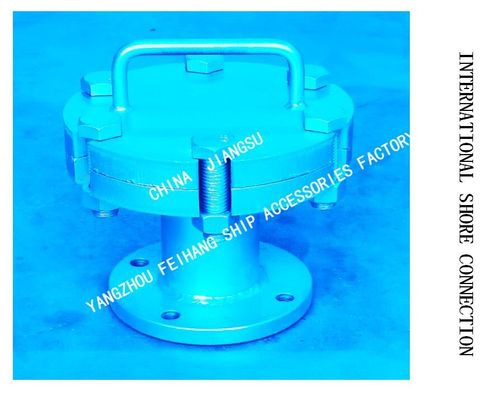

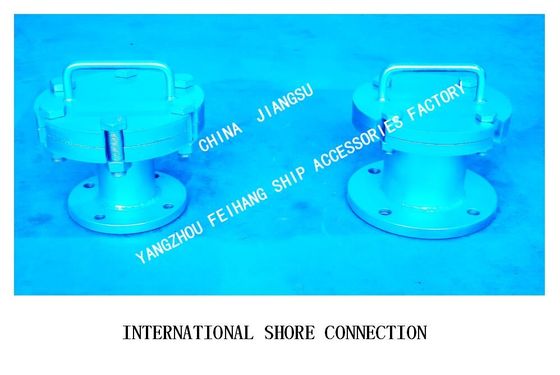

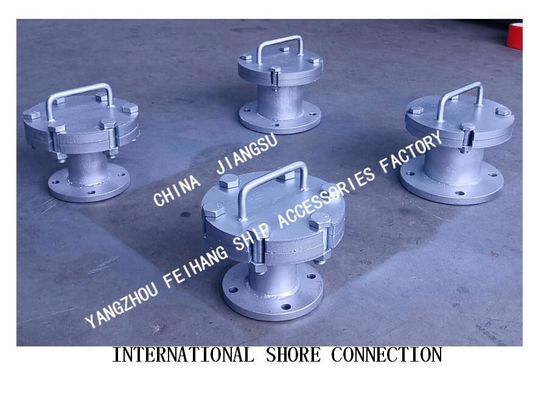

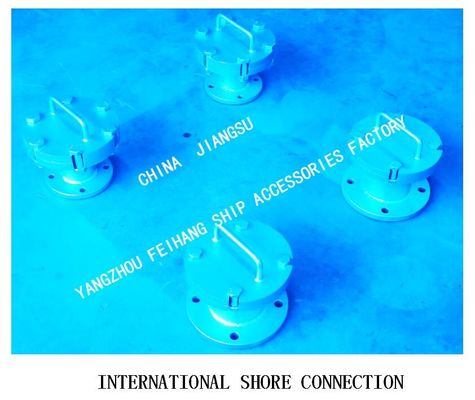

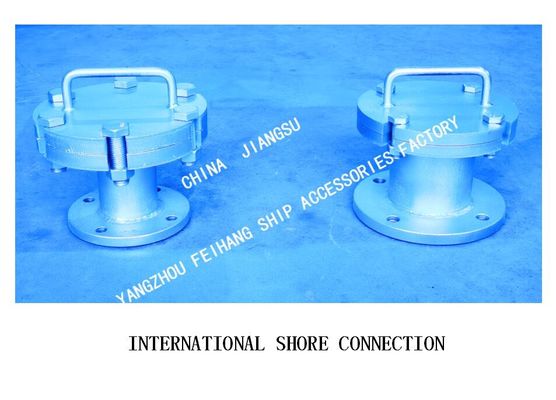

The physical map of the product is as follows:
|
Oil sewage international shore connection AS6065 CB/T3657-2011
Oily sewage discharge joint AS6065 CB/T3657-2011
Definition and explanation: This international shore connection flange outer diameter: 215mm; inner diameter -100mm, flange bolt circle diameter: 183mm, flange slot: 6 holes with a diameter of 22mm, equally spaced in the bolt circle of the above diameter On the top, open the outlet to the outer edge of the flange, the width of the notch is 22mm; the thickness of the flange is 20mm, the flange material is carbon steel, the surface is required to be flat and can withstand 600Kpa working pressure; each flange is equipped with 6 sets of 16mm in diameter and 100mm in length The bolts, matching nuts and a washer that can withstand a pressure of 600Kpa.
Its requirements comply with MARPOL-73/78 anti-pollution convention VI- sewage standard discharge joint. Provide factory qualification certificate.
|
|
Domestic sewage discharge joint BS6100 CB/T3657-2011
Domestic sewage international shore connection BS6100 CB/T3657-2011
Definition and explanation: This international shore connection flange outer diameter: 210mm; inner diameter -76mm, flange bolt circle diameter: 170mm, flange slot: 4 holes with a diameter of 18mm, equally spaced in the bolt circle of the above diameter The top, the outlet is to the outer edge of the flange, the notch width is 18mm; the thickness of the flange is 16mm, the flange material is carbon steel, the surface is required to be flat, can withstand 600Kpa working pressure; each flange is equipped with 4 sets of 16mm in diameter and 100mm in length The bolts, matching nuts and a washer that can withstand a pressure of 600Kpa.
Its requirements comply with MARPOL-73/78 anti-pollution convention VI- sewage standard discharge joint. Provide factory qualification certificate.
|
CB/T3657-2011 oily sewage and domestic sewage international shore connection is usually marked as:
A, AS type marine shore connection, oil sewage international shore connection CB/T3657-2011
Oily sewage international shore connection AS6032 CB/T3657-94, oily sewage international shore connection A10032 CB/T3657-94
AS6040 oily sewage international shore connection CB/T3657-94, oily sewage international shore connection A10040 CB/T3657-94
AS10050 oily sewage international shore connection CB/T3657-94, oily sewage international shore connection AS6050 CB/T3657-94
AS6065 oily sewage international shore connection CB/T3657-94, oily sewage international shore connection AS10065 CB/T3657-94
AS6080 oily sewage international shore connection CB/T3657-94, oily sewage international shore connection AS10080 CB/T3657-94
A10100 oily sewage international shore connection CB/T3657-94, oily sewage international shore connection AS6100 CB/T3657-94
A10100 oily sewage international shore connection CB/T3657-94, oily sewage international shore connection AS6100 CB/T3657-94
Marine B, BS type domestic sewage shore connection, domestic sewage international shore connection CB/T3657-2011
Domestic sewage water shore connection BJ10040 CB/T3657-94, B6040 CB/T3657-94 Domestic sewage international discharge connection
Carbon steel galvanized domestic sewage shore connection BS6050 CB/T3657-94, BS10050CB/T3657-94 domestic sewage international discharge joint
Domestic sewage stainless steel shore joint BS6065 CB/T3657-94, BS10065CB/T3657-94 Domestic sewage stainless steel international discharge joint
Domestic sewage sewage stainless steel shore joint BS6080 CB/T3657-94, BS10080CB/T3657-94 Domestic sewage international discharge joint
Domestic sewage water shore connection BS6100 CB/T3657-94, BS10100CB/T3657-94 Domestic sewage international discharge connection
CBM1114-82 marine copper international shore connection is usually marked
s:
International shore connector 65g CBM1114-82, copper international shore connector CBM1114-82 Dg65
Marine breathable cap floating ball, ballast tank breathable cap floating ball Overview of main uses:
(During the course of the ship, when the external environment is bad, sea water or rainwater enters the air cap and it is too late to discharge, the vent cap float will be lifted up. When the vent cap float is lifted up, it can float instantly, and When the sealing seat is in contact, the degree of sealing can effectively prevent a stream of water from entering the air/overflow pipe, delaying the water inflow time of the tank. After the ship returns to the normal state, the floating ball will automatically fall to restore the ventilation/inhalation function.)
Competitive advantage:
1. Factory direct sale, competitive price.
2. Customized Service: We can customize, to customers drawings for processing. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: Our Product are strictly complied with China Compulsory Certification. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Delivery Time: after receiving the payment within 24-72 hours to Timely arrange raw materials, processing, production, and timely delivery.
1.Cheap factory price with high quality Long service life
3. Manufacturing experience of various low-pressure and high-pressure seawater filters
5 We hope long term cooperation with our customers
Advantages:
1. Excellent and high quality control
2. Fast delivery
3. Competitive price
4. Small order accepted
5. Customers' drawing or samples accepted
6.Assembly line production process, assembly line depth sounding equipment
Delivery time is approx:
1. We will test them strictly before shipping.
2. We will ship it in 1-3 working days after your paying.as to the shipping time,it usually will be 6- 12 days,which will be different for different countries.
3.You can choose DHL, UPS, TNT and other international express for delivery. At the same time, it can also be sent to the freight forwarder designated by the customer (anywhere in China)
FAQ:
1. How about your price?
We specialize in customized high-quality promotional items for you and can help you meet any requirement with the most reasonable price
2. Can you produce the product as our sample or design?
Yes,we can.OEM&ODM are welcome. As long as you give us the detailed specific requirement,we can absolutely make the same samples and send to you for approval.
3. Could you send me all your catalogues and price list?
We have over thousands of products. it is really too hard for us to send you all our
catalogue and price list for you, please let us know the items, size details which you
are interested in, so we can offer you the price list for you reference.
Packaging & Shipping:
Shipping by sea or air Express by DHL, FEDEX,UPS,TNT and so on Packed in standard exporting carton or as your request
TipsTips:
1. Please make sure your address informations correct ,so the parts can safe delivery.
2. When you place orders,please inform me how to make the Commercial invoice(Customs invoice).
3. Customers please leave your contact details,such as e-mail address,mobile no.,when I take delivery,I need the above information,Thanks.
If you have any question,pls feel free to contact us,we are always at your service.
73/78 Anti-pollution Convention - Prevention of Domestic Sewage Pollution Regulations
INTERNATIONAL SHORE CONNECTION FOR ONLY WASTEWATER AND SEWAGE
International shore joints - oil sewage shore joints - domestic sewage international shore joints - sewage discharge joints
CB/T3657-2011
Product Overview of "Marine International Coastal Joints - Oil Sewage Discharge Joints"
All ships must be equipped with at least one international shore connection. Its function is: When the fire pump on the ship fails, the CB/T3657-2011 international shore joint is used to introduce the fire water from the shore or other facilities into the fire department of the ship and continue to extinguish the fire.
This oil-sewage international shore joint and domestic sewage international shore joint are mainly used for ship oil sewage and domestic sewage pipelines. One end is a flat flange, and the other end is a permanently attached interface with the fire hydrant and fire hose on the ship; the international shore joint interface is consistent with the ship's own fire hydrant and hose connection.
Ship oil sewage discharge joint, A/AS/AJ type oil sewage shore joint, international shore joint
According to Article 13 of MARPOL Annex I of the International Conference on Pollution Prevention. This international shore joint is used to discharge the ship's cabin bilge and residual oil (sludge) tank residues to shore.
The piping system for entering and leaving the residual oil (sludge) compartment shall have no joints directly to the outboard except for the above-mentioned standard discharge joints.
Outer diameter: 215mm;
Inner diameter: according to the outer diameter of the pipe;
Bolt pitch diameter: 183mm;
Flange notch: 6 holes with a diameter of 22mm are equidistantly distributed on the diameter of the above bolt ring, slotted to the outer edge of the flange, and the slot width is 22mm;
Flange thickness: 20mm;
Bolts and nuts: M20*6 only, the length is appropriate.
Ship domestic sewage discharge joints, B, BS, BJ type domestic sewage shore joints, international shore joints:
"In accordance with Article 10 of MARPOL Annex IV of the International Pollution Prevention Convention. It is generally required that the discharge lines on both sides of the ship have such international shore joints. For ships that are specially operated, such as passenger ferries, the ship discharge lines may be optionally equipped with a discharge joint accepted by the competent authority, such as a quick connection joint.
Outer diameter: 210mm;
Inner diameter: according to the outer diameter of the pipe;
Bolt pitch diameter: 170mm;
Flange notch: 4 holes with a diameter of 18mm are equidistantly distributed on the diameter of the above bolt ring, from the slot to the outer edge of the flange, and the slot width is 18mm.
Flange thickness: 16mm;
Bolts and nuts: M16*4 only, the length is appropriate.

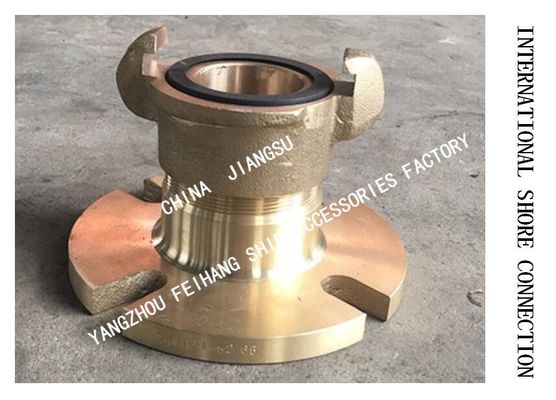

CBM1114-1982 Marine fire international shore joint, bronze fire international shore joint
"According to the requirements of the fire safety system rules, in consideration of corrosion resistance, copper materials are used as the interface of the fire hydrant or fire hose on the ship"
Outer diameter: 178mm;
Inner diameter: 64mm;
Bolt pitch diameter: 132mm;
Flange notch: 4 holes with a diameter of 19 mm are equidistantly distributed on the diameter of the above bolt ring, and the slot is opened to the outer edge of the flange;
Flange thickness: at least 14.5mm;
Bolts and nuts: M16*50mm*4 pairs.
CB/T3657-2011 International sewage joints for oil and domestic sewage are usually marked as:
A, AS type ship shore joint, oil sewage international shore joint CB/T3657-2011
Oil sewage international shore joint AS6032 CB/T3657-94, oil sewage international shore joint A10032 CB/T3657-94
AS6040 oil sewage international shore joint CB/T3657-94, oil sewage international shore joint A10040 CB/T3657-94
AS10050 oil sewage international shore joint CB/T3657-94, oil sewage international shore joint AS6050 CB/T3657-94
AS6065 oil sewage international shore joint CB/T3657-94, oil sewage international shore joint AS10065 CB/T3657-94
AS6080 oil sewage international shore joint CB/T3657-94, oil sewage international shore joint AS10080 CB/T3657-94
A10100 oil sewage international shore joint CB/T3657-94, oil sewage international shore joint AS6100 CB/T3657-94
A10100 oil sewage international shore joint CB/T3657-94, oil sewage international shore joint AS6100 CB/T3657-94
Marine B, BS type domestic sewage shore joint, domestic sewage international shore joint CB/T3657-2011
Domestic sewage sewage shore connection BJ10040 CB/T3657-94, B6040 CB/T3657-94 Domestic sewage international discharge joint
Carbon steel galvanized domestic sewage sewage shore connection BS6050 CB/T3657-94, BS10050CB/T3657-94 domestic sewage international discharge joint
Sewage sewage stainless steel shore joint BS6065 CB/T3657-94, BS10065CB/T3657-94 domestic sewage stainless steel international discharge joint
Domestic sewage sewage stainless steel shore joint BS6080 CB/T3657-94, BS10080CB/T3657-94 domestic sewage international discharge joint
Domestic sewage sewage shore connection BS6100 CB/T3657-94, BS10100CB/T3657-94 Domestic sewage international discharge joint
CBM1114-82 marine copper international shore joints are usually marked as:
International shore connection 65g CBM1114-82, copper international shore joint CBM1114-82 Dg65
