Here, we will briefly introduce a type of marine bucket seawater filter (CAN WATER STRAINERS) designed according to JIS F7121 standard:
Its definition is:
MADE OF CASTING STEEL AND USED FOR WATER PIPELINES IN SHIP.COMPLETE WITH INNER STRIINER.CONNECTION FLANGE SIZE ARE CONFORM TO JIS 5KGF/10KGFCM2 Standard
This JIS F7121 marine cylindrical seawater filter (CAN WATER STRAINERS) is made of cast iron and is mainly used in marine seawater pipelines. This Marine CAN Water Filter
)Equipped with an internal filter barrel (sea chestfilter). The size of the connecting flange of its inlet and outlet pipes meets the JIS 5KGF/10KGFCM2 standard.

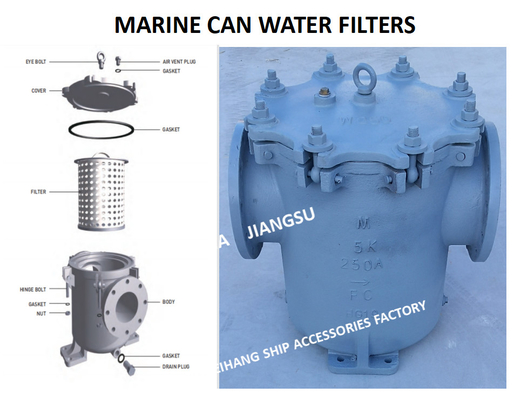

Secondly, we will learn about the components and main component materials of this MARINE CAN WATER FILTERS/CAN WATER STRAINERS marine cylindrical seawater filter from its production process model diagram:
From the above figure, it can be seen that the shell of this marine cylindrical water filter is made of gray cast iron (code FC200) by sand casting. The internal filtration function is achieved by adding a perforated plate type filter barrel.
|
Standards
|
Diameter
|
Pressure
|
Filtration accuracy
|
Body material
|
Cartridge material
|
Surface treatment
|
| JIS F7121 |
FH25-500A |
0.39MPA |
1-8MM |
FC200 |
SUS304/SUS316 |
Epoxy Paint
|
|
Remarks: Flange size can choose 5K/10K according to customer requirements.
|

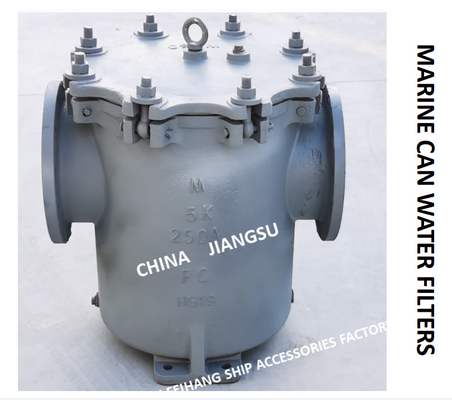

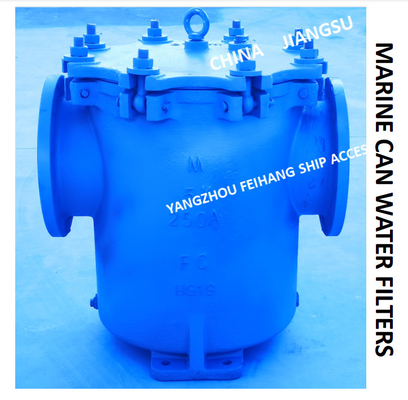

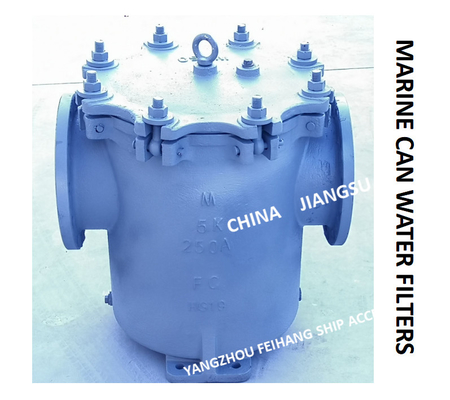

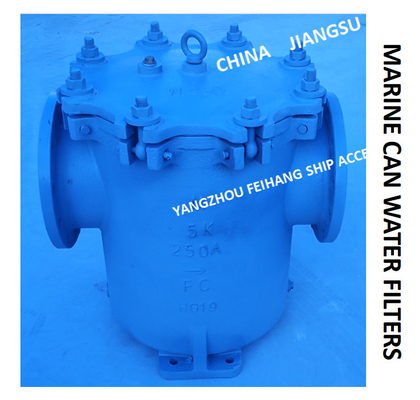

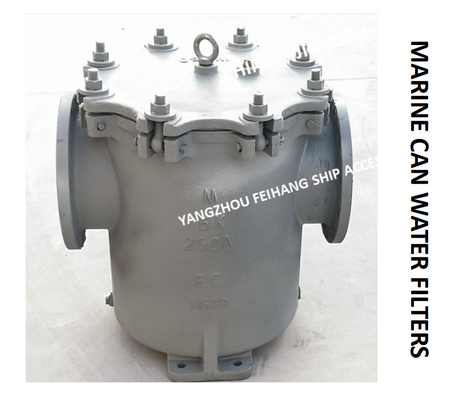

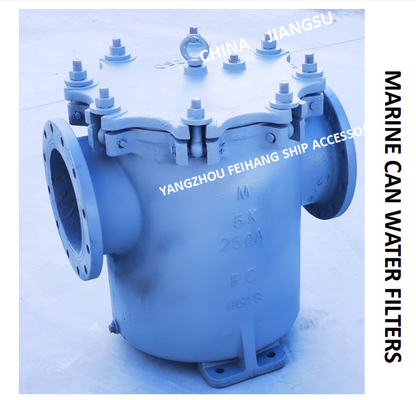

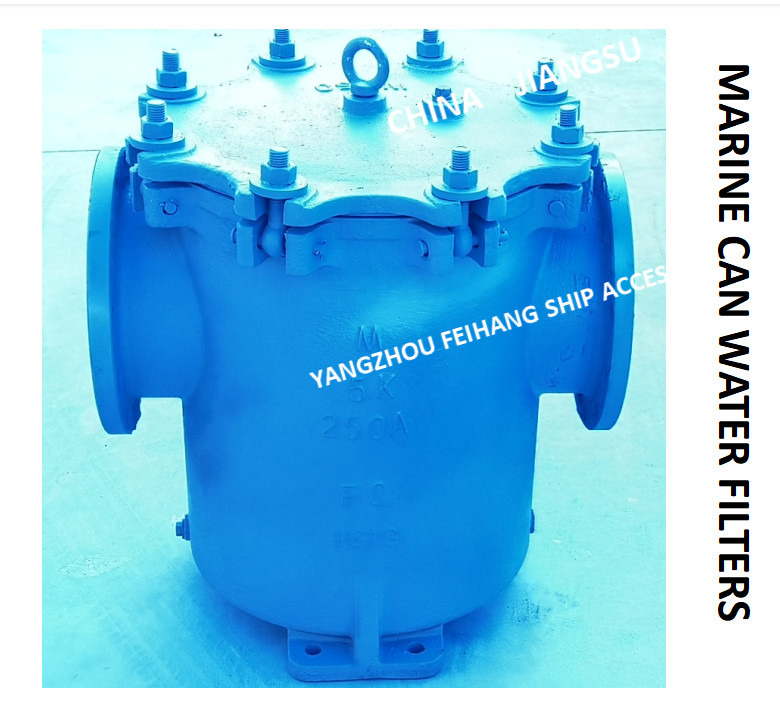

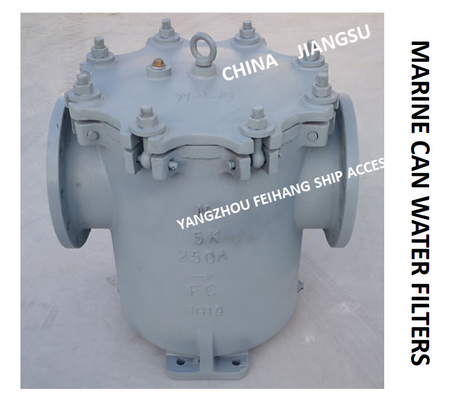

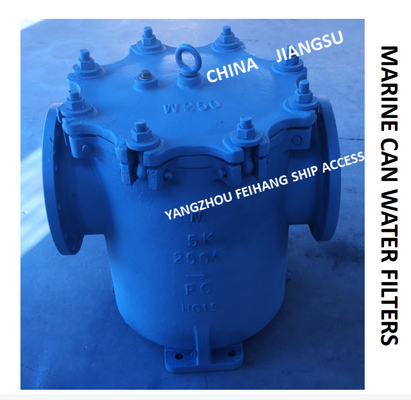

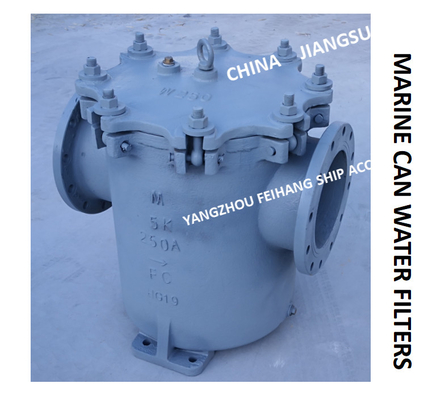

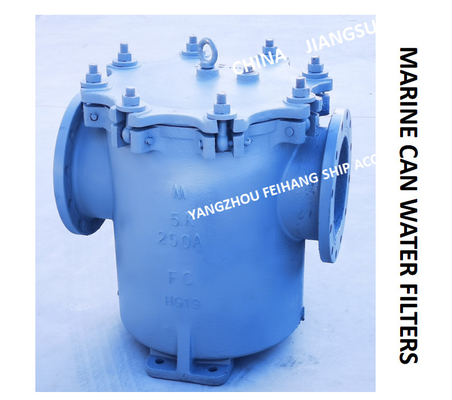

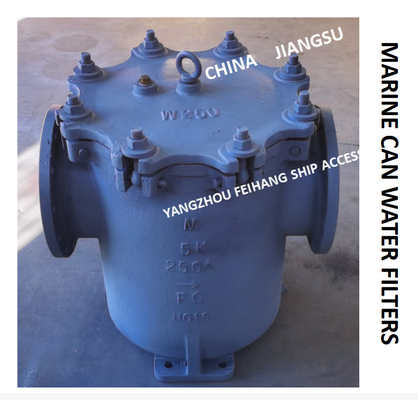

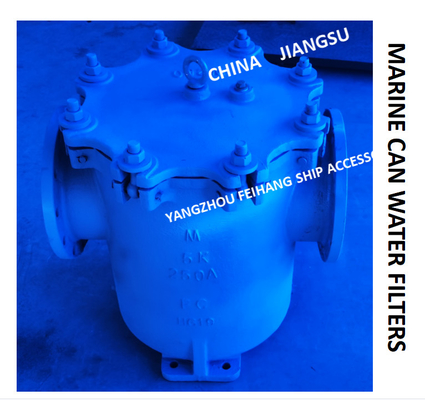

Let's take a closer look at this can water strainers model from various angles:
IMPA 872001 MARINE CAN WATER STRAINER S-TYPE 5K-25A JIS F7121 BODY-CAST IRON FILTER-STAINLESS STEEL
IMPA 872002 MARINE CAN WATER STRAINER S-TYPE 5K-32A JIS F7121 BODY-CAST IRON FILTER-STAINLESS STEEL
IMPA 872003 MARINE CAN WATER STRAINER S-TYPE 5K-40A JIS F7121 BODY-CAST IRON FILTER-STAINLESS STEEL
IMPA 872004 MARINE CAN WATER STRAINER S-TYPE 5K-25A JIS F7121 BODY-CAST IRON FILTER-STAINLESS STEEL
IMPA 872005 MARINE CAN WATER STRAINER S-TYPE 5K-65A JIS F7121 BODY-CAST IRON FILTER-STAINLESS STEEL
IMPA 872006 MARINE CAN WATER STRAINER S-TYPE 5K-80A JIS F7121 BODY-CAST IRON FILTER-STAINLESS STEEL
IMPA 872007MARINE CAN WATER STRAINER S-TYPE 5K-100A JIS F7121 BODY-CAST IRON FILTER-STAINLESS STEEL
IMPA 872008 MARINE CAN WATER FILTERS-MARINE CAN WATER STRAINER
MODEL:S-TYPE 5K-125A JIS F7121
BODY-CAST IRON FILTER-STAINLESS STEEL
IMPA 872009MARINE CAN WATER FILTERS-MARINE CAN WATER STRAINER
MODEL:S-TYPE 5K-150A JIS F7121
BODY-CAST IRON FILTER-STAINLESS STEEL
IMPA 872010 MARINE CAN WATER FILTERS-MARINE CAN WATER STRAINER
MODEL:S-TYPE 5K-200A JIS F7121
BODY-CAST IRON FILTER-STAINLESS STEEL
IMPA 872011 MARINE CAN WATER FILTERS-MARINE CAN WATER STRAINER
MODEL:S-TYPE 5K-250A JIS F7121
BODY-CAST IRON FILTER-STAINLESS STEEL
IMPA 872012 MARINE CAN WATER FILTERS-MARINE CAN WATER STRAINER
MODEL:S-TYPE 5K-300A JIS F7121
BODY-CAST IRON FILTER-STAINLESS STEEL
IMPA 872013 MARINE CAN WATER FILTERS-MARINE CAN WATER STRAINER
MODEL:S-TYPE 5K-350A JIS F7121
BODY-CAST IRON FILTER-STAINLESS STEEL
IMPA 872014 MARINE CAN WATER FILTERS-MARINE CAN WATER STRAINER
MODEL:S-TYPE 5K-400A JIS F7121
BODY-CAST IRON FILTER-STAINLESS STEEL
If you are also looking for this model: JIS F7121, please download our factory document selection table:
