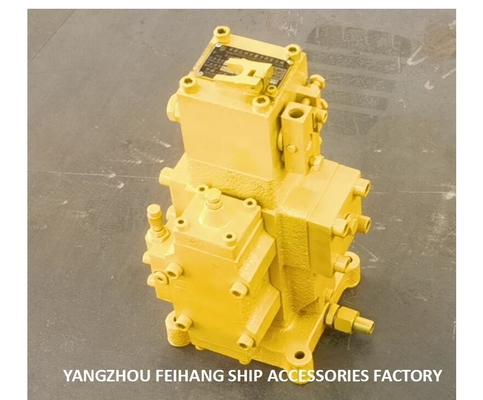

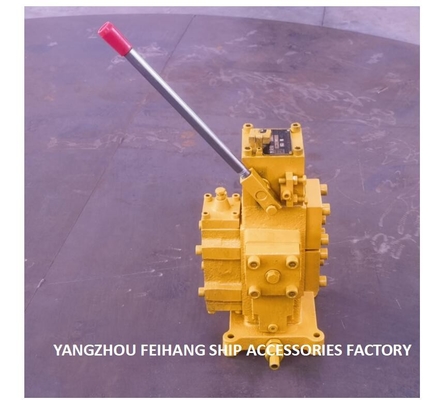

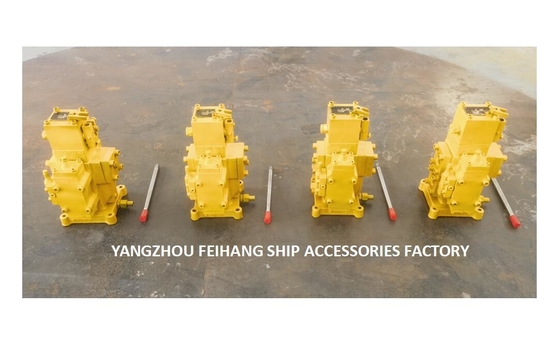

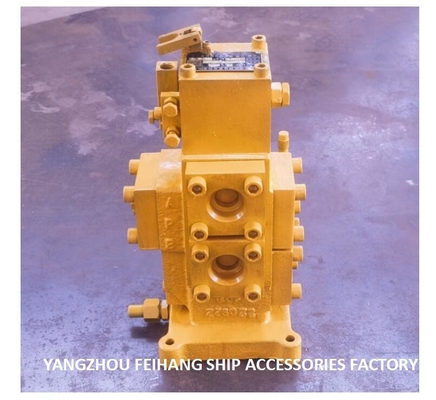

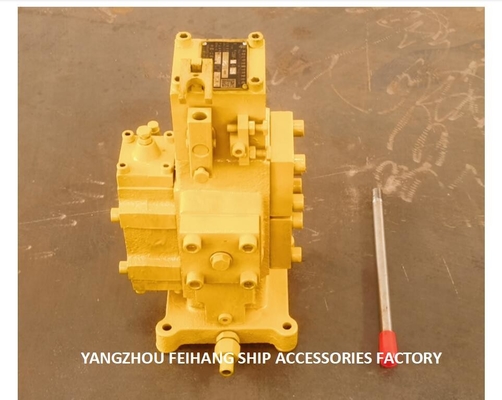

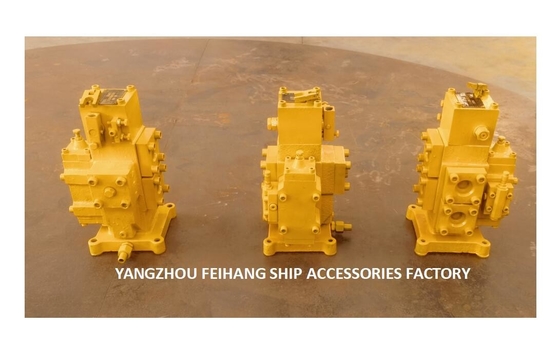

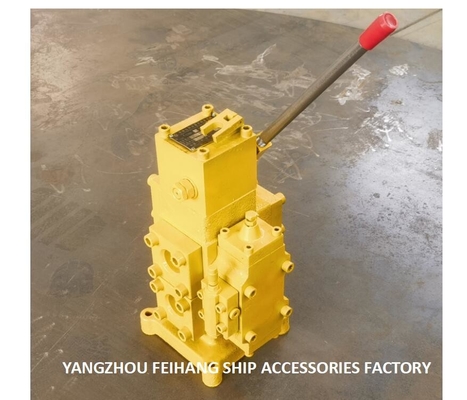

CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES

CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES

    • CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES
    • CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES
    • CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES
    • CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES
    • CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES
    • CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES
    • CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES
    • CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES
    • CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES
    • CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES
    • CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES
    • CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES
    • CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES
    • CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES
    • CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES
    • CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES
    • CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES
    • CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES
    • CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES
    • CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES
  • CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES

    Product Details:

    Place of Origin: Jiangsu Yangzhou
    Brand Name: Feiteng
    Certification: Inspection Report
    Model Number: CSBF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable

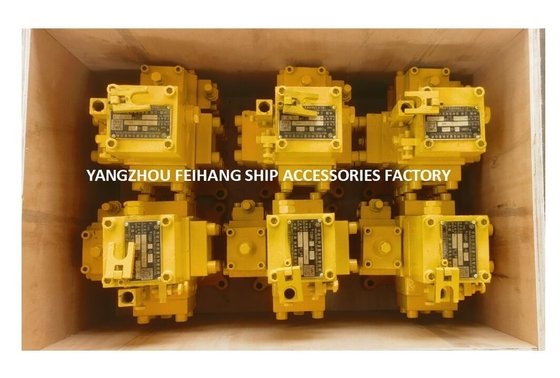

    Packaging Details: Wooden box
    Delivery Time: The 3 day
    Payment Terms: Advance payment and delivery
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Application: Ship Shape: Vertical
    Material: Cast Iron Nominal Diameter: 25mm
    Flow: 200L/min Pressure: 25Mpa
    Safety Valve Pressure Regulation: 5-25Mpa Handle Control Force: ≤40N
    Mid-position Spool Valve Function: M-type

    PC CONTROL VALVES FOR SERIES HYDRAULIC CIRCUITS

    CONTROL VALVE-WINCH CONTROL BLOCK

    HYDRAULICS CONTROL VALVES

    MANUAL PROPORTIONAL FLOW DIRECTIONAL BLOCK VALVE FOR SHIPS

    Control Valve Windlass

    CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVESCSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES



    PARAMETER SELECTION TABLE

    CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES



    PARAMETER SELECTION TABLE

    CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES

    Model

    Nominal diameter

    (mm)

    Flow

    (L/min)

    Pressure

    (MPA)

    Safety valve pressure regulation

    (MPA)

    Handle control force(N) Mid-position spool valve function
    CSBF-G20 20 120 25 5-25 ≤40 M-type
    CSBF-G25 25 200 O-type
    CSBF-G32 32 300 H-type
    CSBF-G40 40 450 Y-type
    CSBF-G50 50 700 K-type






    CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVESCSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVESCSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVESCSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVESCSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES

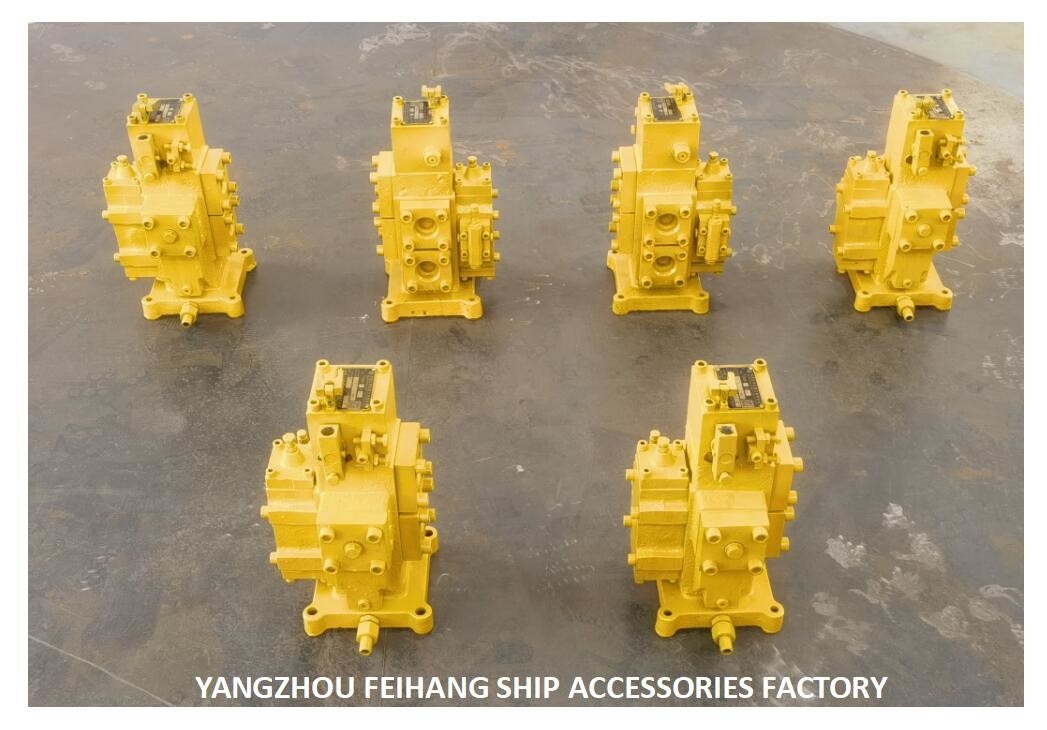

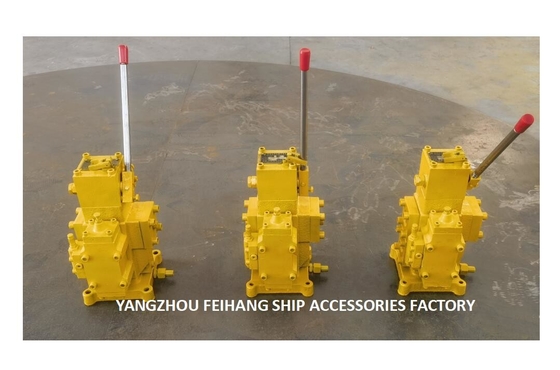

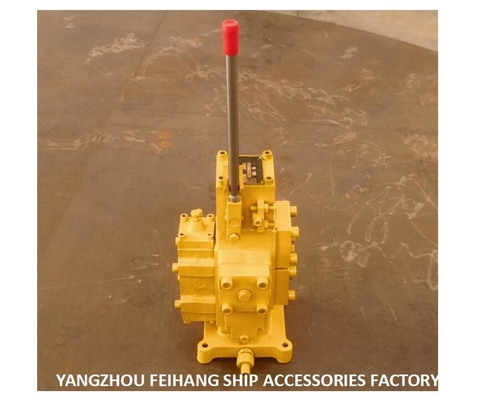

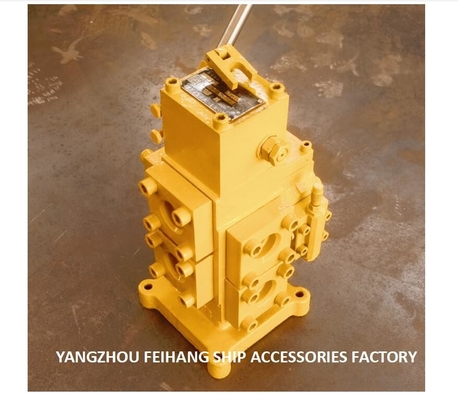

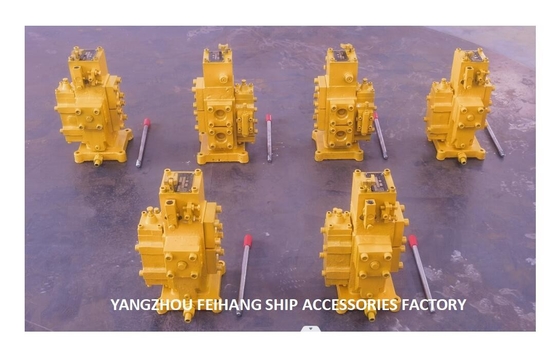

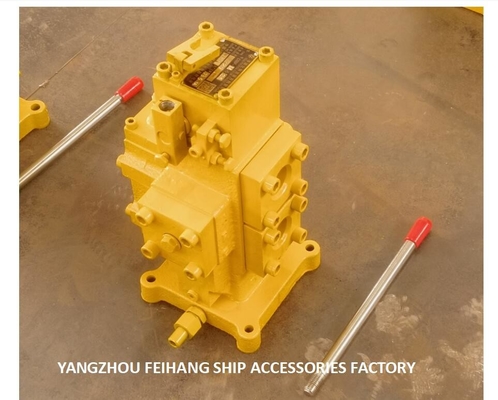

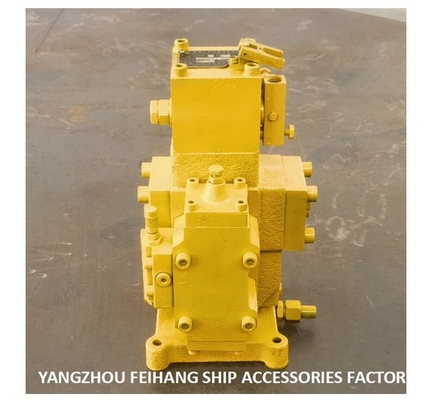

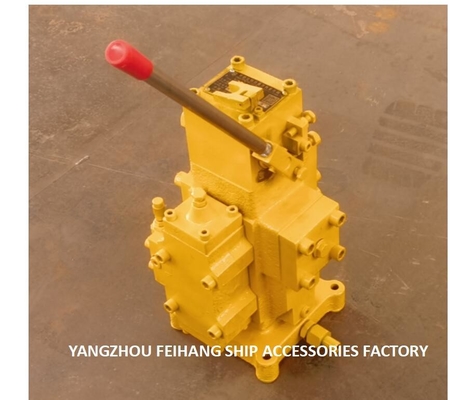

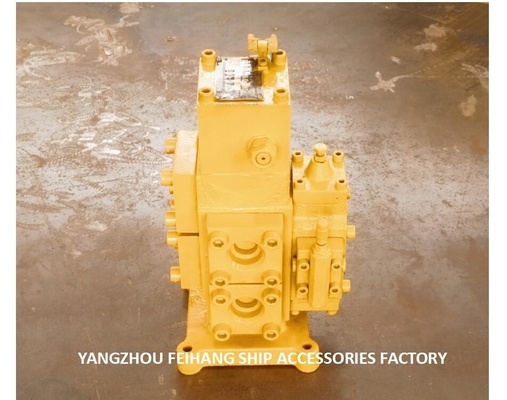

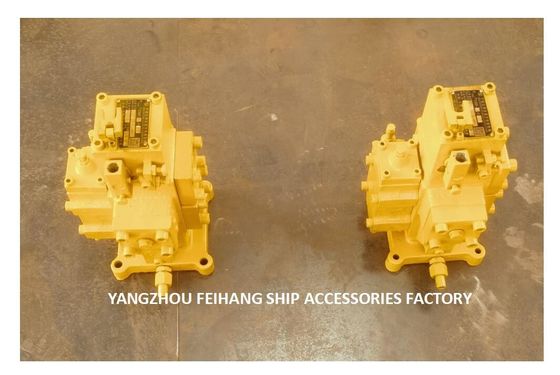

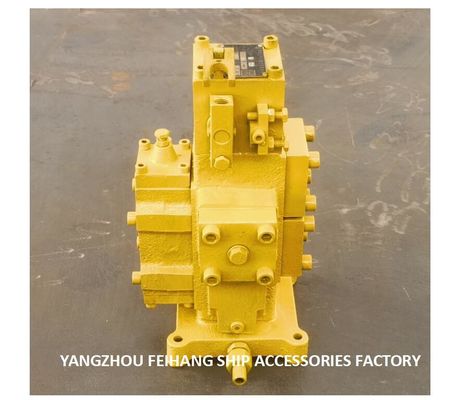

    CSBF TYPE marine manual proportional flow
    direction compound valve is a three-position
    four-way reversing valve with pressure
    compensation, flow proportional adjustment
    and safety protection. It has good reversing
    speed regulation performance, good reliability,
    convenient operation and long life. It is widely
    used in the hydraulic system of ship machinery
    and other various machinery

    Can be selected according to the following parameter table

    FH-CONTROL VALVE-WINCH CONTROL BLOCK.pdf
    CSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVESCSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVESCSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVESCSBF-G25 MANUAL PROPORTIONAL FLOW CONTROL VALVE WINDLASS HYDRAULICS CONTROL VALVES
