    Manual proportional valve - Manual proportional flow valve compound valve CSBF-G32 (M)
    Manual proportional valve - Manual proportional flow valve compound valve CSBF-G32 (M)

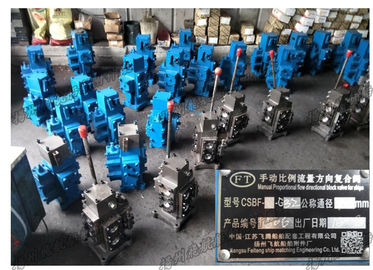

    Marine manual proportional flow direction compound valve type CSBF-G32-M (middle position function)
    Remote control - Marine proportional flow directional compound valve CSBF-G32

    CSBF-G32 marine manual proportional flow directional compound valve and CSBF-G32 remote control proportional flow direction compound valve difference:
    Manual proportional valve - Manual proportional flow valve compound valve CSBF-G32 (M)

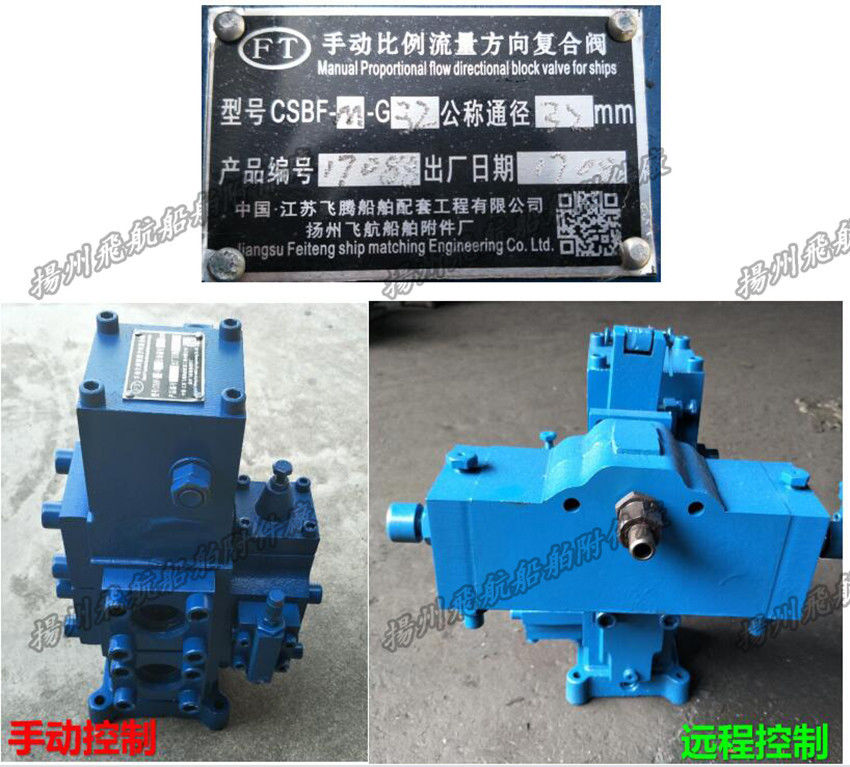

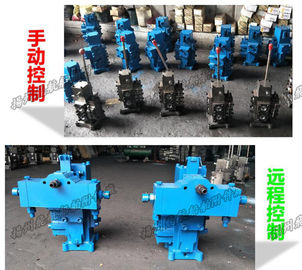

    Manual: operated proportional valve by operating the handle.
    Remote control: remote control of manually operated proportional valves through hydraulic rotary cylinders.

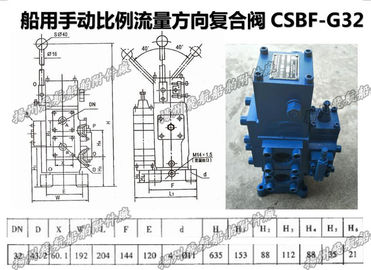

    CSBF-G32 manual proportional flow direction compound valve structure size:
    Manual proportional valve - Manual proportional flow valve compound valve CSBF-G32 (M)

    According to the middle spool valve function, the nominal ratio DN32 is manually proportional composite valve, usually marked as:
    Manual proportional valve - Manual proportional flow valve compound valve CSBF-G32 (M)
    Marine manual proportional directional compound valve CSBF-G32 CB/T3198-2001
    Meaning: nominal pressure is G--25Mpa, nominal diameter is 20mm, spool function is M type of ship manually proportional flow direction compound valve
    Marine manual proportional flow directional compound valve CSBF-G32-H CB/T3198-2001
    Meaning: nominal pressure is G--25Mpa, nominal diameter is 20mm, spool function is H type of ship manually proportional flow direction compound valve
    Marine manual proportional flow composite valve CSBF-G32-O CB/T3198-2001
    Meaning: nominal pressure is G--25Mpa, nominal diameter is 20mm, spool function is O type of ship manually proportional flow direction compound valve
    CSBF-G32-Y marine manual proportional directional compound valve CB/T3198-2001
    Meaning: nominal pressure is G--25Mpa, nominal diameter is 20mm, spool function is Y type of ship manually proportional flow direction compound valve
    Marine manual proportional directional compound valve CSBF-32-K CB/T3198-2001
    Meaning: nominal pressure is G--25Mpa, nominal diameter is 20mm, spool function is K type of ship manually proportional flow direction compound valve
    CSBF-G32-P marine manual proportioning directional return valve CB/T3198-2001
    Meaning: nominal pressure is G--25Mpa, nominal diameter is 20mm, spool function is P type of ship manually proportional flow direction compound valve

    Note of order for CSBF marine manual proportional flow direction compound valve:
    Manual proportional valve - Manual proportional flow valve compound valve CSBF-G32 (M)
    Manual proportional valve - Manual proportional flow valve compound valve CSBF-G32 (M)

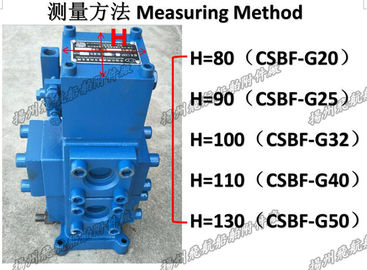

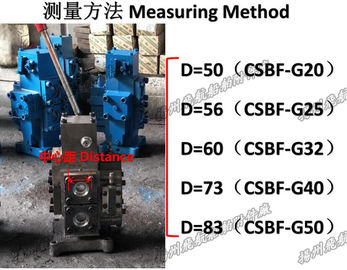

    If you need to replace this manual proportional composite valve, and because of the long time, the nameplate is not clear, please according to the following chart measurement, so that it is convenient to distinguish this ship manually proportional flow valve nominal diameter:

    Finally, let's explain in detail:
    The working principle of remote control -CSBF type marine manual proportional flow direction valve:
    First, if you want to achieve remote control, you need to assemble the rotating cylinder device
    Manual proportional valve - Manual proportional flow valve compound valve CSBF-G32 (M)
    The rotary device can be matched with manual proportional flow compound valve to replace manual remote distance control.

    Main technical parameters of marine manual proportional flow compound valve and rotary cylinder device:

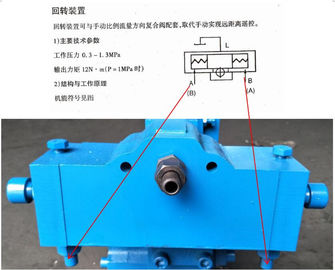

    Operating pressure: 0.3-1.3Mp, output torque 12N.m (P=1MPa)

    The structure and working principle of the rotary cylinder:

    The rotary cylinder device is a piston type selection hydraulic cylinder, and the main body of the male hydraulic cylinder and the rotating mechanism. The rotating mechanism is composed of a gear and a rack pair, wherein, the hydraulic cylinder is provided with a piston for the rack to drive the gear shaft which matches with the piston. The control pressure oil into the A cavity through the reversing valve work, push the piston moves in a straight line, the middle rack piston drives the gear shaft to rotate, fork connected to the gear shaft angle, so that the manual proportional flow direction valve operating handle composite tilt angle, to achieve the purpose of remote control distance. The return oil in the hydraulic cylinder returns from the B port to the tank through the reversing valve. Co
    nversely, the operating handle is inclined in the other direction.

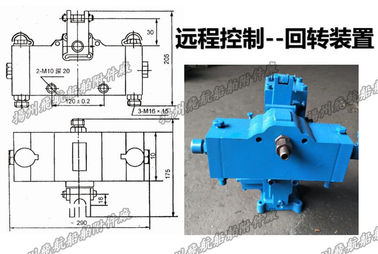

    Dimensions and installation dimensions of hydraulic rotary cylinders for marine manual proportional flow valves:
    Manual proportional valve - Manual proportional flow valve compound valve CSBF-G32 (M)
    When installing the manual proportional control valve A flange removed, mounted on the rotary device of spare parts, the rotary device can be installed.
