MANUAL CONTROLLED VALVE) FOR HYDR. MOTOR
Model: CSBF -H-G25
CSBF-H-G25 marine manual proportional flow direction compound valve ordering instructions:
If you need to replace this manual proportional composite valve, and because of the long time, the nameplate is not clear, please according to the following chart measurement, so that it is convenient to distinguish this ship manually proportional flow valve nominal diameter

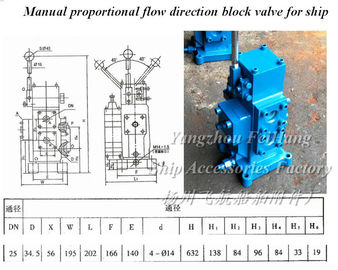

CSBF-H-G25 manual proportional flow direction compound valve structure size:
According to the middle spool valve function, the nominal ratio DN25 is manually proportional composite valve, usually marked as:
Marine manual proportional directional compound valve CSBF-G25 CB/T3198-2001
Meaning: nominal pressure is G--25Mpa, nominal diameter is 20mm, spool function is M type of ship manually proportional flow direction compound valve
Marine manual proportional flow directional compound valve CSBF-G25-H CB/T3198-2001
Meaning: nominal pressure is G--25Mpa, nominal diameter is 20mm, spool function is H type of ship manually proportional flow direction compound valve
Marine manual proportional flow composite valve CSBF-G25-O CB/T3198-2001
Meaning: nominal pressure is G--25Mpa, nominal diameter is 20mm, spool function is O type of ship manually proportional flow direction compound valve
CSBF-G25-Y marine manual proportional directional compound valve CB/T3198-2001
Meaning: nominal pressure is G--25Mpa, nominal diameter is 20mm, spool function is Y type of ship manually proportional flow direction compound valve
Marine manual proportional directional compound valve CSBF-25-K CB/T3198-2001
Meaning: nominal pressure is G--25Mpa, nominal diameter is 20mm, spool function is K type of ship manually proportional flow direction compound valve
CSBF-G25-P marine manual proportioning directional return valve CB/T3198-2001
Meaning: nominal pressure is G--25Mpa, nominal diameter is 20mm, spool function is P type of ship manually proportional flow direction compound valve
