    CB/T615-1995 Shipbuilding -- Bilge suction grille

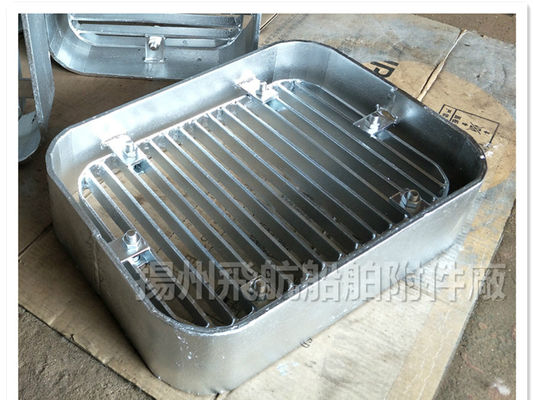

    Suction grille - bilge suction grille - Marine suction grille C80 CB/T615-1995



    Marine sea - sea suction grille grille is mixed in the water in the suction filter debris, to prevent debris blocking water heat exchanger and lubricating oil heat exchanger, while avoiding debris around the cooling water pump etc..



    The main model of the bilge suction grille produced by our company (Yangzhou flying ship accessories factory) has:
    Suction grille - bilge suction grille - Marine suction grille C80 CB/T615-1995
    A rectangular rectangular suction grille type -A rectangular strip bilge suction grille
    B round bar suction grille -B round strip bilge suction grille
    C round drill holes, suction grille, -C round drill hole, bilge suction grille
    D rectangular drill suction grille type -D rectangular drilling bottom suction grille

    CB/T615-1995 detail specification for suction grille - bilge suction grille for shipbuilding:
    Suction grille - bilge suction grille - Marine suction grille C80 CB/T615-1995





    Type





    Size





    Body material



    Form



    A

    B

    C

    D





    50-500A



     Cast Steel

    Stainless Steel etc



    Round , rectangle

    CB/T615-1995 technical specification for suction grille bilge suction grille for shipbuilding:
    Suction grille - bilge suction grille - Marine suction grille C80 CB/T615-1995
    The A type rectangular strip bottom suction grille with B type circular strip-shaped suction grille must be hot galvanized, zinc layer thickness not less than 430g/ square meters
    • C round drill hole, suction grille with D rectangular drill suction grille must be hot galvanized, zinc layer thickness can be slightly thinner than A, B
    The fastening bolts for each bilge grille are tight and the ends of the bolts are sealed with epoxy

    CB/T615-1995 marine suction grille - bottom suction grille - submarine door grille - submarine door suction grille installation methods and matters needing attention:
    Suction grille - bilge suction grille - Marine suction grille C80 CB/T615-1995
    1: to consider practicality, that is, relatively smooth sea water into the submarine valve box
    2: next, consider the beauty, that is, to expose the outer part of the plate as little as possible, and neat.
    In the design stage of high low sea box as far as possible to avoid online type over the place, also increased 50~100mm margin in the border on the sea, in the sea after the end of the door frame welding plate protruding place cut flat grid net circulation area is greater than the sea water pipe

    CB/T615-1995 suction grille for ships - bottom suction grille - Marine submarine door grille - submarine door suction grille strength test principle:
    Suction grille - bilge suction grille - Marine suction grille C80 CB/T615-1995
    In the grille hole did not open to full size, from the temporary opening into the submarine door, will be welded to the interior of the submarine door, and then seal the opening. According to the double bottom strength test requirements, test head from sea air pipe height or the height of the limit line in the open deck, general cargo limit line is below the freeboard deck of at least 76mm, so the hydraulic pressure test to vent pipe height.

    CB/T615-1995 suction grille for shipbuilding - bilge suction grille usually marked as "suction grille":
    Suction grille - bilge suction grille - Marine suction grille C80 CB/T615-1995
    • the rectangular bar suction grille of nominal diameter DN100 is indicated as:
    Suction grille - bilge suction grille - Marine suction grille A100 CB/T615-1995
    • the rectangular bar suction grille of nominal diameter DN150 is indicated as:
    Hot dip galvanized grille - bilge suction grille - Marine suction grille A150 CB/T615-1995
    • the rectangular bar suction grille of nominal diameter DN200 is indicated as:
    Suction grille - bilge suction grille - Marine suction grille A200 CB/T615-1995
    • the rectangular bar suction grille of nominal diameter DN300 is indicated as:
    Suction grille - bilge suction grille - marine hot dip galvanized suction grille A300 CB/T615-1995
    • sea valves nominal diameter of DN50, grille seat height H is 80 of the circular bar suction grille as:
    Suction grille - bilge suction grille - Marine suction grille B50-H80 CB/T615-1995
    • sea valves nominal diameter of DN65, grille seat height H is 80 of the circular bar suction grille as:
    Suction grille - bilge suction grille - Marine suction grille B65-H80 CB/T615-1995
    • sea valves nominal diameter of DN100, grille seat height H is 90 of the circular bar suction grille as:
    Suction grille - bilge suction grille - Marine suction grille B100-H90 CB/T615-1995
    • sea valves nominal diameter of DN200, grille seat height H is 100 of the circular bar suction grille as:
    Suction grille - bilge suction grille - Marine suction grille B200-H100 CB/T615-1995
    • suction grille, sea pass, diameter DN65, indicated as:
    Suction grille - bilge suction grille - Marine suction grille C65 CB/T615-1995
    • suction grille, sea pass, diameter DN80, indicated as:
    Suction grille - bilge suction grille - Marine suction grille C80 CB/T615-1995
