|Place of Origin:||China Jiangsu Yangzhou|
|Brand Name:||Fei Hang|
|Minimum Order Quantity:||1|
|Packaging Details:||Wooden box|
|Delivery Time:||The 5day|
|Payment Terms:||Advance payment and delivery|
Shipbuilding-Suction grille-Submarine door suction grille-Ship bottom suction grille
SUCTION GRILLE-SUBMARINE DOOR SUCTION GRILLE
About CB/T615-1995 Marine hot-dip galvanized suction grille-Submarine door suction grille Product Overview
Hot-dip galvanized suction grille-submarine door suction grille Product Overview
Marine submarine door suction grille-Subsea door hot-dip galvanizing suction grille is used to filter and mix debris in the inhaled seawater to prevent debris from blocking the fresh water heat exchanger and the lubricating oil heat exchanger, while avoiding debris winding cooling Pumps, etc .

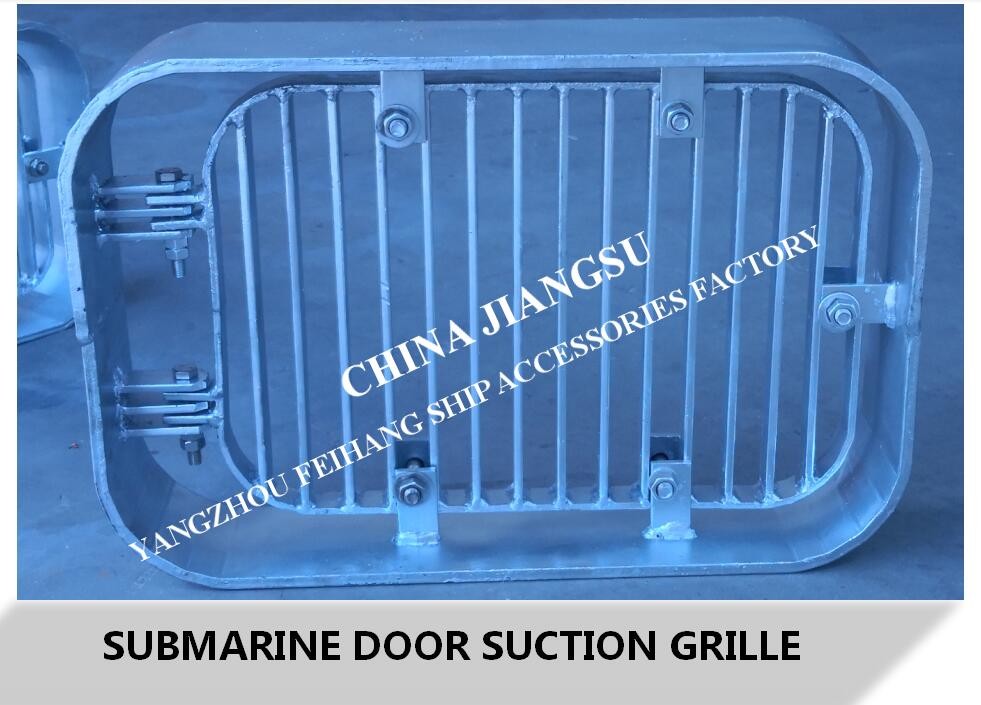

Submarine grille - submarine door suction grille A250 CB/T615-1995
Applicable to the rectangular strip suction grille with the nominal diameter of DN250, the submarine door suction grille, its grill seat size: 360mm*550mm, this marine submarine door suction grille is matched with: hull opening size For: 384mm*574mm*80mm
Suction grille - submarine door suction grille A200 CB/T615-1995:
Applicable to the rectangular strip suction grille with the nominal diameter of DN200, the submarine door suction grille, its grill seat size: 290mm*442mm, this marine submarine door suction grille is matched with: hull opening size For: 310mm*462mm*60mm
Marine suction grille "Bilge suction grill" product features of submarine door suction grille
●Reliable material: all parts are made of strict GB ship related standards
●Installation method: easy to operate, the submarine door opening is carried out according to the size of the grille frame on the ship, and then welded and reinforced to complete the installation.
●Reliable sealing: all processes are fully welded to ensure seamless integration of all link parts
●A type rectangular strip bottom suction grille and B type round strip suction grille must be hot-dip galvanized, the thickness of zinc layer should not be less than 430g/m2
●C-type circular drilling bottom suction grille and D-shaped rectangular drilling suction grille must be hot-dip galvanized, zinc layer thickness can be slightly thinner than A and B type
●After fixing the fixing bolts of each bottom suction grille, the end of the bolts should be sealed with epoxy.
