    Product Details:

    Place of Origin: Yangzhou, Jiangsu, China
    Brand Name: Fei Hang
    Certification: Certificate of quality
    Model Number: FH-005

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Wooden box
    Delivery Time: The 3 day
    Payment Terms: Advance payment and delivery
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Implementation Criteria: Standard For Ship Navigation Seat Material: Pu Imitation Leather, Leather
    Column Material: Round Bar, Square Steel Color: Black

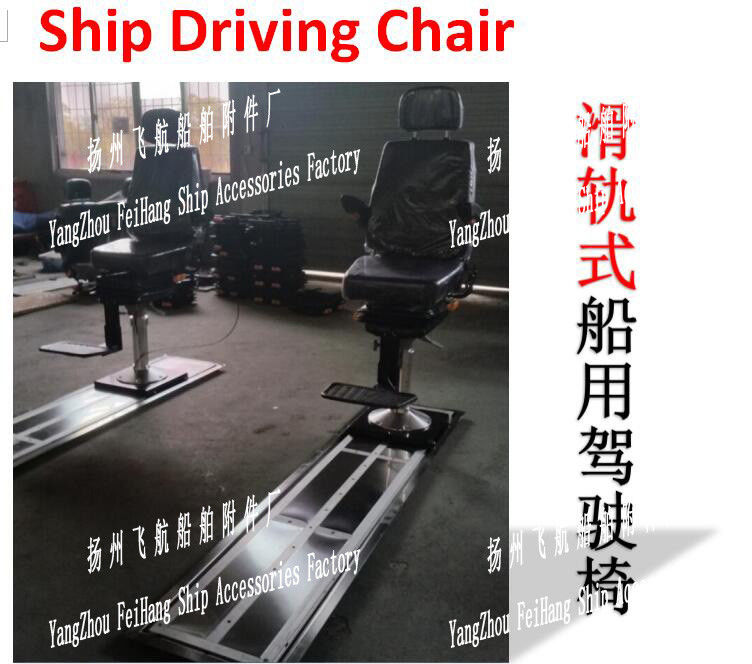

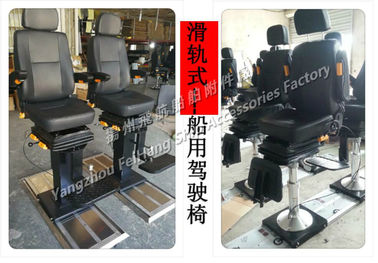

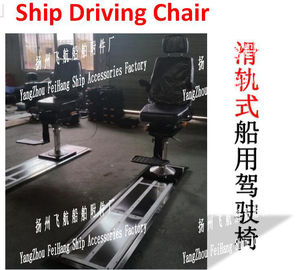

    FH-005 Square Steel column hydraulic lifting track type driving chair
    Marine Track Driving chair-fh005

    About Marine Slide-type Driving Chair/track-type Marine Driving Chair Product Overview

    About the marine Slide-type driving Chair/track-type Marine Driving Chair product Overview: The cockpit driving chair is a seat for the crew to facilitate the operation of the Pilot.



    About FH-005 Marine Slide-type driving chair/orbital boat driving Chair technical Parameters:

    About Marine Slide-type Driving Chair/track-type Marine Driving Chair Product Overview





    1. Ergonomic design;
    2. The seat can be moved on the high intensity double slide slide;
    3. Adjustable backrest and headrest;
    4. Seat height can be adjusted by angle;
    5. Seat can be moved forward and backward;
    6. Foldable/adjustable Angle Comfortable seat armrest;
    7. Seats can be rotated 360 degrees, multi-point positioning;
    8. Foot Pedal height can be adjusted/foldable; 9. The Upright column can be up and down vertically;



    About FH-005 boat slide type driving Chair/track type boat Driving Chair performance description:

    About Marine Slide-type Driving Chair/track-type Marine Driving Chair Product Overview
    The upper seat of the 1.fh-005 boat track type driving chair can be moved before and after 120mm, height adjustment 60mm, seat surface inclination range ±12°;
    2.fh-005 the seat backrest of the ship's orbital driving Chair can adjust the angle 85°-135°, The headrest is adjusted up and down 50mm, the armrest multi-point positioning adjustment;
    3.fh-005 the seat pedal hydraulic lifting and adjusting range 0-150mm of the ship track type driving chair;
    The seat of the 4.fh-005 boat Track-type driving chair can be rotated 360°, multi-point positioning control;
    5.fh-005 the seat of the orbital driving chair of the ship can be 0-5000mm on the track slide, the width of the guide rail is 500mm, the depth 28mm, the transmission part is the wheel type unimpeded double sliding, multi-point positioning control;
    6.fh-005 the seat pedal of the orbital driving chair of the ship can be used for 90° regression, the upper and lower position adjustment range 0-50mm;
    7.fh-005 the seat of the orbital driving chair of the ship can withstand the torque above 150ft.lb and reach the ad level standard;





    About ship cockpit slide-operated driving Chair dimensions:

    About Marine Slide-type Driving Chair/track-type Marine Driving Chair Product OverviewAbout Marine Slide-type Driving Chair/track-type Marine Driving Chair Product Overview

    About the ship cockpit rail-operated driving Chair track installation method:

    About Marine Slide-type Driving Chair/track-type Marine Driving Chair Product OverviewAbout Marine Slide-type Driving Chair/track-type Marine Driving Chair Product Overview

    Shipping track cockpit driving chair order Notice:

    About Marine Slide-type Driving Chair/track-type Marine Driving Chair Product Overview
    1. According to the requirements, the chair surface material of this chair is black high-quality pu imitation leather, can be customized leather or fabric according to the requirements;


    2. Chair face shape and color can be customized according to customer requirements, generally black mostly 3. Slide-type Driving Chair standard track length of 1.2 meters, if necessary to increase the length, can be customized according to the requirements;
