    Product Details:

    Place of Origin: Yangzhou, Jiangsu, China
    Brand Name: Fei Hang
    Certification: Certificate of quality
    Model Number: FH-001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Wooden box
    Delivery Time: The 3 day
    Payment Terms: Advance payment and delivery
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Implementation Criteria: Standard For Ship Navigation Seat Material: Pu Imitation Leather, Leather
    Column Material: Round Bar, Square Steel Color: Black

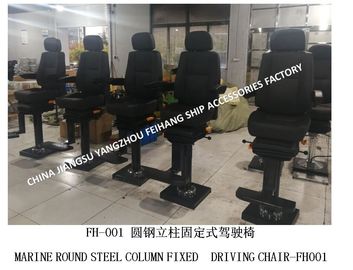

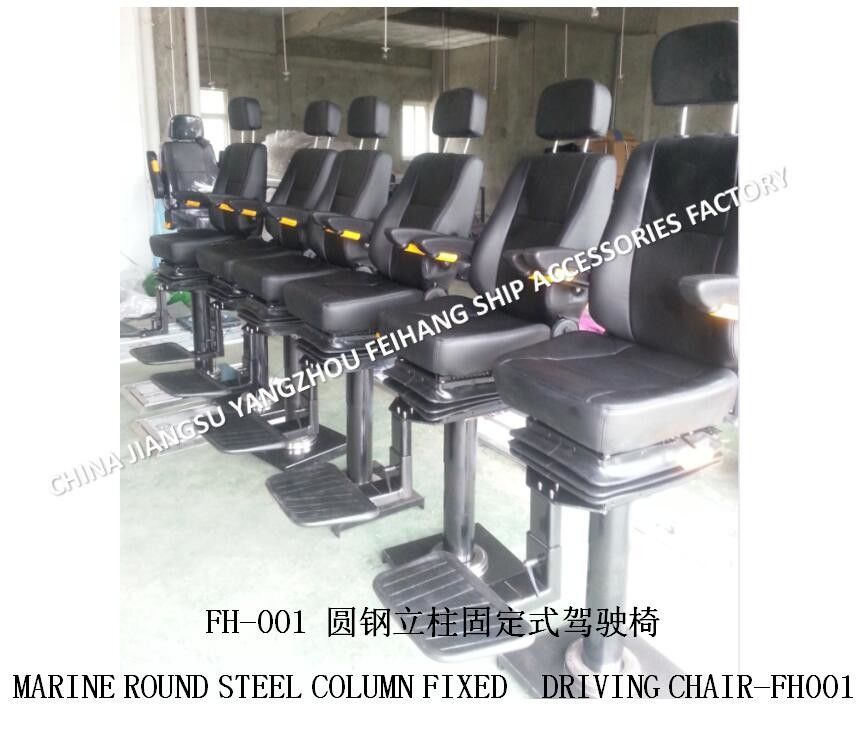

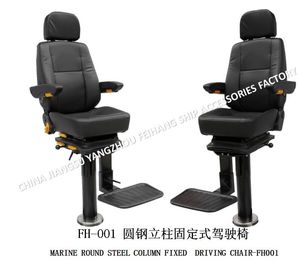

    FH-001 Round steel column fixed driving seat
    MARINE ROUND STEEL COLUMN FIXED DRIVING CHAIR-FH001



    About Marine FH001 Fixed Driving Chair/Round Steel Column Fixed Marine Driving Chair Product Overview:

    About Marine FH001 Fixed Driving Chair/Round Steel Column Fixed Marine Driving Chair Product Overview
    Marine FH001 fixed driving seat/round steel column fixed type marine driving seat is a seat that is convenient for the crew chief engineer to drive.



    About Marine FH001 Fixed Driving Chair/Round Steel Column Fixed Marine Driving Chair Technical Parameters:

    About Marine FH001 Fixed Driving Chair/Round Steel Column Fixed Marine Driving Chair Product Overview
    Design and manufacturing testing standards cb
    Seat material PU imitation leather/leather
    Column material Round bar
    Guide rail and positioning base material High-strength aluminum alloy
    Foot pedal Synthesis of steel plate core and environmental protection rubber products;



    Warship driving chair-cab sliding type driving chair Function description:

    About Marine FH001 Fixed Driving Chair/Round Steel Column Fixed Marine Driving Chair Product Overview

    1. Ergonomic design;

    2. The seat can move integrally on the high-intensity double slide rail;

    3. Adjustable backrest and headrest;

    4. Seat height can be adjusted by angle;

    5. The seat can move back and forth;

    6. Foldable/adjustable angle type comfortable seat armrest;

    7. The seat can rotate 360 degrees, multi-point positioning;

    8. The height of the foot pedal is adjustable/foldable;

    9. The vertical column can be lifted up and down vertically;





    About marine FH001 fixed driving seat/round steel column fixed type marine driving seat:



    About Marine FH001 Fixed Driving Chair/Round Steel Column Fixed Marine Driving Chair Product Overview

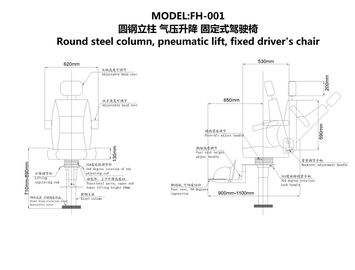

    1. The upper part of the seat of the marine FH001 fixed driving chair/round steel column fixed marine driving chair can be moved forward and backward by 120mm, the height is adjusted by 60mm, and the inclination angle of the seat surface is ±12°;
    2. Seat FH001 fixed driver's seat/round steel column fixed ship's driver's seat backrest can be adjusted at an angle of 85°-135°, the headrest is adjusted up and down by 50mm, and the armrest is positioned at multiple points;
    3. Seat pedal hydraulic lifting adjustment range of FH001 fixed driving chair/round steel column fixed marine driving chair is 0-150mm;
    4. The seat of the marine FH001 fixed driving chair/round steel column fixed type marine driving chair can be rotated 360°, and the multi-point positioning control;
    5. The seat pedal of the marine FH001 fixed driving chair/round steel column fixed marine driving chair can be returned 90°, and the up and down position adjustment range is 0-50mm;
    6. The seat of the marine FH001 fixed driving chair/round steel column fixed marine driving chair can withstand the torque of 150FT.LB or more, reaching the AD level standard;



    About marine FH001 fixed driving chair / round steel column fixed type marine driving chair:

    About Marine FH001 Fixed Driving Chair/Round Steel Column Fixed Marine Driving Chair Product OverviewAbout Marine FH001 Fixed Driving Chair/Round Steel Column Fixed Marine Driving Chair Product Overview
