AS80 0.75/0.26 CB/T425-1994
Double oil strainers-Duplex oil filter
According to the filtration precision, this large diameter DN80 marine double coarse oil filter, double low pressure crude oil filter can be divided into:
Marine oil purifier outlet double filter, double coarse oil filter A80-0.75/0.26 CB/T425-94
Double low pressure oil filter AS80-0.40/0.22 CB/T425-94
A80-0.25/0.16 CB/T425-94 coarse oil filter, double coarse oil filter
Fuel oil separator outlet double oil filter AS80-0.18/0.13 CB/T425-94
Fuel oil separator imported double crude oil filter A80-0.16/0.09 CB/T425-94
Here, our company's most DN80 caliber double coarse oil filter, low pressure crude oil filter is a brief introduction:

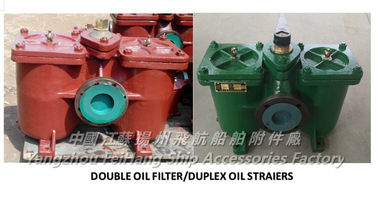

Double-connected coarse oil filter is also called: double-cylinder type coarse oil filter, also called double-connected oil filter. It is composed of two barrel oil filters in parallel or in series. Two coarse oil filters can be used alternately without stopping. In this case, the T-shaped mark on the valve plug of the double oil filter can be converted, the working state can be replaced by the filter cartridge, or the two machines can work simultaneously.

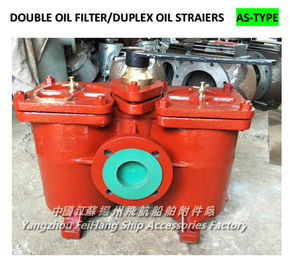

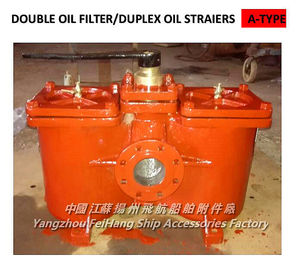

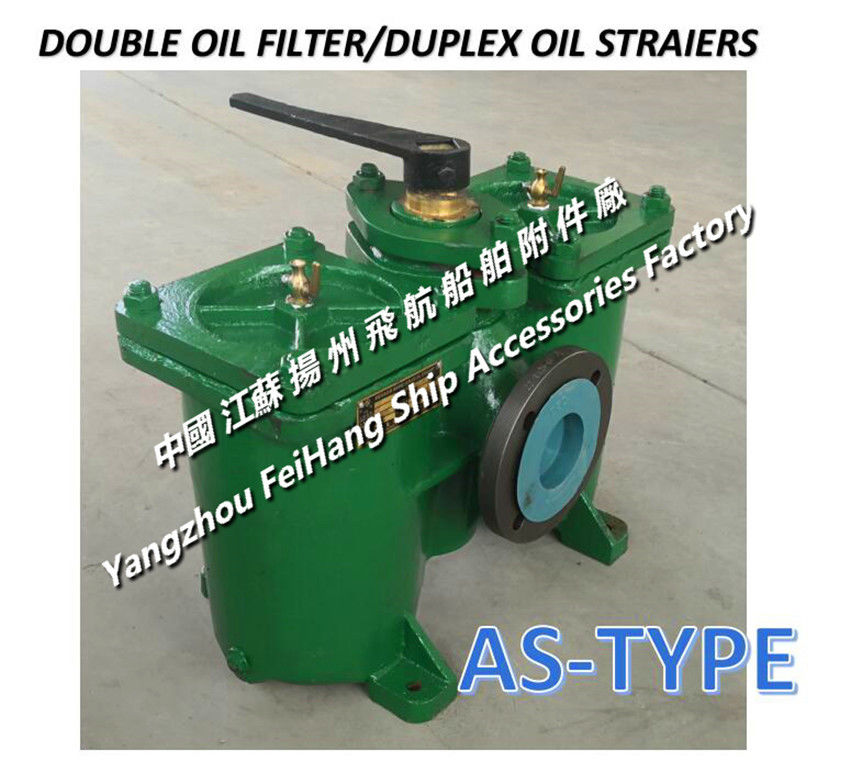

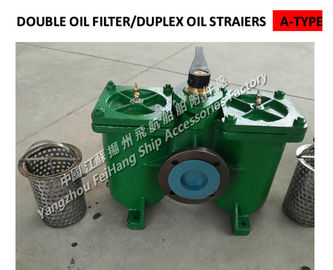

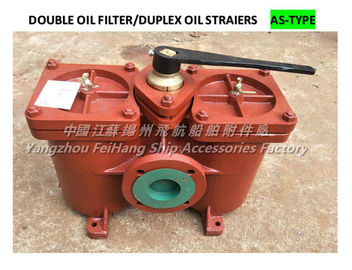

The difference between the A80 double crude oil filter and the AS80 double coarse oil filter is mainly the flange size:
| A80 CB/T425-1994 |
AS80 CB/T425-1994 |
|
|
OD:170mm
PCD:138mm
BOLT:8*M14
|
OD:190mm
PCD:150mm
BOLT:4*M16
|
Yangzhou Feihang Ship Fittings Factory explains for you: Ordering instructions for marine double coarse oil filter DN80:
①If you are adding a double coarse oil filter to the DN80 pipeline, you can choose one of the "A80 CB/T425-1994 or AS80 CB/T425-94" and include a mating flange for easy installation.
②If you are replacing this DN80 double low pressure crude oil filter, you need to actually measure and tell us the relevant size (including the body structure size, flange connection size)
So that we can distinguish between type A or AS type double crude oil filter.
③When the model is selected, you can choose the filtration accuracy of this coarse oil filter, as well as the custom material of the filter cartridge.
Marine crude oil filter produced by Jiangsu Yangzhou Feihang Ship Accessories Factory, double coarse oil filter, complete specifications and quality assurance. Can be applied to:
Fuel delivery pump double oil filter, oil pressure pump double oil filter
Light diesel oil pump double oil filter, light diesel oil pump double coarse oil filter, oil machine outlet double oil filter, fuel oil separator outlet double coarse oil filter.
