    Product Details:

    Place of Origin: China Jiangsu Yangzhou
    Brand Name: Feiteng
    Certification: Inspection Report
    Model Number: DIN

    Payment & Shipping Terms:

    Minimum Order Quantity: 2
    Price: Negotiable
    Packaging Details: Wooden box
    Delivery Time: The 3 day
    Payment Terms: Advance payment and delivery
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Implementation Standards: IMPA872065-IMPA872086 Connection Mode: Flanged Connections
    Body Material: Carbon Steel Galvanized/stainless Steel Side Cover Material: SUS316L

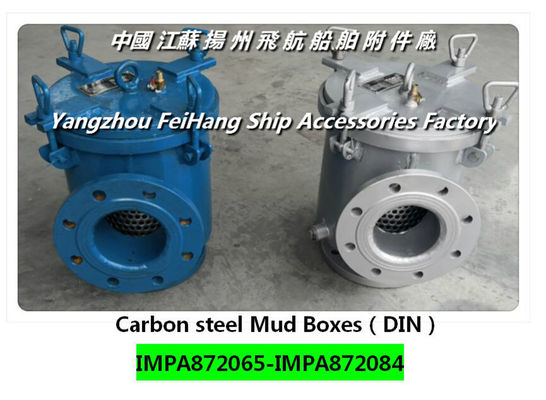

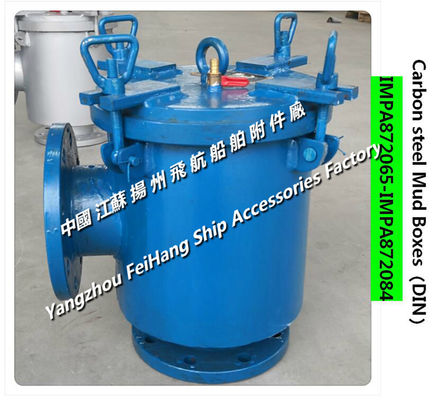

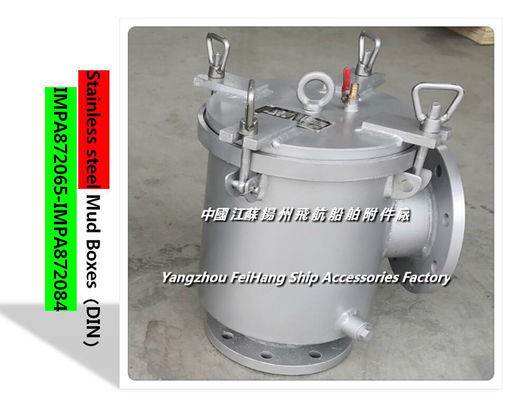

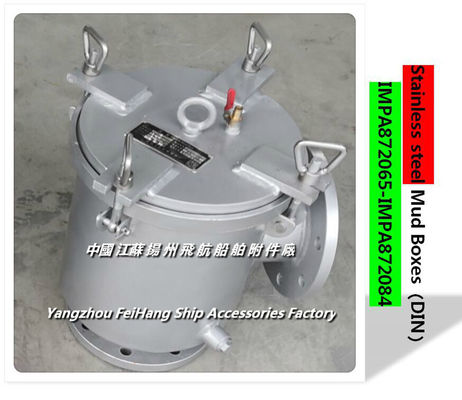

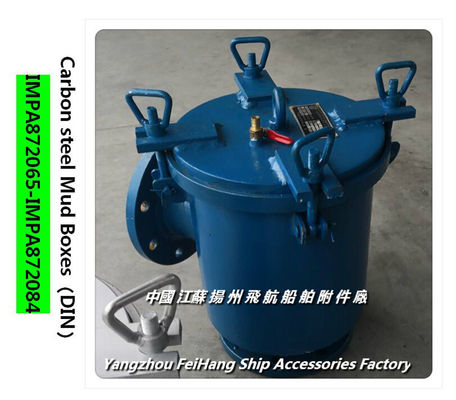

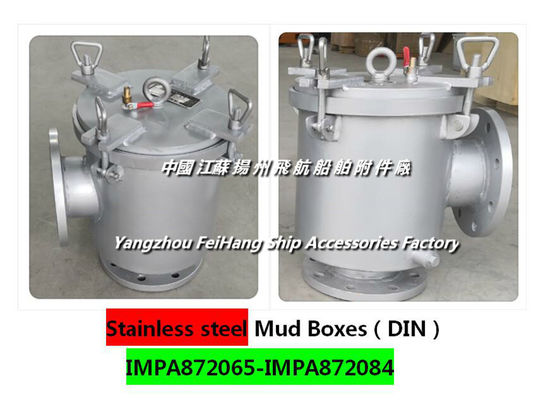

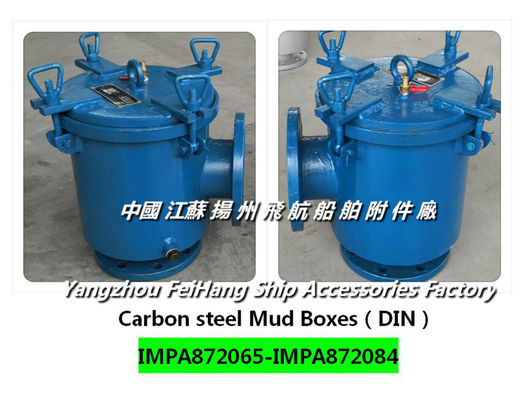

    CARBON STEEL GALVANIZED MUD BOXES(DIN) BASKET TYPE

    IMPA872065-IMPA872086

    ACCORDING TO DIN87151 FLAT FACED FLANGED ENDS TO DIN PN10

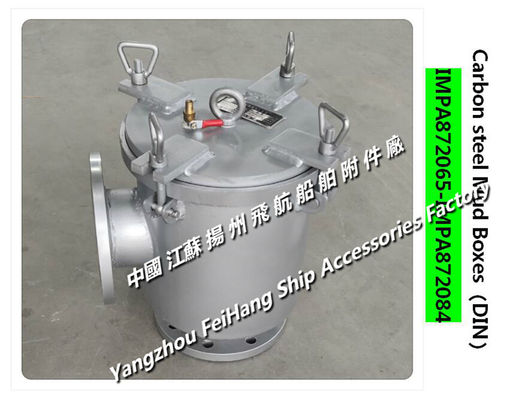

    IMPA872079 GERMAN STANDARD CARBON STEEL MUD BOX DIN

    TO BE INSTALLED IN SUCTION PIPES ABOARD VESSELS TO PROTECT PUMPS AGAINST LARGE SOLIDS.THE STANDARD PERFORATION SIZE OF THE STRAINER BASKET IS 8MM SQUARE;THE COVER IS MOUNTED WITH EYES BOLTS AND BRASS WING NUTS IN ORDER TO BE ABLE TO REMOVE AND CLEAN THE STRAINER BASKET QUICKLY;THE COVER IS PROVIDED WITH A BLIND BOSS,SUITABLE FOR MOUNTIONG AN AIR VENT ALSO,USED FOR APPLICATION ON SHORE,FOR EXAMPLE IN SWIMMING POLL INSTALLATIONS.

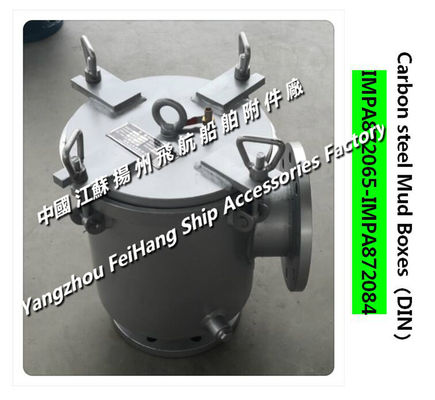

    IMPA872079 GERMAN STANDARD CARBON STEEL MUD BOX DIN

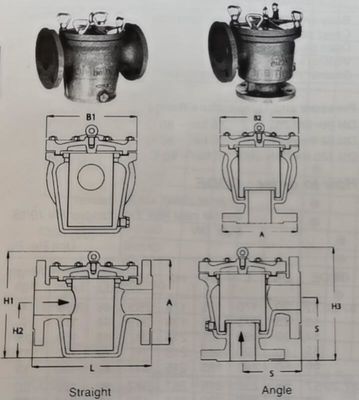

    Structure chart

    HOW TO ORDER:CODE

    MUD BOX(DIN),BASKET TYPE,CARBON STEEL.

    FLAT FLANGED ACCORDING TO DIN PN10,

    STRAIGHT OR ANGLE,SIZE DN.



    STRAIGHT-TYPE:

    IMPA872079 GERMAN STANDARD CARBON STEEL MUD BOX DIN



    CODE



    DN

    SIZE mm
    A L B1 H1 H2
    872065 40 150 200 202 202 95
    872066 50 165 230 242 224 106
    872067 65 185 290 268 263 134
    872068 80 200 310 296 299 156
    872069 100 220 350 326 339 185
    872070 125 250 400 394 416 229
    872071 150 285 480 440 468 268
    872072 175 315 550 512 528 296
    872073 200 340 600 558 580 335
    872074 250 395 730 680 660 390
    872084 300 445 730 680 660 340


    IMPA872079 GERMAN STANDARD CARBON STEEL MUD BOX DIN



    ANGLE-TYPE:



    CODE



    DN

    SIZE mm
    A B2 H3 S
    872075 40 150 160 231 125
    872076 50 165 197 250 135
    872077 65 185 215 271 150
    872078 80 200 255 319 175
    872079 100 220 291 342 195
    872080 125 250 340 407 220
    872081 150 285 410 466 270
    872083 200 340 472 550 300
    872085 250 395 542 550 300
    872086 300 445 600 799 450




    IMPA872079 GERMAN STANDARD CARBON STEEL MUD BOX DIN

    IMPA872079 GERMAN STANDARD CARBON STEEL MUD BOX DIN:

    The reference standard number is IMPA872079, the form is Angle-right angle, the nominal diameter is 100mm, the body material is GG-25 carbon steel, the top cover, the protective side cover are GG-25 carbon steel, and the inner parts are stainless steel filter elements.





    Material Specification

    IMPA872079 GERMAN STANDARD CARBON STEEL MUD BOX DIN

    COMPONENT Material En and/or DIN
    Cover Carbon steel SUS304/SUS316
    Body Carbon steel SUS304/SUS316
    Cover Sealing NBR Nitrile or buna Nrubber
    Basket Strainer Stainless steel X5CrNi 18-10
    Eyebolt Steel SUS304/SUS316
    Bolt Nut Brass
    Drain Plug Brass
