|Place of Origin:||Yangzhou, Jiangsu, China|
|Brand Name:||Fei Hang|
|Certification:||Certificate of quality|
|Minimum Order Quantity:||1|
|Packaging Details:||Wooden box|
|Delivery Time:||The 3 day|
|Payment Terms:||Advance payment and delivery|
|Texture Of Material:||STAINLESS STEEL||Connection Mode:||Flange|
|Nominal Path:||20A And 65A||Nominal Pressure:||0.4Mpa|
Marine stainless steel sight glass-stainless steel liquid flow observation window-stainless steel liquid flow observer
The flange stainless steel liquid flow observer JS4020 CB/T422-1993 and the marine 316L stainless steel liquid flow observer JS4065 CB/T422-93 are mainly installed in the water and oil pipe system of the overflow pipe of the inland river and coastal ship machinery. Suitable for ship pipelines with water and oil medium.
About JS4020S, JS4065S CB/T422-1993 this type of marine liquid flow observer, liquid flow observation window Model description:
304 stainless steel marine liquid flow observer JS4020 CB/T422-1993:
The model is J type-mirror type, flange with S, nominal diameter is 20mm, body material is SUS304 stainless steel, and the observation mirror is corrosion-resistant and high-temperature plexiglass.
Marine stainless steel 316L liquid flow observer JS4065 CB/T422-1993:
The model is J-mirror type, flange with S, nominal diameter is 65mm, body material is SUS316L stainless steel, and the observation mirror is corrosion-resistant and high-temperature plexiglass.

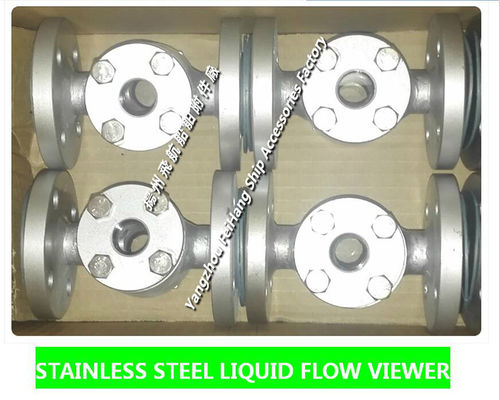

The real shot pictures of the stainless steel marine liquid flow observer JS4020S, JS4065S are as follows:
