    Product Details:

    Place of Origin: Yangzhou, Jiangsu, China
    Brand Name: Fei Hang
    Certification: Certificate of quality
    Model Number: JS,TS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Wooden box
    Delivery Time: The 3 day
    Payment Terms: Advance payment and delivery
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Texture Of Material: Flange Cast Iron Connection Mode: Flange
    Nominal Path: 20-200A Nominal Pressure: 0.4Mpa

    Liquid flow Observer - Marine liquid flow observation window - Marine liquid flow observation window

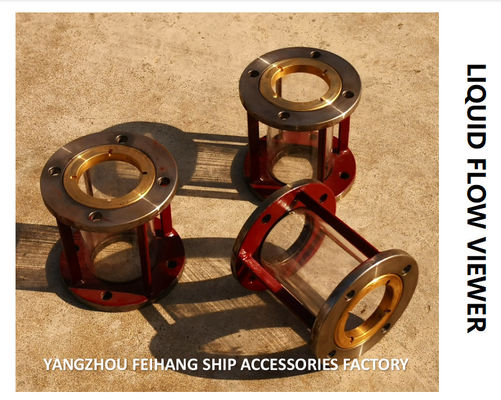

    LIQUID FLOW VIEWER


    Today we will introduce a product for observing the flow direction of medium in the ship piping system:

    MARINE LIQUID FLOW OBSERVER J4040 CB / T422-1993: MODEL J - MIRROR TYPE MATERIAL - FLANGE CAST IRON
    Liquid flow Observer - liquid flow observation window CB / t422-1993
    This type of marine liquid flow observer is one of the pipe accessories products suitable for water and oil.



    CB / t422-1993 marine liquid flow Observer - the type of marine liquid flow observation window is as follows:

    MARINE LIQUID FLOW OBSERVER J4040 CB / T422-1993: MODEL J - MIRROR TYPE MATERIAL - FLANGE CAST IRON
    J-type marine flow Observer - Marine liquid flow observation window: the flange size is gb569 mirror type liquid flow observer and mirror type liquid flow observation window.
    JS type marine flow Observer - Marine liquid flow observation window: the flange size is gb2506 mirror type liquid flow observer and mirror type liquid flow observation window.

    MARINE LIQUID FLOW OBSERVER J4040 CB / T422-1993: MODEL J - MIRROR TYPE MATERIAL - FLANGE CAST IRON
    T-type marine flow Observer - Marine liquid flow observation window: cylindrical liquid flow observer and cylindrical liquid flow observer with flange size of gb569.
    TS type marine flow Observer - Marine liquid flow observation window: cylindrical liquid flow observer and cylindrical liquid flow observer with flange size of gb2506.



    Let's take a look at the differences between the J-type mirror liquid flow observer and the T-type cylindrical liquid flow Observer:

    MARINE LIQUID FLOW OBSERVER J4040 CB / T422-1993: MODEL J - MIRROR TYPE MATERIAL - FLANGE CAST IRON
    CB / t422-1993 J, JS mirror type liquid flow observer, mirror type liquid flow observation window
    Marine liquid flow observer js4020 CB / t422-1993:
    The model is JS type - mirror type, with flange mounting gb2501 sealing surface, nominal diameter of 20mm, nominal diameter of 0.4MPa, body material of HT200 gray cast iron, and observation glass of corrosion and high temperature resistance
    Marine liquid flow observer j4040 CB / t422-1993:
    The model is J-type mirror type, the flange is installed with gb569 sealing surface, the nominal diameter is 40mm, the nominal diameter is 0.4MPa, the body material is HT200 gray cast iron, and the observation glass is corrosion-resistant and high-temperature resistant plexiglass



    CB / t422-1993 T, TS type cylindrical liquid flow observer, cylindrical liquid flow observation window

    MARINE LIQUID FLOW OBSERVER J4040 CB / T422-1993: MODEL J - MIRROR TYPE MATERIAL - FLANGE CAST IRON
    Marine liquid flow observer t1200 CB / t422-1993:
    The model is T-type mirror type, the flange is installed with gb2501 sealing surface, the nominal diameter is 200mm, the nominal diameter is 0.1MPa, the body material is HT200 gray cast iron, and the observation glass is corrosion-resistant and high-temperature resistant plexiglass
    Marine liquid flow observer ts1125 CB / t422-1993:
    Model: TS type - mirror type, flange mounted gb569 sealing surface, nominal diameter: 125mm, nominal diameter: 0.1MPa, body material: HT200 gray cast iron, observation glass: corrosion and high temperature resistant plexiglass

    Marine stainless steel sight glass-stainless steel liquid flow observation window-stainless steel liquid flow observer

    MARINE LIQUID FLOW OBSERVER J4040 CB / T422-1993: MODEL J - MIRROR TYPE MATERIAL - FLANGE CAST IRON

    The flange stainless steel liquid flow observer JS4020 CB/T422-1993 and the marine 316L stainless steel liquid flow observer JS4065 CB/T422-93 are mainly installed in the water and oil pipe system of the overflow pipe of the inland river and coastal ship machinery. Suitable for ship pipelines with water and oil medium.



    About JS4020S, JS4065S CB/T422-1993 this type of marine liquid flow observer, liquid flow observation window Model description:



    304 stainless steel marine liquid flow observer JS4020 CB/T422-1993:

    MARINE LIQUID FLOW OBSERVER J4040 CB / T422-1993: MODEL J - MIRROR TYPE MATERIAL - FLANGE CAST IRON

    The model is J type-mirror type, flange with S, nominal diameter is 20mm, body material is SUS304 stainless steel, and the observation mirror is corrosion-resistant and high-temperature plexiglass.

    Marine stainless steel 316L liquid flow observer JS4065 CB/T422-1993:

    MARINE LIQUID FLOW OBSERVER J4040 CB / T422-1993: MODEL J - MIRROR TYPE MATERIAL - FLANGE CAST IRON

    The model is J-mirror type, flange with S, nominal diameter is 65mm, body material is SUS316L stainless steel, and the observation mirror is corrosion-resistant and high-temperature plexiglass.





    The real shot pictures of the stainless steel marine liquid flow observer JS4020S, JS4065S are as follows:

    MARINE LIQUID FLOW OBSERVER J4040 CB / T422-1993: MODEL J - MIRROR TYPE MATERIAL - FLANGE CAST IRONMARINE LIQUID FLOW OBSERVER J4040 CB / T422-1993: MODEL J - MIRROR TYPE MATERIAL - FLANGE CAST IRON
