Place of Origin: | China Jiangsu Yangzhou |
Brand Name: | Fei Hang |
Certification: | Inspection Report |
Model Number: | A,B |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden box |
Delivery Time: | The 5day |
Payment Terms: | Advance payment and delivery |
Supply Ability: | 10pcs/day |
Design Standards: | CB/T254-97 | Body Material: | Stainless Steel |
---|---|---|---|
Craft: | Casting |
The People's Republic of China shipping industry standard
CB/T4248-2013 Bottom discharge screw plug

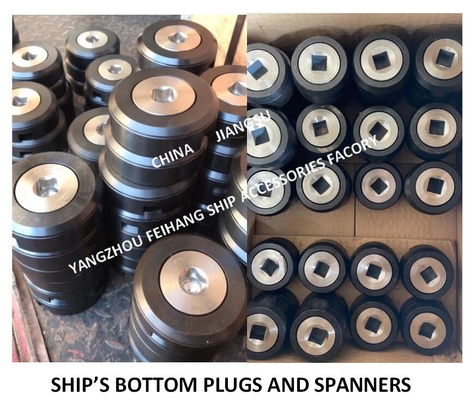

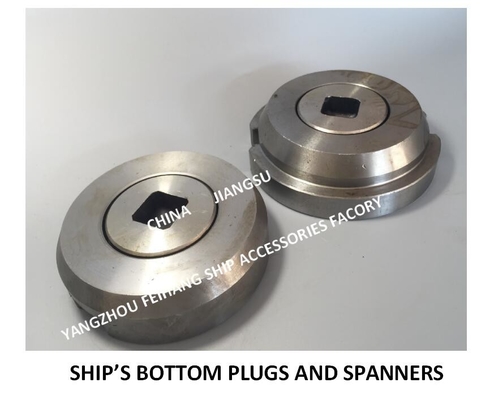

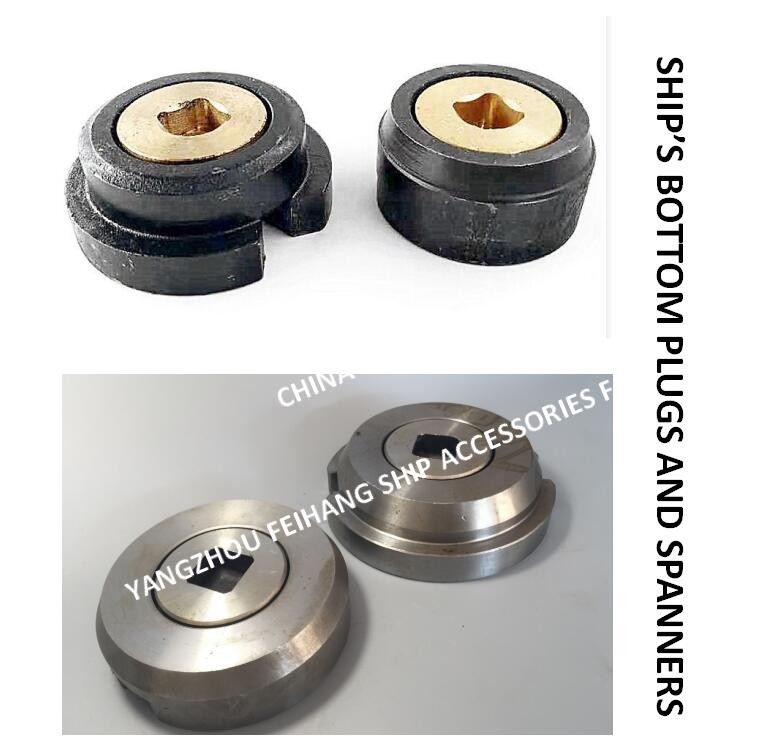

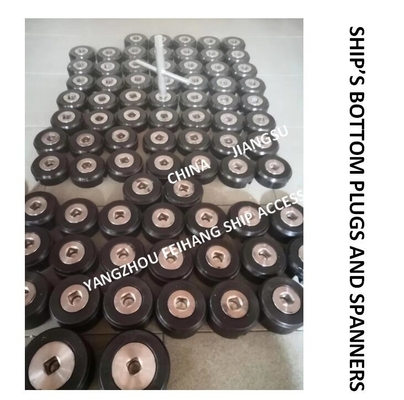

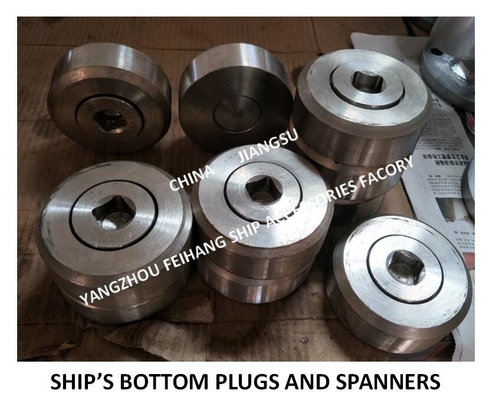

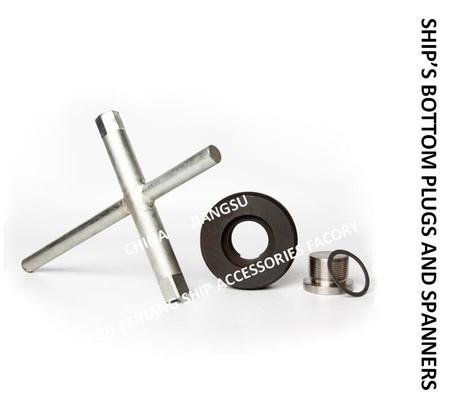

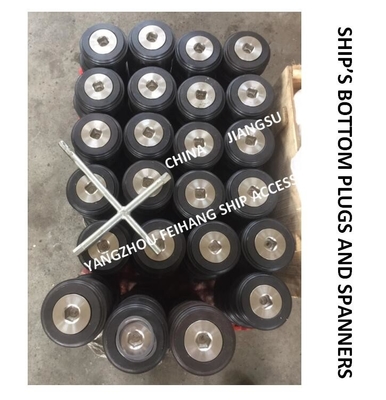

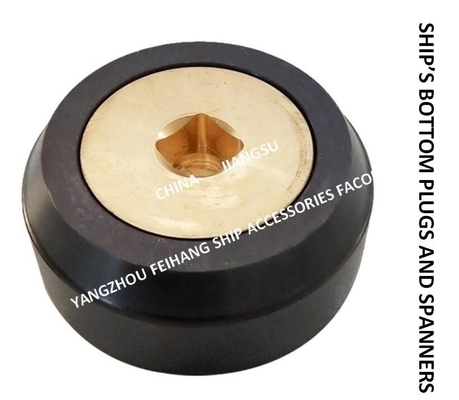

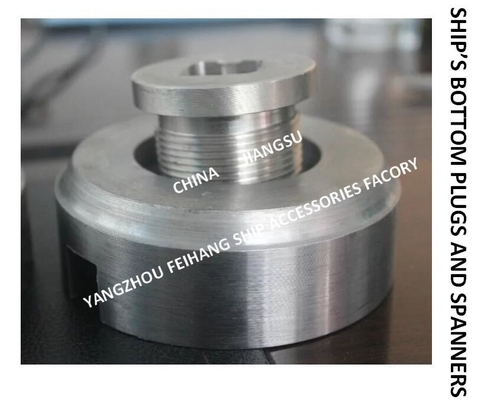

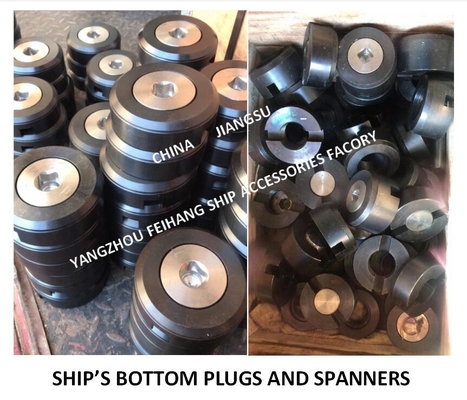

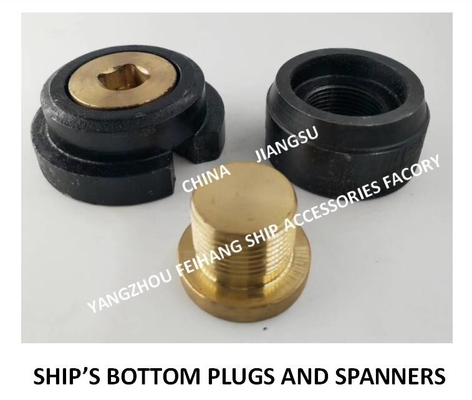

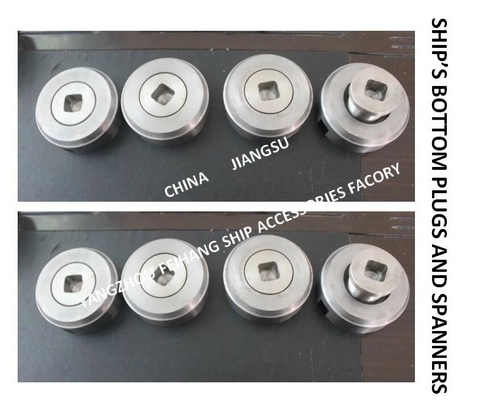

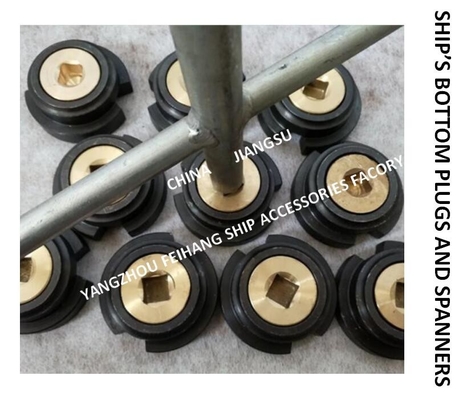

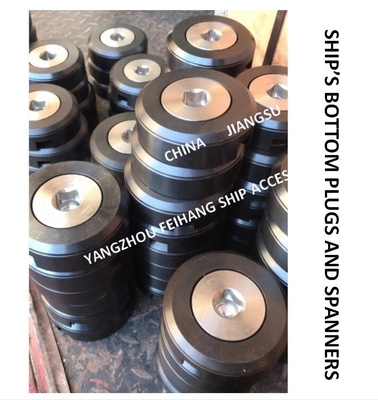

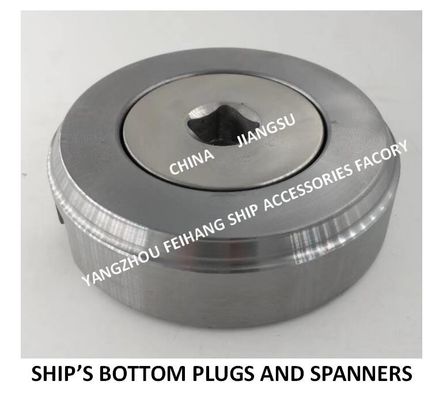

SHIP’S BOTTOM PLUGS AND SPANNERS
Bottom discharge screw plug Scope of application:
CB/T254-97 Bottom release screw plug is suitable for steel bottom oil tank, screw plug for discharging oil water, not suitable for small boats with a bottom plate thickness of less than 6mm.
An example of the marking of CB/T254-97 bottom release screw plugs is as follows:
Type A shoulderless bottom release screw plug
The cork is hexagonal, the nominal size is 30mm, the seat version h = 30mm, the stainless steel shoulderless bottom discharge screw plug used in the oil tank: discharge screw plug - bottom discharge screw AO30-30N CB/T254-97
The cork is hexagonal, the nominal size is 42mm, the seat version h = 35mm, stainless steel shoulderless bottom relief screw plug for oil tank: oil tank discharge screw plug - bottom discharge screw AO42-35N CB/T254-97
The cork is hexagonal, the nominal size is 52mm, the seat version h = 45mm, stainless steel shoulderless bottom discharge screw plug for oil tank: discharge screw plug - bottom tank discharge screw AO52-45N CB/T254-97
Type B has a shoulder bottom discharge screw plug
The plug is hexagonal, the nominal size is 30mm, the seat version h = 30mm, the stainless steel shoulderless bottom discharge screw plug used in the water tank: discharge screw plug - bottom discharge screw BO30-30H CB/T254-97
The cork is square in shape, the nominal size is 42mm, the seat version h= 35mm, the stainless steel shoulderless bottom relief screw plug for the water tank: the oil tank discharge screw plug - the bottom discharge screw BW42-35H CB/T254-97
The cork is hexagonal, the nominal size is 52mm, the seat version h = 45mm, stainless steel shoulderless bottom discharge screw plug for water tank: discharge screw plug - bottom water tank discharge screw BO52-45H CB/T254-97
