    Detailed Product Description
    Nominal Path: 32mm Nominal Pressure: 21mpa
    Middle Function: MO Flow: 280L/min
    Material: Cast Iron Paint Color: Blue

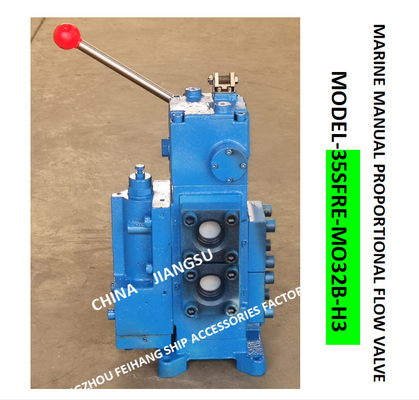

    Marine manual proportional valve 35sfre-mo32b-h3
    Marine manual proportional flow compound valve 35sfre-mo32b-h3

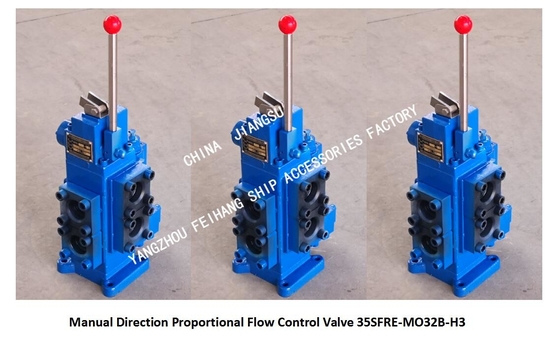

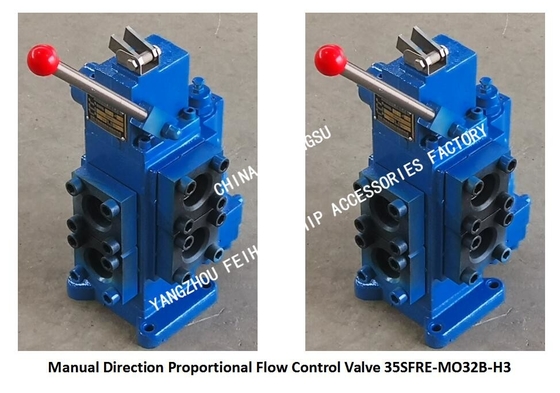

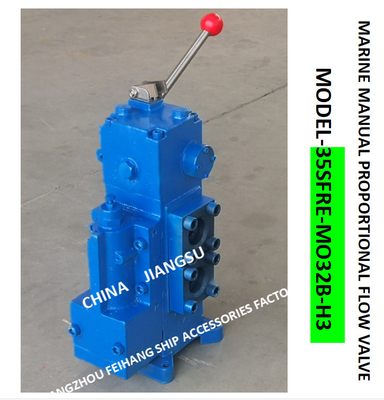

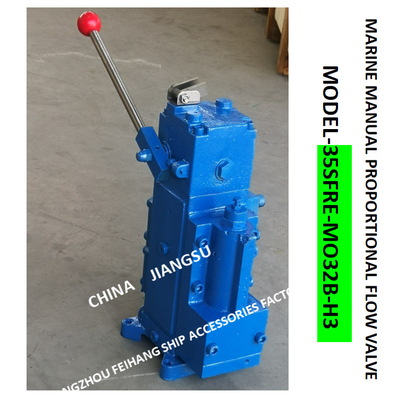

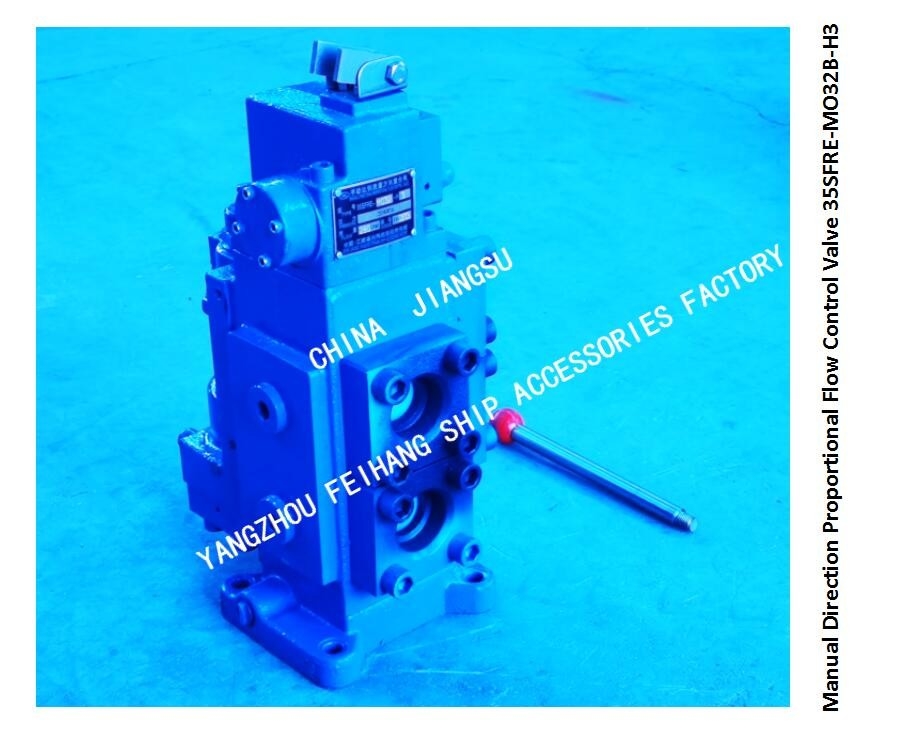

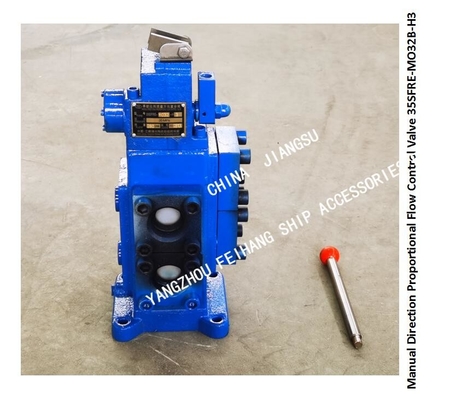

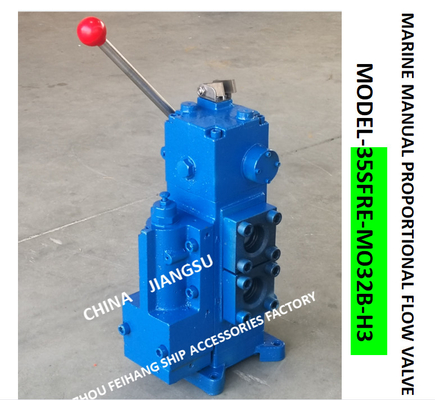

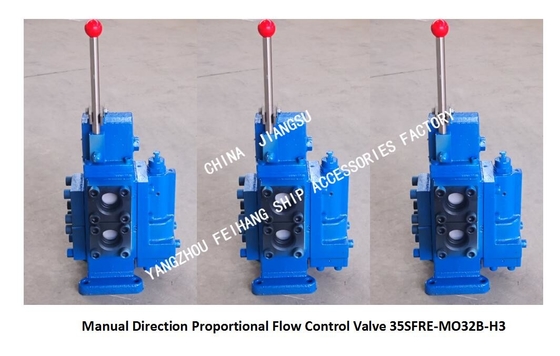

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3
    Marine manual proportional flow reversing speed regulating valve 35sfre-mo32b-h3
    When referring to 35sfre, a manual proportional flow composite valve, people will think why there are two models of DN32 specification according to the selection table of this valve?
    35sfre-mo32-h3 and 35sfre-mo32b-h3.
    It can be seen from the above models that there is a "B" in the back, which means the code of the installation type. The difference is as follows:

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3



    With the development of the shipping industry, the old installation type has been gradually replaced by the new one, so the valve we now produce is mainly 35sfre-mo32b-h3.
    Here we will give a brief introduction to this model of manual proportional flow valve:
    35sfre-mo32b-h3 model meaning:

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3
    Three position five-way, the middle function is mo type (when the oil pump is in the middle position, the oil pump can unload; when the load is in the middle position, the ports a and B are fully closed), and the working pressure adjustment range is 8-20mpa.



    Working principle of 35sfre-mo32b-h3 manual proportional flow compound valve:

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3
    It is a compound valve composed of a reversing speed regulating valve, a unloading valve and a pilot overflow valve. The manual control lever of the reversing speed regulating valve changes the angle, smoothly displaces the upper and lower non-polar positions of its main valve core through gear transmission, changes the direction of the load, and adjusts the speed of the load non-polar. (if the push cylinder is equipped at the control lever, remote control can be realized, which needs to be noted when ordering.).
    When the control lever of 35sfre-mo32b-h3 manual proportional flow compound valve rotates to the right (or left), the main valve core moves upward (or downward), opening a (or port B), and the pressure oil enters the load to make it work in the forward direction (or in the reverse direction), and the return oil flows to the return port T through B (or a). The opening size of port a (or port B) determines the flow rate.

    Precautions for use of 35sfre-mo32b-h3 marine manual proportional flow composite valve:

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3
    1. The displacement of the oil pump shall meet the requirements of the pneumatic proportional compound valve of the Institute.
    2. "L" port shall be connected back to the oil tank separately.
    3. When installing this manual proportional flow composite valve, the valve seat shall be fixed with screws on the processed foundation, and it is not allowed to support the valve with pipes.
    4. When this 35sfre manual proportional valve is working, it is recommended to use No. 40 hydraulic oil, and the working oil temperature is 20 ℃ - 60 ℃.
    5. During installation, check whether the inside of the system is clean and ensure that the connection is well sealed.
    6. When the combination valve is used for multi-channel load, it is suitable to connect the system in series. Generally, the number of valves in series should be less than four to prevent excessive pressure loss. If it is used for multi-channel parallel system, please specify the special specifications when ordering, and select the middle oil pump and the non unloading valve group. At this time, it is recommended to select the pressure compensation variable displacement pump for the oil pump.



    Assembly diagram of marine 35sfre-mo32b-h3 manual proportional flow valve:
    From the physical appearance, this valve is very simple, but in fact, it is composed of 51 components in total (as shown in the following figure):

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3

    When none of the above conditions can be solved, we need to replace the entire proportional valve, which will bring us a problem. Because the nameplate on the proportional valve has been corroded for a long time, it is difficult to determine the exact model. At this time, we can accurately judge according to the following information:

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3

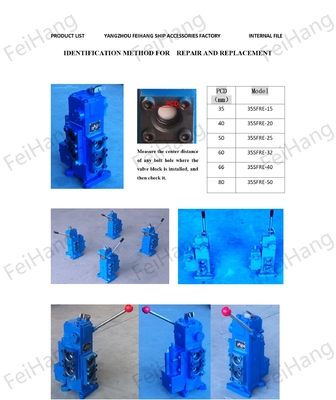

    The actual picture of the manual proportional flow reversing valve 35sfre-mo32b-h3 is as follows:

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3
    According to the different functions of the slide valve of this manual proportional flow compound valve, the DN32 manual proportional flow reversing valve can be marked as follows:

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3
    ▲ 35sfre-mo32b-h3 marine manual proportional flow reversing valve
    (expressed as: three position five-way, middle function is mo type, nominal diameter is DN32, connection mode is flange connected manual proportional valve, manual proportional reversing speed regulating valve)
    ▲ 35sfre-my32-h3 manual proportional flow reversing speed regulating composite valve
    (expressed as: three position five-way, middle function is my type, nominal diameter is DN32, connection mode is flange connected manual proportional valve, and manual proportional valve is reversing speed regulating valve)
    ▲ 35sfre-mn32-h3 marine manual proportional flow reversing composite valve
    (expressed as: three position five-way, middle function is Mn type, nominal diameter is DN32, connection mode is flange connected manual proportional valve, and manual proportional valve is reversing speed regulating valve)
    ▲ marine manual proportional flow reversing valve 35sfre-mj32-h3
    (expressed as: three position five-way, middle function MJ type, nominal diameter DN32, connection method flange connected manual proportional valve, manual proportional valve reversing speed regulating valve)



    The performance characteristics of 35sfre manual proportional flow reversing valve mainly include the following:

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3
    1. It has multi-functional characteristics of commutation, stepless speed regulation, unloading and overload protection, simple structure and reliable operation.
    2. Its manual regulation is stable and sensitive, and the commutation and stepless speed change are carried out synchronously.
    3. This manual proportional flow compound valve has M-type intermediate function. Its output power always matches the load power of the motor (or oil cylinder), and the energy-saving effect is more prominent. It is suitable for single valve or multi valve series connection.


    Here we will give a brief introduction to 35sfre-mo25-h3 manual proportional valve and manual proportional flow valve:

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3
    Let's take a look at the multi-directional detail picture of this manual proportional flow composite valve:

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3
    According to the different functions of the slide valve of this manual proportional flow compound valve, the DN25 manual proportional flow reversing valve can be marked as follows:

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3
    ▲ 35sfre-mo25-h3 marine manual proportional flow reversing valve
    (expressed as: three position five-way, middle function is mo type, nominal diameter is DN32, connection mode is flange connected manual proportional valve, manual proportional reversing speed regulating valve)
    ▲ 35sfre-oy25-h3 manual proportional flow reversing speed regulating composite valve
    (expressed as: three position five-way, middle function is my type, nominal diameter is DN32, connection mode is flange connected manual proportional valve, and manual proportional valve is reversing speed regulating valve)
    ▲ 35sfre-oo25-h3 marine manual proportional flow reversing composite valve
    (expressed as: three position five-way, middle function is Mn type, nominal diameter is DN32, connection mode is flange connected manual proportional valve, and manual proportional valve is reversing speed regulating valve)
    ▲ marine manual proportional flow reversing valve 35sfre-mj32-h3
    (expressed as: three position five-way, middle function MJ type, nominal diameter DN32, connection method flange connected manual proportional valve, manual proportional valve reversing speed regulating valve)



    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3



    Marine manual proportional flow compound valve 35SFRE-OY25-H3

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3

    When it comes to the manual proportional valve, we all know that it is a valve that operates the windlass or steering gear on the ship. It is easy to operate and maintain.
    At present, according to the development of our domestic ships, this manual proportional valve has two normal models:

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3
    Csbf manual proportional flow compound valve and 35sfre manual proportional flow directional valve
    The working principle of the two models of manual proportional valves is the same, and the difference lies in the corresponding flow under the installation size and the same nominal diameter.



    Here, we briefly introduce the 35sfre-oy25-h3 manual proportional flow composite valve
    Model definition:

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3
    35 means this manual proportional composite valve is a three position five way type.
    Sfre manual reversing proportional speed regulating valve
    Oy is the middle position slide valve of this manual proportional flow valve: O means that the oil pump cannot be unloaded when the handle is in the middle position, y means that the load condition at the middle position is -port A and port B are fully open, and two-way floating is connected with port t.
    25 means the nominal diameter is 25mm
    H3 pressure setting range is 8-20mpa



    According to the intermediate function of manual proportional valve -oy type, this series of valves can be marked as follows:

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3
    Oy is the middle position slide valve of this manual proportional flow valve: O means that the oil pump cannot be unloaded when the handle is in the middle position, y means that the load condition at the middle position is -port A and port B are fully open, and two-way floating is connected with port t.
    Manual proportional valve, manual proportional directional valve 35sfre-oy20-h3
    Marine manual proportional valve, marine manual proportional directional valve 35sfre-oy25-h3
    Windlass manual proportional compound valve, manual proportional flow compound valve 35sfre-oy32-h3
    Manual proportional flow directional valve, manual proportional directional valve 35sfre-oy40-h3
    Manual proportional flow reversing speed regulating valve, manual proportional flow reversing valve 35sfre-oy50-h3

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3



    Marine manual proportional valve 35SFRE-OY32B-H3

    Marine manual proportional flow compound valve 35SFRE-OY32B-H3

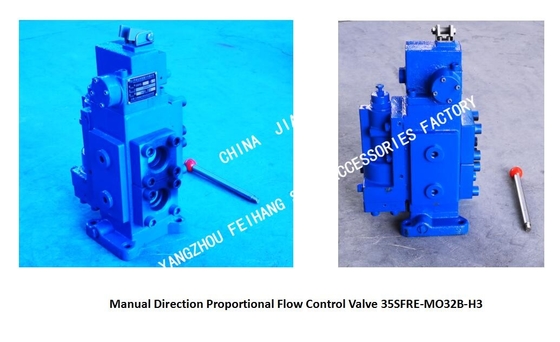

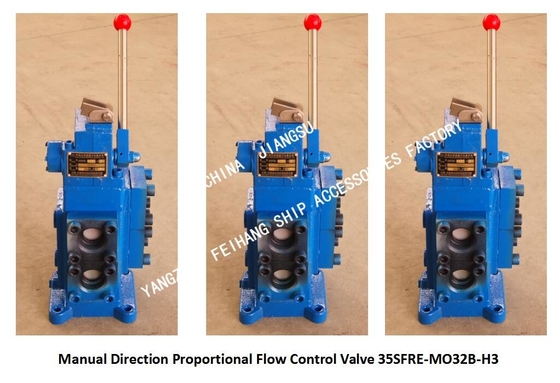

    Manual Direction Proportional Flow Control Valve 35SFRE-OY32B-H3

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3

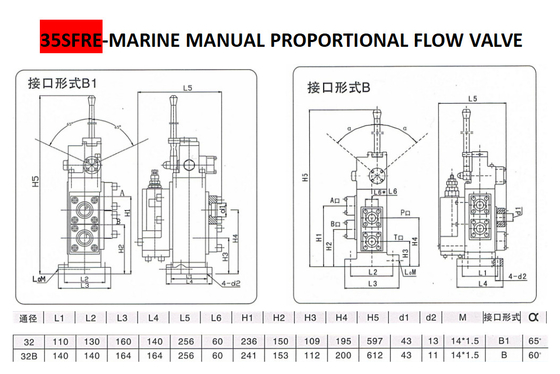

    Technical parameter table of 35SFRE-OY32B-H3 manual proportional flow compound valve:

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3

    Model

    Nominal dia.(mm)

    Nominal flow(L/min)

    Nominal pressure(MPa)

    Mid-position pulley enginery

    35SFRE 32 280 21 MO





    The production process diagram of 35SFRE-OY32B-H3 marine manual proportional flow compound valve is as follows:

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3















































































    The actual shots of the manual proportional flow reversing valve 35SFRE-OY32B-H3 are as follows:

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3

    According to the function of the spool valve of this manual proportional flow compound valve, the manual proportional flow directional valve of DN32 can be marked as follows:

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3

    ▲35SFRE-OY32B-H3 Marine manual proportional flow directional valve
    (Expressed as: three-position five-way, the neutral function is OY type, the nominal diameter is DN32, the connection method is a manual proportional valve with flange connection, and a manual proportional reversing speed control valve)

    ▲35SFRE-MY32-H3 manual proportional flow reversing speed control compound valve
    (Expressed as: three-position five-way, the neutral function is MY type, the nominal diameter is DN32, the connection method is the manual proportional valve with flange connection, and the manual proportional valve reversing speed control valve)

    ▲35SFRE-MN32-H3 marine manual proportional flow reversing compound valve
    (Expressed as: three-position five-way, the neutral function is MN type, the nominal diameter is DN32, the connection method is a manual proportional valve with flange connection, and a manual proportional valve reversing speed control valve)

    ▲Marine manual proportional flow reversing valve 35SFRE-MJ32-H3
    (Expressed as: three-position five-way, the neutral function is MJ type, the nominal diameter is DN32, the connection method is the manual proportional valve with flange connection, the manual proportional valve reversing speed control valve)



    "Yangzhou Feihang Ship Accessories Factory" provides this 35SFRE proportional valve. The selection table is as follows:

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3







    Competitive advantage:


    1. Factory direct sale, competitive price.
    2. Customized Service: We can customize, to customers drawings for processing. We are flexible and capable Supplier.
    3. Genuine Product with Excellent Quality: Our Product are strictly complied with China Compulsory Certification. 100% guarantee test before delivery.
    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
    5. Delivery Time: after receiving the payment within 24-72 hours to Timely arrange raw materials, processing, production, and timely delivery.
    6.We hope long term cooperation with our customers



    Advantages:


    1. Excellent and high quality control
    2. Fast delivery
    3. Competitive price
    4. Small order accepted
    5. Customers' drawing or samples accepted
    6.Assembly line production process, assembly line depth sounding equipment



    Delivery time is approx:


    1. We will test them strictly before shipping.
    2. We will ship it in 1-3 working days after your paying.as to the shipping time,it usually will be 6- 12 days,which will be different for different countries.
    3.You can choose DHL, UPS, TNT and other international express for delivery. At the same time, it can also be sent to the freight forwarder designated by the customer (anywhere in China)



    FAQ:


    1. How about your price?
    We specialize in customized high-quality promotional items for you and can help you meet any requirement with the most reasonable price
    2. Can you produce the product as our sample or design?
    Yes,we can.OEM&ODM are welcome. As long as you give us the detailed specific requirement,we can absolutely make the same samples and send to you for approval.

    3. Could you send me all your catalogues and price list?
    We have over thousands of products. it is really too hard for us to send you all our
    catalogue and price list for you, please let us know the items, size details which you
    are interested in, so we can offer you the price list for you reference.



    Packaging & Shipping:
    Shipping by sea or air Express by DHL, FEDEX,UPS,TNT and so on Packed in standard exporting carton or as your request



    TipsTips:
    1. Please make sure your address informations correct ,so the parts can safe delivery.
    2. When you place orders,please inform me how to make the Commercial invoice(Customs invoice).

    3. Customers please leave your contact details,such as e-mail address,mobile no.,when I take delivery,I need the above information,Thanks.

    If you have any question,pls feel free to contact us,we are always at your service.



    Marine manual proportional valve 35SFRE-MO32B-H3

    Marine manual proportional flow compound valve 35SFRE-MO32B-H3

    Manual Direction Proportional Flow Control Valve 35SFRE-MO32B-H3

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3

    35SFRE-MO32B-H3Technical parameter table of manual proportional flow compound valve:

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3

    model Nominal dia.(mm) Nominal flow(L/min) Nominal pressure(MPa) Mid-position pulley enginery

    35SFRE



    32 280 21Mpa MO





    The outline drawing of 35SFRE-MO32B-H3 marine manual proportional flow compound valve is as follows:

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3


    The actual shots of the manual proportional flow reversing valve 35SFRE-MO32B-H3 are as follows:

    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3



    According to the function of the spool valve of this manual proportional flow compound valve, the manual proportional flow directional valve of DN32 can be marked as follows:



    Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3Marine Manual Proportional Flow Compound Valve 35sfre-Mo32b-H3

    ▲35SFRE-MO32B-H3 Marine manual proportional flow reversing valve
    (Expressed as: three-position five-way, the neutral function is MO type, the nominal diameter is DN32, the connection method is a manual proportional valve with flange connection, and a manual proportional reversing speed control valve)

    ▲35SFRE-MY32-H3 manual proportional flow reversing speed control compound valve
    (Expressed as: three-position five-way, the neutral function is MY type, the nominal diameter is DN32, the connection method is a manual proportional valve with flange connection, and a manual proportional valve reversing speed control valve)

    ▲35SFRE-MN32-H3 marine manual proportional flow reversing compound valve
    (Expressed as: three-position five-way, the neutral function is MN type, the nominal diameter is DN32, the connection method is a manual proportional valve with flange connection, and a manual proportional valve reversing speed control valve)

    ▲Marine manual proportional flow reversing valve 35SFRE-MJ32-H3
    (Expressed as: three-position five-way, the neutral function is MJ type, the nominal diameter is DN32, the connection method is a manual proportional valve with flange connection, and a manual proportional valve reversing speed control valve)



    Contact Details
    Yangzhou FeiHang Ship Accessories Factory

    Contact Person: Mr. HAN

    Tel: 86-0514-86342693

    Fax: 86-0514-86342693

    Email: ftship@163.com

    Send your inquiry directly to us (0 / 3000)
