    Product Details:

    Place of Origin: Yangzhou, Jiangsu, China
    Brand Name: FEIHANG
    Certification: Factory certificate, test report, material report
    Model Number: Gooseneck-TYPE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Discuss personally
    Packaging Details: Export packaging
    Delivery Time: 1-2days
    Payment Terms: 100% prepaid
    Supply Ability: 100pcs/days
    Contact Now
    Detailed Product Description
    Name: Gooseneck AIR VENT HEAD,Gooseneck AIR PIPE HEAD Size: 50-250A
    Standard: CB/T3594 Pressure: 0.3Mpa
    Shape: Float Ball Type Material: Cast Iron
    GASKET RUBBER: NBR Application: Water Tank, Oil Tank, Ballast Tank
    Side Cover Material: SUS316L



    China Gooseneck Type Air Vent Head-Air Vent Cap Gooseneck Type-Air Pipe Head-Gooseneck Type Air Pipe Cap-Gooseneck Breather Cap

    Gooseneck Type Air Pipe Head Model BS200 For Water Tank & Gooseneck Type Air Pipe Head For Oil TankProduct Description For Gooseneck Air Vent Head - Gooseneck Air Pipe Head:

    Gooseneck Type Air Pipe Head Model BS200 For Water Tank & Gooseneck Type Air Pipe Head For Oil Tank

    FeiHang exhaust head is composed of two chambers and a float. The external chamber is connected to the top of the air pipeline through a telescopic connection, and the internal chamber has a side opening. When air flows in the normal condition, it passes through easily. But when water enters the ventilation head, the stainless steel disc ball or float will close the opening of the external chamber, and the incoming water will be discharged through the side opening.

    The strength requirements for the "Air Pipe Closure Device" should be in accordance with IACS P3, and the strength requirements for the deck accessories should be in accordance with IACS S27. The coating used is hot-dip galvanized, and the screen is 30 mesh/5 mesh.


    Features For Gooseneck Air Vent Head - Gooseneck Air Pipe Head:

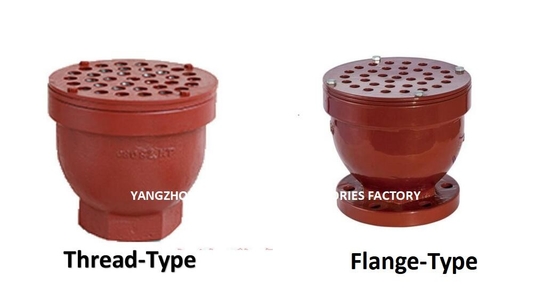

    There are two installation methods for gooseneck air pipe heads on ships:
    Thread installation and flange installation

    Gooseneck Type Air Pipe Head Model BS200 For Water Tank & Gooseneck Type Air Pipe Head For Oil TankGooseneck Type Air Pipe Head Model BS200 For Water Tank & Gooseneck Type Air Pipe Head For Oil Tank



    • Product Name: AIR PIPE HEAD, AIR VENT HEAD CB/T3594-94
    • Size: 50-250A
    • Standard: CB/T3594
    • Body Material: Cast Iron
    • TOP COVER Material: SUS316L
    • Application: Water Tank, Oil Tank, Ballast Tank

    Technical Parameters For Gooseneck Air Vent Head - Gooseneck Air Pipe Head:

    Gooseneck Type Air Pipe Head Model BS200 For Water Tank & Gooseneck Type Air Pipe Head For Oil Tank

    Parameters Details
    Application Water Tank, Oil Tank, Ballast Tank
    Body Material Cast Iron
    Fire Net/Insect Net SUS304
    Pressure 0.3Mpa
    Guide Bolt Material SUS316L
    Shape Float Ball Type
    Connection Flanged Or Thread
    Float Ball Material SUS316L
    Standard CB/T3594
    GASKET RUBBER NBR

    Applications For Gooseneck Air Vent Head - Gooseneck Air Pipe Head:

    Gooseneck Type Air Pipe Head Model BS200 For Water Tank & Gooseneck Type Air Pipe Head For Oil Tank

    FEIHANG Gooseneck-TYPE AIR PIPE HEAD, AIR VENT HEAD CB/T3594-94 is a water tank, oil tank, ballast tank marine vent head with superior performance. It is made of high quality SUS316L material for the float ball and side cover, and NBR rubber for the gasket. It is certified by factory certificate, test report and material report, and meets the standard of CB/T3594. The minimum order quantity is 1pcs, and the supply ability is 100pcs/days. The price is discussed personally and the delivery time is 1-2days. The packaging is export packaging and the payment terms are 100% prepaid. It is an ideal choice for marine vent head application.


    Customization For Gooseneck Air Vent Head - Gooseneck Air Pipe Head:

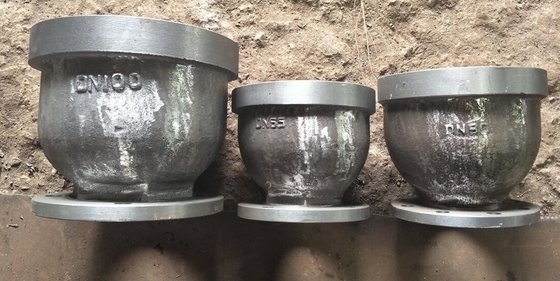

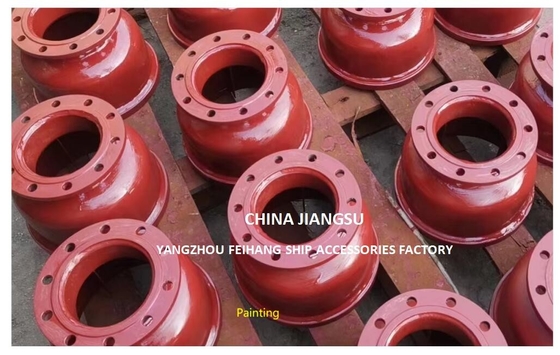

    Process steps for producing gooseneck air pipe heads at Yangzhou Feihang Ship Accessories Factory in Jiangsu, China

    Gooseneck Type Air Pipe Head Model BS200 For Water Tank & Gooseneck Type Air Pipe Head For Oil Tank

    Gooseneck Type Air Pipe Head Model BS200 For Water Tank & Gooseneck Type Air Pipe Head For Oil Tank

    Gooseneck Type Air Pipe Head Model BS200 For Water Tank & Gooseneck Type Air Pipe Head For Oil TankGooseneck Type Air Pipe Head Model BS200 For Water Tank & Gooseneck Type Air Pipe Head For Oil TankGooseneck Type Air Pipe Head Model BS200 For Water Tank & Gooseneck Type Air Pipe Head For Oil TankGooseneck Type Air Pipe Head Model BS200 For Water Tank & Gooseneck Type Air Pipe Head For Oil TankGooseneck Type Air Pipe Head Model BS200 For Water Tank & Gooseneck Type Air Pipe Head For Oil Tank



    Gooseneck AIR VENT HEAD/AIR PIPE HEAD, CB/T3594-94
    • Brand Name: FEIHANG
    • Model Number: Gooseneck-TYPE
    • Place of Origin: Yangzhou, Jiangsu, China
    • Certification: Factory certificate, test report, material report
    • Minimum Order Quantity: 1pcs
    • Price: Discuss personally
    • Packaging Details: Export packaging
    • Delivery Time: 1-2days
    • Payment Terms: 100% prepaid
    • Supply Ability: 100pcs/days
    • Side Cover Material: SUS316L
    • FloatBall Material: SUS316L
    • Pressure: 0.3Mpa
    • Body Material: Cast Iron

    Support and Services For Gooseneck Air Vent Head - Gooseneck Air Pipe Head:

    Gooseneck Type Air Pipe Head Model BS200 For Water Tank & Gooseneck Type Air Pipe Head For Oil Tank

    The technical support and service for AIR PIPE HEAD,AIR VENT HEAD CB/T3594-94 includes:

    • 24/7 customer support
    • Technical guidance and advice
    • Product installation and repair services
    • Preventive maintenance and regular inspections
    • Spare parts and regular component replacement
    • Troubleshooting and technical issue resolution

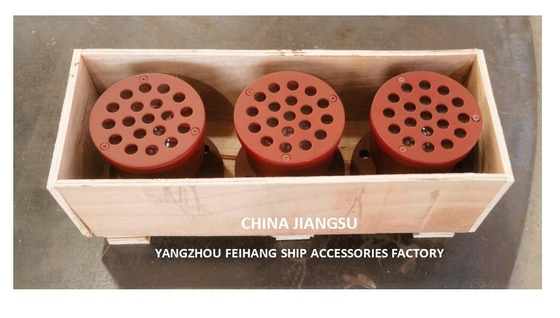

    Packing and Shipping For Gooseneck Air Vent Head - Gooseneck Air Pipe Head:

    Gooseneck Type Air Pipe Head Model BS200 For Water Tank & Gooseneck Type Air Pipe Head For Oil TankGooseneck Type Air Pipe Head Model BS200 For Water Tank & Gooseneck Type Air Pipe Head For Oil TankGooseneck Type Air Pipe Head Model BS200 For Water Tank & Gooseneck Type Air Pipe Head For Oil Tank





    Packaging and Shipping of AIR PIPE HEAD, AIR VENT HEAD CB/T3594-94:

    • The product should be packaged in a box with a foam lining to prevent any damage during transportation.
    • The product should be transported in a vehicle that is covered and equipped with a reliable suspension system.
    • The product should be shipped to the designated location in accordance with CB/T3594-94.
    • The product should be stored in a dry, ventilated place, away from direct sunlight or any other sources of heat.

    At the same time, we can also customize according to customer requirements: gooseneck air pipe heads with bent pipe connections for easy installation by customers.

    Gooseneck Type Air Pipe Head Model BS200 For Water Tank & Gooseneck Type Air Pipe Head For Oil TankGooseneck Type Air Pipe Head Model BS200 For Water Tank & Gooseneck Type Air Pipe Head For Oil Tank

    FAQ For Gooseneck Air Vent Head - Gooseneck Air Pipe Head:

    Q: What is AIR PIPE HEAD,AIR VENT HEAD CB/T3594-94?
    A: AIR PIPE HEAD,AIR VENT HEAD CB/T3594-94 is a kind of air pipe head produced by FEIHANG, which is designed to be used with air pipes.
    Q: What is the model number of AIR PIPE HEAD,AIR VENT HEAD CB/T3594-94?
    A: The model number of AIR PIPE HEAD,AIR VENT HEAD CB/T3594-94 is Gooseneck-TYPE.
    Q: Where is the place of origin of AIR PIPE HEAD,AIR VENT HEAD CB/T3594-94?
    A: The place of origin of AIR PIPE HEAD,AIR VENT HEAD CB/T3594-94 is Yangzhou, Jiangsu, China.
    Q: What certifications do AIR PIPE HEAD,AIR VENT HEAD CB/T3594-94 have?
    A: AIR PIPE HEAD,AIR VENT HEAD CB/T3594-94 is certified with Factory certificate, test report, material report.
    Q: What is the minimum order quantity of AIR PIPE HEAD,AIR VENT HEAD CB/T3594-94?
    A: The minimum order quantity of AIR PIPE HEAD,AIR VENT HEAD CB/T3594-94 is 1pcs.
