The boat with a small double low crude oil filter: suitable for ship fuel temperature is less than 80C0 and oil pipe lines.
The boat with a small double low crude oil filter - orders:

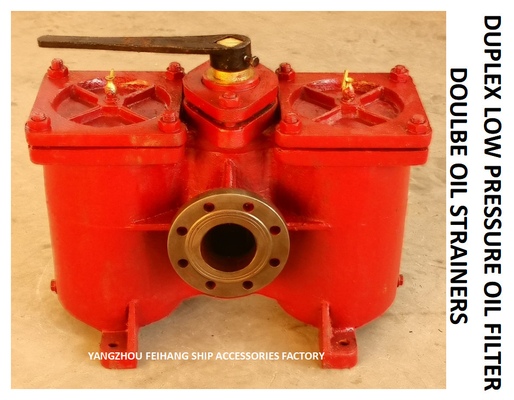

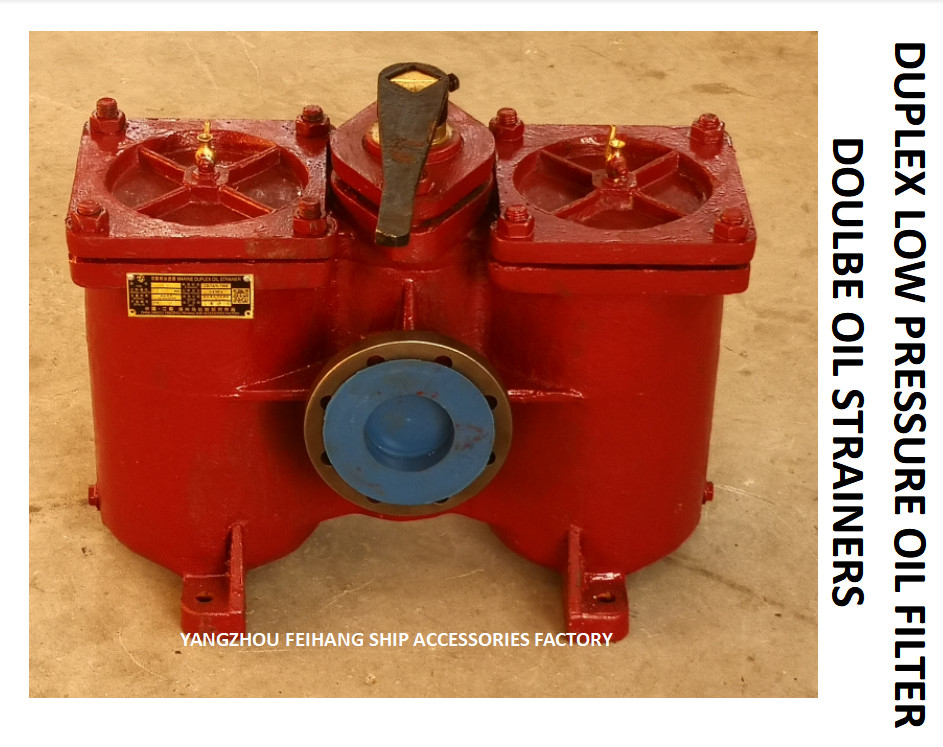

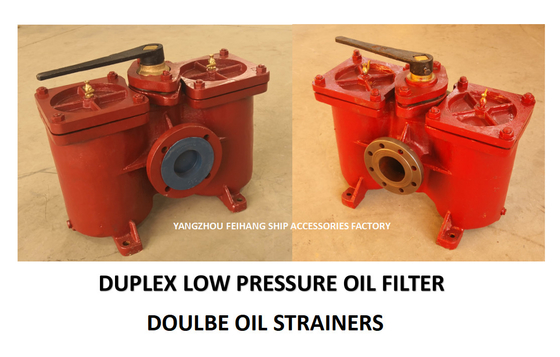

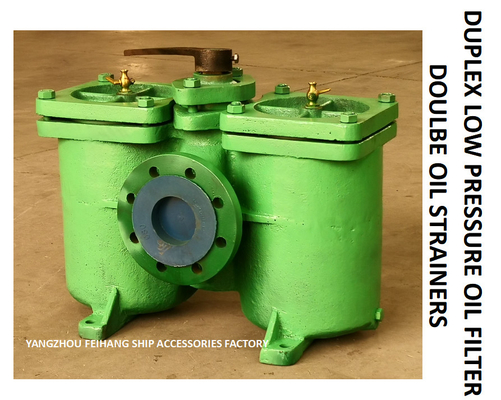

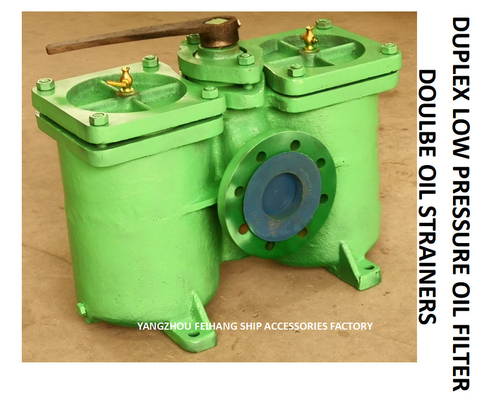

The following is the replacement - the ship with a net oil filter assembly of the dual filter assembly display: (Figure 1)
Net oil filter oil filter AS DN40 type straight through Duplex
The normal mark is: double oil filter 0.4/0.22 CB/T425-1994 AS4040
Bulk cast iron iron Cast Stainless Mesh steel 40 mesh
Dimensions of marine Double thick oil filter flange:
Type AS - flange connection size according to CB/T2501 straight through double thick oil filter:
Flange diameter =130mm D flange center distance =100mm D2 adjacent flange center distance D1 = 80mm
4 hole *M12

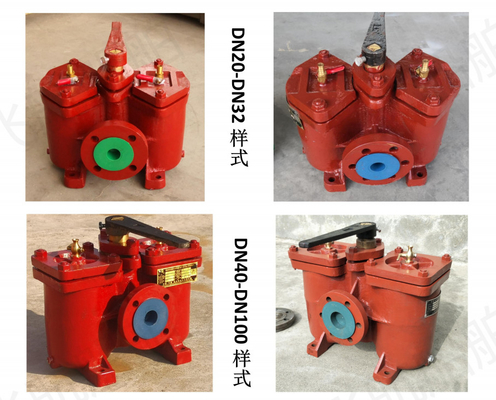

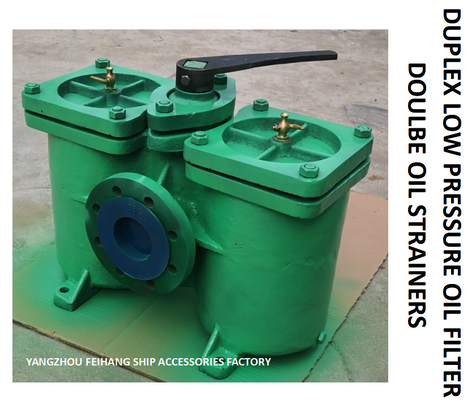

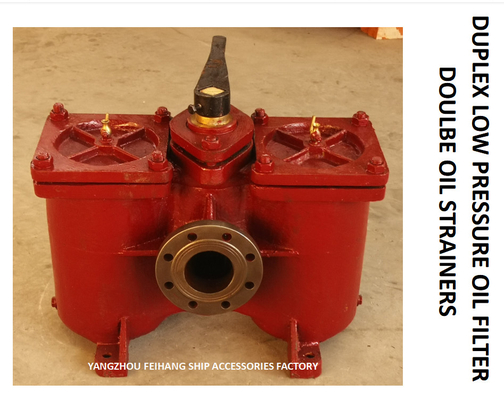

This section of the ship with a double thick oil filter specifications: DN20-DN200, special labeling: DN100 or more in accordance with the requirements of the owner, the normal operating lever for the lifting, as shown in figure:

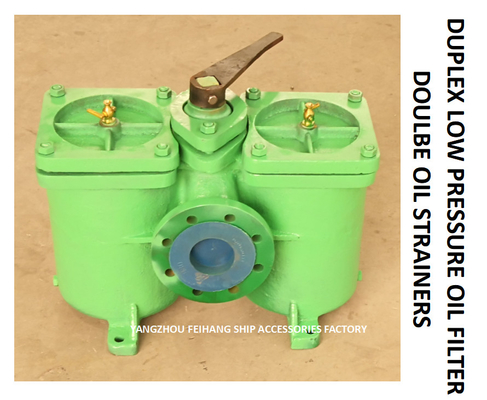

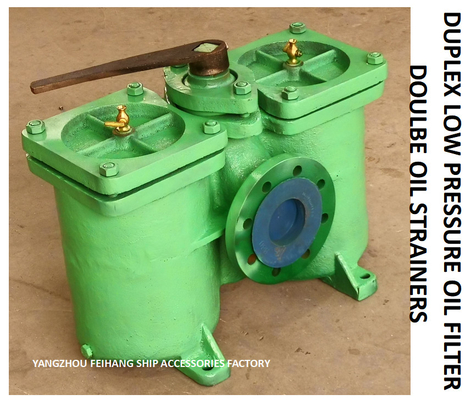

Marine crude oil filter - Dual coupling thick oil filter - dual fuel filter according to the role can be divided into:
Low pressure thick oil filter for fuel line CB/T425-94
Low pressure thick oil filter for diesel oil pipeline CB/T425-94
Low pressure thick oil filter for oil pipeline CB/T425-94
Low pressure thick oil filter for heavy oil pipeline CB/T425-94

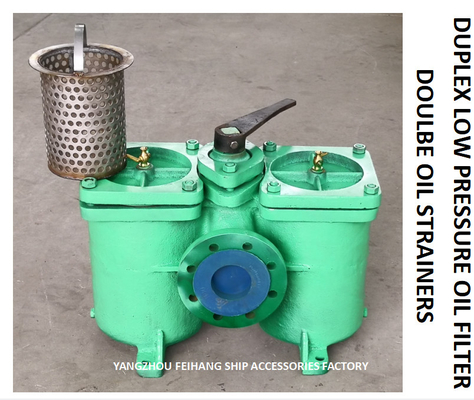

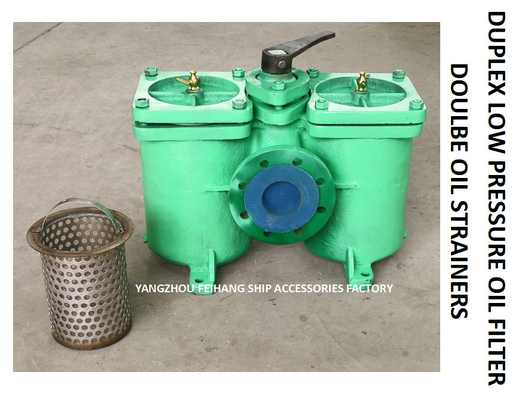

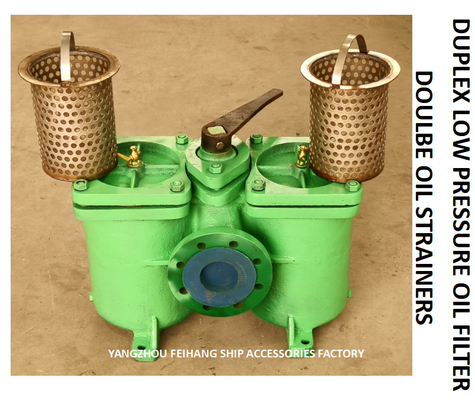

Marine crude oil filter - Dual coupling thick oil filter - dual fuel filter cartridge material selection: (Figure three)
In order to be durable, according to our many years of experience and customer feedback, this filter mesh can be selected:
SUS304 stainless steel mesh, SUS316 stainless steel mesh, SUS316L stainless steel mesh
Standard Specification for marine crude oil filter - Double - coupling thick oil filter - dual fuel filter cartridge:
Form
Standard Specification for nominal pressure PN (MPa) nominal diameter DN (mm) filter mesh
Square hole spacing / mesh diameter (mm)
0.4 0.75/0.26 20-100; 0.40/0.22; 0.25/0.16; 0.18/0.13; 0.16/0.09.
DN50, the filter mesh size is 0.4/0.16, the flange connection size according to the GB569 low pressure crude oil filter mark as:
Double oil filter CB/T425-94 A50-0.25/0.16
DN50, the filter mesh size is 0.4/0.16, the flange connection size according to the GB2501 low pressure crude oil filter mark as:
Double oil filter CB/T425-94 AS50-0.25/0.16

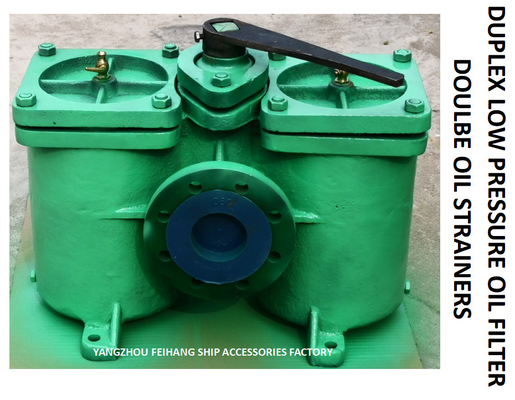

The main material of marine low pressure thick oil filter small double thick oil filter: figure five
The design and manufacture of low pressure crude oil filter products is based on the ship industry standard CB425-94, and combined with the requirements of modern ships to improve the design, form the company's FT series enterprise products.
CB/T425-94 low pressure crude oil filter of the body and cover of the material is HT200, the plug core material is ZQAl9-2 II, the magnetic block material is AINiCo5, the filter material is 1Cr18Ni9Ti or H62;
The ratio of the effective area to the nominal diameter of the CB/T425-94 low pressure coarse oil filter filter is not less than 5;
CB/T425-94 low pressure crude oil filter tightness test and strength test, the pressure is 0.75MPa, the duration of not less than 5min, should be no leakage;
CB/T425-94 low crude oil cavity filter cleaning after cleaning the outer surface is coated with antirust oil, antirust paint and light grey finish each once;
Marine low pressure crude oil filter, double thick oil filter, low pressure crude oil filter, dual fuel filter, double oil filter and so on.
By the above introduction: Yangzhou aviation ship accessories factory to provide professional!

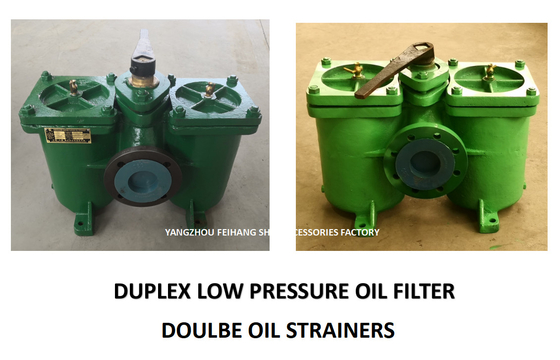

The marine oil filter of our factory mainly includes:
Marine CBM1133-82 single coupling oil filter / single cylinder oil filter
Marine CB/T425-94 double low pressure thick oil filter, marine CBM1132-82 small double oil filter,
Marine CBM1134-82 double oil filter
