China CSBF-MANUAL PROPORTIONAL FLOW VALVES GB/T3928-2001 manufacturer
Home ProductsFKM-MARINE AIR PIPE HEAD, BREATHABLE CAP

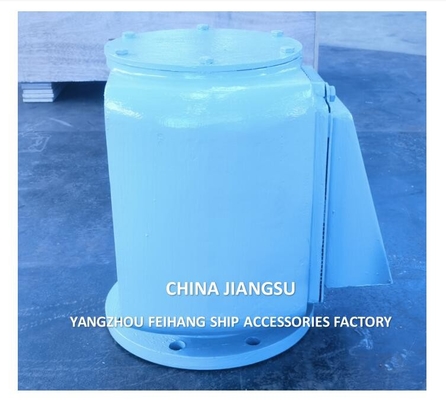

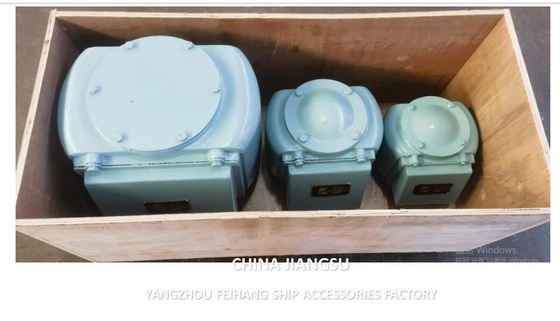

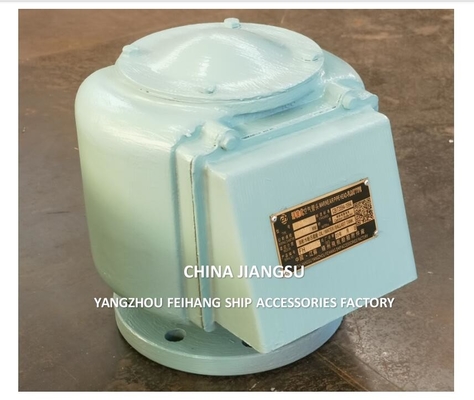

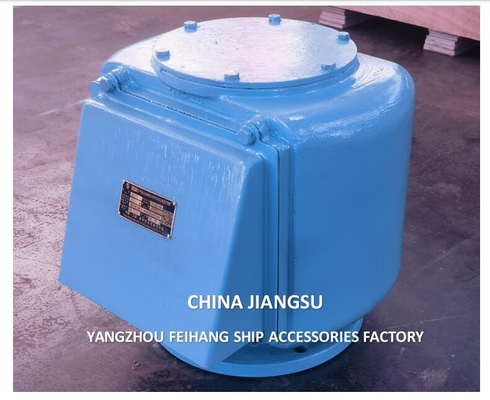

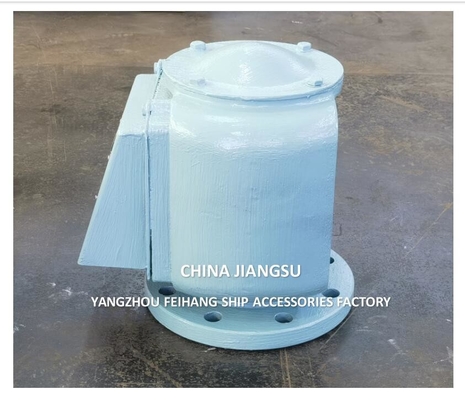

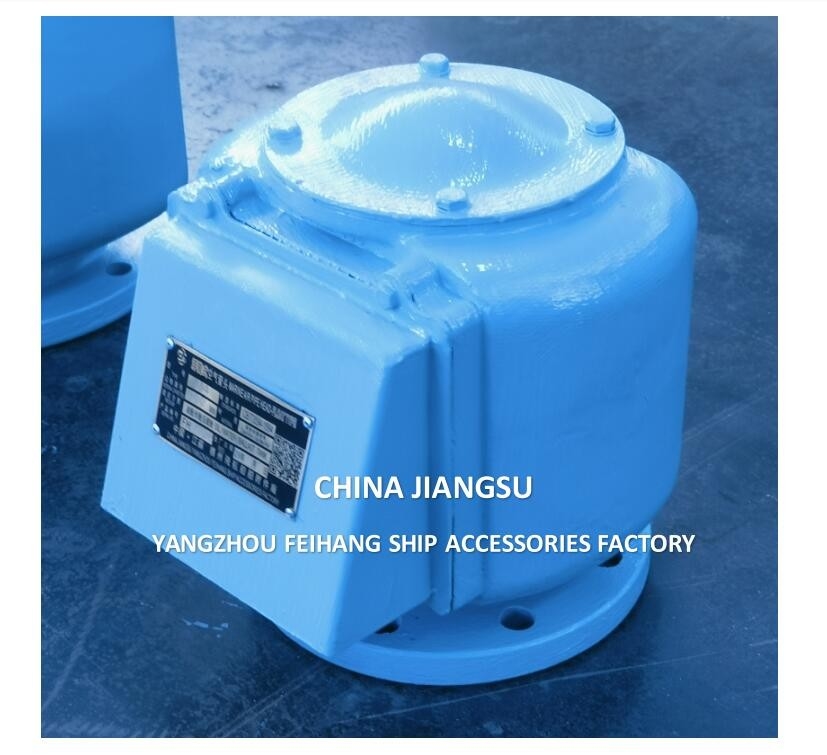

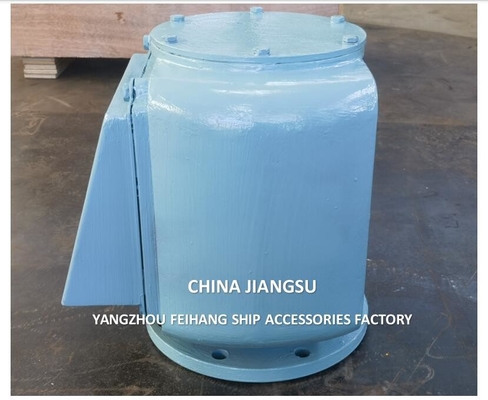

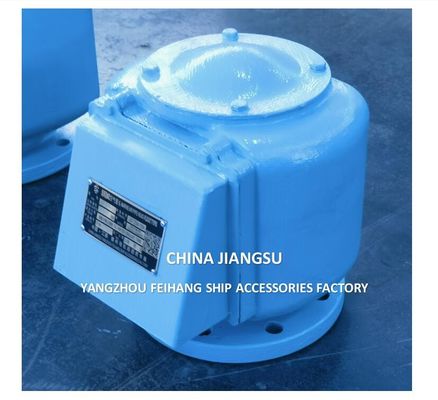

FKM air pipe head - single side ventilation air pipe head

FKM air pipe head - single side ventilation air pipe head

    • FKM air pipe head - single side ventilation air pipe head
    • FKM air pipe head - single side ventilation air pipe head
    • FKM air pipe head - single side ventilation air pipe head
    • FKM air pipe head - single side ventilation air pipe head
    • FKM air pipe head - single side ventilation air pipe head
    • FKM air pipe head - single side ventilation air pipe head
    • FKM air pipe head - single side ventilation air pipe head
  • FKM air pipe head - single side ventilation air pipe head

    Product Details:

    Place of Origin: China Jiangsu Yangzhou
    Brand Name: Feiteng
    Certification: Inspection Report
    Model Number: FKM-Float type

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Wooden box
    Delivery Time: The 3 day
    Payment Terms: Advance payment and delivery
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Implementation Standards: CB/T3594-94 Connection Mode: Flanged Connections
    Body Material: Cast Iron Side Cover Material: SUS304
    Interior Parts: Stainless Steel Float

    FKM air pipe head - single side ventilation air pipe head
    FKM air pipe head - single side ventilation air pipe head



    The necessity of selecting the FKM type single-side venting cap air pipe head:

    FKM air pipe head - single side ventilation air pipe head

    Due to the space constraints of the ship's deck and the cabin, we can only install it in a single-sided, breathable style.



    Marine fuel tank air pipe head FKM-50A CB/T3594-94, sedimentation tank marine air pipe head and oil tank marine air pipe head FKM-80A CB/T3594-94
    Marine tail tip venting cap FKM-100A CB/T3594-94, FKM-150A CB/T3594-94 engine cabin single side venting air joint / engine cabin single side venting cap, ballast tank air joint marine FKM type ballast tank ventilation Cap, marine fresh water cabin air pipe head / fresh water tank marine ventilation cap, etc.



    FKM air pipe head - single side ventilation air pipe head

    Marine FKM type single side ventilation air pipe head, single side ventilation cap Basic parameters:



    FKM air pipe head - single side ventilation air pipe head

    Nominal path 50-450mm
    Applicable Ship deck
    Material cast iron/Stainless steel 304
    Connection Flange connection
    Manufacturing process pouring
    Certificate Factory certificate/ Certificate of ship





    This FKM type marine single-side ventilation air pipe head AIR PIPE HEAD autonomous device function introduction:



    Mainly through inhalation and breathing, the air pressure in the tank is close to the atmospheric pressure, so that the pressure is kept within the design pressure of the tank. In addition, seawater, rainwater, and Mars can be prevented from entering the tank while preventing the debris from entering the ventilating pipe into the cabin. .




    CB/T3594-1994 single side venting air pipe head, FKM type float air pipe head

    FKM air pipe head - single side ventilation air pipe headFKM air pipe head - single side ventilation air pipe headFKM air pipe head - single side ventilation air pipe head
