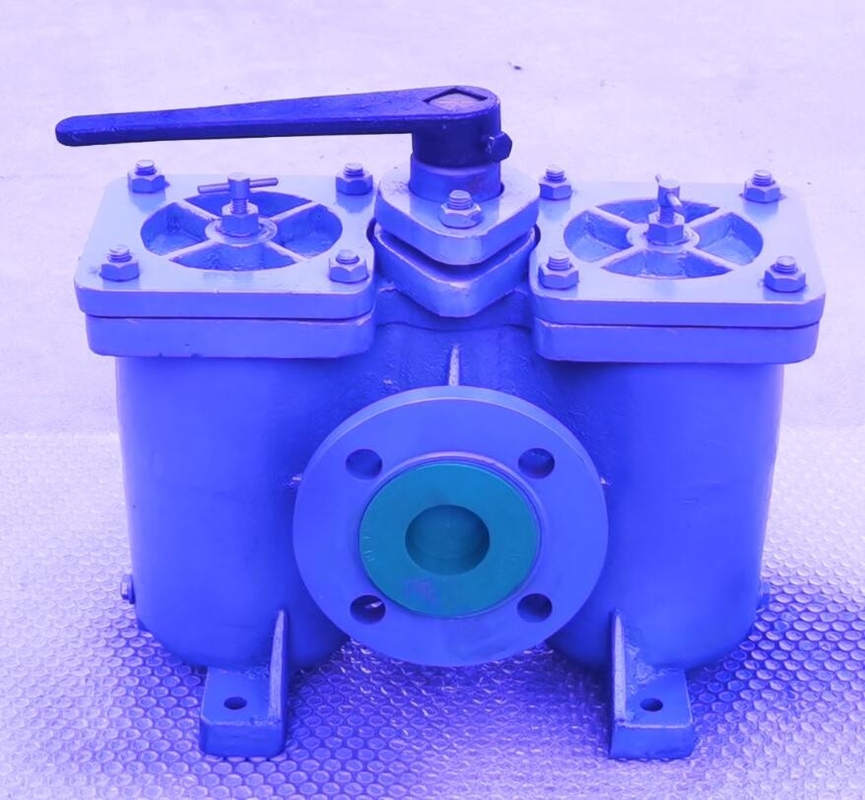

D.O. DELIVERY PUMP SUCTION DOUBLE OIL FILTER MODEL:A50-0.75/0.26 CB/T425-94

MODEL:AS50 PN16 CB/T425-1994

SHIPBUDING -CAST IRON DUPLEX OIL STRAINERS-DOUBLE OIL FILTER-DUPLEX OIL FILTER

MADE IN CHINA

Duplex oil filter-cast iron duplex crude oil filter-duplex fuel filter AS16050 CB/T425-1994

The model is AS type-through type, the flange standard is GB2501 PN10/PN16, the nominal diameter is 50mm, the body material is HT200 gray cast iron, the internal filter cartridge is stainless steel 316, and the executive standard is the fuel pipe of the national standard CB/T425-1994 Double crude oil filter specially designed for lubricating oil pipeline.

Double Oil Filter CB/T425-1994 Double Oil Filter-Double Crude Oil Filter-Double Fuel Filter AS16050

This enlarged flange type double crude oil filter AS50 PN16 CB/T425-1994 is a finalized product of our company. The specific production process diagram is as follows:

According to the filtering accuracy, this type of marine dual crude oil filter and dual low pressure crude oil filter can be selected as follows:

DN50, filter screen specification is 0.75/0.26, flange connection size is marked as GB2506 PN16 low pressure crude oil filter: oil purifier outlet duplex oil filter AS16050-0.75/0.26 CB/T425-94

DN50, the filter screen specification is 0.50/0.22, the flange connection size is marked according to the GB2506 PN16 low pressure crude oil filter: fuel oil separator outlet double crude oil filter AS16050-0.50/0.22 CB/T425-94

DN50, filter screen specification is 0.25/0.16, flange connection size is marked according to GB2506 PN16 low pressure crude oil filter: lubricating oil separator outlet double low pressure crude oil filter AS16050-0.25/0.16 CB/T425-94

DN50, filter screen specification is 0.16/0.09, flange connection size is marked according to GB2506 PN16 low pressure crude oil filter: Diesel oil separator imported double oil filter AS16050-0.16/0.09 CB/T425-94

CAST IRON DUPLEX STRAINER-DOUBLE OIL STRAINERS-Marine dual oil filter AS50 Application areas:

Duplex oil filter, duplex crude oil filter, duplex fuel filter A50-0.75/0.26 CB425YZFH2Y/AS-50-00
FUEL OIL PUMP SUCTION FILTER DUPLEX STRAINER diesel oil separator imported dual oil filter, dual crude oil filter MODEL: A50-0.75/0.26 CB/T425-94
LUBE OIL PUMP SUCTION FILTER DUPLEX STRAINER Lube Oil Separator Export Dual Oil Filter, Dual Crude Oil Filter MODEL: A50-0.75/0.26 CB/T425-94
D.O. DELIVERY PUMP SUCTION DOUBLE OIL FILTER oil purifier export dual oil filter, dual crude oil filter MODEL: A50-0.75/0.26 CB/T425-94
Dual fuel filter, dual fuel filter MODEL: AS50-0.75/0.26 425YZFH2Y/AS-32-00
Dual low pressure oil filter A50-0.50/0.22 CB/T425-94
Double low pressure oil filter AS50-0.50/0.22 CB/T425-94
Fuel oil separator outlet dual oil filter A50-0.18/0.13 CB/T425-94
Fuel oil separator outlet double oil filter AS50-0.18/0.13 CB/T425-94
Fuel oil separator imported double crude oil filter A50-0.16/0.09 CB/T425-94
Fuel oil separator imported double crude oil filter A50-0.16/0.09 CB/T425-94

Marine AS16050 straight-through switchable double crude oil filter Instructions for use (Maintain)


This cast iron double crude oil filter is also called a double barrel crude oil filter, also called a dual switchable crude oil filter. It is composed of two barrel oil filters in parallel or in series. The filter cartridges of the two crude oil filters can be Alternate use, replace the filter cartridge without stopping the machine, and also work with two machines at the same time. However, its filtration accuracy is not high, and it is only used as the first filter for the oil tank to supply oil to the equipment to prevent premature blockage of the fine filter on the equipment or reduce the premature wear of the on-board oil conveying equipment. This double crude oil filter can only be used individually as a spare for each other, and cannot be used at the same time. The switch spool has a blind area for oil supply during the conversion process. If the equipment needs to be changed and cleaned during operation, special attention should be paid to prevent serious consequences caused by the shutdown of the machine and the power failure.

SHIPBUDING -CAST IRON DUPLEX STRAINERS-DOUBLE OIL FILTER-DUPLEX OIL FILTER-MADE IN CHINA

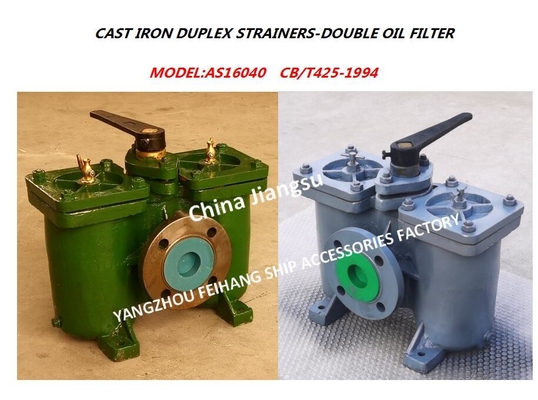

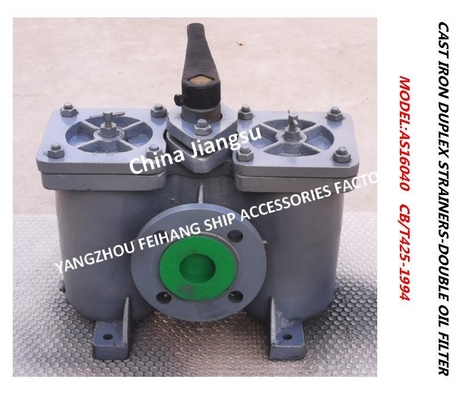

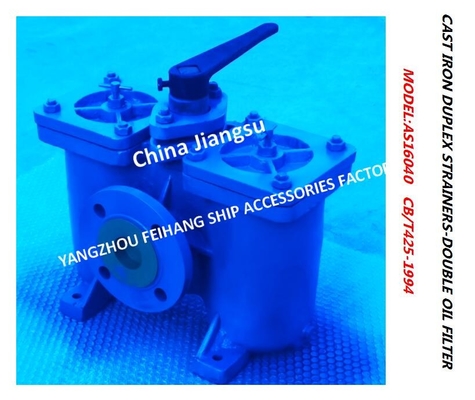

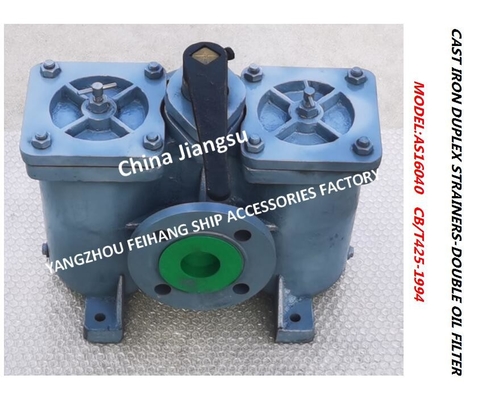

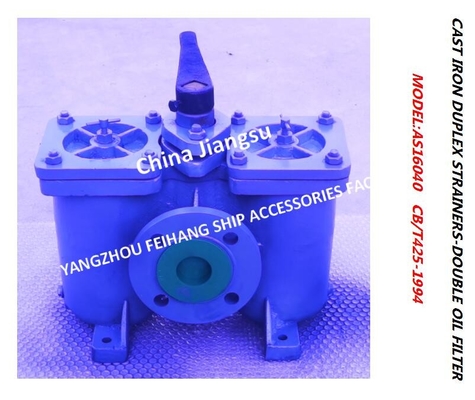

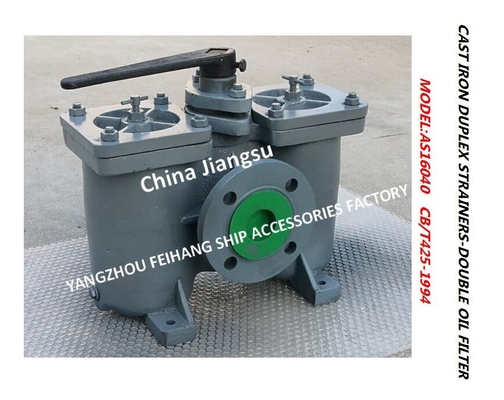

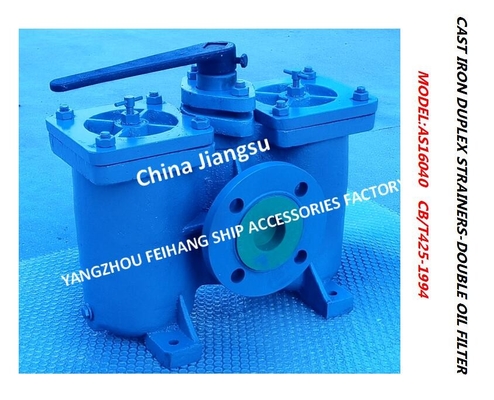

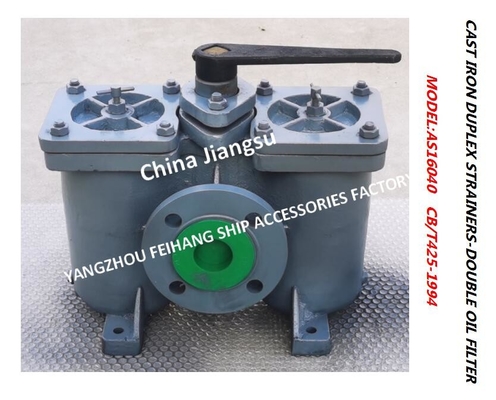

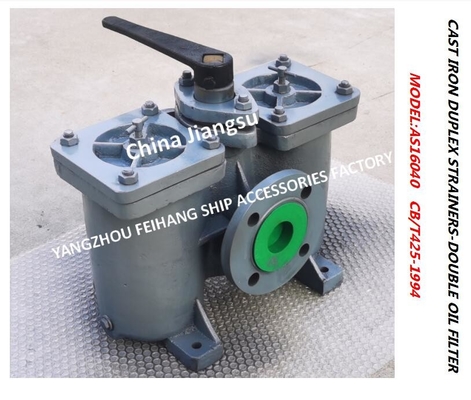

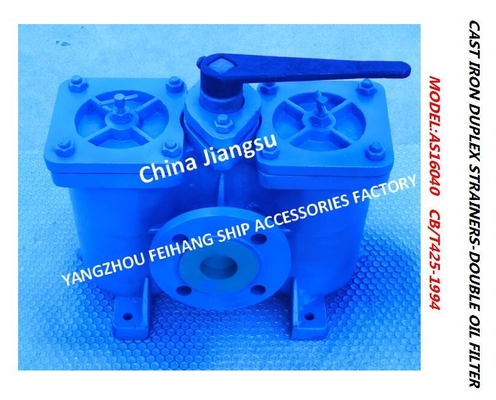

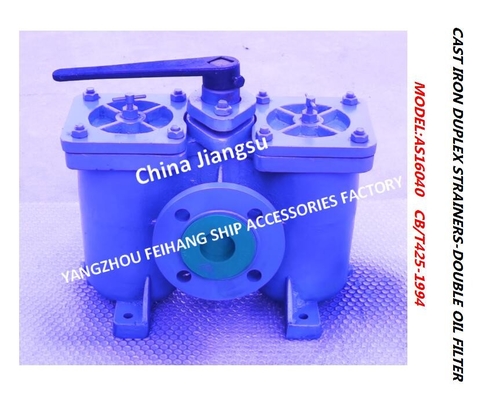

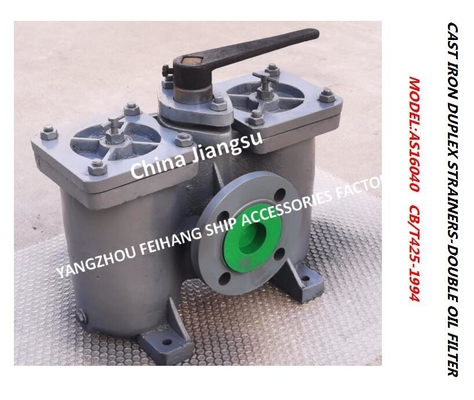

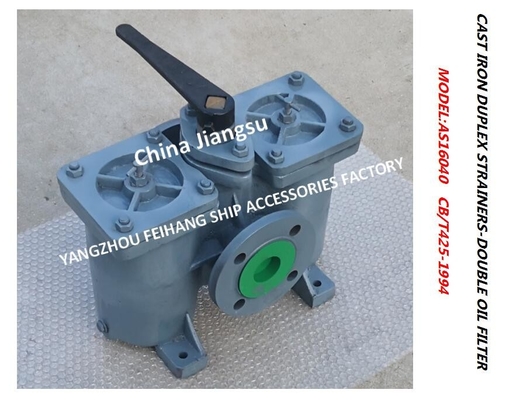

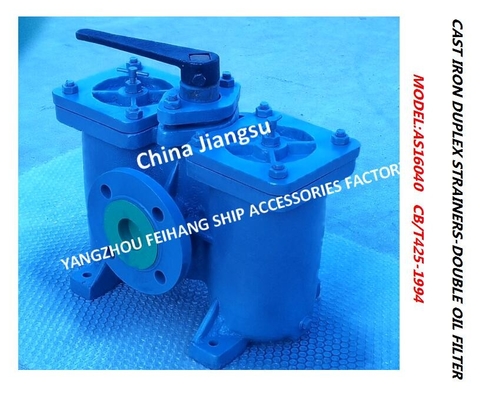

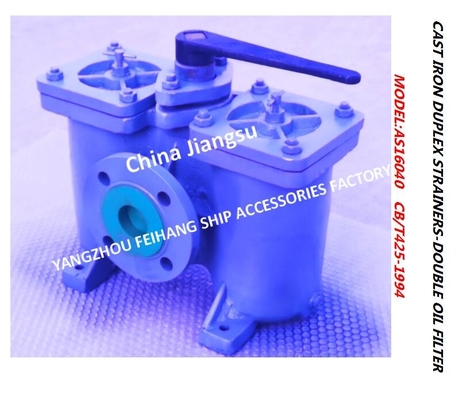

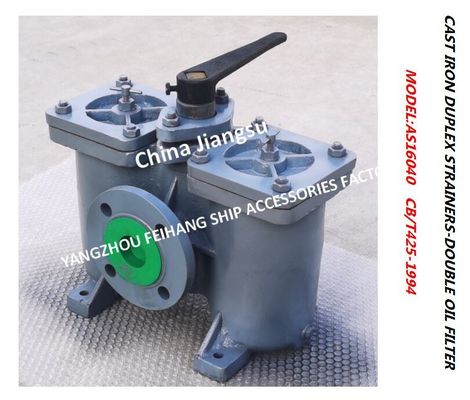

MODEL:AS16040 CB/T425-1994

Duplex Oil Filter-Cast Iron Duplex Coarse Oil Filter-Duplex Fuel Filter AS16040 CB/T425-1994

The model is AS-through type, the flange standard is GB2501 PN10/PN16, the nominal diameter is 40mm, the body material is HT200 gray cast iron, the internal filter cartridge is stainless steel 316 material, the implementation standard is the national standard CB/T425-1994 fuel pipe Road, lubricating oil pipeline double duplex crude oil filter.

According to the filtration accuracy, this marine duplex crude oil filter, duplex low pressure crude oil filter can be selected as follows:

DN40, the filter screen specification is 0.75/0.26, and the flange connection size is marked according to the low-pressure crude oil filter of GB2506 PN16: double oil filter AS16040-0.75/0.26 CB/T425-94 at the outlet of the oil purifier

DN40, the filter screen specification is 0.40/0.22, and the flange connection size is marked according to the low-pressure crude oil filter of GB2506 PN16 as follows: fuel oil separator outlet double crude oil filter AS16040-0.40/0.22 CB/T425-94

DN40, the filter screen specification is 0.25/0.16, and the flange connection size is marked according to the GB2506 PN16 low-pressure crude oil filter as follows: dual low-pressure crude oil filter AS16040-0.25/0.16 CB/T425-94 at the outlet of the oil separator

DN40, the filter screen specification is 0.16/0.09, and the flange connection size is marked according to the low-pressure crude oil filter of GB2506 PN16: diesel oil separator imported double oil filter AS16040-0.16/0.09 CB/T425-94

CAST IRON DUPLEX STRAINER-DOUBLE OIL STRAINERS-Marine duplex oil filter AS40 Application areas:

Duplex oil filter, duplex crude oil filter, duplex fuel filter A40-0.75/0.26 CB425YZFH2Y/AS-40-00
FUEL OIL PUMP SUCTION FILTER DUPLEX STRAINER diesel oil separator imported dual oil filter, dual crude oil filter MODEL: A40-0.75/0.26 CB/T425-94
LUBE OIL PUMP SUCTION FILTER DUPLEX STRAINER lube oil separator outlet duplex oil filter, duplex crude oil filter MODEL: A40-0.75/0.26 CB/T425-94
D.O. DELIVERY PUMP SUCTION DOUBLE OIL FILTER oil purifier outlet duplex oil filter, duplex crude oil filter MODEL: A40-0.75/0.26 CB/T425-94
Duplex oil filter, duplex fuel filter MODEL: AS40-0.75/0.26 425YZFH2Y/AS-32-00
Duplex low pressure oil filter A40-0.40/0.22 CB/T425-94
Double low pressure oil filter AS40-0.40/0.22 CB/T425-94
Fuel oil separator outlet dual oil filter A40-0.18/0.13 CB/T425-94
Fuel oil separator outlet double oil filter AS40-0.18/0.13 CB/T425-94
Fuel oil separator imported double crude oil filter A40-0.16/0.09 CB/T425-94
Fuel oil separator imported double crude oil filter A40-0.16/0.09 CB/T425-94

Marine AS16040 straight-through switchable duplex crude oil filter Instructions for use (Maintain)

This cast iron double crude oil filter is also called double barrel crude oil filter, also called double switchable crude oil filter. It is composed of two barrel oil filters connected in parallel or in series. The filter barrels of the two crude oil filters can be Used alternately, the filter cartridge can be replaced without stopping the machine, or the two machines can work simultaneously. However, its filtering accuracy is not high, and it is only used as the first filter for the oil tank to supply oil to the equipment, to prevent the fine filter on the equipment from prematurely clogging or reduce the premature wear of the belt oil transportation equipment. This kind of double crude oil filter can only be used as a spare for each other, not at the same time. The conversion spool has an oil supply dead zone during the conversion process. If the equipment needs to be cleaned during operation, special attention should be paid to prevent the oil cut-off and the machine from being shut down to cause serious consequences.

This enlarged flange type double crude oil filter AS40 PN16 CB/T425-1994 is a stereotyped product of our company. The specific structural dimensions and detailed pictures are as follows:
