PEOPLE'S REPUBLIC OF CHINA SHIPBUILDING INDUSTRY STANDARD
CB/T425-1994
CRUDE OIL FILTER - LOW PRESSURE CRUDE OIL FILTER - DOUBLE LOW PRESSURE CRUDE OIL FILTER

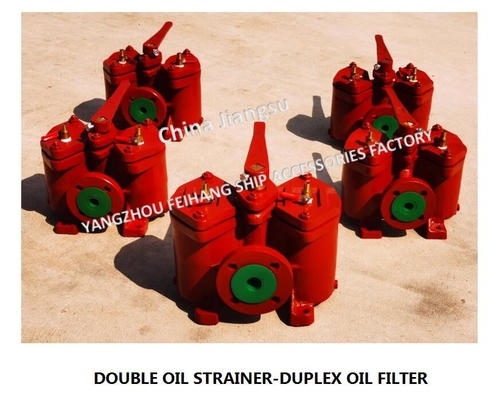

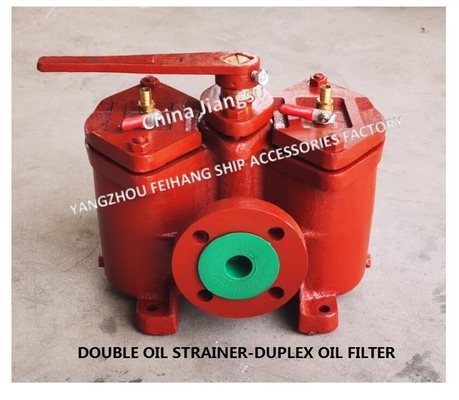

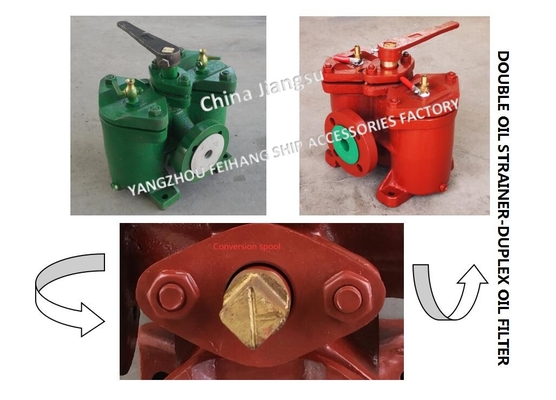

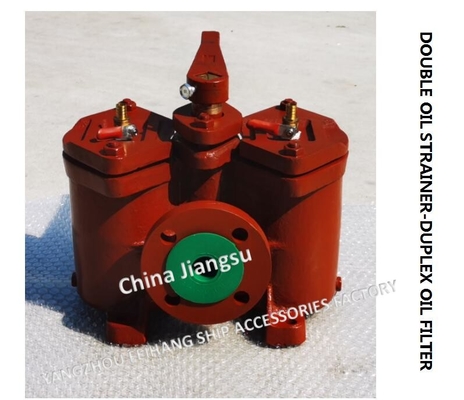

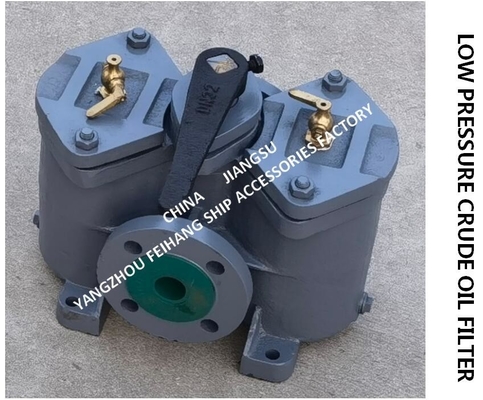

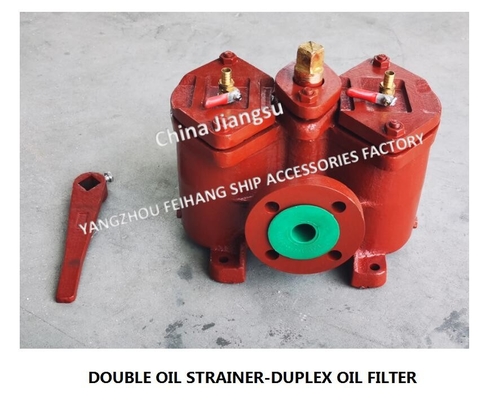

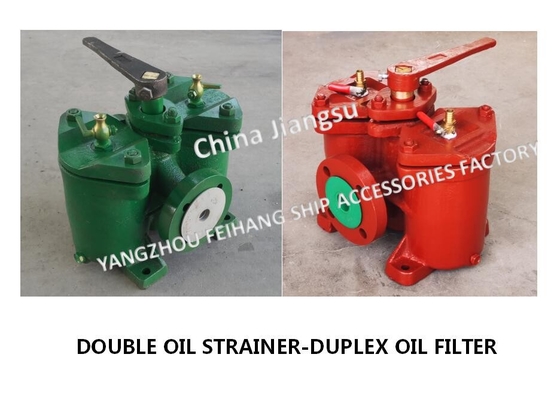

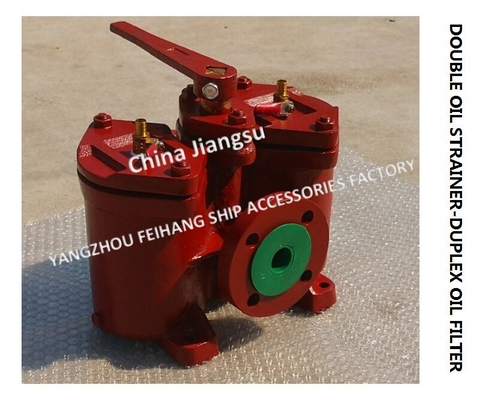

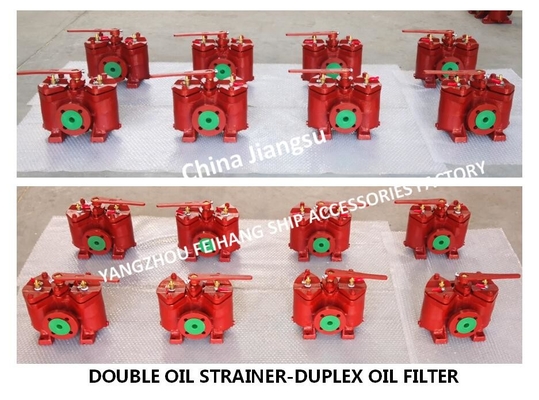

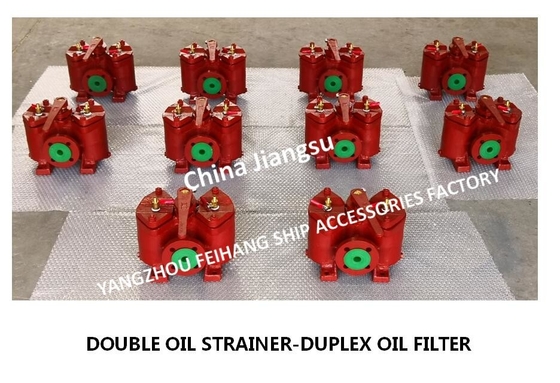

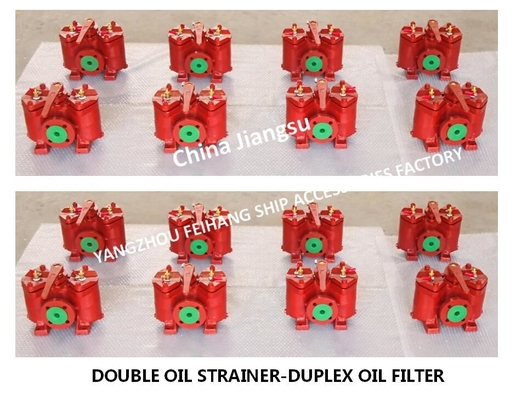

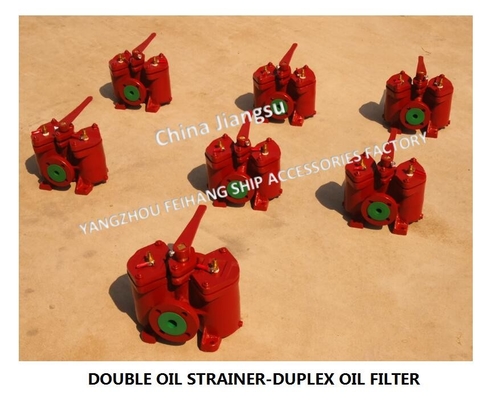

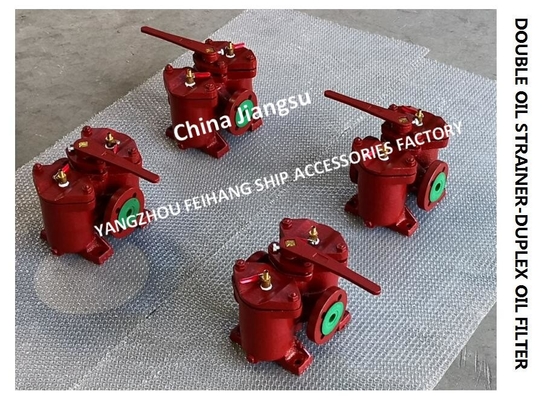

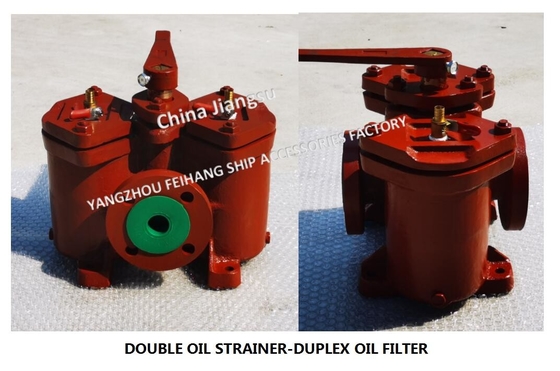

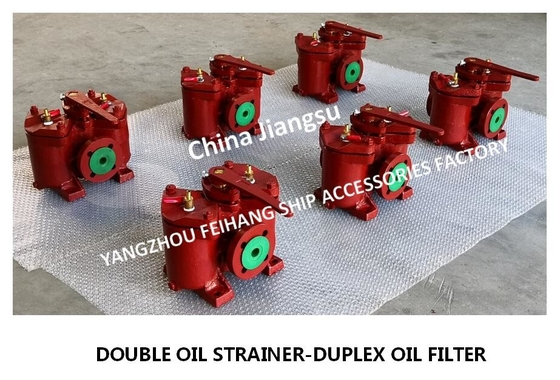

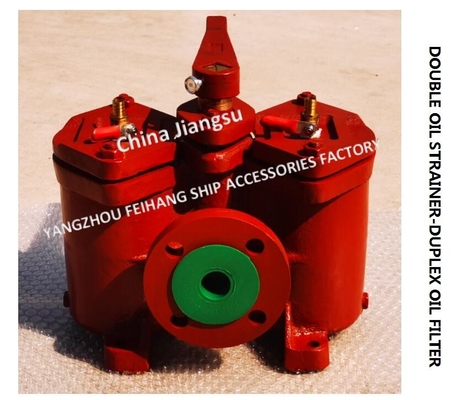

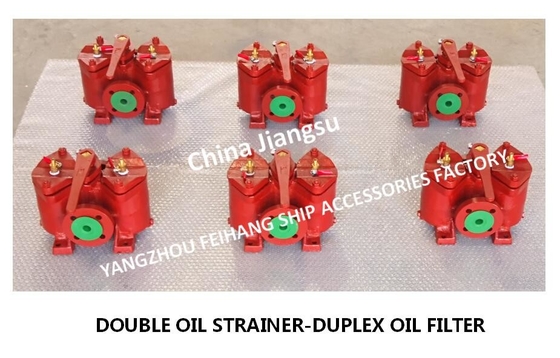

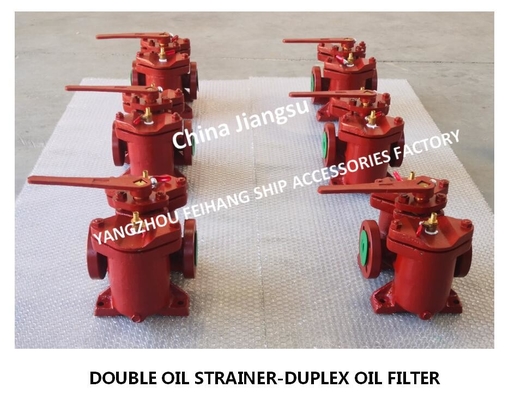

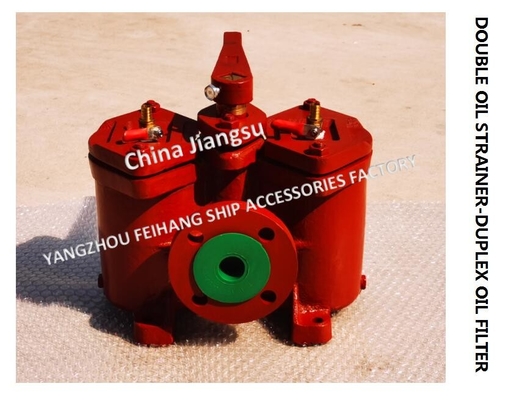

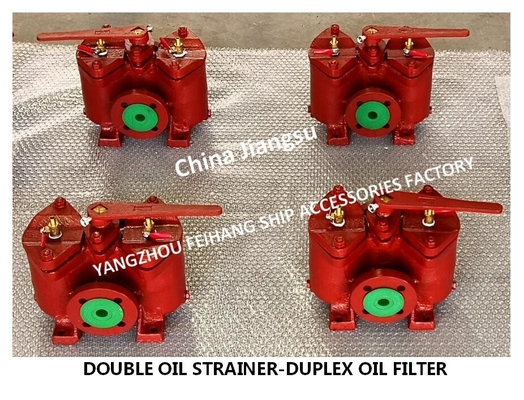

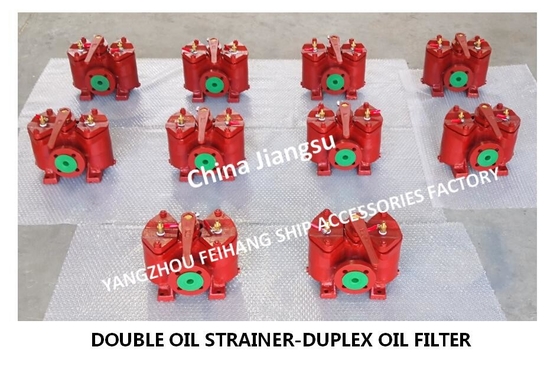

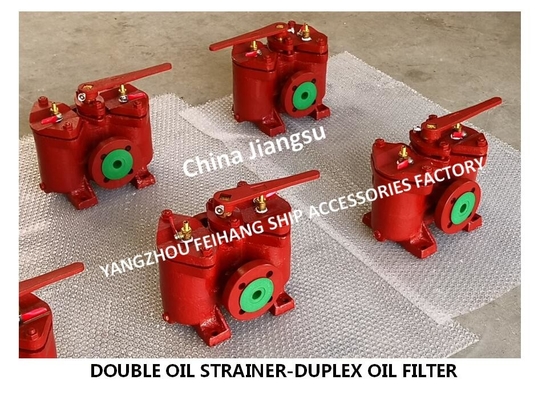

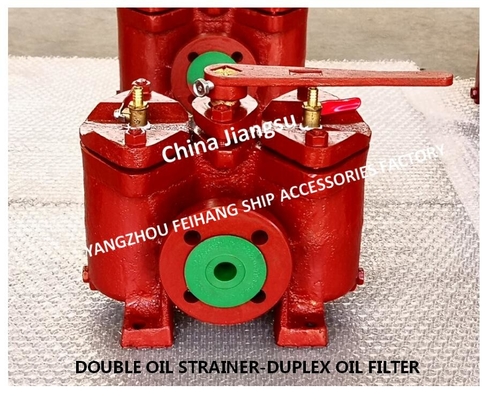

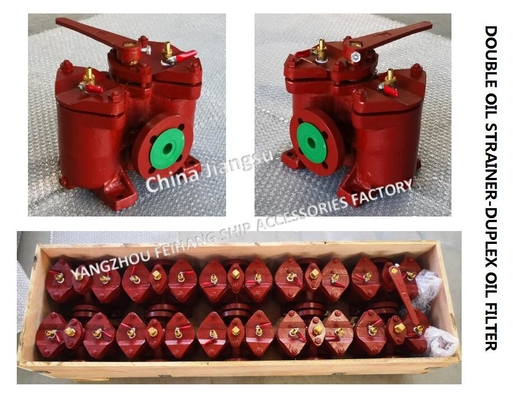

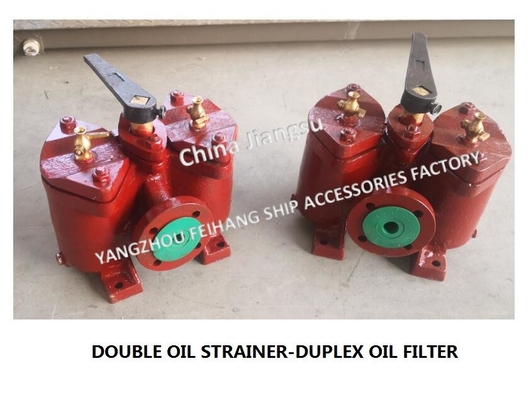

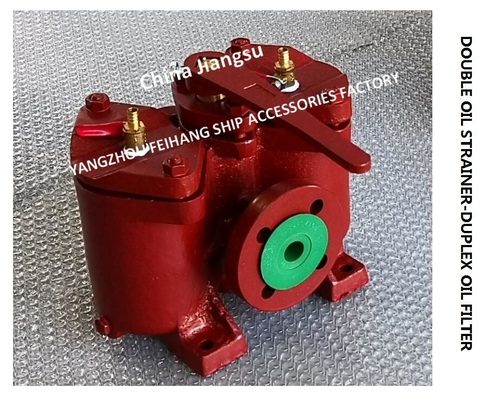

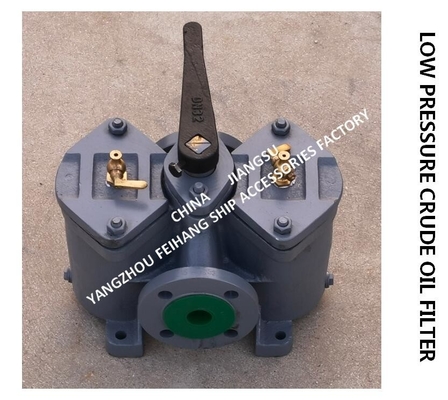

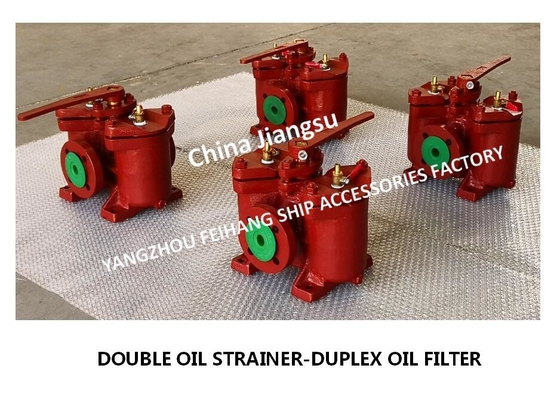

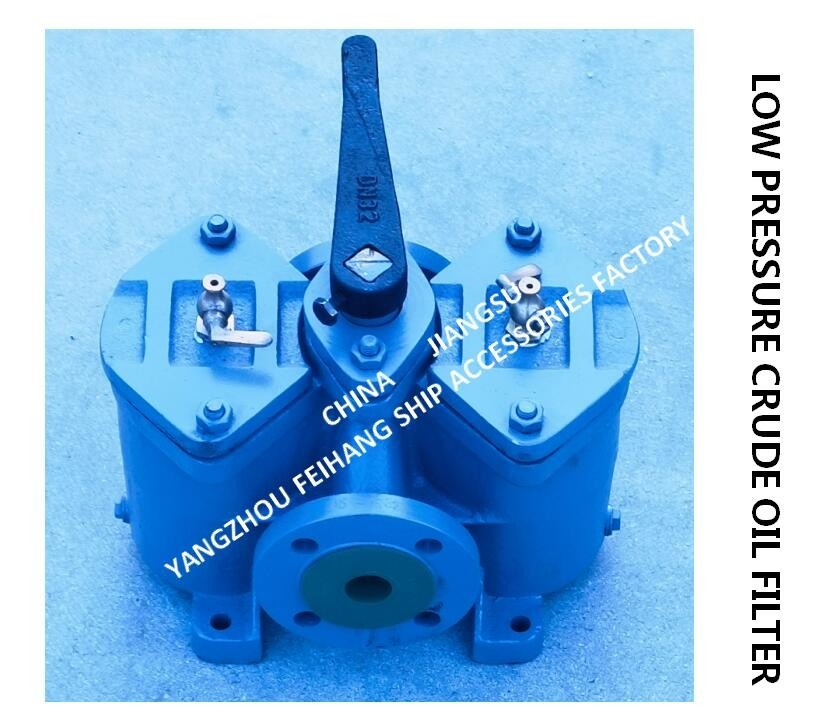

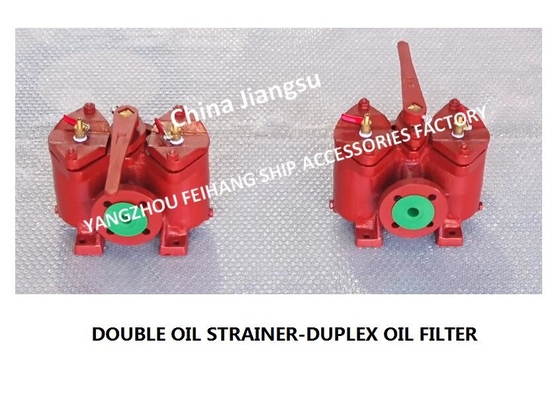

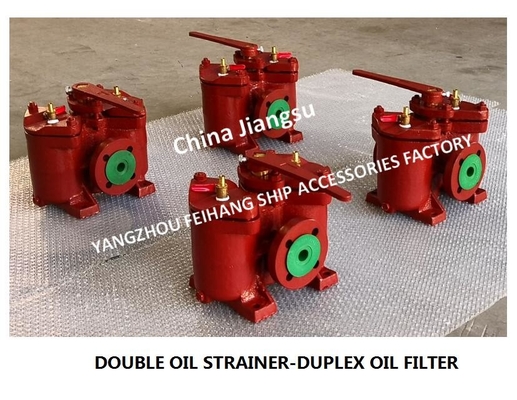

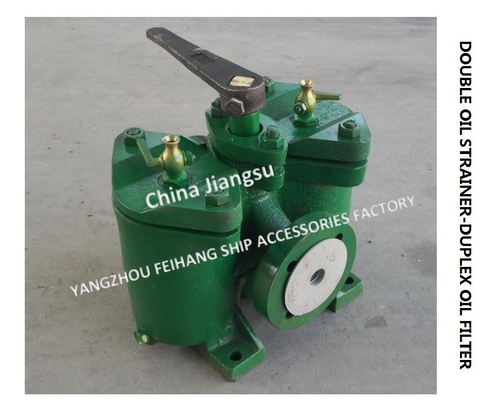

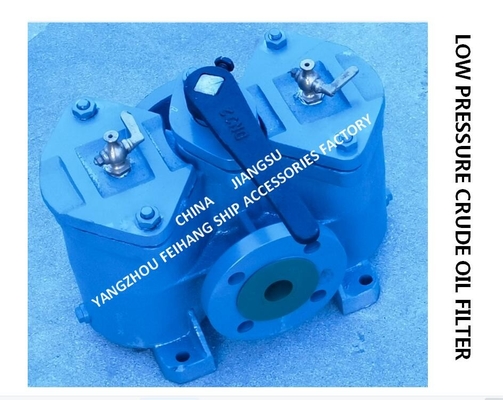

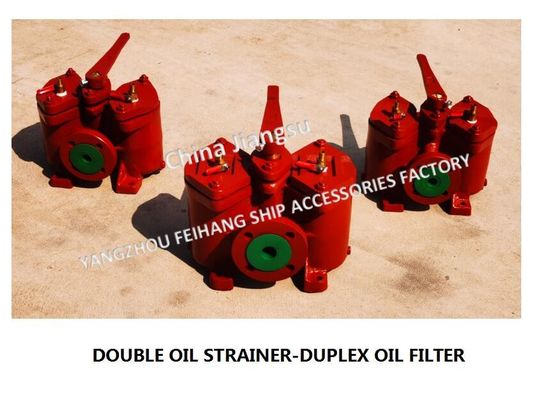

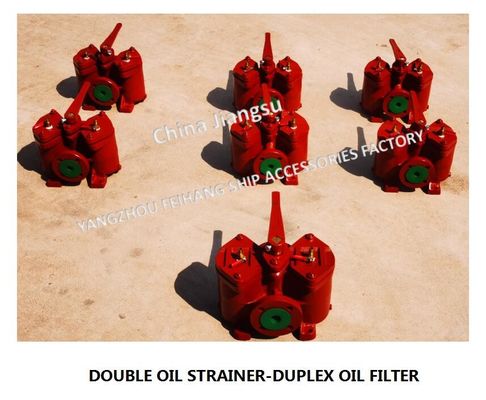

The double low-pressure crude oil filter, also known as the double switchable filter, is composed of two filter barrels in parallel or in series, and the valve core is opened through the handle to achieve:
The two filter cartridges are used alternately to replace the filter element without stopping, or both machines can work at the same time. (i.e. 24-hour non-stop continuous operation)

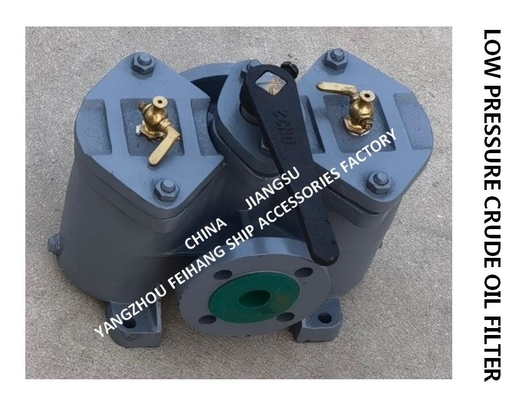

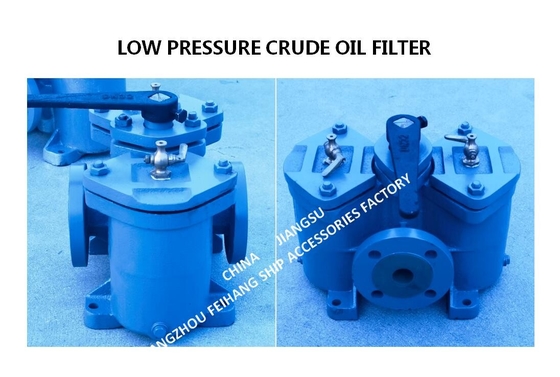

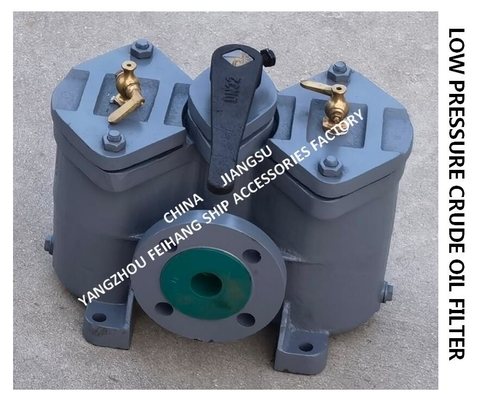

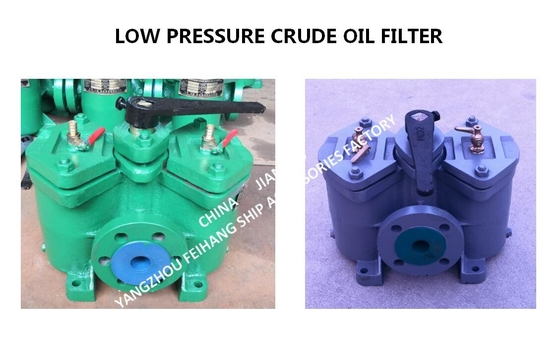

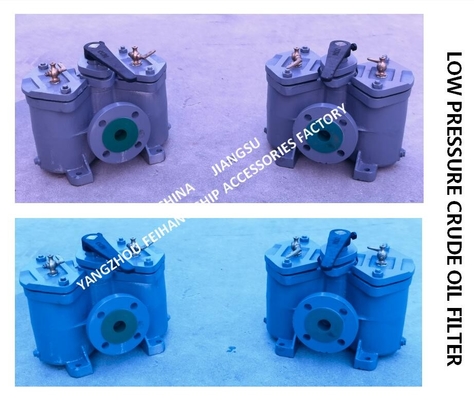

Low Pressure Crude Oil Filter - Duplex Low Pressure Crude Oil Filter Filter - Flanged Cast Iron Low Pressure Crude Oil Filter
MODEL:AS32 CB/T425-1994
The model is AS type - straight-through type, flange standard is GB2501 PN6, nominal diameter is 32mm, the body material is HT200 gray cast iron, the internal filter cartridge is stainless steel 304 material, the implementation standard is the national standard CB/T425-1994 fuel line, and the double low-pressure crude oil filter for the oil pipeline.

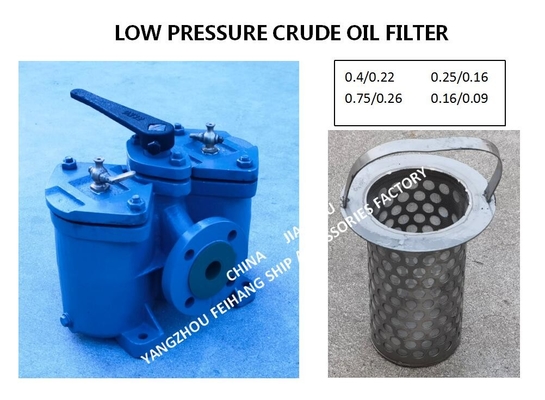

According to the filtration accuracy, the DN32 marine low pressure crude oil filter, the double low pressure crude oil filter can be selected as follows:
DN32, filter size is 0.25/0.16, flange connection size according to GB2506 PN6 low pressure crude oil filter marked as: lubricating oil separator outlet duplex low pressure crude oil filter AS4032-0.25/0.16 CB/T425-94
DN32, filter size is 0.75/0.26, flange connection size according to GB2506 PN6 low pressure crude oil filter marked as: oil purifier outlet duplex oil filter AS4032-0.75/0.26 CB/T425-94
DN32, filter size is 0.40/0.22, flange connection size according to GB2506 PN6 low pressure crude oil filter marked as: fuel separator outlet duplex coarse oil filter AS4032-0.40/0.22 CB/T425-94
DN32, filter size is 0.16/0.09, flange connection size according to GB2506 PN6 low pressure crude oil filter marked as: diesel oil dispenser imported duplex oil filter AS4032-0.16/0.09 CB/T425-94
