    Product Details:

    Place of Origin: China Jiangsu Yangzhou
    Brand Name: FEIHANG
    Certification: Inspection Report
    Model Number: AS-TYPE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Wooden box
    Delivery Time: The 3 day
    Payment Terms: T/T
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Application: Ship Piping Shape: Flange Connection,PN6
    Material: Body-cast Iron, Filter Cartridge-stainless Steel Dimensions: 50mm
    Type: Straight Type Way In And Out: High In And Low Out
    Filter Element Form: Basket Type Precision: 60mesh
    Medium: Lubricating Oil, Fuel Oil, Diesel



    Marine low-pressure crude oil filter - Marine dual low-pressure crude oil filter - Marine dual oil filter
    Executive standard: CB / t425-1994

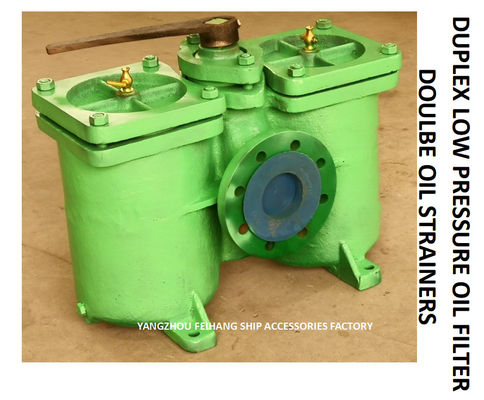

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI
    In the previous articles, we introduced the seawater filter in the ship pipeline. The filtering medium is fresh water or seawater. Of course, we also know that the medium circulating in the ship pipeline is treated water, and another is oil, which is divided into lubricating oil, diesel oil, heavy oil, etc.
    When encountering this medium, we need to use a product - Marine low-pressure crude oil filter CB / t425-1994.

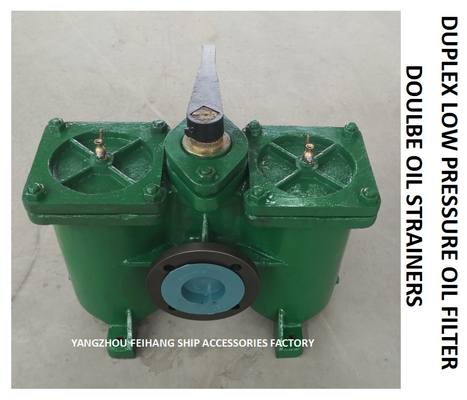

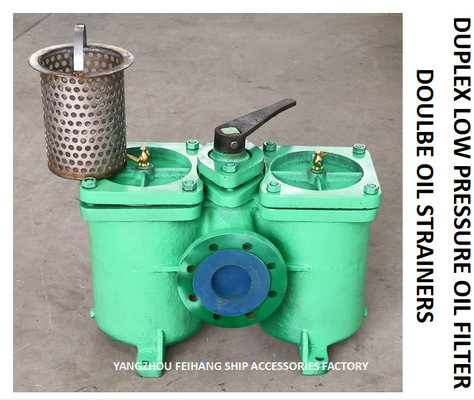

    It can be seen from the physical picture of the above marine low-pressure crude oil filter that this low-pressure crude oil filter is composed of two cylinders, two filter elements and two cover plates.


    This kind of composition is realized: when the equipment is not stopped, the switching function can be realized to facilitate cleaning. Therefore, this marine low-pressure crude oil filter is also called - switchable dual oil filter, switchable dual crude oil filter.
    Through the above description, we have a certain understanding of the working principle of this dual crude oil filter. Now we will give you a brief introduction to one of the models.

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI
    AS80-0.25-0.16 CB/T425-1994
    Low pressure crude oil filter - double low pressure crude oil filter - double oil filter - Double lubricating oil filter
    As - indicates that the double oil filter is straight through type, and the flange standard is in accordance with gb2506-89 pn6.
    80 - indicates that the nominal diameter of this double low-pressure crude oil filter is 80mm, which is applicable to the oil pipeline system with the outer diameter of steel pipe of 89.
    0.25 / 0.16 - indicates that the precision of the internal filter barrel of this marine low-pressure crude oil filter is (square hole spacing 0.25 / steel wire diameter 0.16).
    CB / t425-1994 - is the production design standard of this marine dual oil filter.



    In order to accurately measure the data during maintenance and replacement, our company provides you with the basic structural dimension diagram of this as80 dual low-pressure crude oil filter:

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI

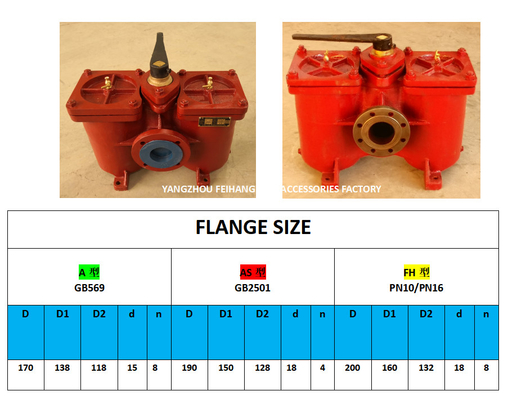

    Note: the flange size of this marine low-pressure crude oil filter can be according to the customer's requirements. The following three types are commonly used, please refer to.

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI



    After determining the overall dimensions, we should also consider the filtration accuracy of this low-pressure crude oil filter, because it can filter lubricating oil, fuel oil, heavy oil, etc., and its filtration accuracy is also different:

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI

    Today, we will introduce a filter equipment in the marine fuel pipeline system - dual oil filter and dual low-pressure coarse oil filter.



    According to the above differences in filtration accuracy, the common marking examples of this dual low-pressure crude oil filter are as follows:

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRIDOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRIDOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRIDOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRIDOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI
    Low pressure coarse oil filter, double low pressure coarse oil filter as80 0.75/0.26 CB / t425-94
    Dual oil filter, dual switchable coarse oil filter as4080 0.4/0.22 CB / t425-94
    Marine low-pressure crude oil filter, marine dual low-pressure crude oil filter as80 0.25/0.16 CB / t425-94
    Low pressure dual fuel filter, dual fuel filter as80 0.18/0.13 CB / t425-94
    As80 straight through low-pressure crude oil filter, straight through double low-pressure crude oil filter 0.16/0.09
    Fuel transfer pump dual oil filter, dual switchable coarse oil filter as80-0.75/0.26 CB / t425-94
    As80-0.25/0.16 CB / t425-94 double oil filter and double coarse oil filter of lubricating oil pump

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRIDOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI
    Oil purifier outlet double oil filter as80-0.75/0.26 CB / t425-94
    Fuel separator outlet dual oil filter as80-0.18/0.13 CB / t425-94
    Diesel oil separator inlet double crude oil filter as80-0.4/0.22 CB / t425-1994
    Double oil filter at the outlet of lubricating oil separator, double coarse oil filter model: a40-0.75/0.26 CB / t425-94
    Oil purifier outlet double oil filter, double coarse oil filter model: a40-0.75/0.26 CB / t425-94





    First, we understand the installation environment of this dual low-pressure crude oil filter:

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI


    As can be seen from the above figure, this dual coarse oil filter is a coarse filter installed at the inlet of the ship's fuel transfer pump, which coarse filters the fuel and then distributes it to other equipment for work.



    When we replace this crude oil filter, we need to confirm the following points:


    1. Accurately measure the section distance of the inlet and outlet flanges of the double low-pressure crude oil filter (as shown in the figure).

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI



    2. Measure the flange size at the inlet and outlet, including the flange outer diameter, flange center distance and bolt hole size (as shown in the figure).



    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI



    3. Measure the installation base of the dual fuel filter, including the longitudinal installation center distance, horizontal installation center distance and bolt hole size (as shown in the figure).

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI

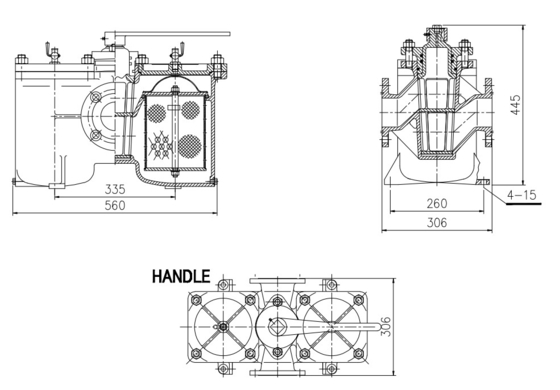

    Based on the above measured values, we have drawn formal production drawings and confirmed with the customer:

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI

    After we have determined the overall dimensions and connection dimensions of this dual crude oil filter, we also need to confirm an important data - the filtering accuracy of the filter barrel inside the oil filter:

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI



    Once the above data are determined, we will start production and processing.
    Let's briefly introduce how our factory processes this dual crude oil filter product:

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI
    1. We will arrange the processing of semi-finished blanks according to the number of orders.
    2. Then we began to assemble this double low-pressure crude oil filter

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI
    3. After the double crude oil filter is organized, we start the pressure test

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI

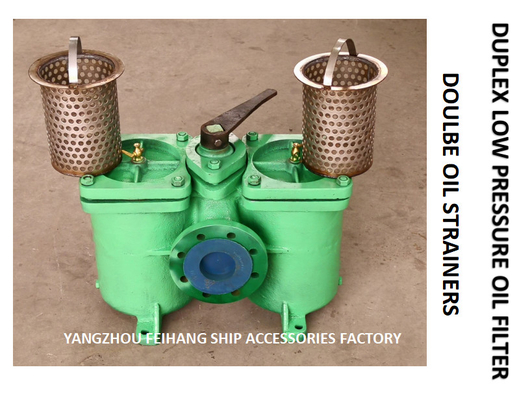

    4. After the pressure test is qualified, we start to make the filter element of the oil filter
    5. After the above steps are completed, we conduct surface treatment and can choose the coating color according to the customer's requirements

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI
    6. Finally, we carry out corresponding external packaging according to the customer's remarks in the order - packaging.

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI



    Low pressure crude oil filter AS40 cb/t425-94
    Duplex low pressure crude oil filter as4040 cb/t425-94
    Duplex switchable fuel filter as16040 cb/t425-1994

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI
    It can be seen from the title that cb/t425-1994, a national standard low-pressure crude oil filter, has many names. This is named according to the habits of customers in various regions.


    Here we will give you a brief introduction to the dual low-pressure crude oil filter of Dn40 in this standard:
    Model definition:

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI
    Type A - straight through type, that is, the inlet and outlet flanges of this duplex low-pressure crude oil filter are at the same horizontal line and separated on both sides of the re oil filter body.
    S- indicates that the flange standard of this duplex oil filter is in accordance with gb2501 pn6.
    40 means that the working pressure of this low-pressure duplex oil filter is pn0.4 (generally omitted)
    40 means the nominal diameter of this duplex crude oil filter is 40mm
    Cb/t3594-1994 is an executive standard for domestic ships.



    Of course, sometimes we find that the list description written by the customer is: oil filter as40-0.25/0.16 cb/t425. The extra (0.25-0.16) here represents the filtering accuracy of this marine duplex oil filter and duplex low-pressure crude oil filter. According to the standard, the common filtering precision is as follows:

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI
    Low pressure crude oil filter, duplex low pressure crude oil filter AS40 0.75/0.26 cb/t425-94
    Duplex oil filter, duplex switchable coarse oil filter as4040 0 0.4/0.22 cb/t425-94
    Marine low-pressure crude oil filter, marine duplex low-pressure crude oil filter AS40 0.25/0.16 cb/t425-94
    Low pressure duplex oil filter, duplex fuel filter AS40 0.18/0.13 cb/t425-94
    Straight through low-pressure crude oil filter, straight through duplex low-pressure crude oil filter 0.16/0.09



    Through the continuous accumulation of our production experience, our company can produce the following flange sizes for cb/t425 marine low-pressure crude oil filter:

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRIDOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRIDOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRIDOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRIDOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRIDOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI





    People's Republic of China Shipbuilding Industry Standard
    CB/T425-1994 crude oil filter-low pressure crude oil filter

    PEOPLE'S REPUBLIC OF CHINA SHIPBUILDING INDUSTRY STANDARD

    CB/T425-1994 CRUDE OIL FILTER-LOW PRESSURE CRUDE OIL FILTER

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI

    <Crude oil filter, double crude oil filter> naming extension:
    According to its style and working principle, this marine dual crude oil filter can be collectively referred to as the following:

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI

    CB/T425-1994 flange cast iron double crude oil filter
    CB/T425-1994 straight-through double oil filter
    CB/T425-1994 double crude oil filter
    CB/T425-1994 double switchable crude oil filter

    Here, our company has made a brief introduction based on the two-caliber double crude oil filter that has just been delivered:





    Duplex oil filter-cast iron duplex crude oil filter-duplex fuel filter AS16025 CB/T425-1994

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI

    The model is AS type-through type, the flange standard is GB2501 PN16, the nominal diameter is 25mm, the body material is HT200 gray cast iron, the internal filter cartridge is stainless steel 304, and the execution standard is the fuel pipeline of the national standard CB/T425-1994. Double crude oil filter for lubricating oil pipeline.



    Duplex oil filter-cast iron duplex crude oil filter-duplex fuel filter AS32 CB/T425-1994

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI

    The model is AS type-through type, the flange standard is GB2501 PN6, the nominal diameter is 32mm, the body material is HT200 gray cast iron, the internal filter cartridge is stainless steel 304, and the executive standard is the fuel pipeline of the national standard CB/T425-1994. Double crude oil filter for lubricating oil pipeline.





    Double Oil Filter CB/T425-1994 Double Oil Filter-Double Crude Oil Filter-Double Fuel Filter AS16025
    Double Oil Strainer CB/T425-1994 double oil filter-double crude oil filter-double fuel filter AS32

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI

    Type

    Size

    Body material

    Filter cylinder form

    Filter material

    Flange Connection

    AS(Straight type)

    DN25

    DN32

    Cast iron

    Basket

    SUS304

    GB2501

    PN6/PN16



    According to the filtering accuracy, this DN25 marine dual crude oil filter and dual low pressure crude oil filter can be selected as follows:

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI

    DN25, filter screen specification is 0.75/0.26, flange connection size is marked according to GB2506 PN16 low pressure crude oil filter: oil purifier outlet double oil filter AS16025-0.75/0.26 CB/T425-94
    DN25, the filter screen specification is 0.40/0.22, the flange connection size is marked according to the GB2506 PN16 low pressure crude oil filter: fuel oil separator outlet double crude oil filter AS16025-0.40/0.22 CB/T425-94
    DN25, filter screen specification is 0.25/0.16, flange connection size is marked according to GB2506 PN16 low pressure crude oil filter: Lubricating oil separator outlet dual low pressure crude oil filter AS16025-0.25/0.16 CB/T425-94
    DN25, the filter screen specification is 0.16/0.09, the flange connection size is marked according to the GB2506 PN16 low pressure crude oil filter: Diesel oil separator imported double oil filter AS16025-0.16/0.09 CB/T425-94


    According to different places of use, this DN32 marine crude oil filter and double crude oil filter can be marked as:

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI

    Duplex oil filter, duplex crude oil filter, duplex fuel filter AS32-0.75/0.26 CB425YZFH2Y/AS-40-00
    FUEL OIL PUMP SUCTION FILTER DUPLEX STRAINER diesel oil separator imported dual oil filter, dual crude oil filter MODEL: AS32-0.75/0.26 CB/T425-94
    LUBE OIL PUMP SUCTION FILTER DUPLEX STRAINER lubricating oil separator export dual oil filter, dual crude oil filter MODEL: AS32-0.40/0.22 CB/T425-94
    D.O. DELIVERY PUMP SUCTION DOUBLE OIL FILTER oil purifier export dual oil filter, dual crude oil filter MODEL: AS32-0.75/0.26 CB/T425-94
    Dual fuel filter, dual fuel filter MODEL: AS32-0.40/0.22 425YZFH2Y/AS-32-00
    Dual low pressure oil filter AS32-0.40/0.22 CB/T425-94
    Double low pressure oil filter AS32-0.40/0.22 CB/T425-94
    Fuel oil separator outlet dual oil filter AS32-0.18/0.13 CB/T425-94
    Fuel oil separator outlet double oil filter AS32-0.18/0.13 CB/T425-94
    Fuel oil separator imported double crude oil filter AS32-0.16/0.09 CB/T425-94
    Fuel oil separator imported double crude oil filter A40-0.16/0.09 CB/T425-94

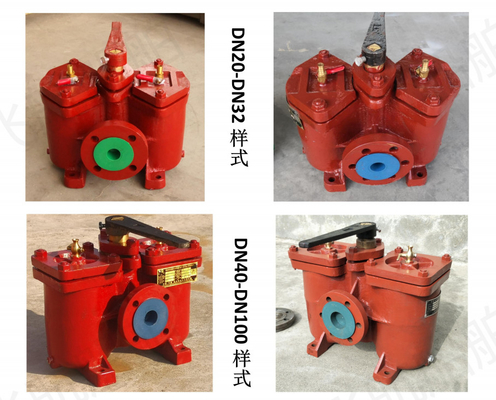

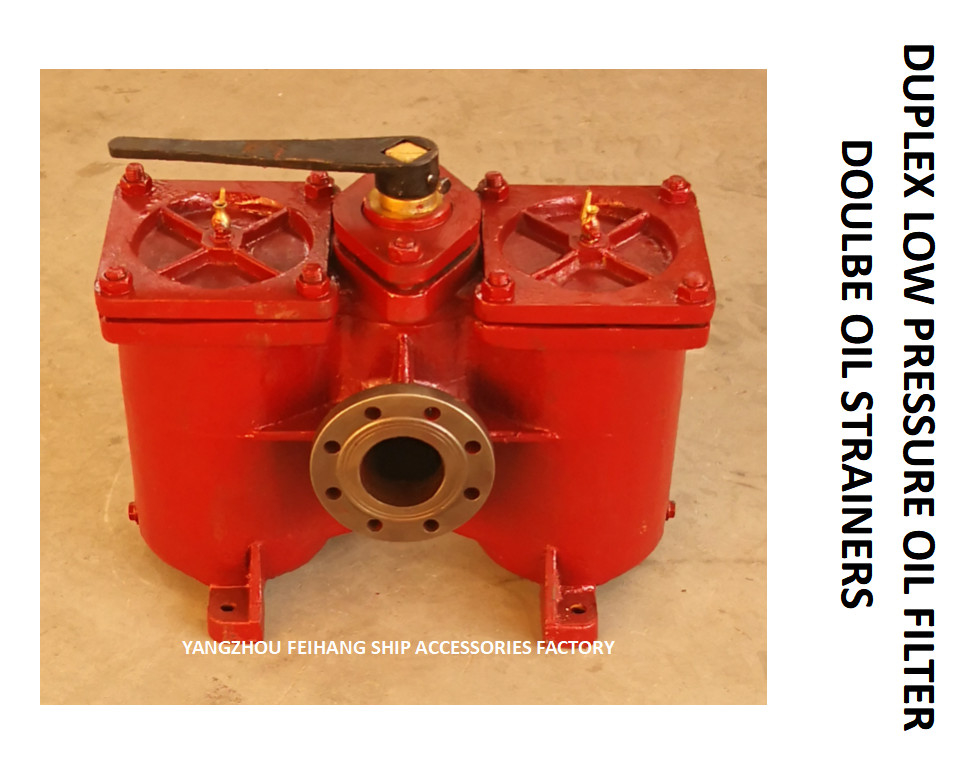

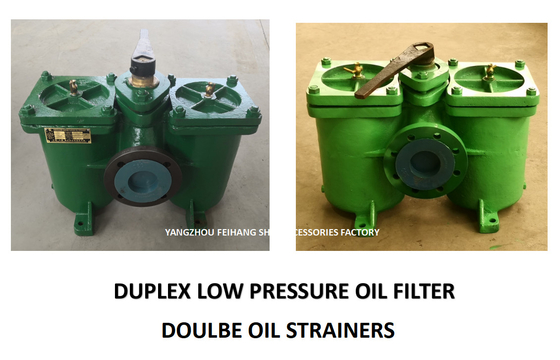

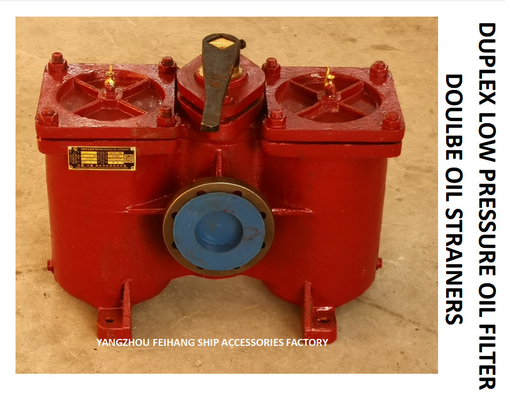

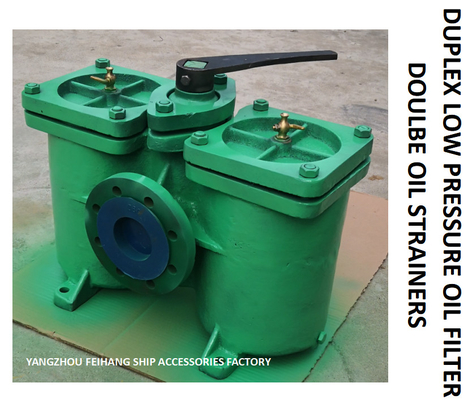

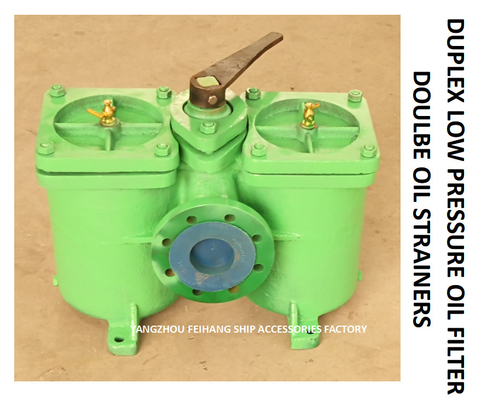

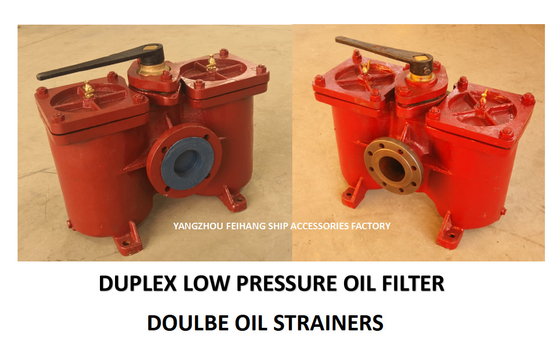

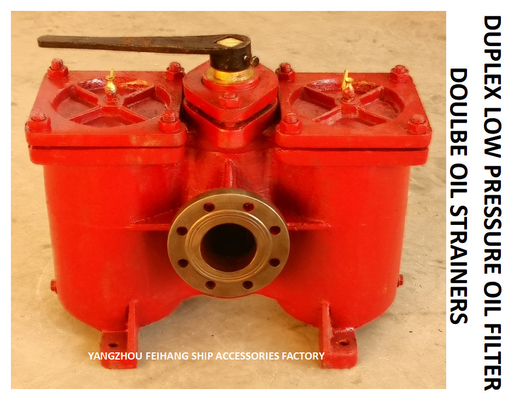

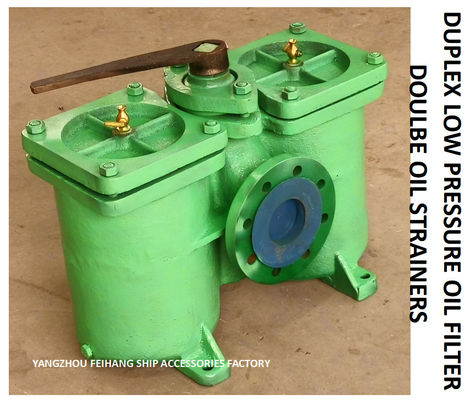

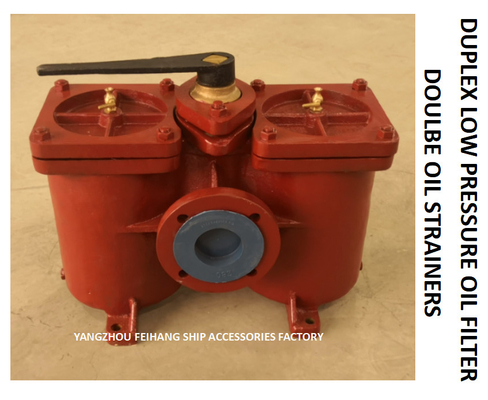

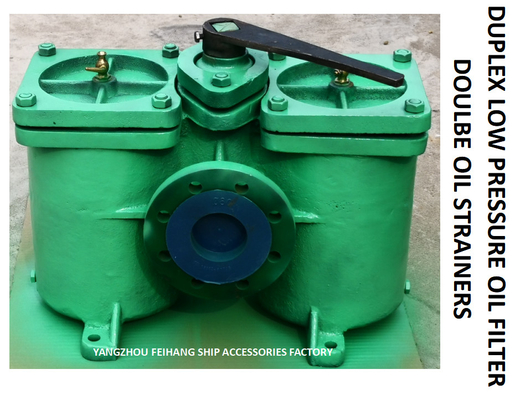

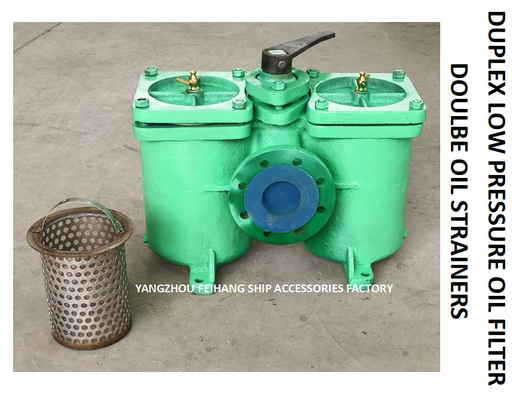

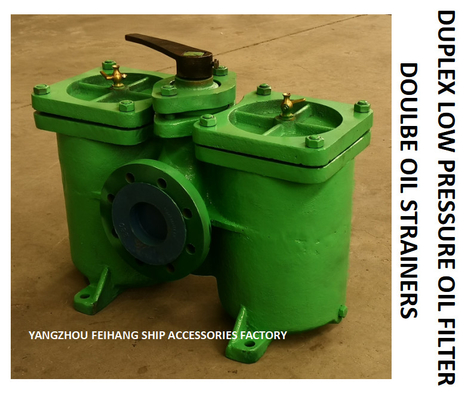

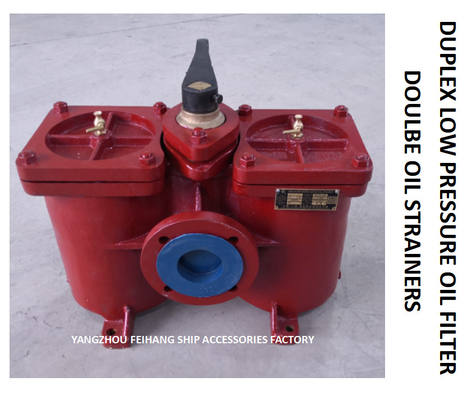

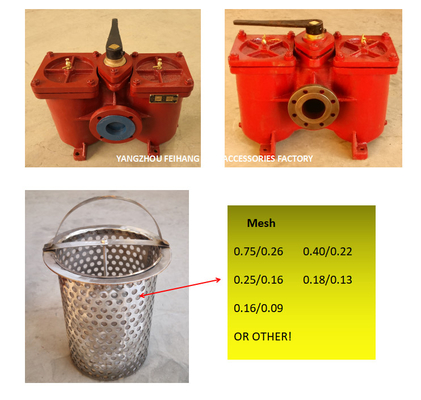

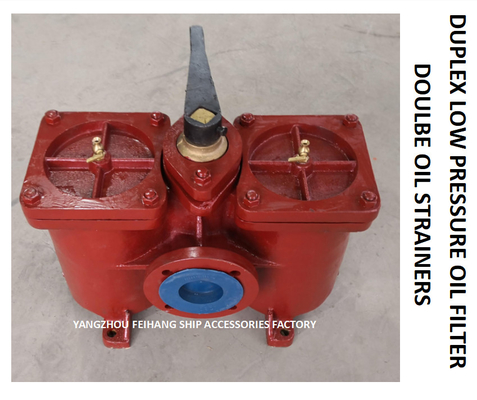

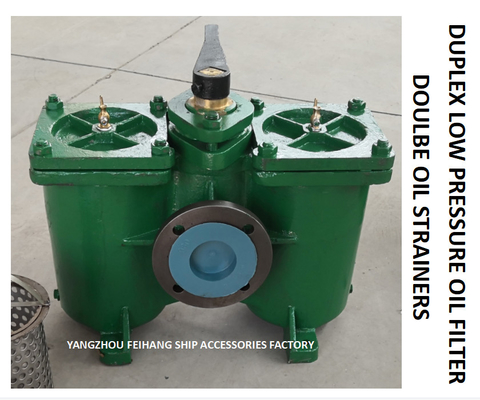

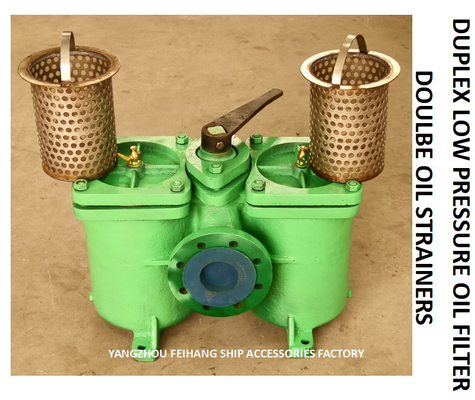

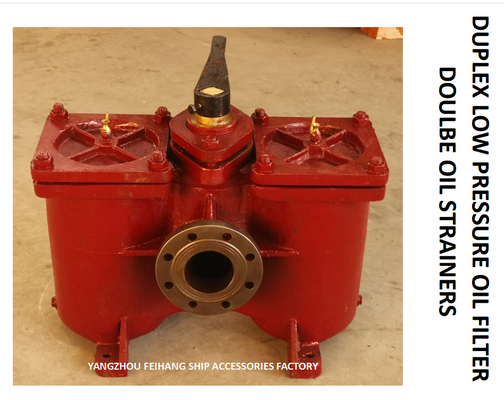

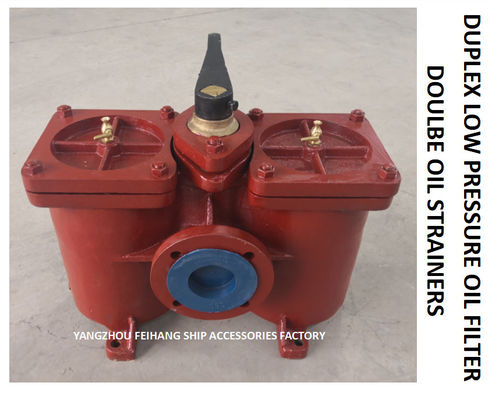

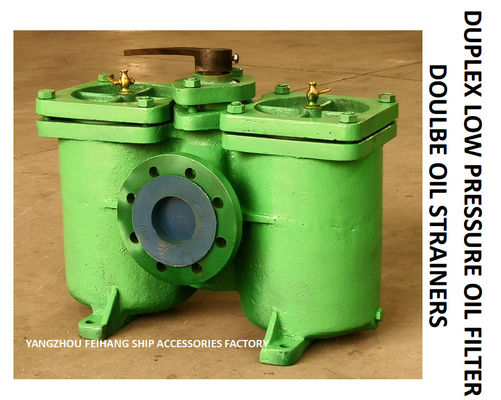

    DOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRIDOUBLE CRUDE OIL FILTER FOR DIESEL OIL SEPARATOR INLET MODEL: AS80-0.4/0.22 CB / T425-1994 BODY: CAST IRON FILTER CARTRI

    Competitive advantage:





    1. Factory direct sale, competitive price.

    2. Customized Service: We can customize, to customers drawings for processing. We are flexible and capable Supplier.

    3. Genuine Product with Excellent Quality: Our Product are strictly complied with China Compulsory Certification. 100% guarantee test before delivery.

    4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

    5. Delivery Time: after receiving the payment within 24-72 hours to Timely arrange raw materials, processing, production, and timely delivery.







    Advantages:





    1. Excellent and high quality control

    2. Fast delivery

    3. Competitive price

    4. Small order accepted

    5. Customers' drawing or samples accepted

    6.Assembly line production process, assembly line depth sounding equipment







    Delivery time is approx:





    1. We will test them strictly before shipping.

    2. We will ship it in 1-3 working days after your paying.as to the shipping time,it usually will be 6- 12 days,which will be different for different countries.

    3.You can choose DHL, UPS, TNT and other international express for delivery. At the same time, it can also be sent to the freight forwarder designated by the customer (anywhere in China)







    FAQ:



    1. How about your price?

    We specialize in customized high-quality promotional items for you and can help you meet any requirement with the most reasonable price

    2. Can you produce the product as our sample or design?

    Yes,we can.OEM&ODM are welcome. As long as you give us the detailed specific requirement,we can absolutely make the same samples and send to you for approval.



    3. Could you send me all your catalogues and price list?

    We have over thousands of products. it is really too hard for us to send you all our

    catalogue and price list for you, please let us know the items, size details which you

    are interested in, so we can offer you the price list for you reference.







    Packaging & Shipping:

    Shipping by sea or air Express by DHL, FEDEX,UPS,TNT and so on Packed in standard exporting carton or as your request







    TipsTips:

    1. Please make sure your address informations correct ,so the parts can safe delivery.

    2. When you place orders,please inform me how to make the Commercial invoice(Customs invoice).



    3. Customers please leave your contact details,such as e-mail address,mobile no.,when I take delivery,I need the above information,Thanks.



    If you have any question,pls feel free to contact us,we are always at your service.



    Contact Details
    Yangzhou FeiHang Ship Accessories Factory

    Contact Person: Mr. HAN

    Tel: 86-0514-86342693

    Fax: 86-0514-86342693

    Email: ftship@163.com

    Send your inquiry directly to us (0 / 3000)
